机械式恒温器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 电路 | 切换温度 | 复位温度 | 电流额定值 - 交流 | 电流额定值 - 直流 | 容差 | 切换周期 | 端接样式 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M-TRS5-10BTHERMOSTAT 10DEG C SPST-NC AXIAL |
1,987 |
|
数据手册 |
TRS™ | Axial | Tray | Last Time Buy | SPST-NC | 50°F (10°C) | - | 0.55A (140V) | 0.55A (200V) | ±4.5°F (±2.5°C) | 100K | Wire Leads | Through Hole |
|
|
M-TRS5-40BTHERMOSTAT 40DEG C SPST-NC AXIAL |
2,254 |
|
数据手册 |
TRS™ | Axial | Tray | Last Time Buy | SPST-NC | 104°F (40°C) | - | 0.55A (140V) | 0.55A (200V) | ±4.5°F (±2.5°C) | 100K | Wire Leads | Through Hole |
|
|
M-TRS5-M10BTHERMOSTAT -10DEG C SPST-NC AXL |
4,076 |
|
数据手册 |
TRS™ | Axial | Bulk | Last Time Buy | SPST-NC | 14°F (-10°C) | - | 0.55A (140V) | 0.55A (200V) | ±4.5°F (±2.5°C) | 100K | Wire Leads | Through Hole |
|
|
M-TRS5-60BTHERMOSTAT 60DEG C SPST-NC AXIAL |
4,885 |
|
数据手册 |
TRS™ | Axial | Tray | Last Time Buy | SPST-NC | 140°F (60°C) | - | 0.55A (140V) | 0.55A (200V) | ±4.5°F (±2.5°C) | 100K | Wire Leads | Through Hole |
|
66F100THERMOSTAT 100DEG C SPST-NO 8DIP |
100 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NO | 212°F (100°C) | 158°F (70°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L105THERMOSTAT 105DEG C SPST-NC 8DIP |
100 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 221°F (105°C) | 158°F (70°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L040THERMOSTAT 40DEG C SPST-NC 8DIP |
2,337 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Tube | Active | SPST-NC | 105°F (40°C) | 68°F (20°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
|
66L085-0411THERMOSTAT 85DEG C SPST-NC 8DIP |
3,436 |
|
数据手册 |
6600 | 8-DIP (0.300", 7.62mm), 4 Leads | Bulk | Active | SPST-NC | 185°F (85°C) | 131°F (55°C) | 1A (120V) | 1A (48V) | ±9°F (±5°C) | 25K | PC Pins | Through Hole |
|
SE-L280-2503/4" DISC THERMOSTAT, 25AMP |
100 |
|
数据手册 |
SE T10 | Cylinder with Mounting Flange | Bulk | Active | - | - | - | 25A (120V), 25A (240V) | - | ±7.2°F (±4°C) | 100K | Quick Connect | Chassis Mount |
|
|
SE-L160-D3/4" DISC THERMOSTAT, 25AMP |
100 |
|
数据手册 |
SE T10 | Cylinder with Mounting Flange | Bulk | Active | - | 160°F (71°C) | - | 25A (120V), 25A (240V) | - | ±7.2°F (±4°C) | 100K | Quick Connect | Chassis Mount |
|
SES-L275H3/4" DISC THERMOSTAT, 25AMP |
100 |
|
数据手册 |
SES T11 | Cylinder with Mounting Flange | Bulk | Active | - | 275°F (135°C) | - | 25A (120V), 25A (240V) | - | ±7.2°F (±4°C) | 100K | Quick Connect | Chassis Mount |
|
|
SE-F1403/4" DISC THERMOSTAT, 25AMP |
3,933 |
|
数据手册 |
SE T10 | Cylinder with Mounting Flange | Bulk | Active | - | 140°F (60°C) | - | 25A (120V), 25A (240V) | - | ±5.4°F (±3°C) | 100K | Quick Connect | Chassis Mount |
|
SES-L1103/4" DISC THERMOSTAT, 25AMP |
2,467 |
|
数据手册 |
SES T11 | Cylinder with Mounting Flange | Bulk | Active | - | 109°F (43°C) | - | 25A (120V), 25A (240V) | - | ±7.2°F (±4°C) | 100K | Quick Connect | Chassis Mount |
|

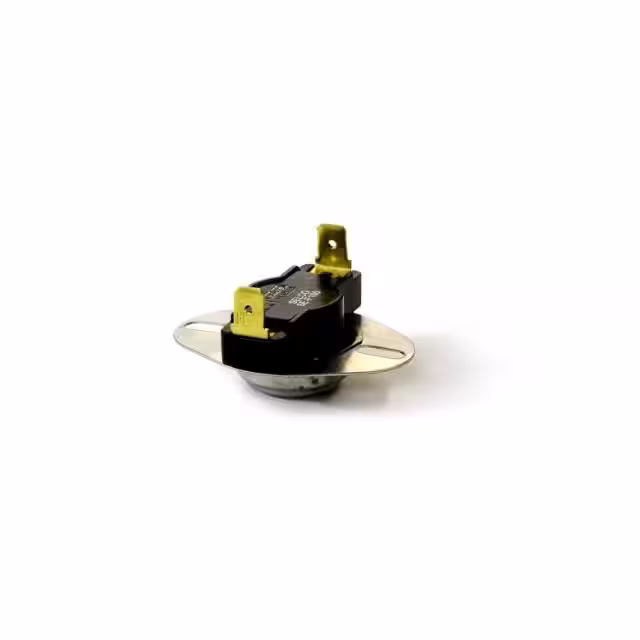

SE-L1203/4" DISC THERMOSTAT, 25AMP |
3,498 |
|
数据手册 |
SE T10 | Cylinder with Mounting Flange | Bulk | Active | - | 120°F (49°C) | - | 25A (120V), 25A (240V) | - | ±7.2°F (±4°C) | 100K | Quick Connect | Chassis Mount |
|
2455R--00820714Thermostat Switch, Quick Connect |
4,115 |
|
数据手册 |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - |
|
|
3450 84780051CERAMIC MANUAL RESET THERMOSTAT |
4,015 |
|
数据手册 |
- | - | Bulk | Active | - | - | - | 8A (120V) | - | - | 100K | - | - |
|
CAP-85-230BULB AND CAPILLARY THERMOSTAT |
2,118 |
|
数据手册 |
CAP | Module | Bulk | Active | SPST-NC | 230°F (110°C) | - | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±7.2°F (±4°C) | 100K | Quick Connect | Chassis Mount |
|
|
CAP-85-195BULB AND CAPILLARY THERMOSTAT |
4,816 |
|
数据手册 |
CAP | Module | Bulk | Active | SPST-NC | 194°F (90°C) | - | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±37°F (±3°C) | 100K | Quick Connect | Chassis Mount |
|
|
CAP-122-483BULB AND CAPILLARY THERMOSTAT |
4,727 |
|
数据手册 |
CAP | Module | Bulk | Active | SPST-NC | 482°F (250°C) | - | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±48°F (±9°C) | 100K | Quick Connect | Chassis Mount |
|

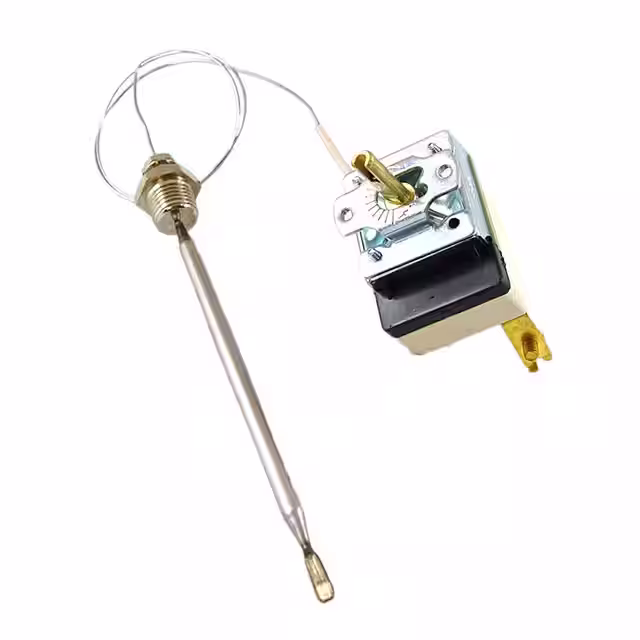

CAP-60-150-SSBULB AND CAPILLARY THERMOSTAT |
1,197 |
|
数据手册 |
CAP | Module | Bulk | Active | SPST-NC | 150°F (66°C) | - | 2.9A (240V), 5A (120V), 20A (120V), 20A (240V) | - | ±37°F (±3°C) | 100K | Quick Connect | Chassis Mount |
