| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

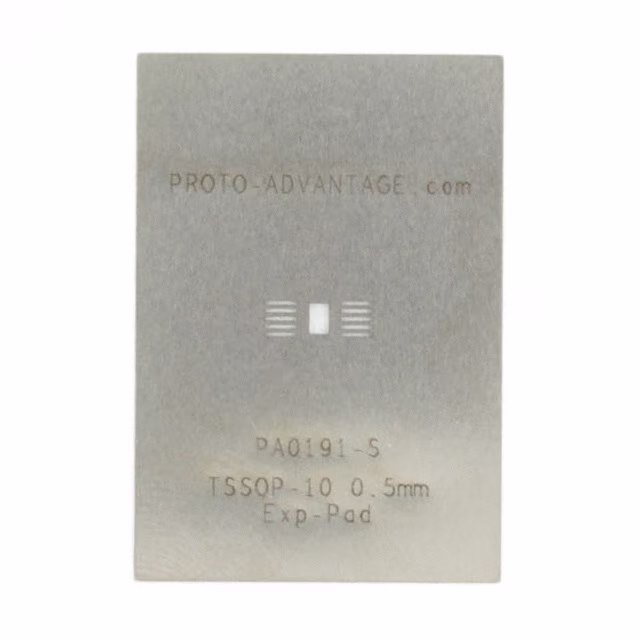

PA0191-STSSOP-10-EXP-PAD STENCIL |
2,733 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSSOP | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.354" L x 0.069" W (9.00mm x 1.75mm) | Stainless Steel |
|
PA0193-STSSOP-16-EXP-PAD STENCIL |
3,098 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSSOP | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.173" W (5.00mm x 4.40mm) | 0.433" L x 0.118" W (11.00mm x 3.00mm) | Stainless Steel |
|

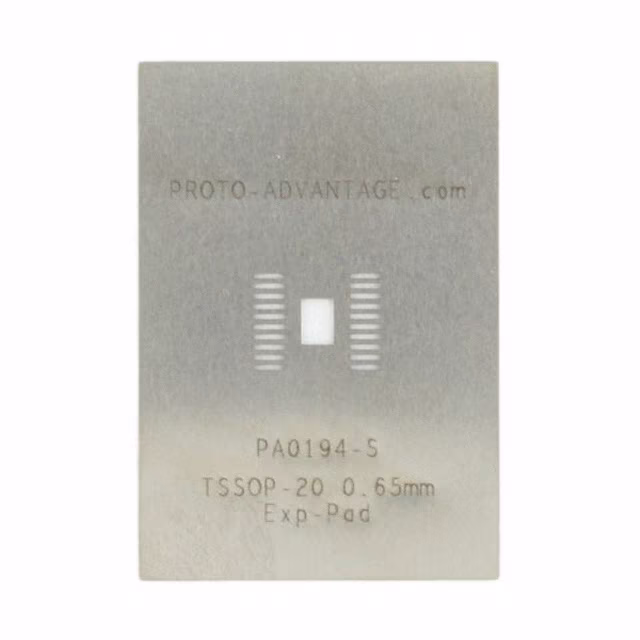

PA0194-STSSOP-20-EXP-PAD STENCIL |
2,290 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSSOP | 20 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.256" L x 0.173" W (6.50mm x 4.40mm) | 0.492" L x 0.118" W (12.50mm x 3.00mm) | Stainless Steel |
|
PA0120-SCSP-32/TCSP-32 STENCIL |
1,159 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | CSP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.217" L x 0.177" W (5.50mm x 4.50mm) | - | Stainless Steel |
|

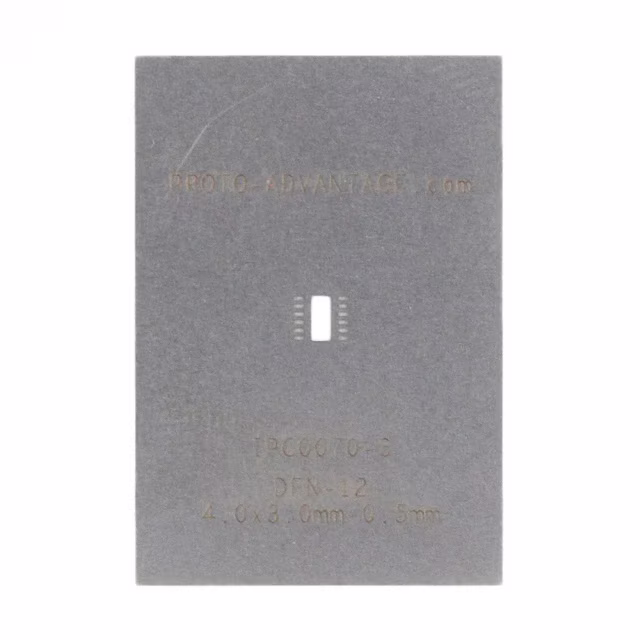

IPC0070-SDFN-12 STENCIL |
1,925 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.130" L x 0.067" W (3.30mm x 1.70mm) | Stainless Steel |
|

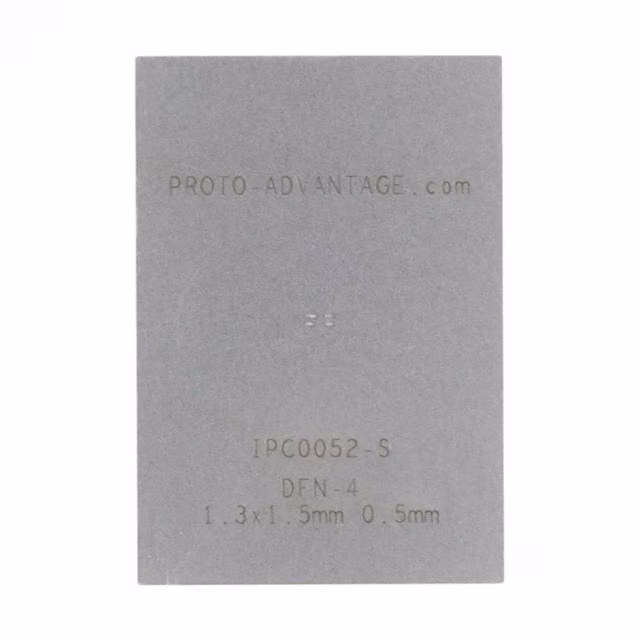

IPC0052-SDFN-4 STENCIL |
1,148 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | DFN | 4 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.059" L x 0.051" W (1.50mm x 1.30mm) | - | Stainless Steel |
|

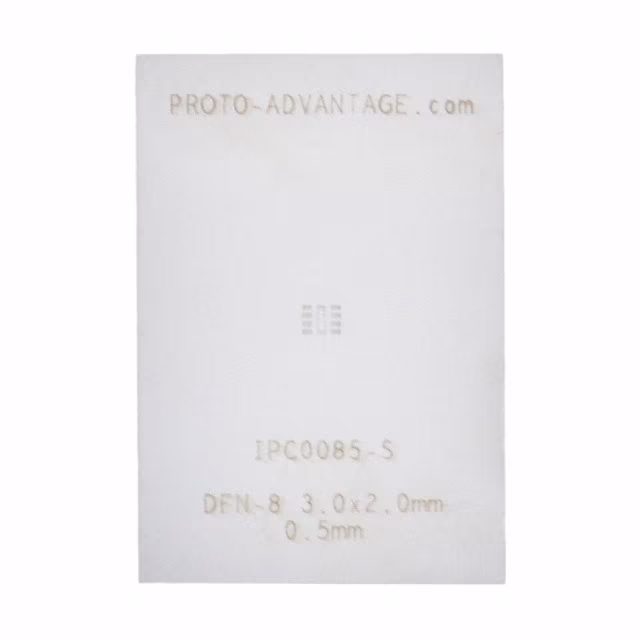

IPC0085-SDFN-8 STENCIL |
2,967 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.079" W (3.00mm x 2.00mm) | 0.085" L x 0.022" W (2.15mm x 0.56mm) | Stainless Steel |
|
FPC050P030-SFPC/FFC SMT CONN STENCIL |
2,389 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 30 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.898" L x 0.157" W (22.80mm x 4.00mm) | Stainless Steel |
|

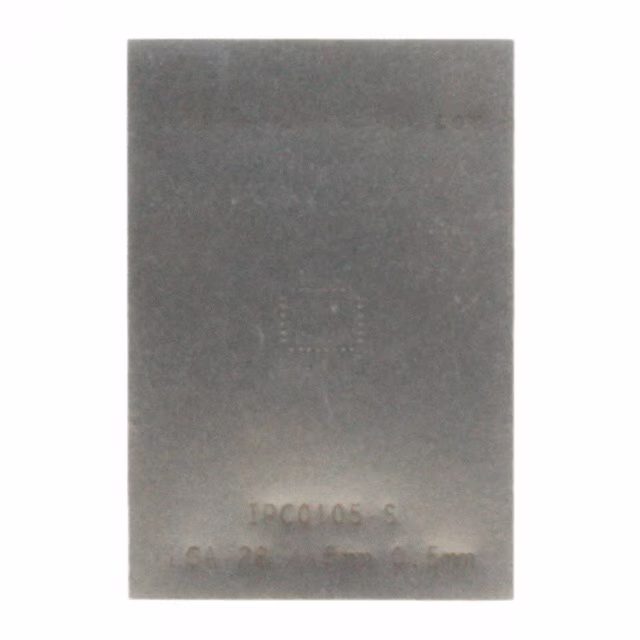

IPC0105-SLGA-28 STENCIL |
2,047 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | LGA | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | - | Stainless Steel |
|

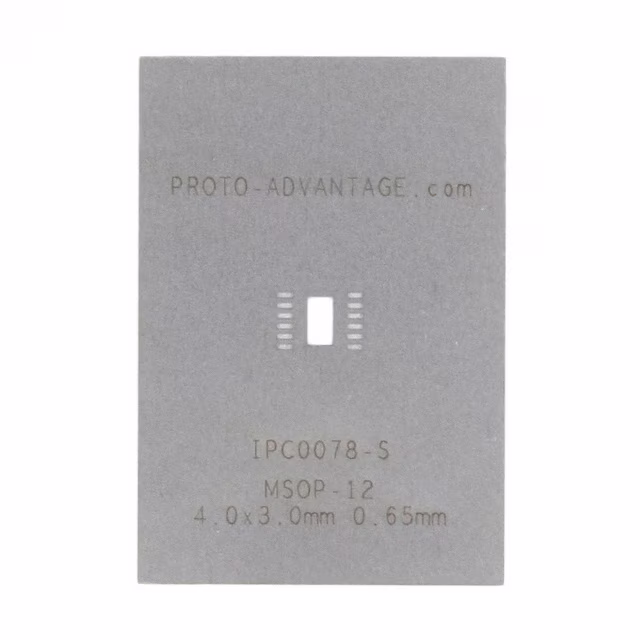

IPC0078-SMSOP-12 STENCIL |
2,066 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | MSOP | 12 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.118" L x 0.063" W (3.00mm x 1.60mm) | Stainless Steel |
|

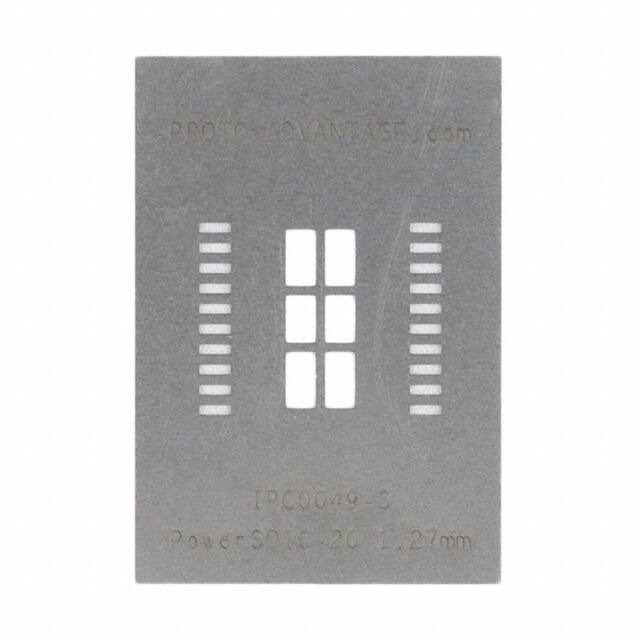

IPC0049-SPOWERSOIC-20/PSOP-20/HSOP-20 STE |
3,192 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 20 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | 0.630" L x 0.244" W (16.00mm x 6.20mm) | Stainless Steel |
|

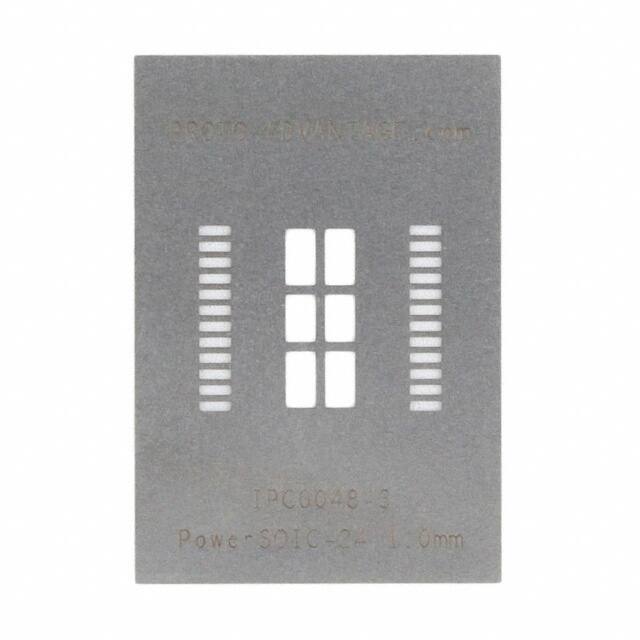

IPC0048-SPOWERSOIC-24/PSOP-24/HSOP-24 STE |
4,762 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 24 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | 0.630" L x 0.244" W (16.00mm x 6.20mm) | Stainless Steel |
|
IPC0047-SPOWERSOIC-36/PSOP-36/HSOP-36 STE |
1,233 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 36 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | 0.630" L x 0.244" W (16.00mm x 6.20mm) | Stainless Steel |
|
PA0114-SQFP-80 STENCIL |
2,882 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | PQFP | 80 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

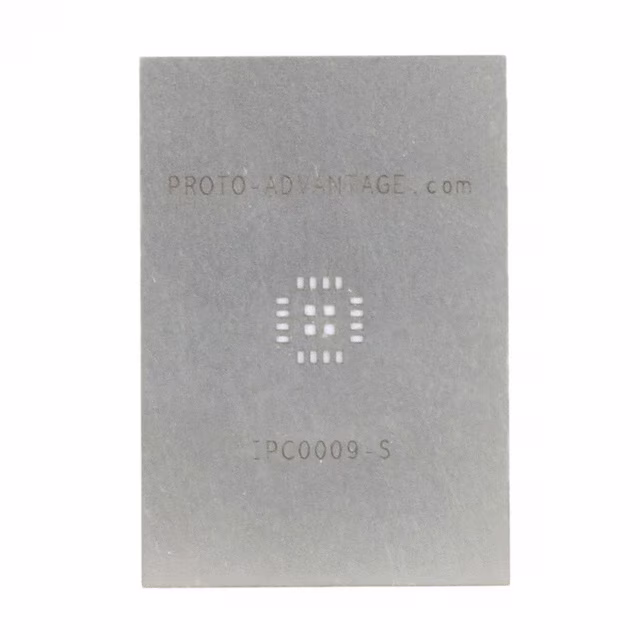

IPC0009-SQFN-16 STENCIL |
1,710 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.106" L x 0.106" W (2.70mm x 2.70mm) | Stainless Steel |
|

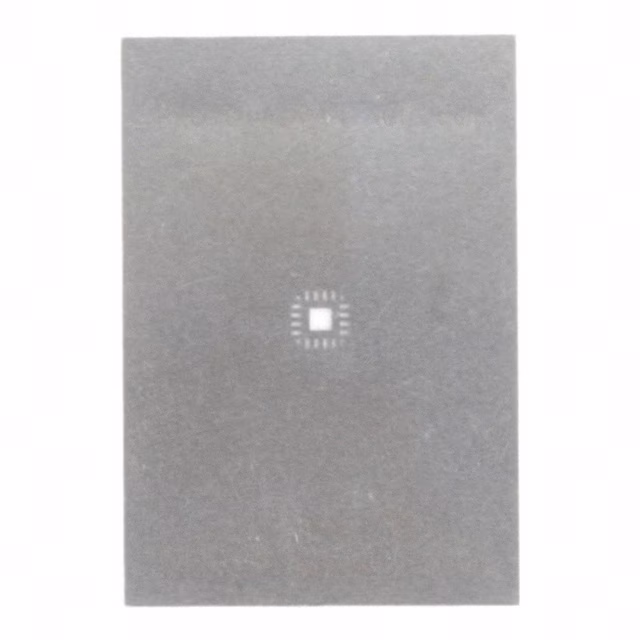

IPC0113-SQFN-20 STENCIL |
2,906 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.067" L x 0.067" W (1.70mm x 1.70mm) | Stainless Steel |
|
IPC0107-SQFN-24 STENCIL |
4,400 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.087" L x 0.087" W (2.20mm x 2.20mm) | Stainless Steel |
|

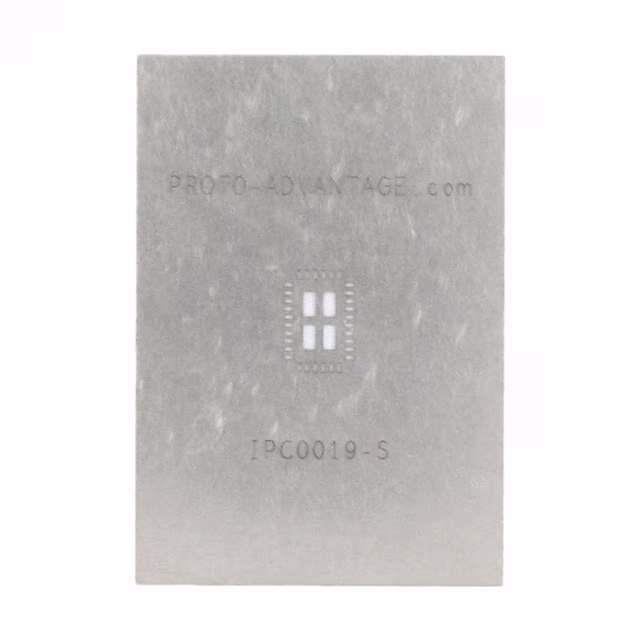

IPC0019-SQFN-32 STENCIL |
4,284 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.157" W (6.00mm x 4.00mm) | 0.177" L x 0.098" W (4.50mm x 2.50mm) | Stainless Steel |
|

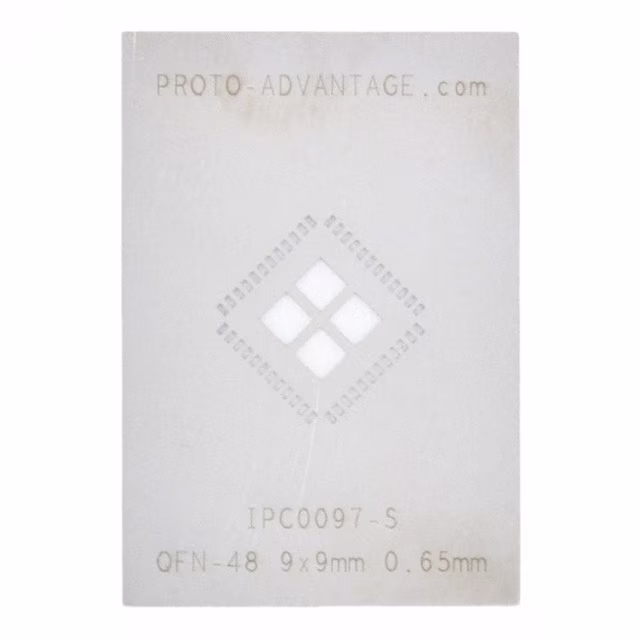

IPC0097-SQFN-48 STENCIL |
3,219 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 48 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.354" W (9.00mm x 9.00mm) | 0.268" L x 0.268" W (6.80mm x 6.80mm) | Stainless Steel |
|
PA0030-SQSOP-24 STENCIL |
2,245 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QSOP | 24 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
