焊接模板、模版
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0036-SQFN-10 STENCIL |
4,971 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.083" L x 0.063" W (2.10mm x 1.60mm) | - | Stainless Steel |
|
IPC0038-SQFN-12 STENCIL |
1,716 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.055" L x 0.055" W (1.40mm x 1.40mm) | Stainless Steel |
|

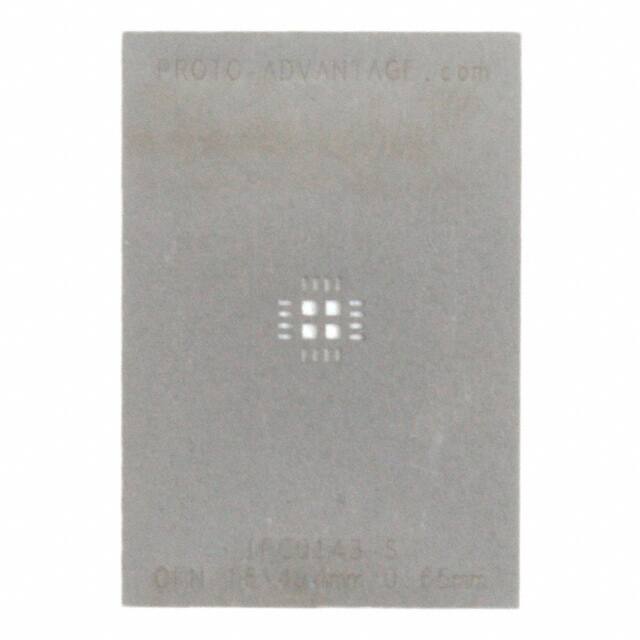

IPC0143-SQFN-16 STENCIL |
4,668 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.106" L x 0.106" W (2.70mm x 2.70mm) | Stainless Steel |
|
IPC0100-SQFN-32 STENCIL |
1,191 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 32 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | Stainless Steel |
|

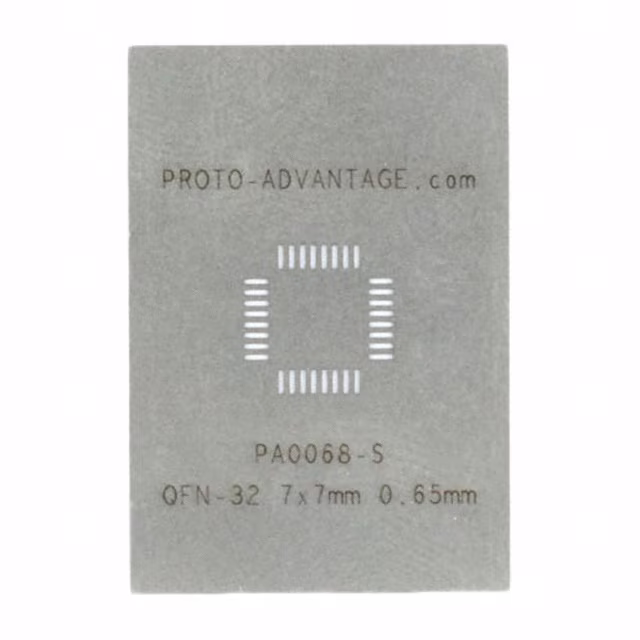

PA0068-SQFN-32 STENCIL |
2,951 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 32 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

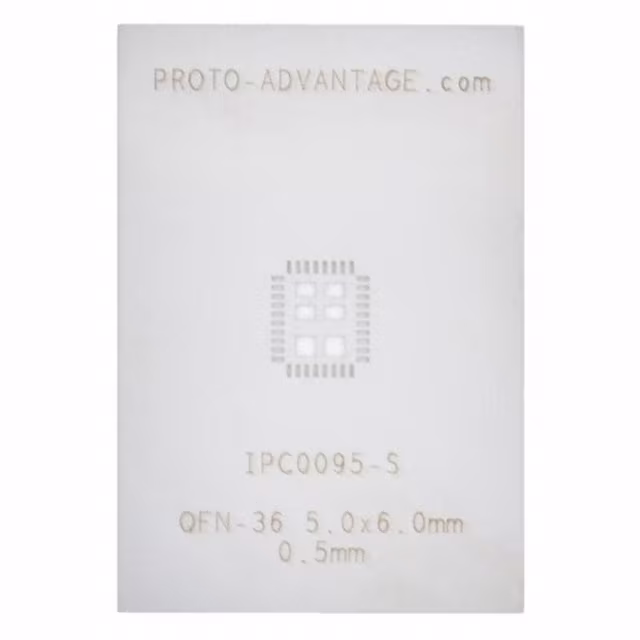

IPC0095-SQFN-36 STENCIL |
2,185 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 36 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.180" L x 0.136" W (4.57mm x 3.45mm) | Stainless Steel |
|

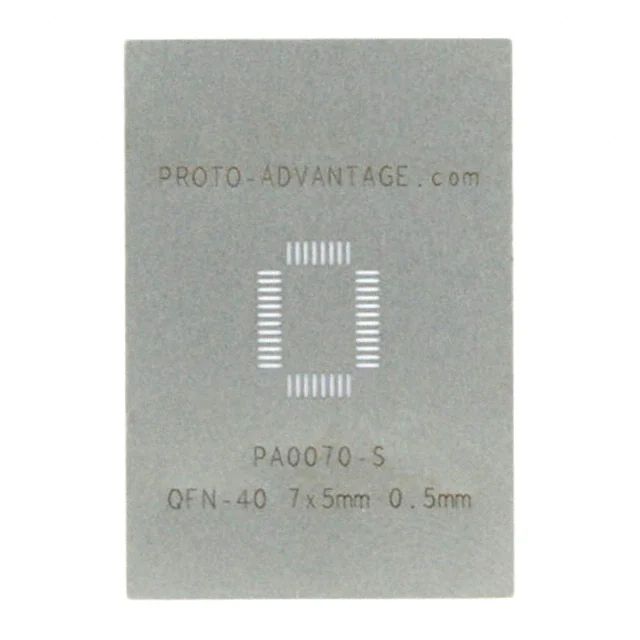

PA0070-SQFN-40 STENCIL |
1,071 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | - | Stainless Steel |
|

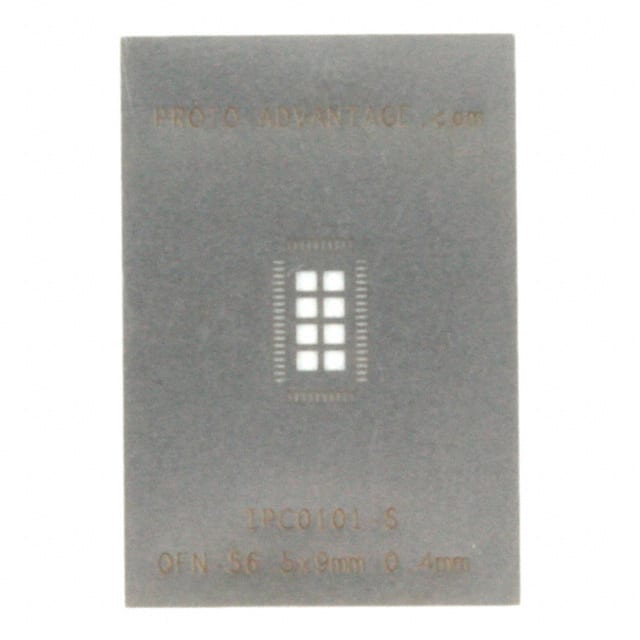

IPC0101-SQFN-56 STENCIL |
1,799 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 56 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.354" L x 0.197" W (9.00mm x 5.00mm) | 0.281" L x 0.136" W (7.13mm x 3.45mm) | Stainless Steel |
|

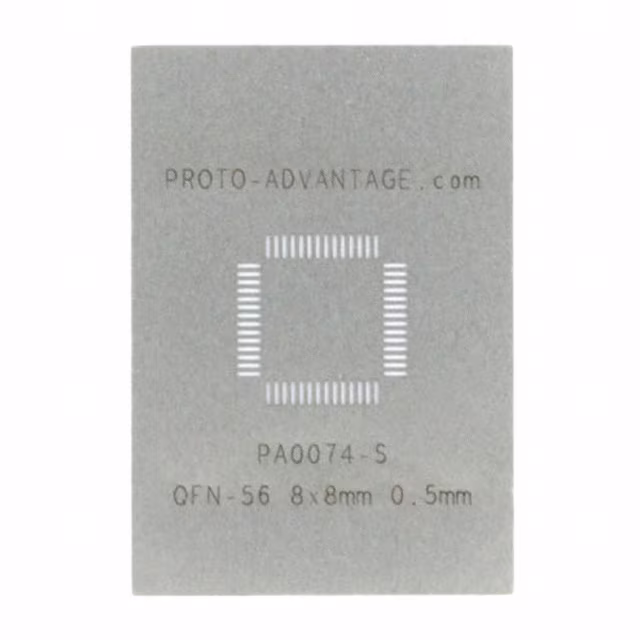

PA0074-SQFN-56 STENCIL |
4,786 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 56 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | - | Stainless Steel |
|

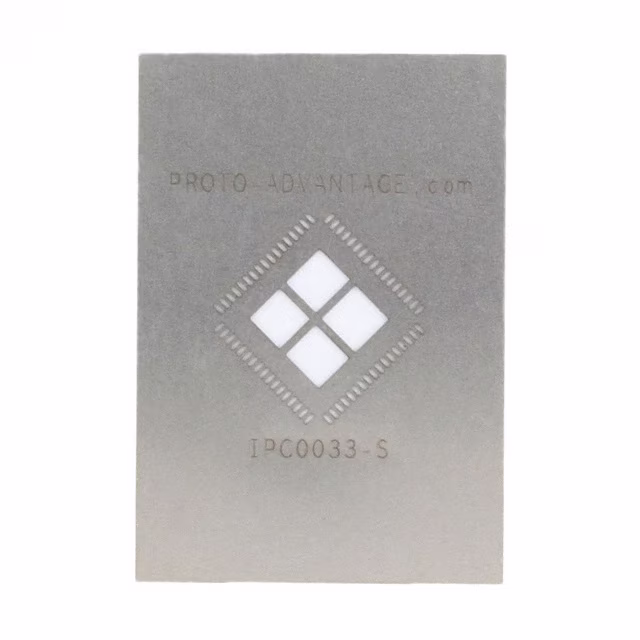

IPC0033-SQFN-68 STENCIL |
1,530 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 68 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.303" L x 0.303" W (7.70mm x 7.70mm) | Stainless Steel |
|

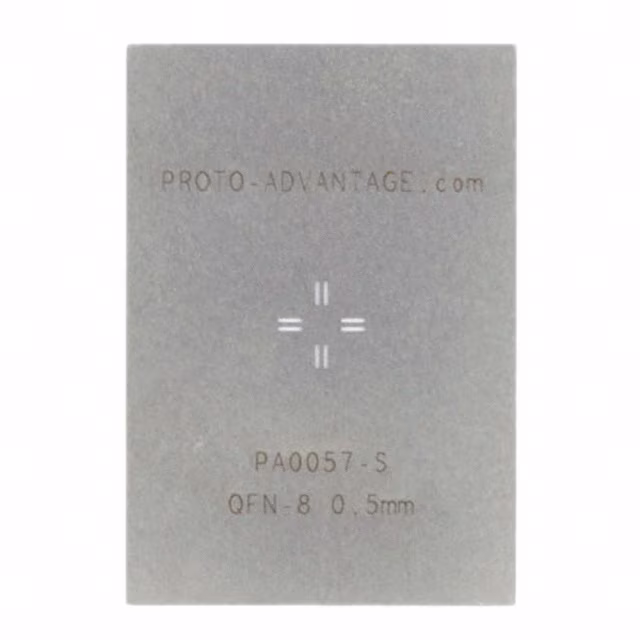

PA0057-SQFN-8 STENCIL |
4,295 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
|

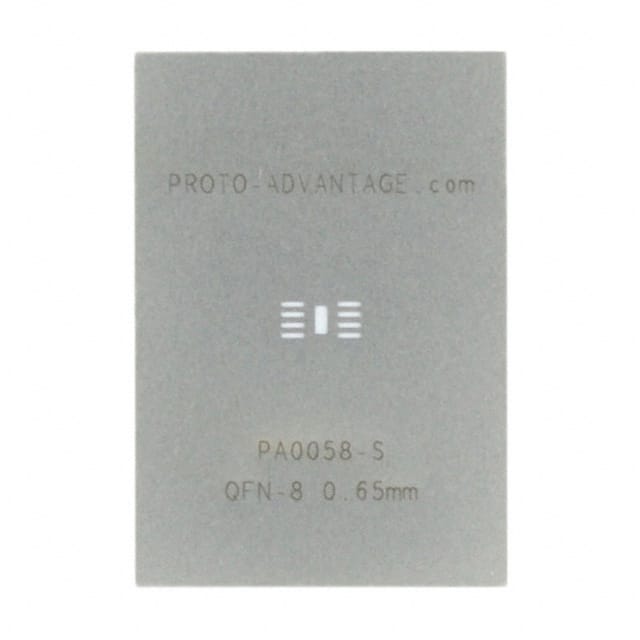

PA0058-SQFN-8 STENCIL |
3,885 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.197" L x 0.039" W (5.00mm x 1.00mm) | Stainless Steel |
|

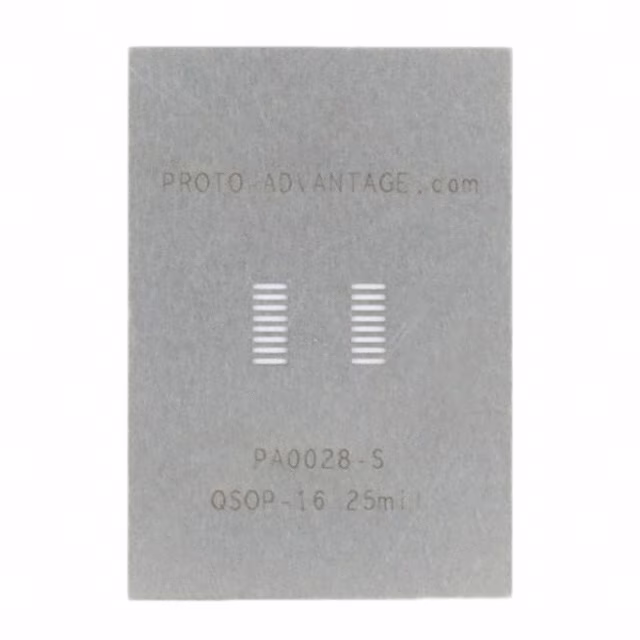

PA0028-SQSOP-16 STENCIL |
1,541 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QSOP | 16 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

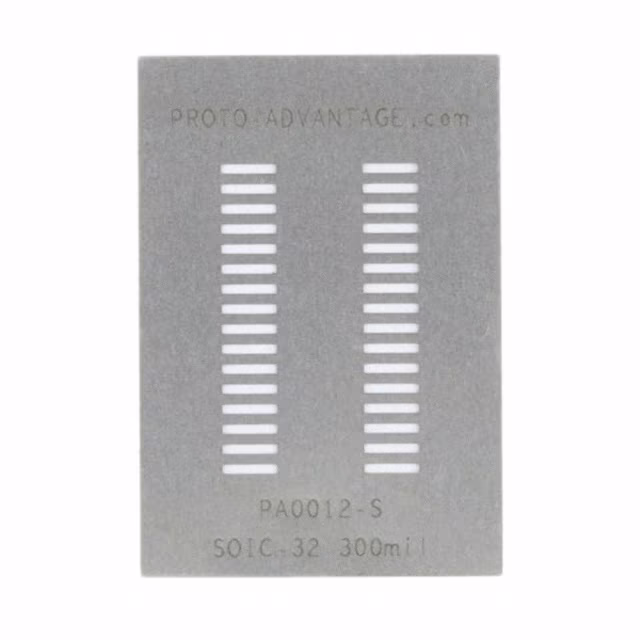

PA0012-SSOIC-32 STENCIL |
3,052 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOIC | 32 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

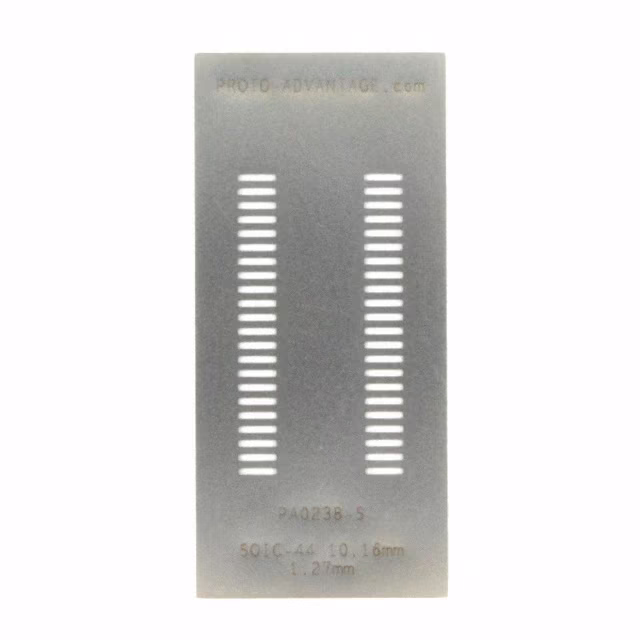

PA0238-SSOIC-44 STENCIL |
1,636 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOIC | 44 | 0.050" (1.27mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
|

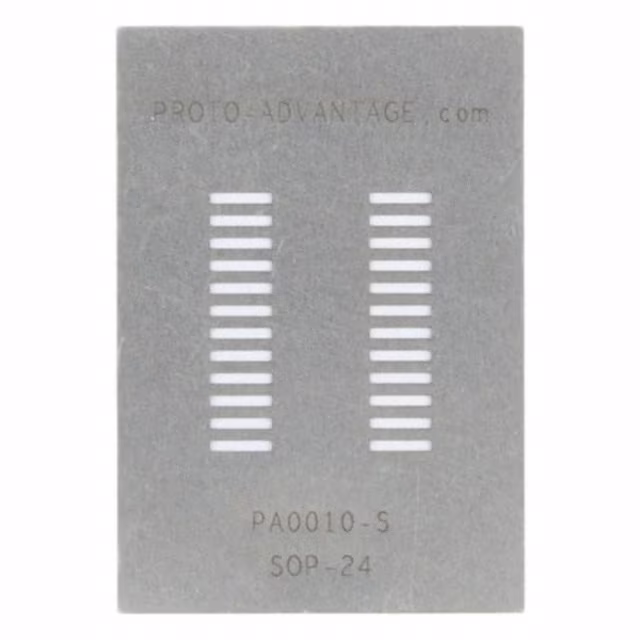

PA0010-SSOP-24 STENCIL |
2,025 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOP | 24 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

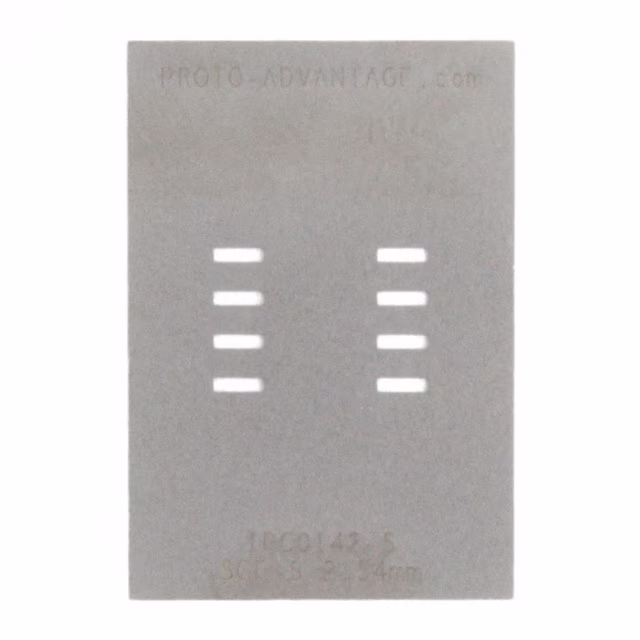

IPC0142-SSOP-8 STENCIL |
4,217 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | SOP | 8 | 0.100" (2.54mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.374" L x 0.261" W (9.50mm x 6.62mm) | - | Stainless Steel |
|
PA0178-SSOT-563F STENCIL |
2,011 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOT/SC | 6 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.059" L x 0.047" W (1.50mm x 1.20mm) | - | Stainless Steel |
|

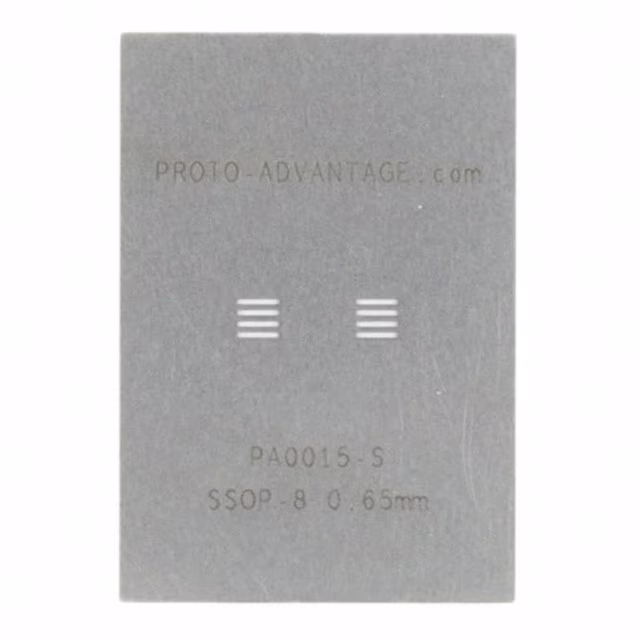

PA0015-SSSOP-8 STENCIL |
4,406 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SSOP | 8 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

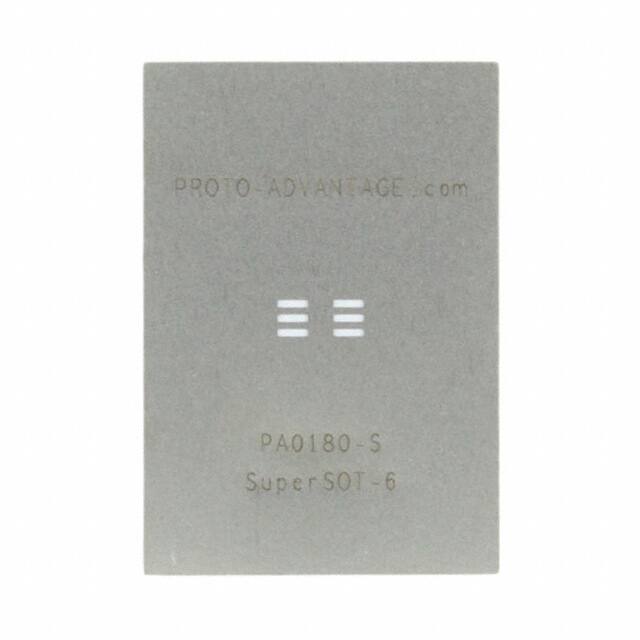

PA0180-SSUPERSOT-6/TSOT-6 STENCIL |
2,996 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOT/SC | 6 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.059" W (3.00mm x 1.50mm) | - | Stainless Steel |
