上传BOM单
焊接模板、模版
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

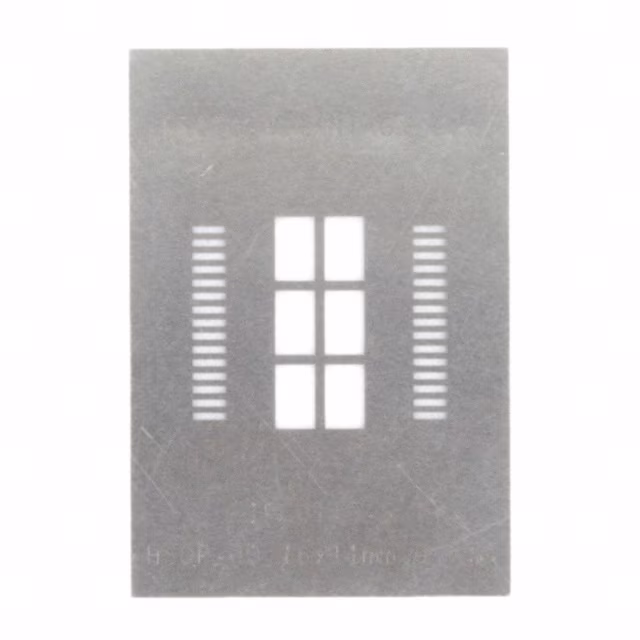

IPC0116-SHSOP-30 STENCIL |
3,417 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | HSOP | 30 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | 0.630" L x 0.270" W (16.00mm x 6.85mm) | Stainless Steel |
|

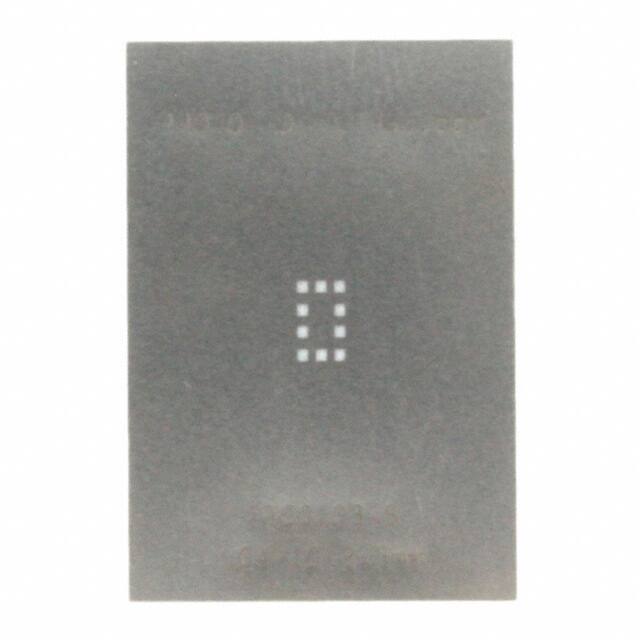

IPC0103-SLGA-10 STENCIL |
4,035 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | LGA | 10 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.118" W (5.00mm x 3.00mm) | - | Stainless Steel |
|

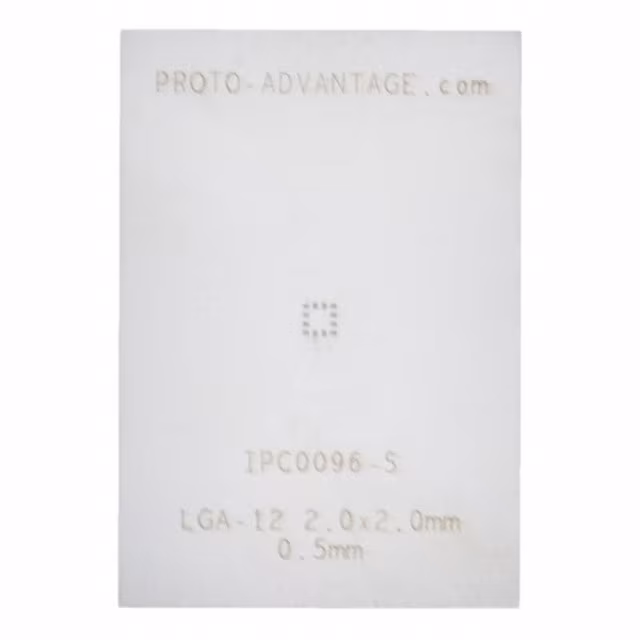

IPC0096-SLGA-12 STENCIL |
4,921 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | LGA | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.079" W (2.00mm x 2.00mm) | - | Stainless Steel |
|

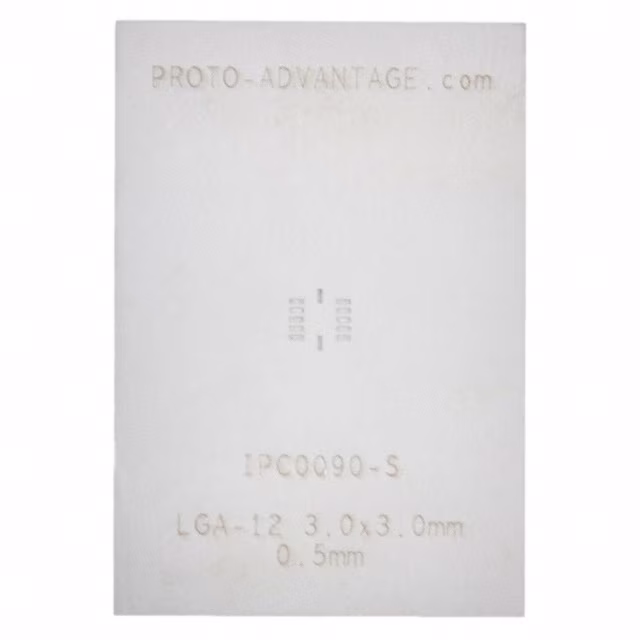

IPC0090-SLGA-12 STENCIL |
3,503 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | LGA | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
|

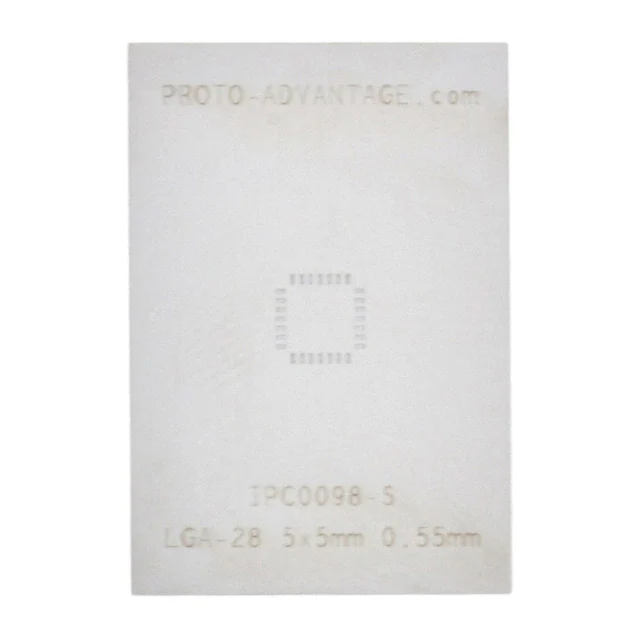

IPC0098-SLGA-28 STENCIL |
1,753 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | LGA | 28 | 0.022" (0.55mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
PA0140-SLLP-24 STENCIL |
1,258 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | - | Stainless Steel |
|

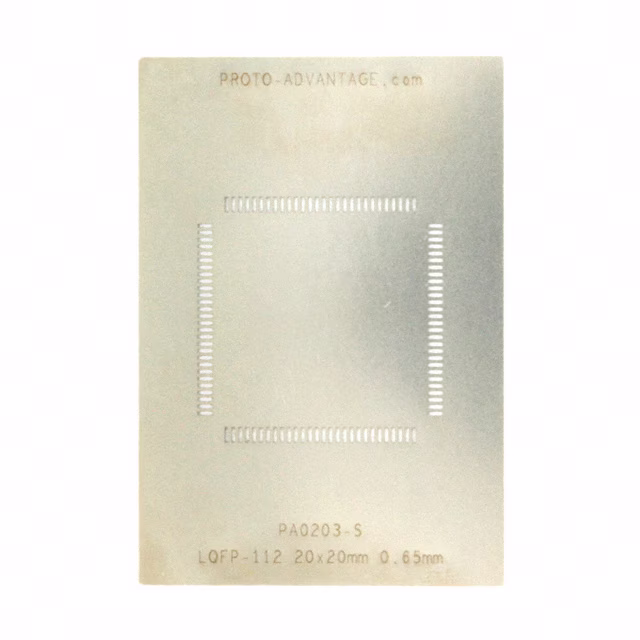

PA0203-SLQFP-112 STENCIL |
4,028 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LQFP | 112 | 0.026" (0.65mm) | 1.950" L x 1.350" W (49.53mm x 34.29mm) | 0.787" L x 0.787" W (20.00mm x 20.00mm) | - | Stainless Steel |
|
PA0053-SMLP/MLF-16 STENCIL |
3,369 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | MLP/MLF | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
|

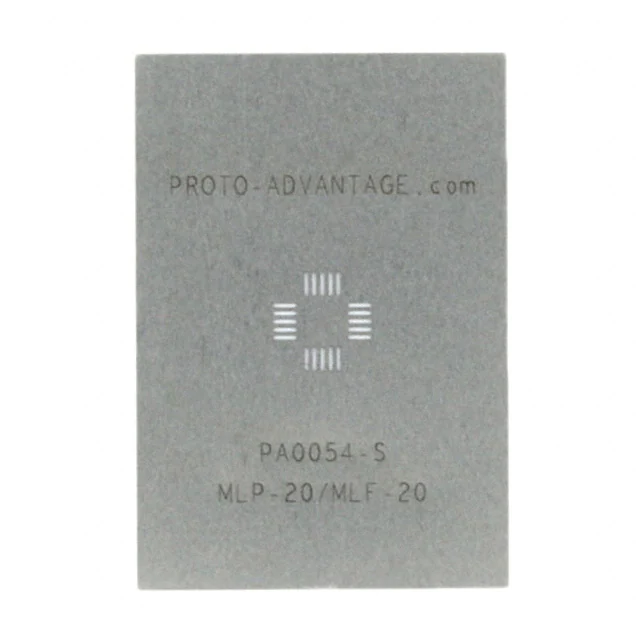

PA0054-SMLP/MLF-20 STENCIL |
3,759 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | MLP/MLF | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | Stainless Steel |
|

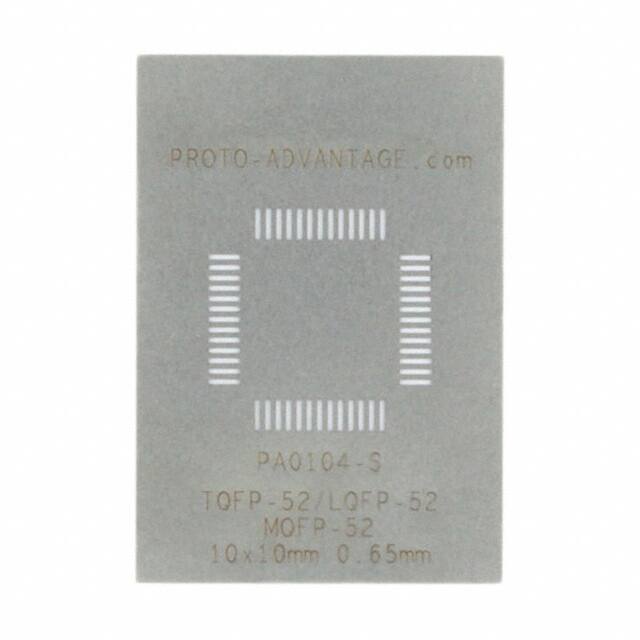

PA0104-SMQFP-52/TQFP-52/LQFP-52 STENCIL |
3,690 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | MQFP | 52 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel |
|

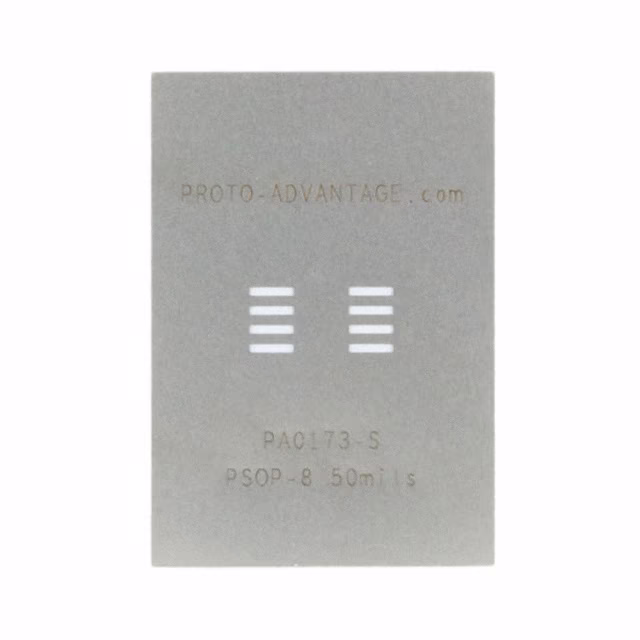

PA0173-SPSOP-8 STENCIL |
2,174 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | PSOP | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.194" L x 0.155" W (4.93mm x 3.94mm) | - | Stainless Steel |
|

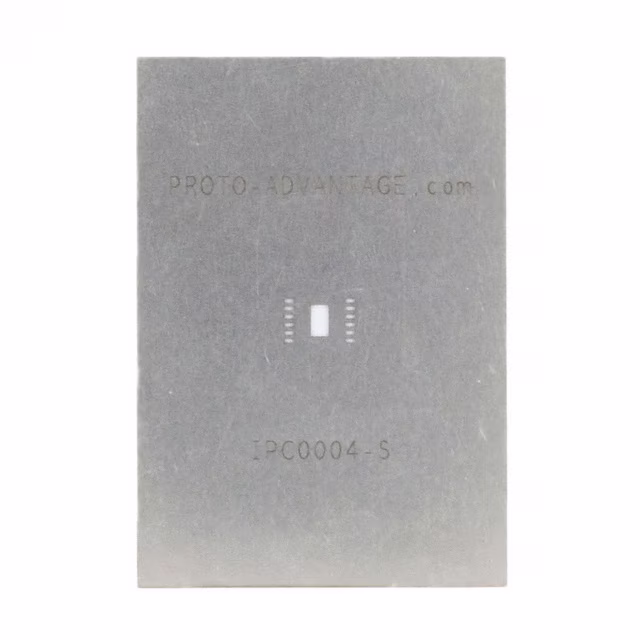

IPC0004-SQFN-12 STENCIL |
2,800 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.110" L x 0.062" W (2.80mm x 1.58mm) | Stainless Steel |
|

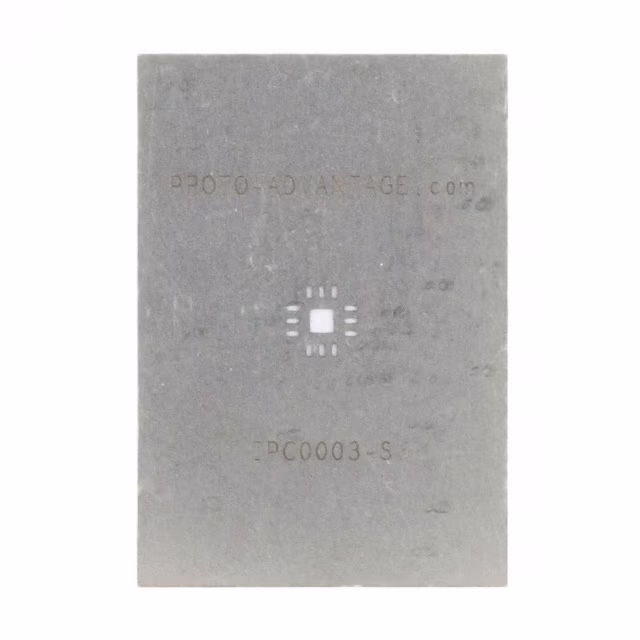

IPC0003-SQFN-12 STENCIL |
2,477 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 12 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.083" L x 0.083" W (2.10mm x 2.10mm) | Stainless Steel |
|

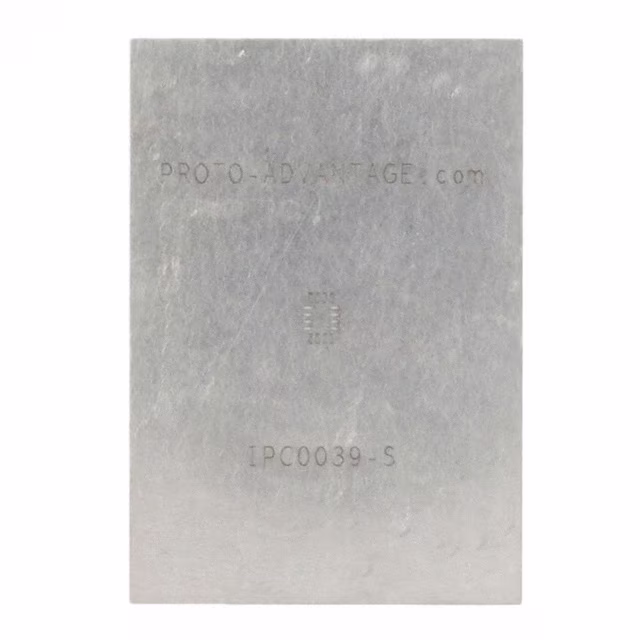

IPC0039-SQFN-16 STENCIL |
2,988 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.102" L x 0.071" W (2.60mm x 1.80mm) | - | Stainless Steel |
|

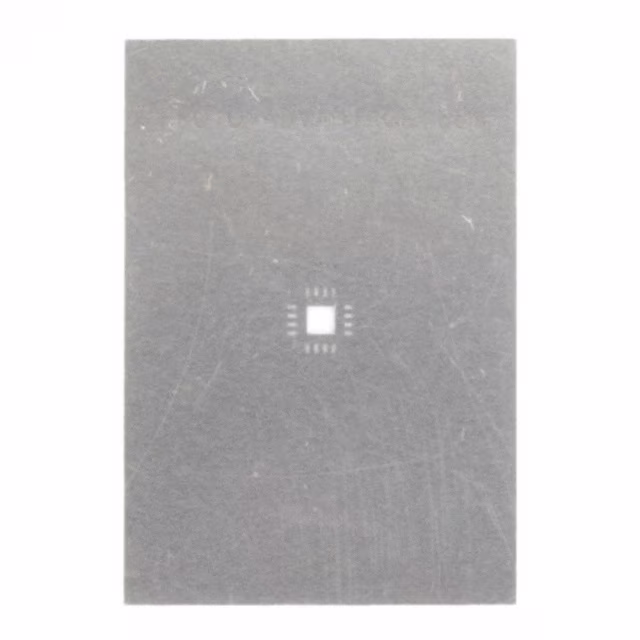

IPC0110-SQFN-16 STENCIL |
2,506 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.138" L x 0.138" W (3.50mm x 3.50mm) | 0.084" L x 0.084" W (2.14mm x 2.14mm) | Stainless Steel |
|

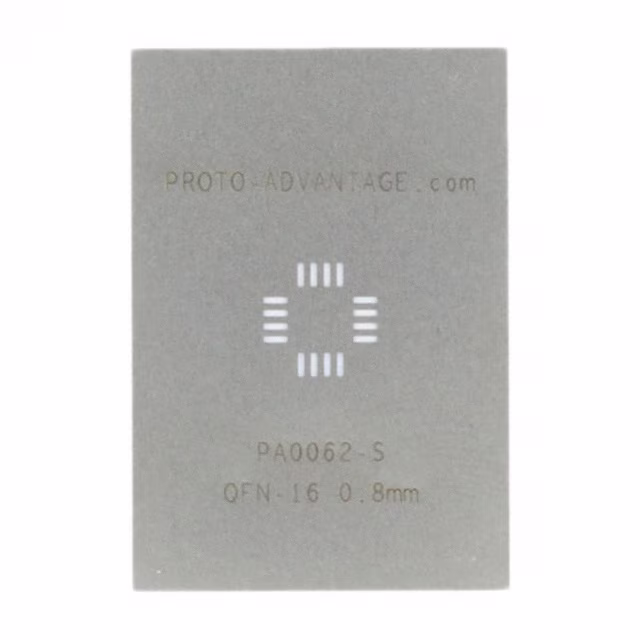

PA0062-SQFN-16 STENCIL |
2,570 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 16 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|

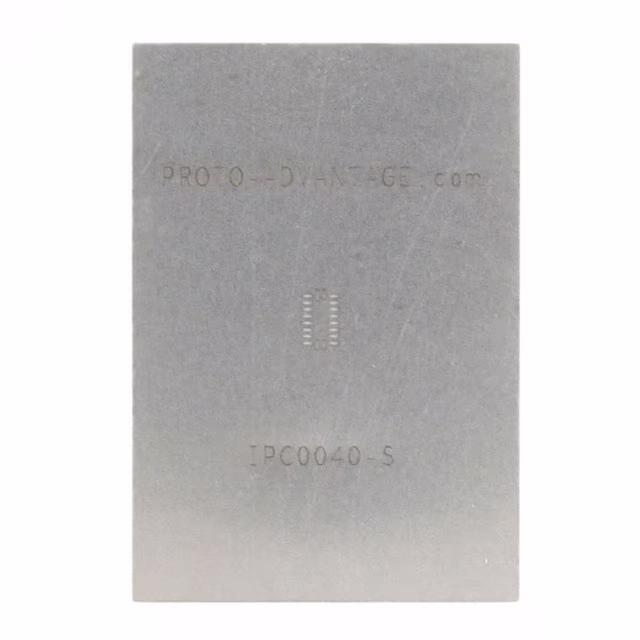

IPC0040-SQFN-20 STENCIL |
4,331 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.126" L x 0.071" W (3.20mm x 1.80mm) | - | Stainless Steel |
|
IPC0010-SQFN-20 STENCIL |
4,944 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.104" L x 0.065" W (2.65mm x 1.65mm) | Stainless Steel |
|

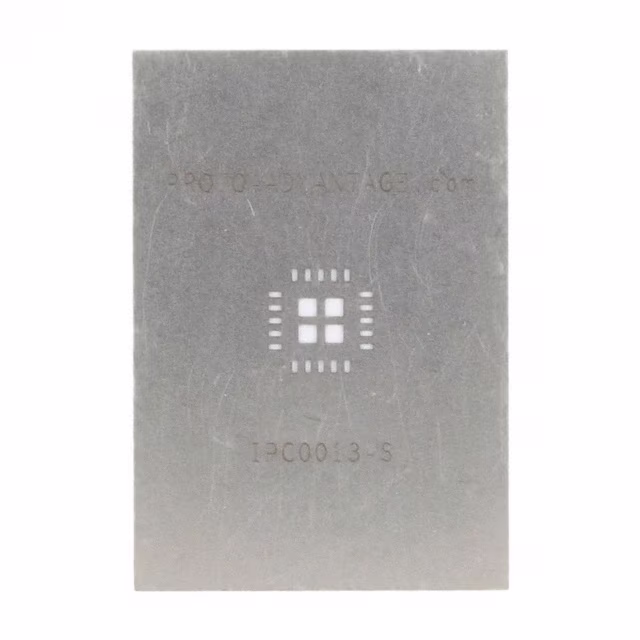

IPC0013-SQFN-20 STENCIL |
2,730 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.135" L x 0.135" W (3.43mm x 3.43mm) | Stainless Steel |
|

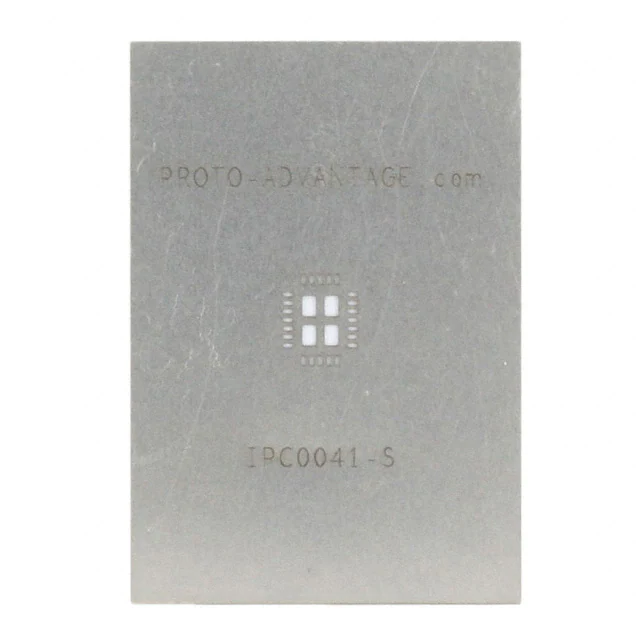

IPC0041-SQFN-24 STENCIL |
1,819 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.157" W (5.00mm x 4.00mm) | 0.144" L x 0.104" W (3.65mm x 2.65mm) | Stainless Steel |
