| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

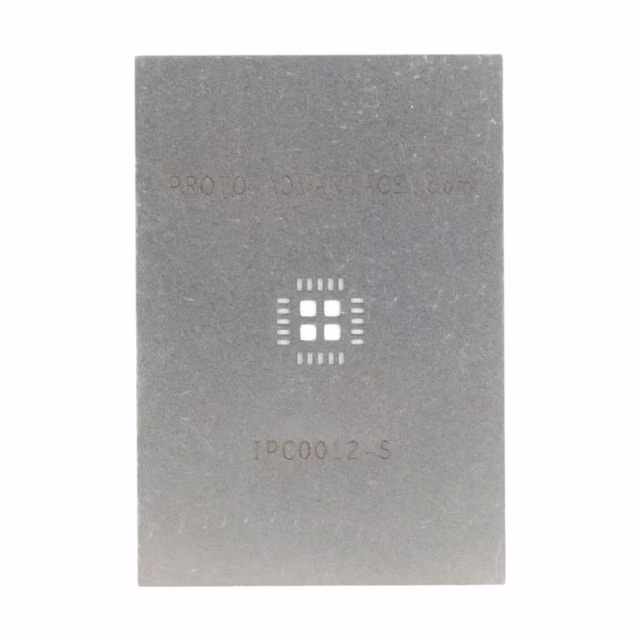

IPC0012-SQFN-20 STENCIL |
3,310 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | 0.122" L x 0.122" W (3.10mm x 3.10mm) | Stainless Steel |
|

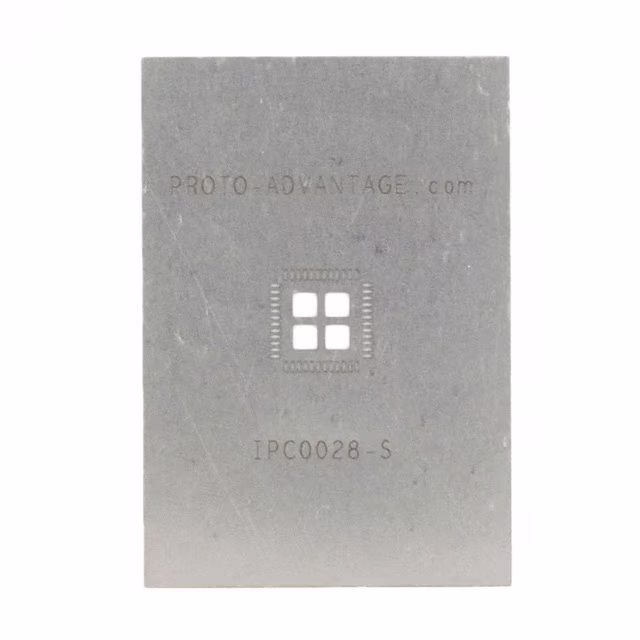

IPC0028-SQFN-48 STENCIL |
2,997 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 48 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.173" L x 0.173" W (4.40mm x 4.40mm) | Stainless Steel |
|

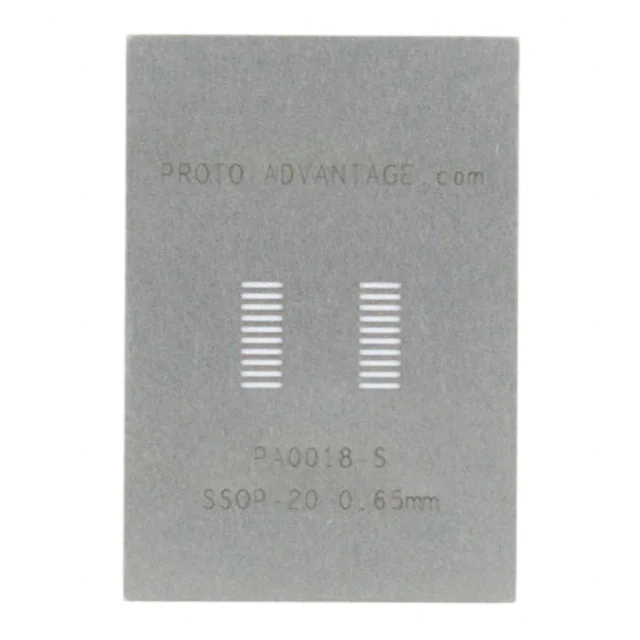

PA0018-SSSOP-20 STENCIL |
4,058 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SSOP | 20 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0106-SPLCC-28/LCC-28/JLCC-28 STENCIL |
2,296 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 28 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.492" L x 0.492" W (12.50mm x 12.50mm) | - | Stainless Steel |
|

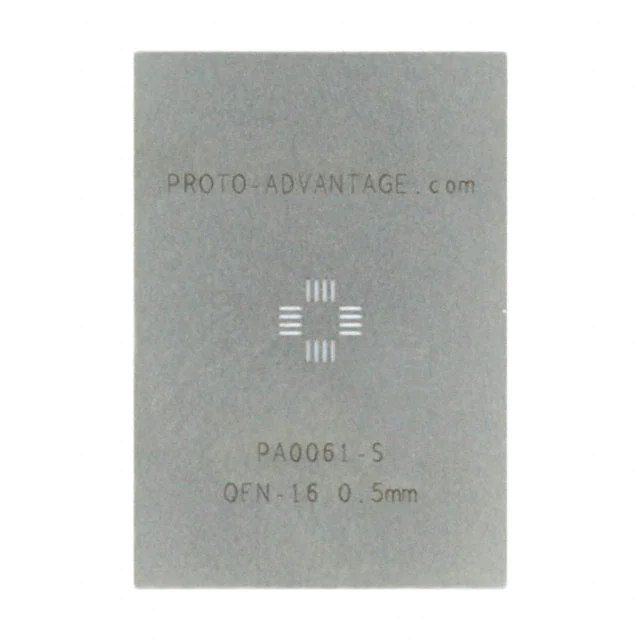

PA0061-SQFN-16 STENCIL |
2,309 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | - | Stainless Steel |
|
PA0065-SQFN-28 STENCIL |
3,655 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|

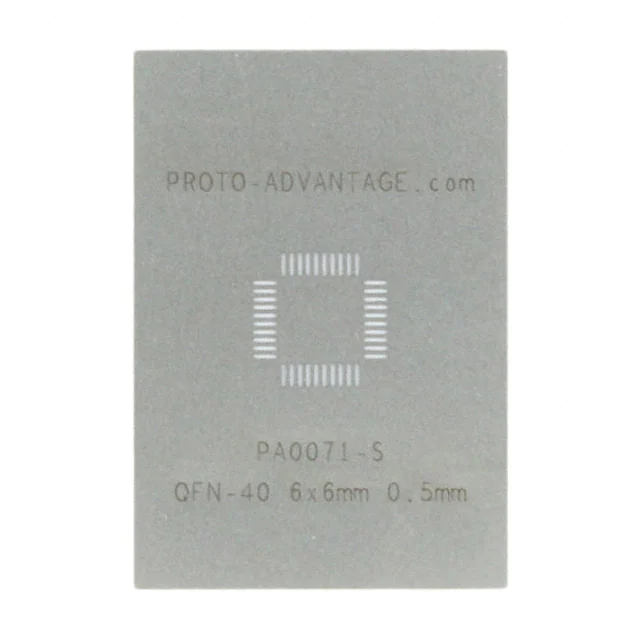

PA0071-SQFN-40 STENCIL |
2,348 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | Stainless Steel |
|

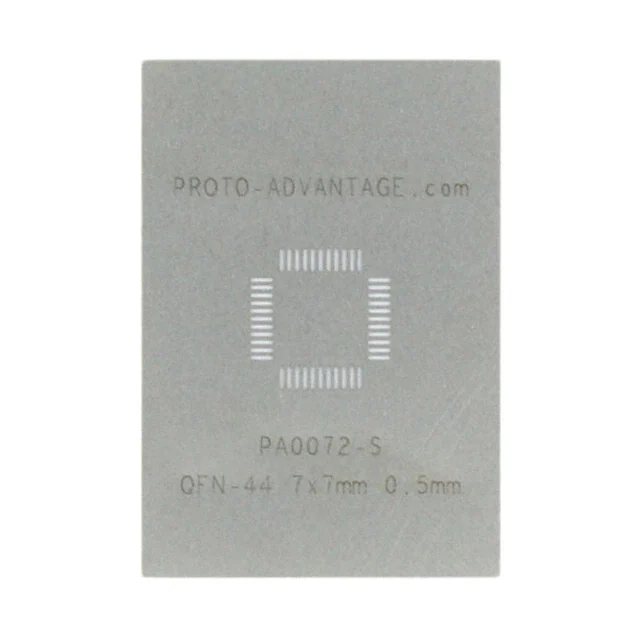

PA0072-SQFN-44 STENCIL |
3,776 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 44 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

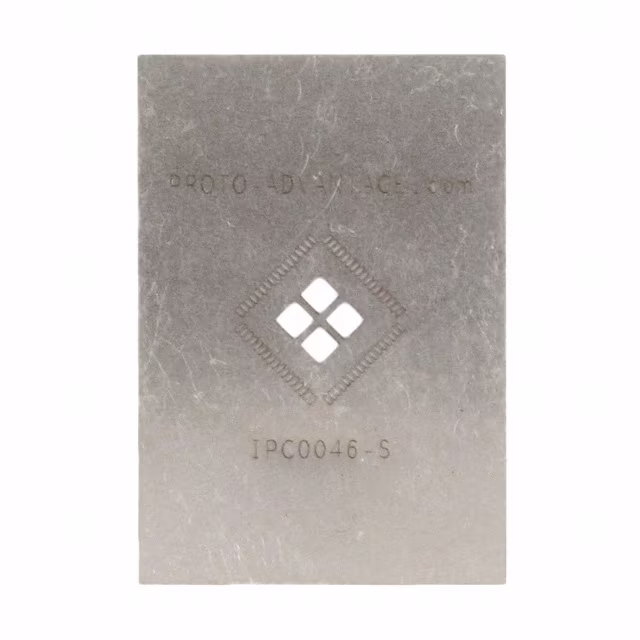

IPC0046-SQFN-68 STENCIL |
2,836 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 68 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.193" L x 0.193" W (4.90mm x 4.90mm) | Stainless Steel |
|
PA0004-SSOIC-14 STENCIL |
1,852 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOIC | 14 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

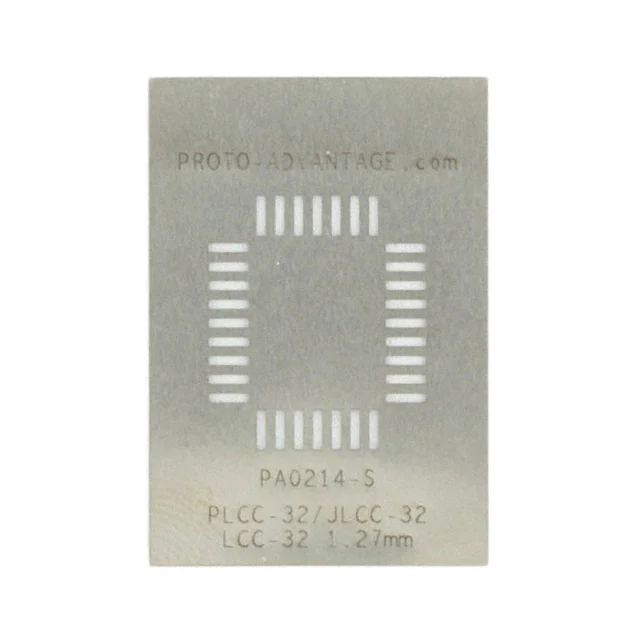

PA0214-SPLCC-32 STENCIL |
3,754 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | PLCC/JLCC | 32 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.453" W (14.00mm x 11.50mm) | - | Stainless Steel |
|

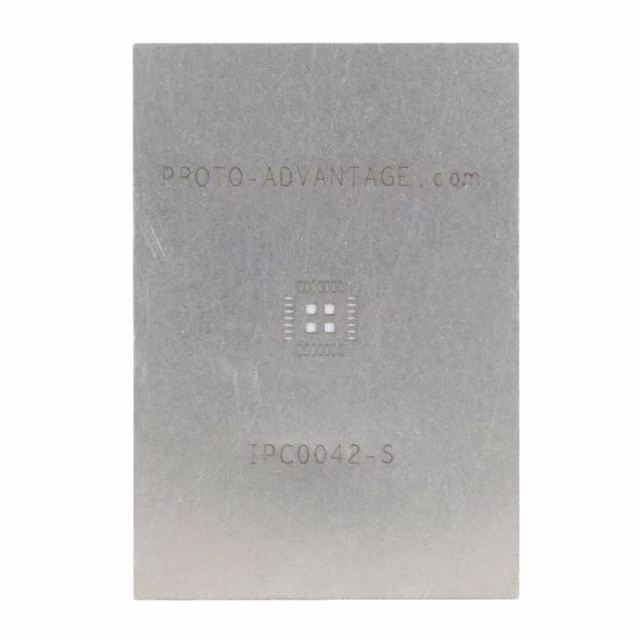

IPC0042-SQFN-28 STENCIL |
4,216 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 28 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.094" L x 0.094" W (2.40mm x 2.40mm) | Stainless Steel |
|

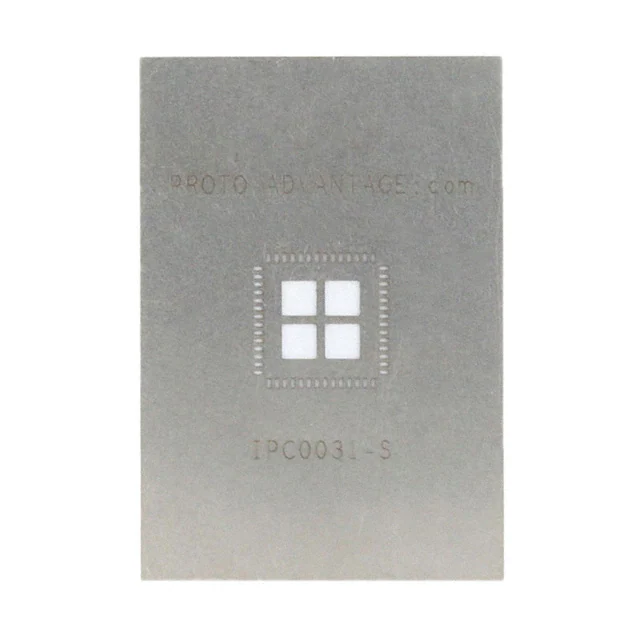

IPC0031-SQFN-56 STENCIL |
4,816 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 56 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.240" L x 0.240" W (6.10mm x 6.10mm) | Stainless Steel |
|
PA0083-SSOT23/TO-236 STENCIL |
2,435 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOT/SC | 3 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0036-STSSOP-24 STENCIL |
4,727 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSSOP | 24 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0042-SVSSOP-8 STENCIL |
3,329 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | VSSOP | 8 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0073-SQFN-48 STENCIL |
1,464 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | QFN/LFCSP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.276" L x 0.276" W (7.00mm x 7.00mm) | - | Stainless Steel |
|

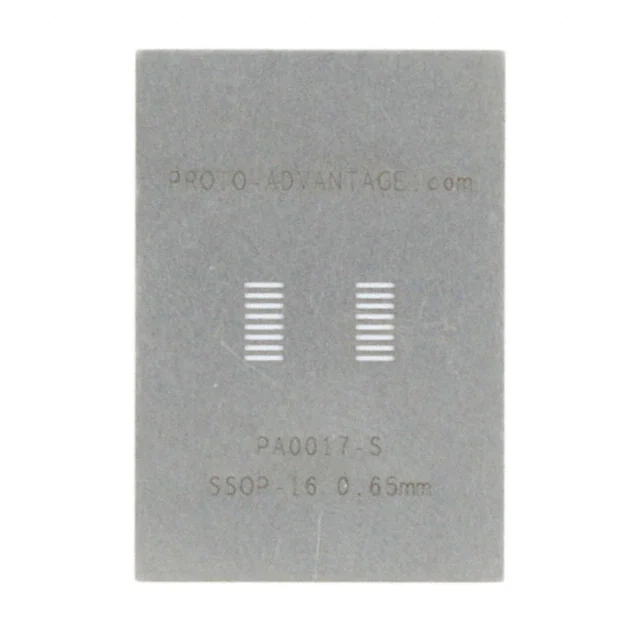

PA0017-SSSOP-16 STENCIL |
4,333 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SSOP | 16 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0019-SSSOP-24 STENCIL |
4,275 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SSOP | 24 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

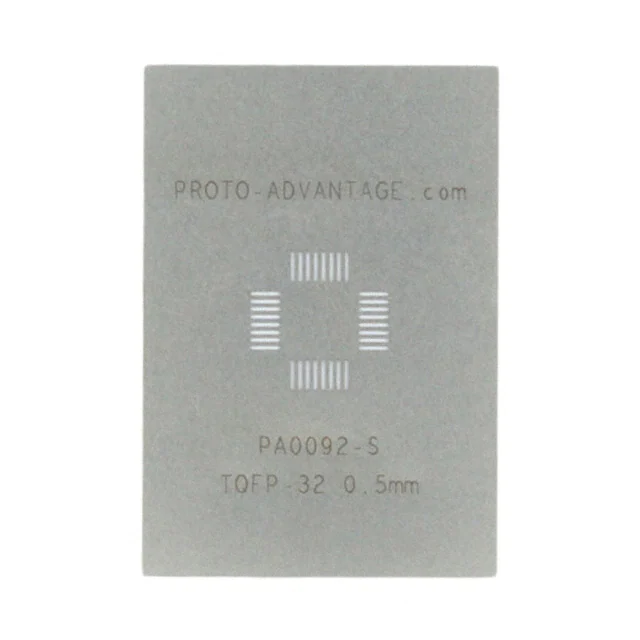

PA0092-STQFP-32 STENCIL |
3,377 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TQFP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
