| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA0227-SSSOP-48 STENCIL |
2,352 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SSOP | 48 | 0.025" (0.64mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0179-SSUPERSOT-3 STENCIL |
1,962 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | SOT/SC | 3 | 0.037" (0.95mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.059" W (3.00mm x 1.50mm) | - | Stainless Steel |
|

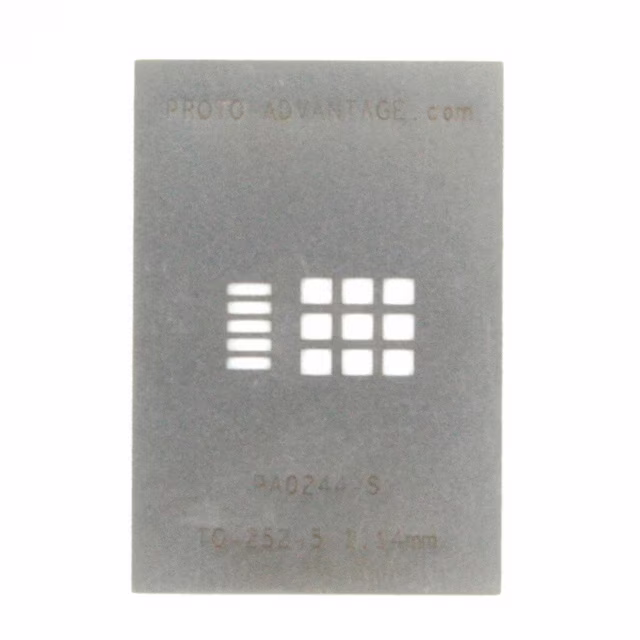

PA0244-STO-252-5 STENCIL |
1,751 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TO/DPAK | 5 | 0.045" (1.15mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.256" L x 0.244" W (6.50mm x 6.20mm) | 0.276" L x 0.236" W (7.00mm x 6.00mm) | Stainless Steel |
|

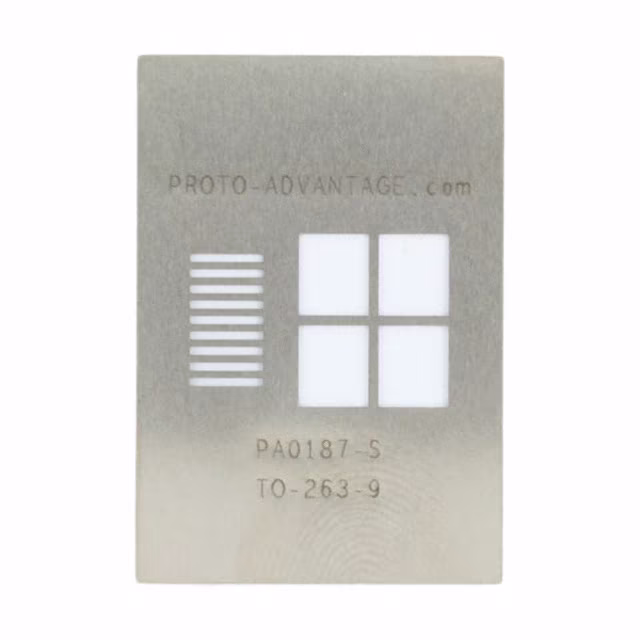

PA0187-STO-263-9 STENCIL |
1,872 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TO/DDPAK | 9 | 0.038" (0.97mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.400" L x 0.390" W (10.16mm x 9.91mm) | 0.427" L x 0.370" W (10.85mm x 9.40mm) | Stainless Steel |
|
IPC0134-STQFP-44 STENCIL |
3,106 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TQFP | 44 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

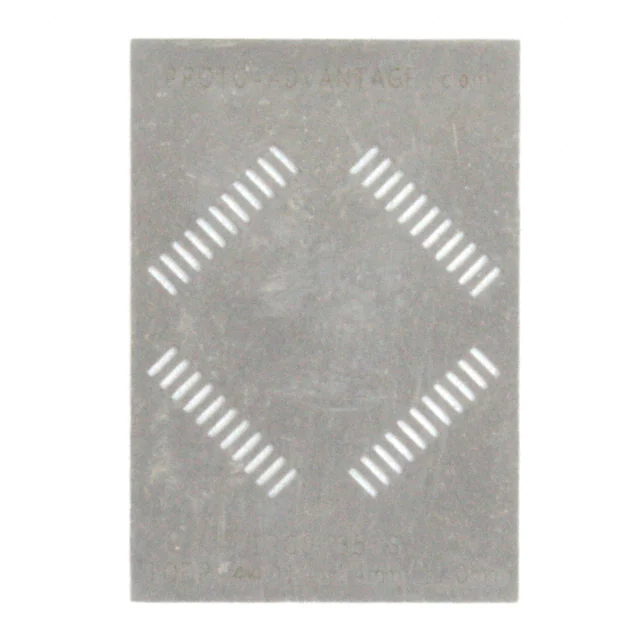

IPC0135-STQFP-44 STENCIL |
4,916 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TQFP | 44 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

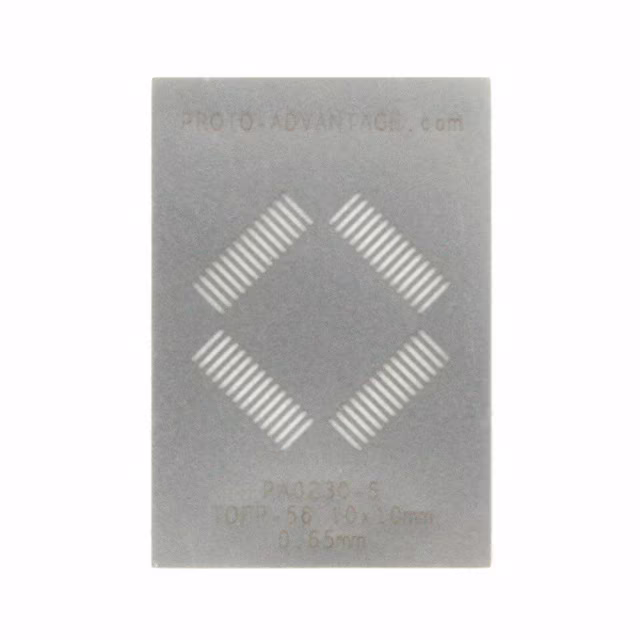

PA0230-STQFP-56 STENCIL |
2,262 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TQFP | 56 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - | Stainless Steel |
|

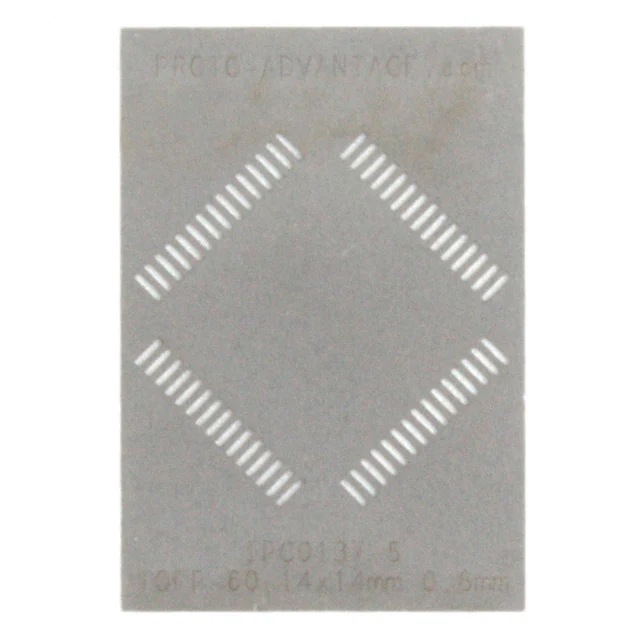

IPC0137-STQFP-60 STENCIL |
3,561 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TQFP | 60 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.551" W (14.00mm x 14.00mm) | - | Stainless Steel |
|

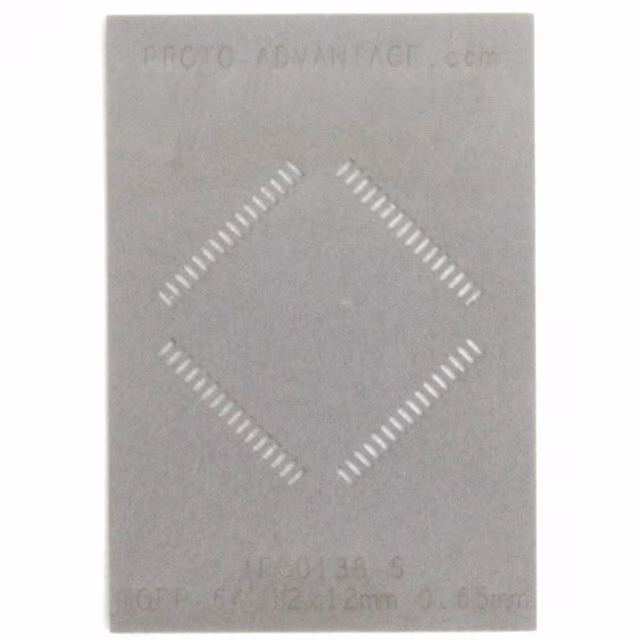

IPC0138-STQFP-64 STENCIL |
2,022 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TQFP | 64 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.472" L x 0.472" W (12.00mm x 12.00mm) | - | Stainless Steel |
|

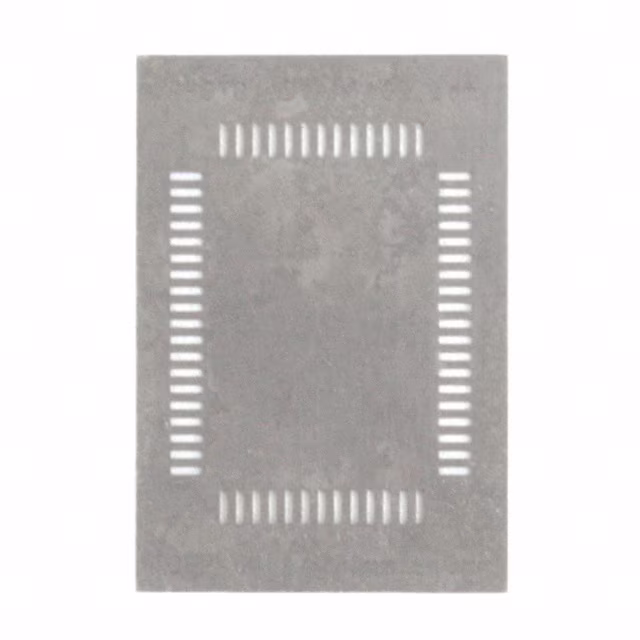

IPC0133-STQFP-64 STENCIL |
2,428 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TQFP | 64 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.787" L x 0.551" W (20.00mm x 14.00mm) | - | Stainless Steel |
|

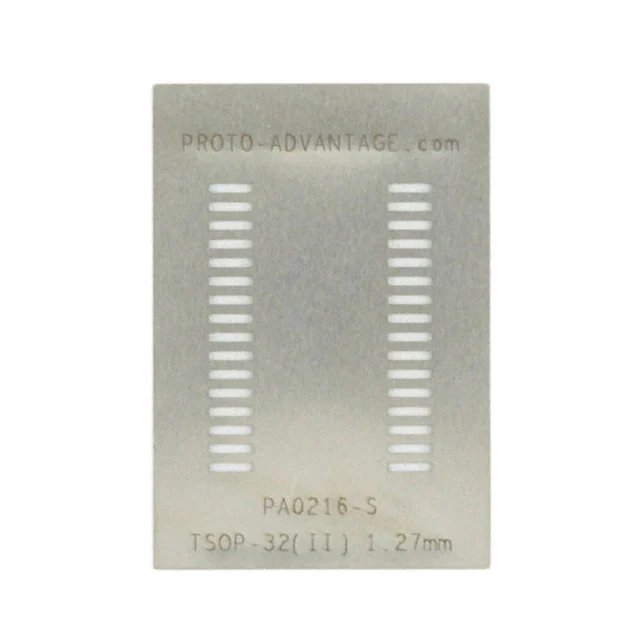

PA0216-STSOP-32 II STENCIL |
1,074 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSOP | 32 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

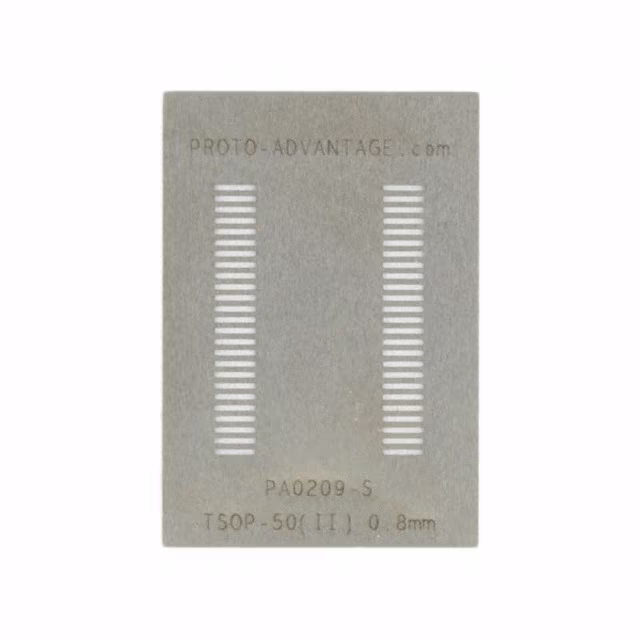

PA0209-STSOP-50 II STENCIL |
1,087 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSOP | 50 | 0.031" (0.80mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

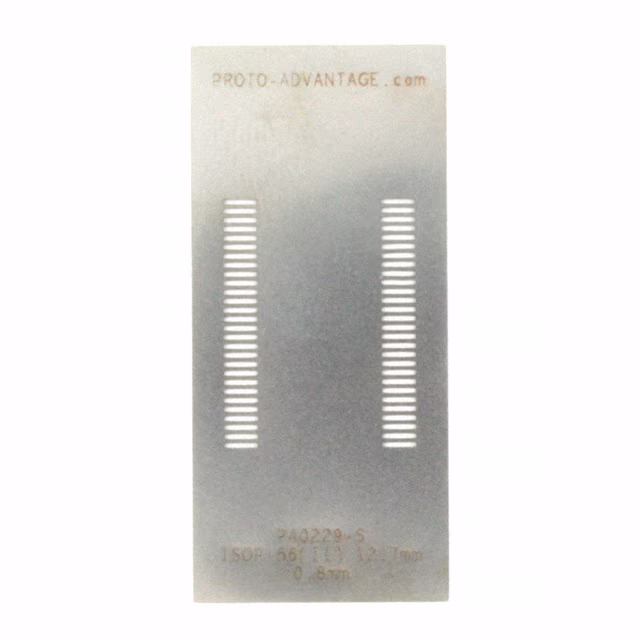

PA0229-STSOP-56II STENCIL |
1,212 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSOP | 56 | 0.031" (0.80mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | - | Stainless Steel |
|

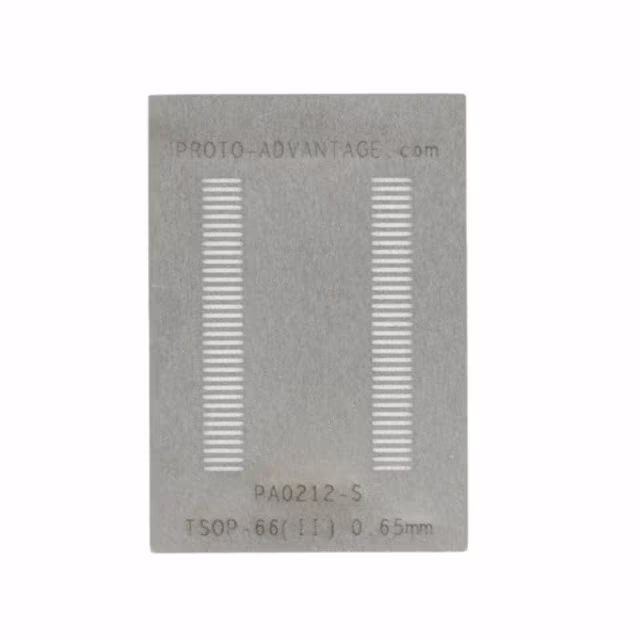

PA0212-STSOP-66 II STENCIL |
1,800 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TSOP | 66 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

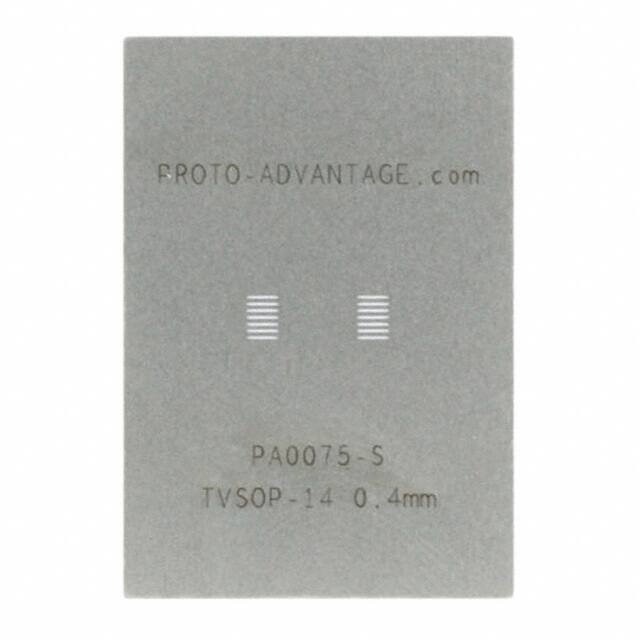

PA0075-STVSOP-14 STENCIL |
4,365 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TVSOP | 14 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

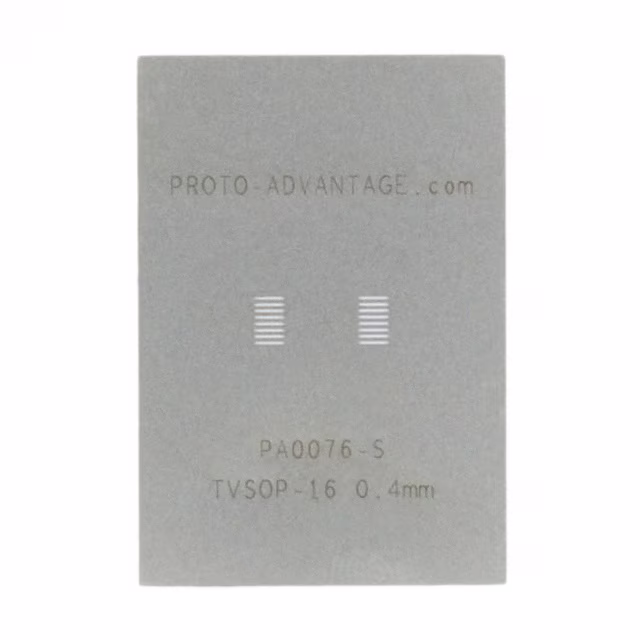

PA0076-STVSOP-16 STENCIL |
3,424 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TVSOP | 16 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|

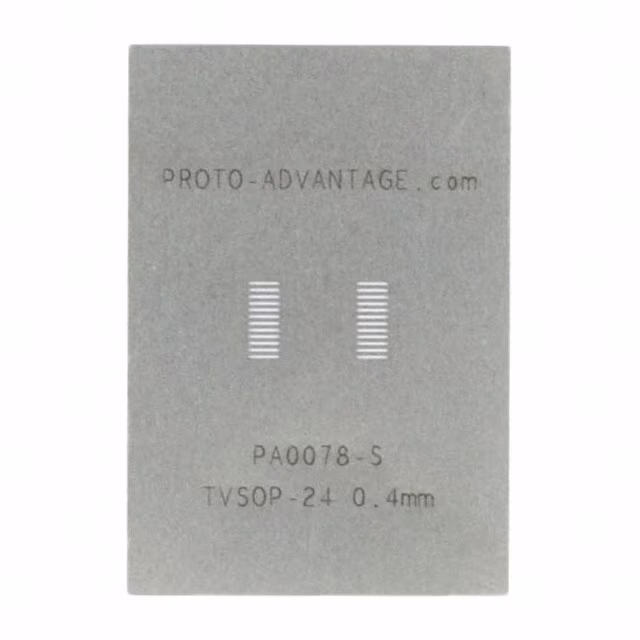

PA0078-STVSOP-24 STENCIL |
3,028 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TVSOP | 24 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0079-STVSOP-38 STENCIL |
3,868 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TVSOP | 38 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0080-STVSOP-48 STENCIL |
1,256 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TVSOP | 48 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
|
PA0081-STVSOP-56 STENCIL |
1,678 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | TVSOP | 56 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | - | Stainless Steel |
