| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FPC100P010-SFPC/FFC SMT CONN STENCIL |
3,467 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 10 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.774" L x 0.157" W (19.65mm x 4.00mm) | Stainless Steel |
|

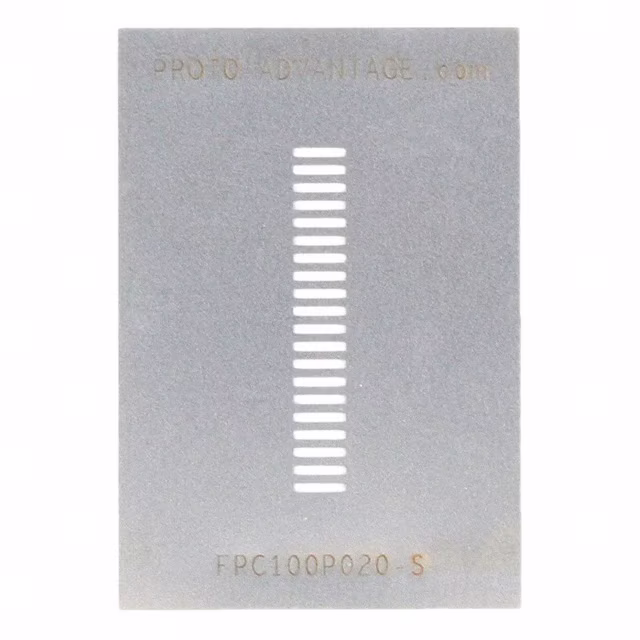

FPC100P020-SFPC/FFC SMT CONN STENCIL |
1,447 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 20 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 1.167" L x 0.157" W (29.65mm x 4.00mm) | Stainless Steel |
|

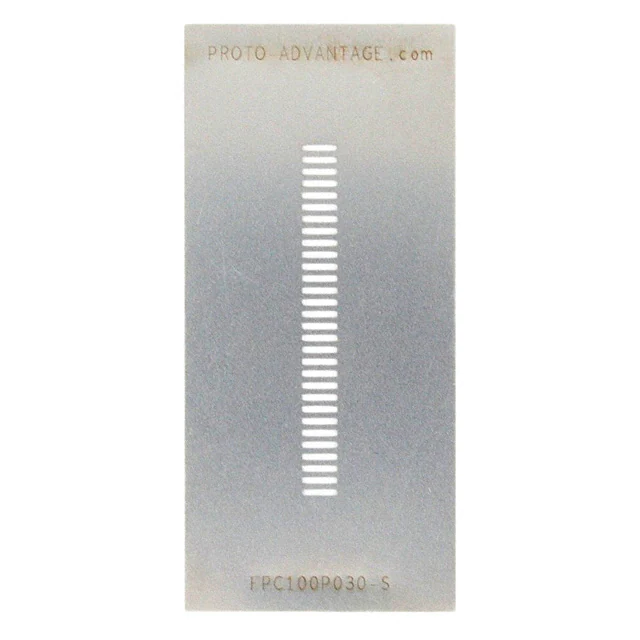

FPC100P030-SFPC/FFC SMT CONN STENCIL |
3,837 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 30 | 0.039" (1.00mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.561" L x 0.157" W (39.65mm x 4.00mm) | Stainless Steel |
|

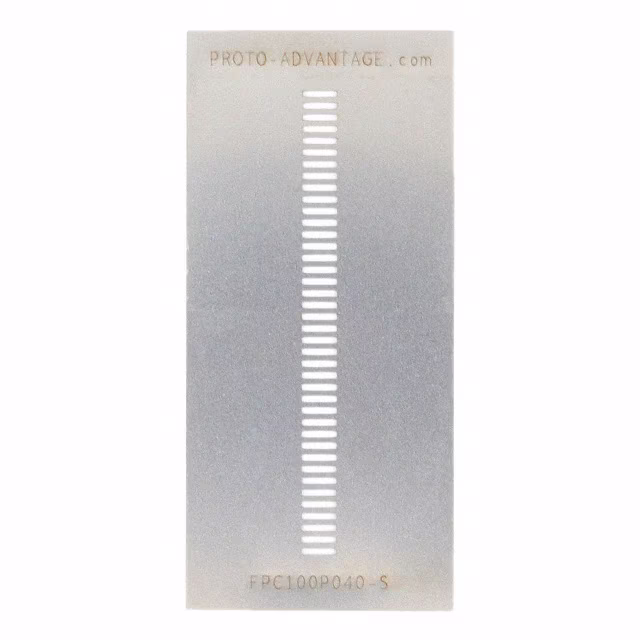

FPC100P040-SFPC/FFC SMT CONN STENCIL |
1,843 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 40 | 0.039" (1.00mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.955" L x 0.157" W (49.65mm x 4.00mm) | Stainless Steel |
|
FPC125P010-SFPC/FFC SMT CONN STENCIL |
4,704 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 10 | 0.049" (1.25mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.872" L x 0.157" W (22.15mm x 4.00mm) | Stainless Steel |
|

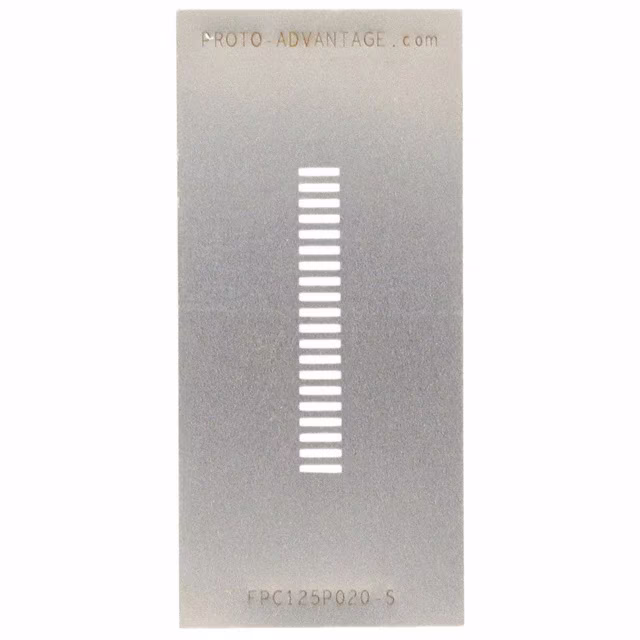

FPC125P020-SFPC/FFC SMT CONN STENCIL |
4,991 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 20 | 0.049" (1.25mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.364" L x 0.157" W (34.65mm x 4.00mm) | Stainless Steel |
|

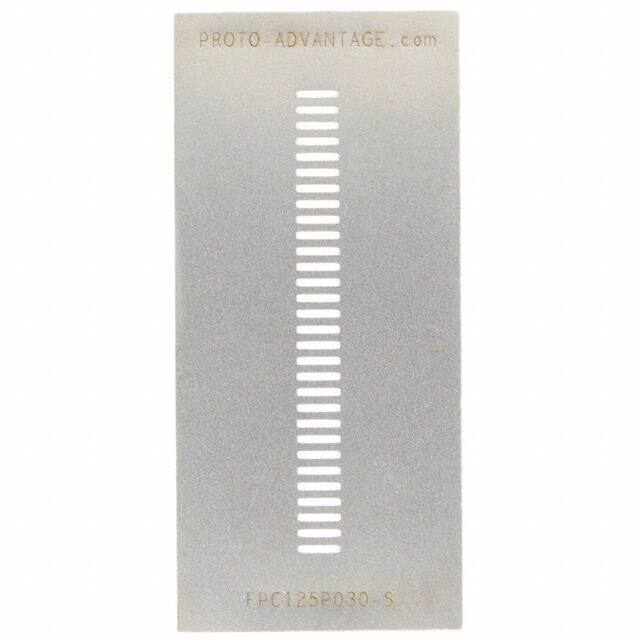

FPC125P030-SFPC/FFC SMT CONN STENCIL |
1,843 |
|
数据手册 |
Proto-Advantage FPC | Bulk | Active | FPC/FFC | 30 | 0.049" (1.25mm) | 1.950" L x 0.900" W (49.53mm x 22.86mm) | - | 1.856" L x 0.157" W (47.15mm x 4.00mm) | Stainless Steel |
|

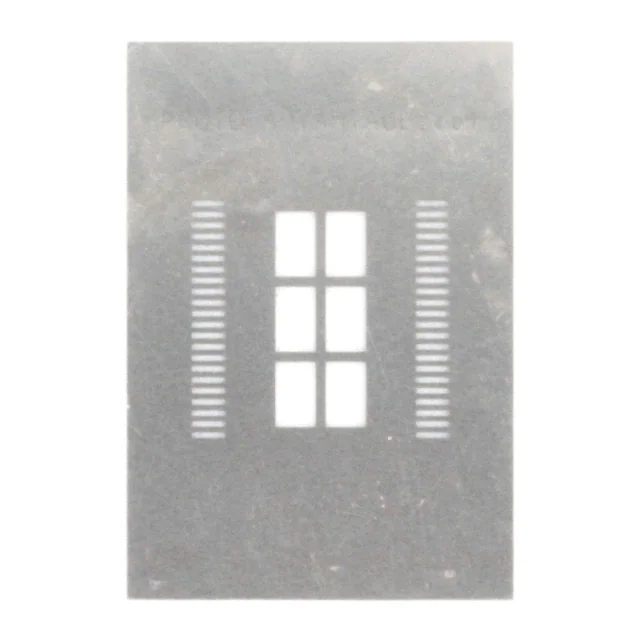

IPC0111-SHSOP-44 STENCIL |
1,242 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | HSOP | 44 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | 0.630" L x 0.270" W (16.00mm x 6.85mm) | Stainless Steel |
|

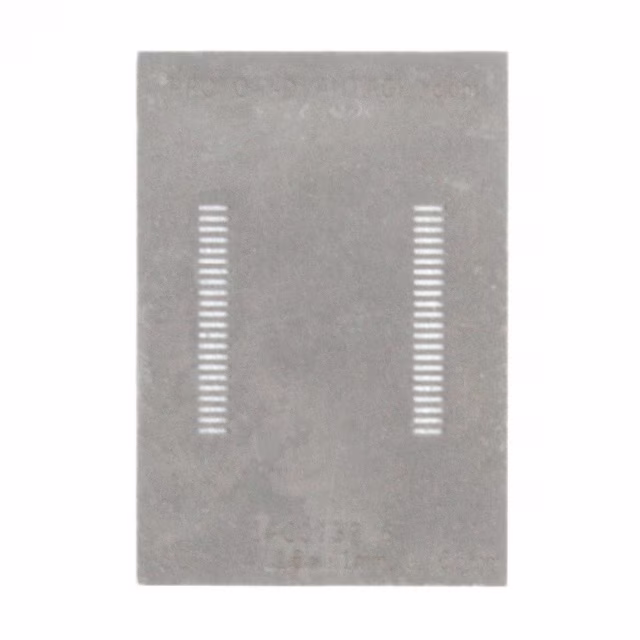

IPC0132-SHSOP-44 STENCIL |
3,685 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | HSOP | 44 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.433" W (16.00mm x 11.00mm) | - | Stainless Steel |
|

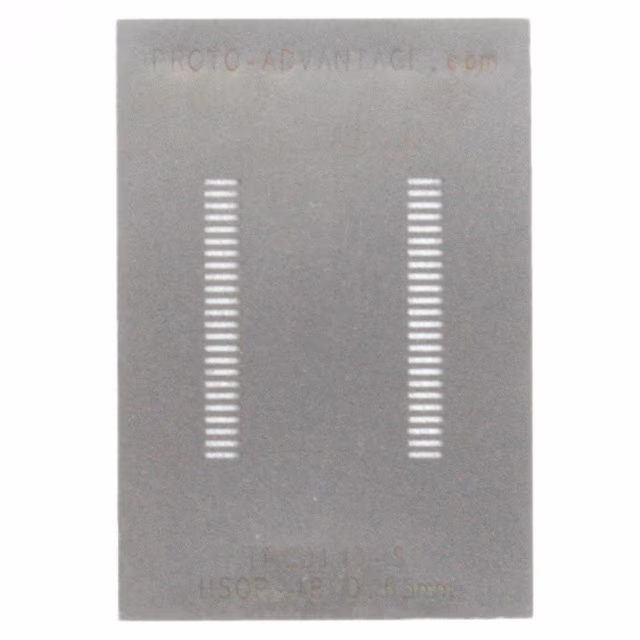

IPC0147-SHSOP-48 STENCIL |
1,696 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | HSOP | 48 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.630" L x 0.346" W (16.00mm x 8.80mm) | - | Stainless Steel |
|

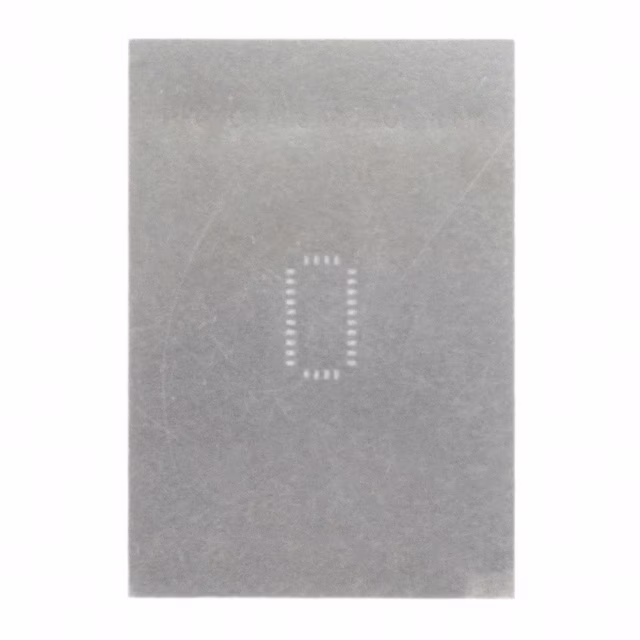

IPC0109-SLGA-28 STENCIL |
4,425 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | LGA | 28 | 0.024" (0.60mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.295" L x 0.173" W (7.50mm x 4.40mm) | - | Stainless Steel |
|

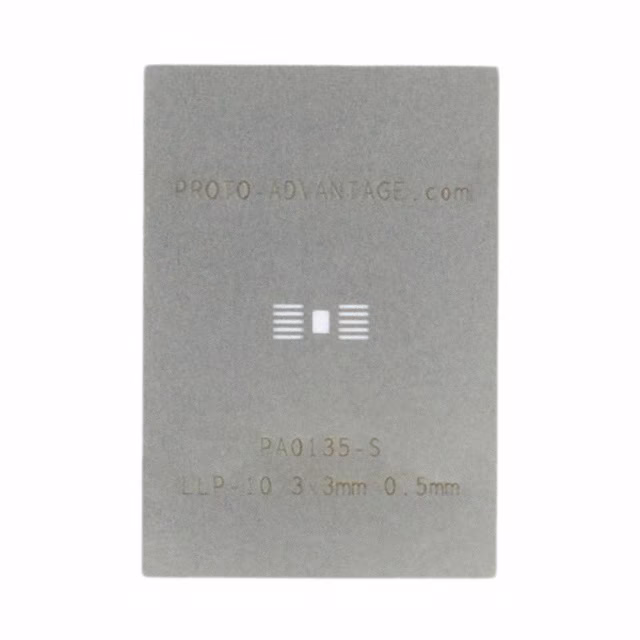

PA0135-SLLP-10 STENCIL |
4,040 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 10 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.236" L x 0.063" W (6.00mm x 1.60mm) | Stainless Steel |
|
PA0136-SLLP-12 STENCIL |
1,924 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 12 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.236" L x 0.063" W (6.00mm x 1.60mm) | Stainless Steel |
|
PA0137-SLLP-14 STENCIL |
4,502 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.118" W (4.00mm x 3.00mm) | 0.276" L x 0.063" W (7.00mm x 1.60mm) | Stainless Steel |
|

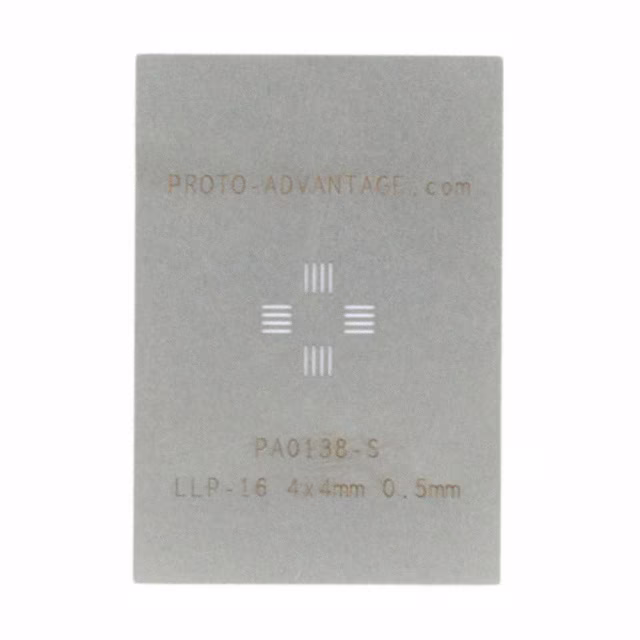

PA0138-SLLP-16 STENCIL |
3,738 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.157" W (4.00mm x 4.00mm) | - | Stainless Steel |
|

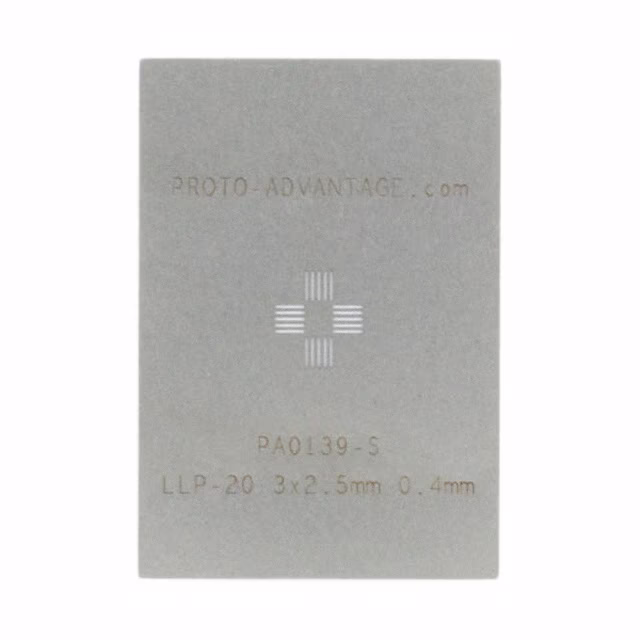

PA0139-SLLP-20 STENCIL |
4,186 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 20 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.098" W (3.00mm x 2.50mm) | - | Stainless Steel |
|
PA0141-SLLP-28 STENCIL |
4,716 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 28 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
PA0142-SLLP-32 STENCIL |
2,024 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 32 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.197" L x 0.197" W (5.00mm x 5.00mm) | - | Stainless Steel |
|
PA0143-SLLP-36 STENCIL |
2,970 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 36 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | Stainless Steel |
|

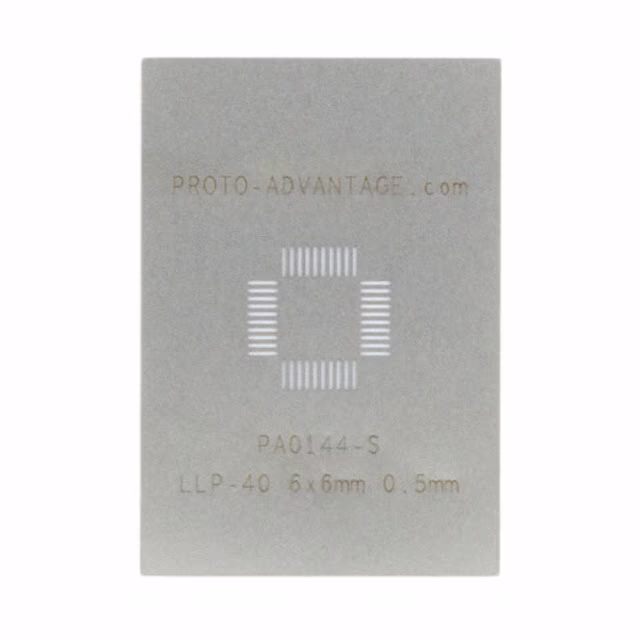

PA0144-SLLP-40 STENCIL |
3,780 |
|
数据手册 |
Proto-Advantage PA | Bulk | Active | LLP | 40 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.236" L x 0.236" W (6.00mm x 6.00mm) | - | Stainless Steel |
