上传BOM单
焊接模板、模版
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 位置数量 | 间距 | 外部尺寸 | 内部尺寸 | 热中心焊盘 | 材质 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPC0167-SSOP-36 (0.65MM PITCH, 12.8X7.5MM |
4,046 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | SOP | 36 | 0.026" (0.65mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.504" L x 0.295" W (12.80mm x 7.50mm) | - | Stainless Steel |
|

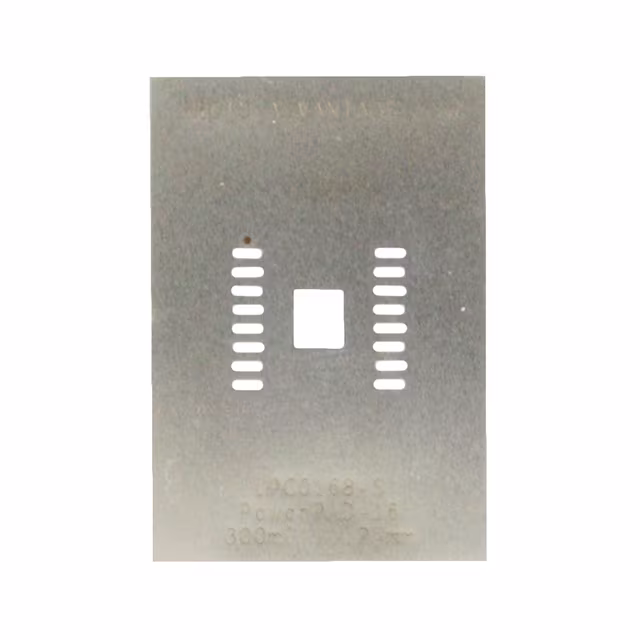

IPC0168-SPOWERPAD-16/POWERSOIC-16 (1.27MM |
2,569 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 16 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.154" L x 0.130" W (3.90mm x 3.30mm) | Stainless Steel |
|
IPC0169-SSOIC-44 (1.27MM PITCH, 28.1X13.2 |
3,708 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | SOIC | 44 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 1.106" L x 0.520" W (28.10mm x 13.20mm) | - | Stainless Steel |
|
|
IPC0170-SBGA-24 (1MM PITCH, 8X6MM BODY) S |
1,833 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | BGA | 24 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.236" W (8.00mm x 6.00mm) | - | Stainless Steel |
|
|
IPC0171-SBGA-25 (1MM PITCH, 8X6MM BODY) S |
1,039 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | BGA | 25 | 0.039" (1.00mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.236" W (8.00mm x 6.00mm) | - | Stainless Steel |
|
|
IPC0172-SDFN-8/MLP-8 (1.27MM PITCH, 6X8MM |
2,699 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.315" L x 0.236" W (8.00mm x 6.00mm) | 0.169" L x 0.134" W (4.30mm x 3.40mm) | Stainless Steel |
|
|
IPC0173-SDFN-8/MOS-8 (0.97MM PITCH, 3.94X |
1,378 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | DFN | 8 | 0.038" (0.97mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.155" L x 0.093" W (3.94mm x 2.36mm) | - | Stainless Steel |
|
|
IPC0174-SQFN-16/LFCSP-16 (0.5MM PITCH, 4X |
1,795 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 16 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.138" W (4.00mm x 3.50mm) | 0.100" L x 0.081" W (2.55mm x 2.05mm) | Stainless Steel |
|
|
IPC0175-SQFN-20/LFCSP-20 (0.5MM PITCH, 4X |
3,839 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 20 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.157" L x 0.138" W (4.00mm x 3.50mm) | 0.100" L x 0.081" W (2.55mm x 2.05mm) | Stainless Steel |
|
|
IPC0176-SDFN-12 (0.5MM PITCH, 3X3MM BODY) |
4,813 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | DFN | 12 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.098" L x 0.067" W (2.50mm x 1.70mm) | Stainless Steel |
|
|
IPC0177-STSSOP-48 (LONG PINS) (0.5MM PITC |
3,546 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TSSOP | 48 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.492" L x 0.240" W (12.50mm x 6.10mm) | - | Stainless Steel |
|
|
IPC0178-STSSOP-56 (LONG PINS) (0.5MM PITC |
2,292 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TSSOP | 56 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.551" L x 0.240" W (14.00mm x 6.10mm) | - | Stainless Steel |
|
|
IPC0179-STSSOP-64 (LONG PINS) (0.5MM PITC |
3,822 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | TSSOP | 64 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.669" L x 0.240" W (17.00mm x 6.10mm) | - | Stainless Steel |
|
|
IPC0180-SQFN-14/LFCSP-14 (0.5MM PITCH, 3X |
3,235 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 14 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.118" L x 0.098" W (3.00mm x 2.50mm) | 0.059" L x 0.039" W (1.50mm x 1.00mm) | Stainless Steel |
|
|
IPC0181-SQFN-12/LFCSP-12 (0.4MM PITCH, 2X |
3,710 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 12 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.079" L x 0.067" W (2.00mm x 1.70mm) | - | Stainless Steel |
|
|
IPC0182-SLGA-10 (0.4MM PITCH, 1.55X1.15MM |
3,847 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | LGA | 10 | 0.016" (0.40mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.061" L x 0.045" W (1.55mm x 1.15mm) | - | Stainless Steel |
|
|
IPC0183-SPOWERPAD-20/POWERSOIC-20 (1.27MM |
3,105 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 20 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.154" L x 0.130" W (3.90mm x 3.30mm) | Stainless Steel |
|
|
IPC0184-SPOWERPAD-24/POWERSOIC-24 (1.27MM |
2,985 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 24 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.154" L x 0.130" W (3.90mm x 3.30mm) | Stainless Steel |
|
|
IPC0185-SPOWERPAD-28/POWERSOIC-28 (1.27MM |
4,609 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | PowerSOIC | 28 | 0.050" (1.27mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | - | 0.154" L x 0.130" W (3.90mm x 3.30mm) | Stainless Steel |
|
|
IPC0186-SQFN-24/LFCSP-24 (0.5MM PITCH, 5. |
1,091 |
|
数据手册 |
Proto-Advantage IPC | Bulk | Active | QFN/LFCSP | 24 | 0.020" (0.50mm) | 1.300" L x 0.900" W (33.02mm x 22.86mm) | 0.217" L x 0.138" W (5.50mm x 3.50mm) | 0.122" L x 0.081" W (3.10mm x 2.05mm) | Stainless Steel |
