滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500SDP1S2M1QEBSWITCH SLIDE DPDT 5A 120V E-Switch |
4,230 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
500SDP1S4M1QEBSWITCH SLIDE DPDT 5A 120V E-Switch |
2,177 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.56mm | Copper Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
500SDP1S4M2QEASWITCH SLIDE DPDT 5A 120V E-Switch |
1,192 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.56mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP3S3M7REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
3,580 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S1M6REASWITCH SLIDE DPDT 0.4VA 20V E-Switch |
2,490 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP2S4M7REBSWITCH SLIDE SPDT 0.4VA 20V E-Switch |
3,312 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.20mm | Copper Alloy | Gold | Panel Mount, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP3S1M7REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
3,229 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500ASSP3M2RESWITCH SLIDE SPDT 0.4VA 20V E-Switch |
1,911 |
|
数据手册 |
500A | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.10mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP3S1M2QEBSWITCH SLIDE DPDT 5A 120V E-Switch |
4,865 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | PC Pin | Epoxy Sealed Terminals |
|

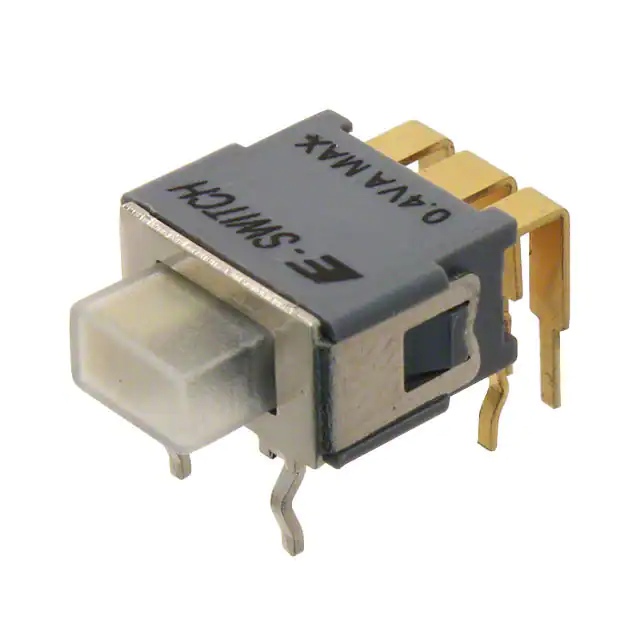

500RDP1S1M6RESWITCH SLIDE DPDT 0.4VA 20V E-Switch |
1,288 |
|
数据手册 |
500R | Tray | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.80mm | - | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals, IP57 |
