滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500SSP2S3M2REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
3,525 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.40mm | Copper Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP2S4M1REBSWITCH SLIDE SPDT 0.4VA 20V E-Switch |
1,286 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.56mm | Copper Alloy | Gold | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
500SSP2S1M6QEASWITCH SLIDE SPDT 5A 120V E-Switch |
1,562 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP2S2M6REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
2,136 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 6.88mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | - |
|
|
500SSP1S4M7REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
1,469 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 3.20mm | Copper Alloy | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S2M2QEASWITCH SLIDE DPDT 5A 120V E-Switch |
1,777 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 7.24mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

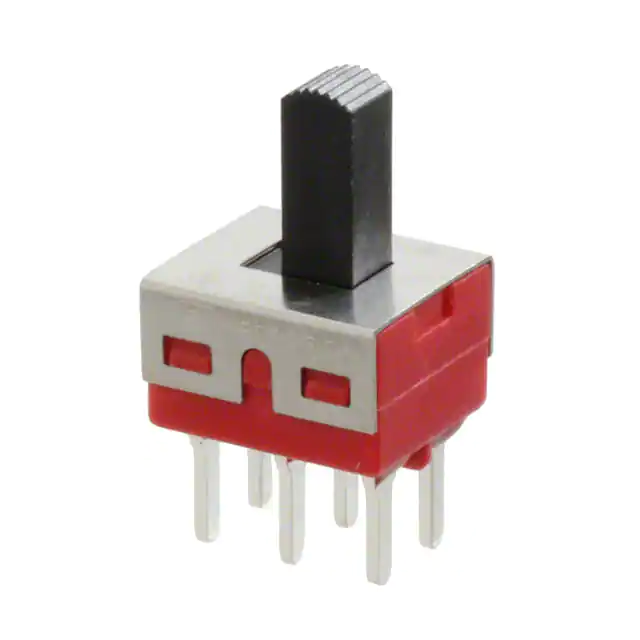

500SDP1S3M2QEASWITCH SLIDE DPDT 5A 120V E-Switch |
1,976 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.40mm | Copper Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP3S1M1QEBSWITCH SLIDE DPDT 5A 120V E-Switch |
2,818 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
500SSP3S1M6REASWITCH SLIDE SPDT 0.4VA 20V E-Switch |
2,297 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.72mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
500SSP3S4M6QEASWITCH SLIDE SPDT 5A 120V E-Switch |
1,762 |
|
数据手册 |
500 | Bulk | Active | SPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
