上传BOM单
滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
500SDP3S1M6QEBSWITCH SLIDE DPDT 5A 120V E-Switch |
2,986 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper Alloy | Silver | Panel Mount, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S2M7QEASWITCH SLIDE DPDT 5A 120V E-Switch |
1,847 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 6.88mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S3M7QEASWITCH SLIDE DPDT 5A 120V E-Switch |
1,554 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.04mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S4M7QEASWITCH SLIDE DPDT 5A 120V E-Switch |
1,232 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 5A (AC/DC) | 120 V | 28 V | Standard | 3.20mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP1S3M6REASWITCH SLIDE DPDT 0.4VA 20V E-Switch |
4,496 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.04mm | Copper Alloy | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

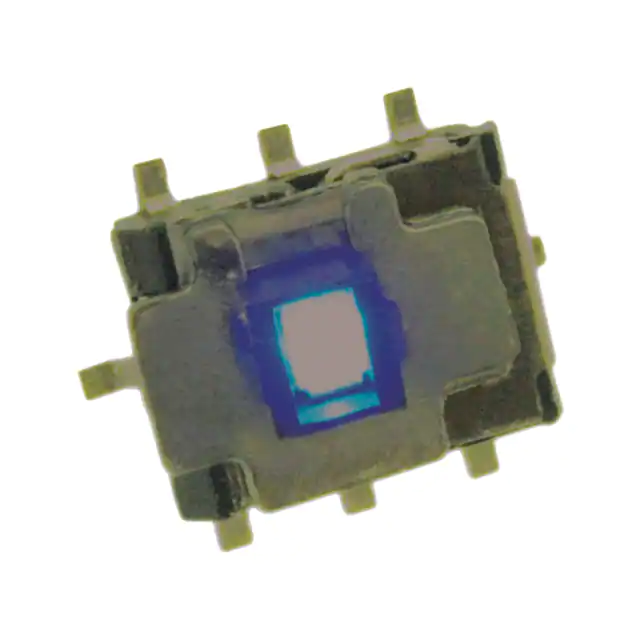

EGL2290BSWITCH SLIDE DPDT 300MA 6V E-Switch |
4,984 |
|
数据手册 |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, Blue |
|
|
500SDP3S3M6QEASWITCH SLIDE DPDT 5A 120V E-Switch |
3,297 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 9.04mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
500SDP3S1M7QEASWITCH SLIDE DPDT 5A 120V E-Switch |
2,802 |
|
数据手册 |
500 | Bulk | Active | DPDT | Not Specified | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard | 4.72mm | Copper Alloy | Silver | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

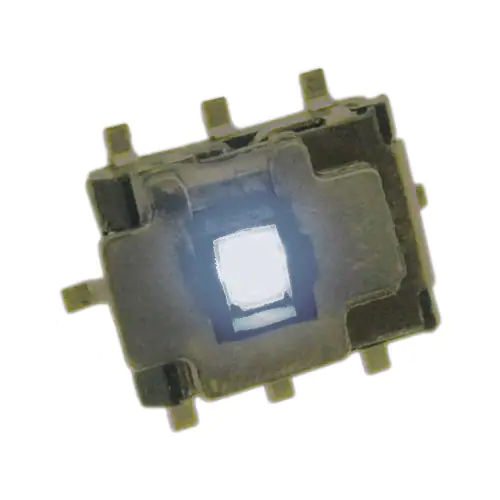

EGL2290WSWITCH SLIDE DPDT 300MA 6V E-Switch |
3,815 |
|
数据手册 |
EGL2290 | Tape & Reel (TR) | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Illuminated | 1.00mm | - | - | Surface Mount | Gull Wing | LED, White |
|
|
EG2309SWITCH SLIDE DP3T 100MA 30V E-Switch |
2,052 |
|
数据手册 |
EG | Bulk | Obsolete | DP3T | Not Specified | On-On-On | 100mA (DC) | - | 30 V | Standard | - | Copper Alloy | Silver | Through Hole | PC Pin | - |
