滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF-624-6014SWITCH SLIDE SPDT 6A 125V CW Industries |
1,339 |
|
数据手册 |
PS | Bulk | Active | SPDT | Not Specified | On-On | 6A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Wire Wrap | - |
|

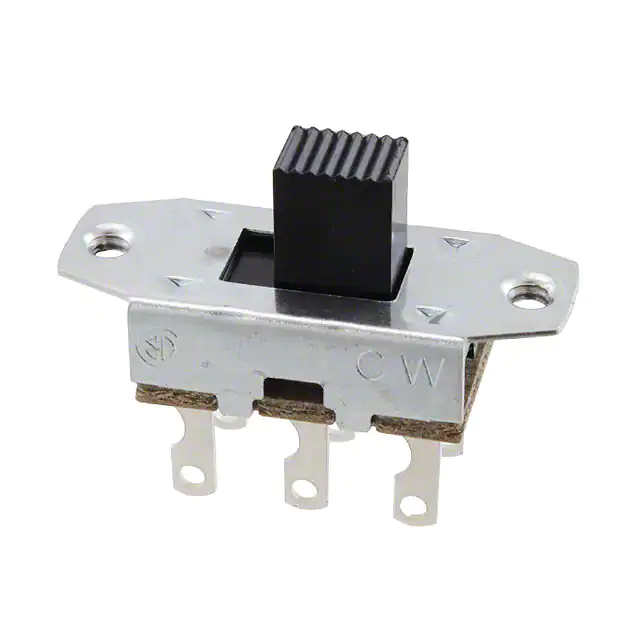

GF-326-0010SWITCH SLIDE DPDT 3A 125V CW Industries |
2,120 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
G-1128S-0060SWITCH SLIDE DP3T 11A 125V CW Industries |
11,846 |
|
数据手册 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | 3.18mm | Copper | Silver | Panel Mount | PC Pin | - |
|

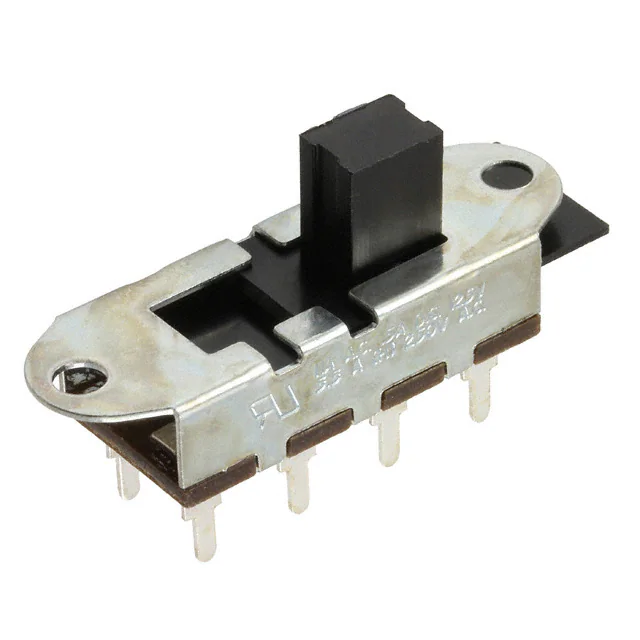

G-1128L-0005SWITCH SLIDE DP3T 11A 125V CW Industries |
3,095 |
|
数据手册 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|

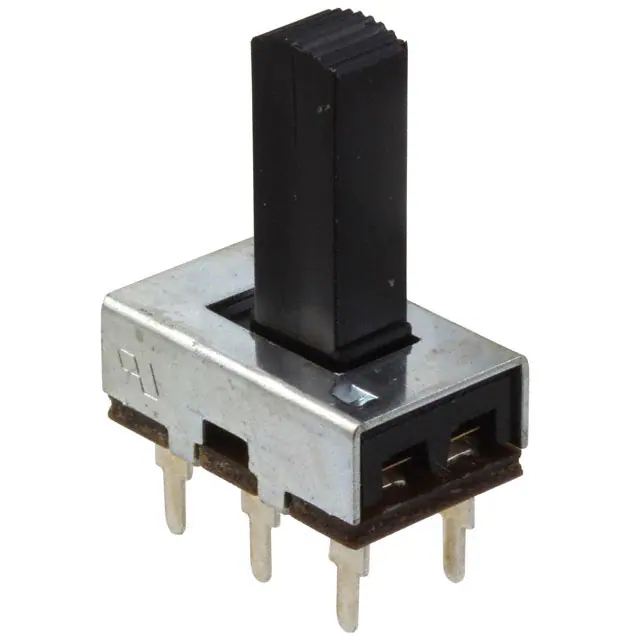

GF-626-0061SWITCH SLIDE DPDT 6A 125V CW Industries |
571 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 6A (AC), 500mA (DC) | 125 V | 125 V | Standard | 19.05mm | Copper | Silver | Through Hole | PC Pin | - |
|

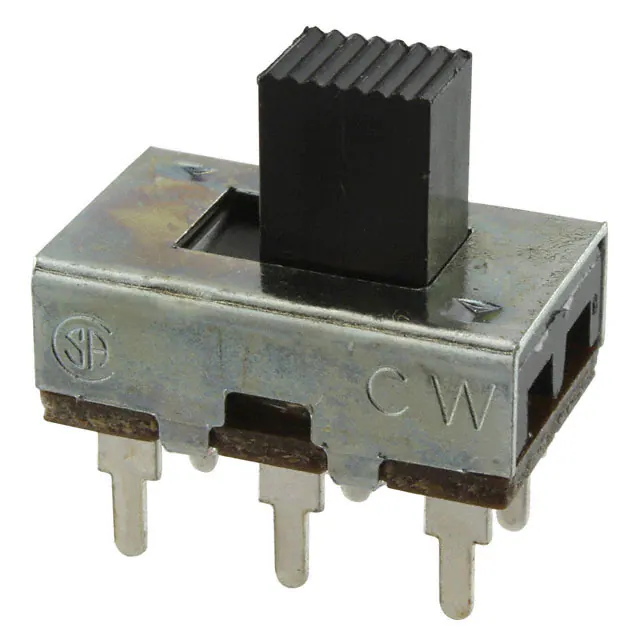

GF-426-0020SWITCH SLIDE DPDT 4A 125V CW Industries |
2,732 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC) | 125 V | - | Standard | 8.74mm | Copper | Silver | Through Hole | PC Pin | - |
|

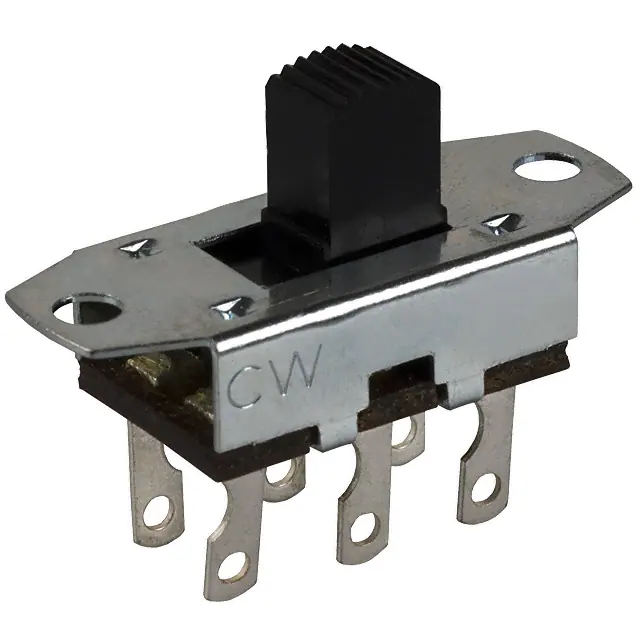

GF-1126-0033SWITCH SLIDE DPDT 11A 125V CW Industries |
2,017 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GF-1326-0009SWITCH SLIDE DPDT 13A 125V CW Industries |
370 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 13A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | 3.18mm | Copper | Silver | Panel Mount | Solder Lug | No Marking |
|
GF-326-0280SWITCH SLIDE DPDT 3A 125V CW Industries |
616 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 4.78mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

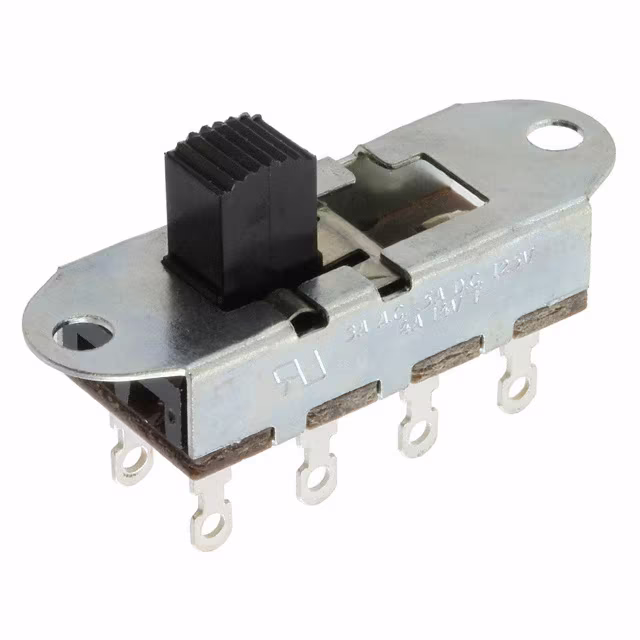

G-328S-0044SWITCH SLIDE DP3T 3A 125V CW Industries |
345 |
|
数据手册 |
G | Bulk | Active | DP3T | Not Specified | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Wire Wrap | - |
