滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF-326-0000SWITCH SLIDE DPDT 3A 125V CW Industries |
3,740 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

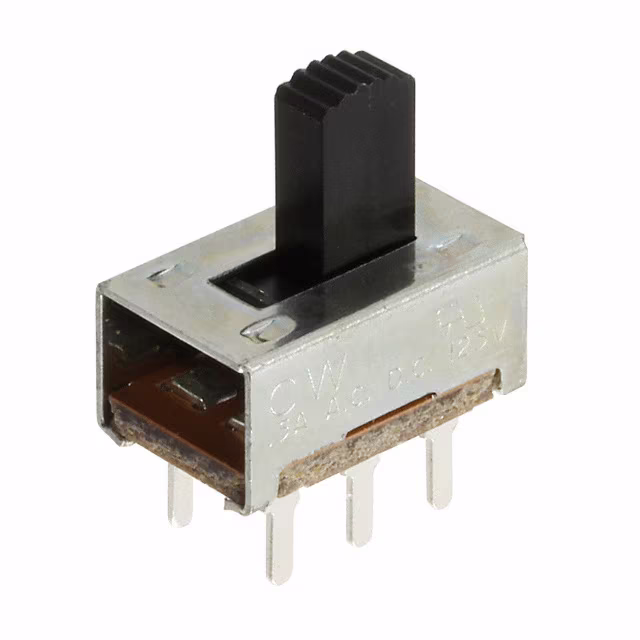

GF-126-0312SWITCH SLIDE DPDT 500MA 125V CW Industries |
635 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 8.33mm | Copper | Silver | Through Hole | PC Pin | - |
|

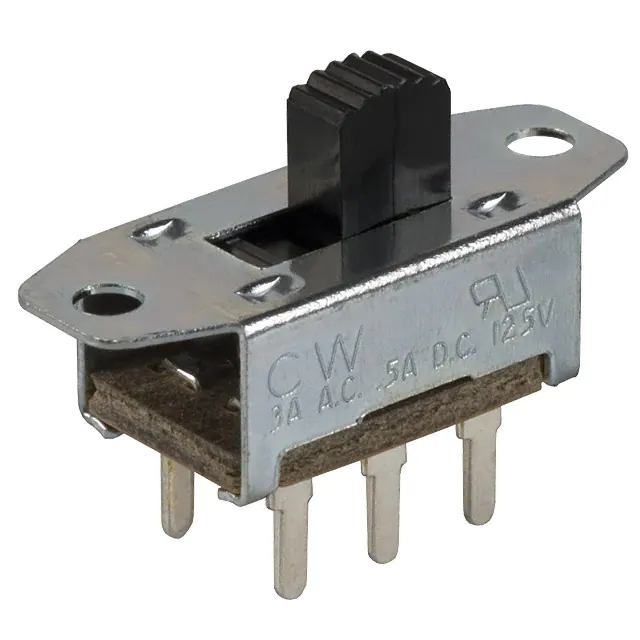

GF-126-0147SWITCH SLIDE DPDT 3A 125V CW Industries |
121 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | PC Pin | - |
|
GF-126-3011SWITCH SLIDE DPDT 3A 125V CW Industries |
948 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

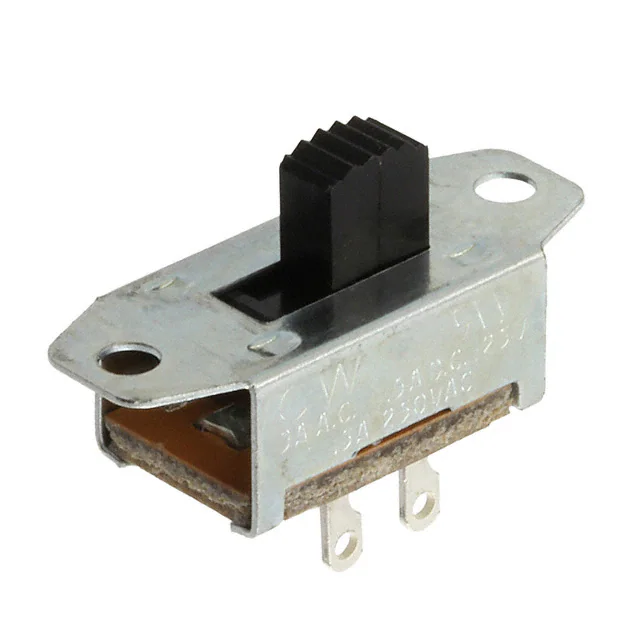

GF-123-3011SWITCH SLIDE SPST 3A 125V CW Industries |
2,970 |
|
数据手册 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
G-105-0513SWITCH SLIDE SPST 500MA 125V CW Industries |
5,071 |
|
数据手册 |
G | Bulk | Active | SPST | Not Specified | On-Off | 500mA (AC/DC) | 125 V | 125 V | Standard | 2.79mm | - | - | Through Hole, Right Angle | PC Pin | - |
|
GS-115-0511SWITCH SLIDE SPDT 500MA 125V CW Industries |
3,584 |
|
数据手册 |
PS-A | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 3.18mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|

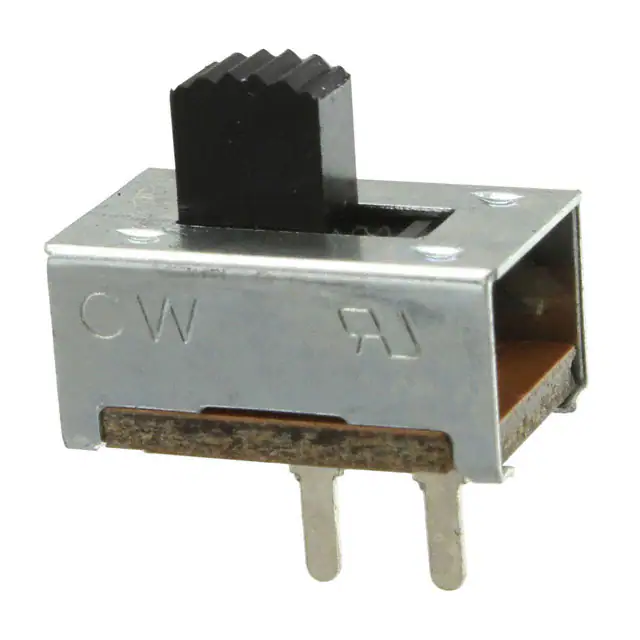

GF-123-0054SWITCH SLIDE SPST 8.5A 125V CW Industries |
710 |
|
数据手册 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 8.5A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
GF-1123-0009SWITCH SLIDE SPST 11A 125V CW Industries |
8,615 |
|
数据手册 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | Solder Lug | - |
|
GF-126-0327SWITCH SLIDE DPDT 8.5A 125V CW Industries |
2,191 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 8.5A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
