滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF-124-0000SWITCH SLIDE SPDT 500MA 125V CW Industries |
312 |
|
数据手册 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

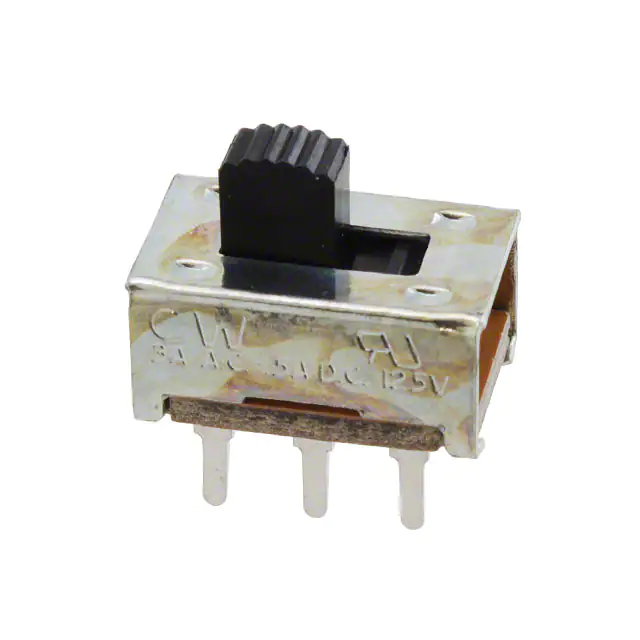

GF-126-0331SWITCH SLIDE DPDT 3A 125V CW Industries |
178 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|
GF-126-0305SWITCH SLIDE DPDT 3A 125V CW Industries |
948 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole | PC Pin | - |
|

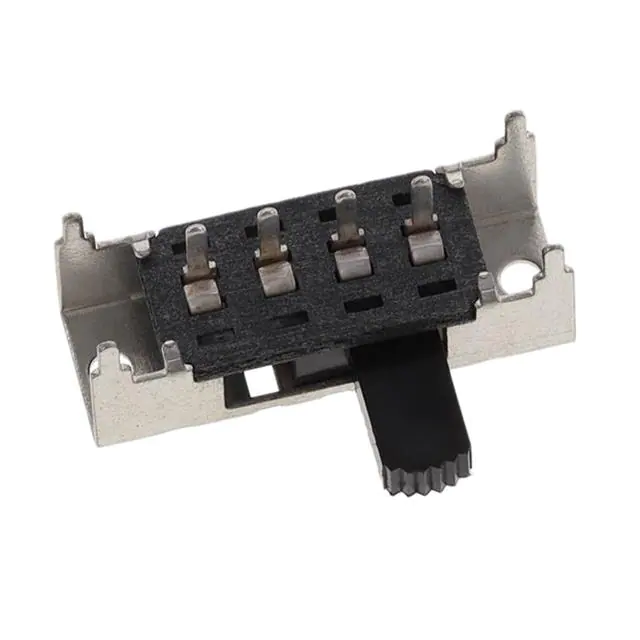

GPI-153-0008SWITCH SLIDE SP3T 500MA 125V CW Industries |
888 |
|
数据手册 |
GPI | Bulk | Active | SP3T | Not Specified | On-On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 8.33mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|

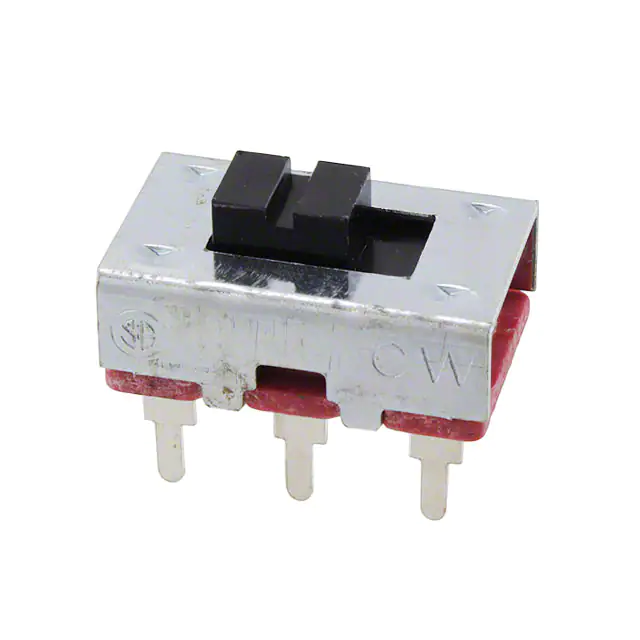

GF-1326-0013SWITCH SLIDE DPDT 13A 125V CW Industries |
283 |
|
数据手册 |
GF | Bulk | Active | DPDT | Not Specified | On-On (Line Voltage Selector) | 13A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | 3.18mm | Copper | Silver | Through Hole | PC Pin | No Marking |
|

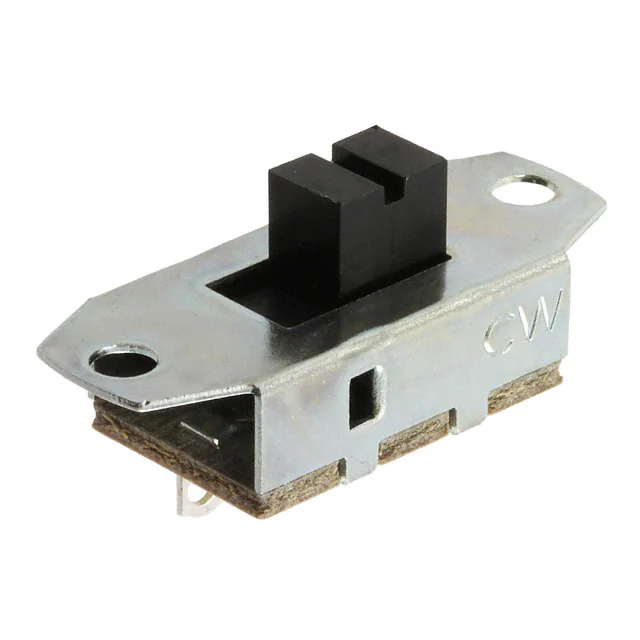

G-632-0006SWITCH SLIDE SPDT 6A 125V CW Industries |
1,268 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Mom | 6A (AC), 500mA (DC) | 125 V | 125 V | Screwdriver Slot | 5.59mm | Copper | Silver | Panel Mount | Solder Lug | - |
|

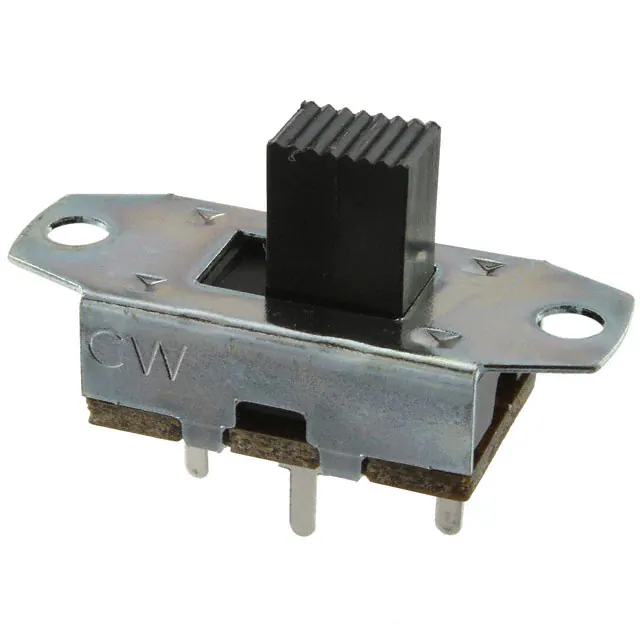

GF-1124-0020SWITCH SLIDE SPDT 11A 125V CW Industries |
195 |
|
数据手册 |
GF | Bulk | Active | SPDT | Not Specified | On-On | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.74mm | Copper | Silver | Panel Mount | PC Pin | - |
|

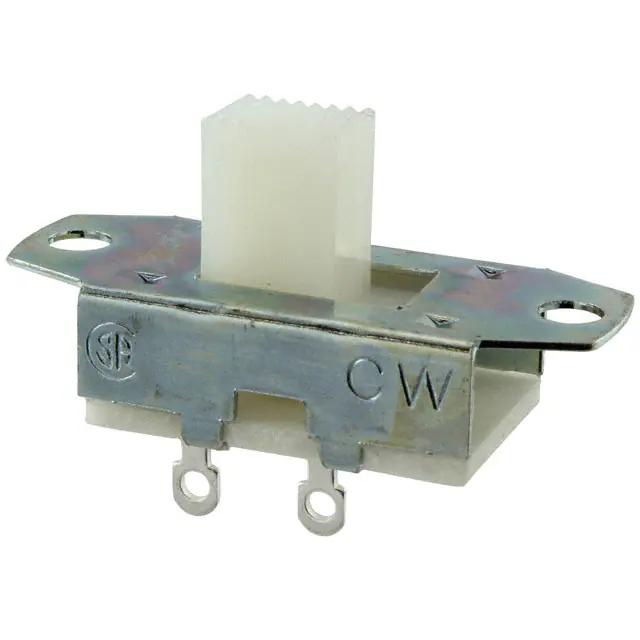

GF-1123-0025SWITCH SLIDE SPST 11A 125V CW Industries |
321 |
|
数据手册 |
GF | Bulk | Active | SPST | Not Specified | On-Off | 11A (AC), 500mA (DC) | 125 V | 125 V | Standard | 8.89mm | Copper | Silver | Panel Mount | Wire Wrap | White Actuator |
|

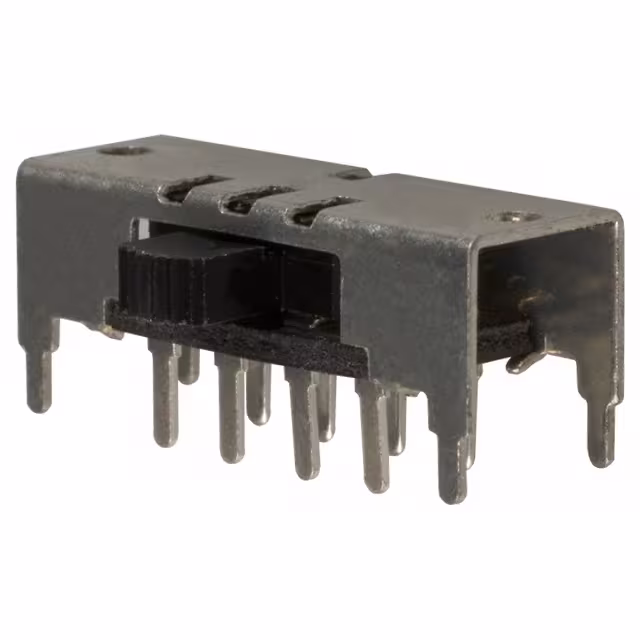

GPI-154-3013SWITCH SLIDE DP3T 3A 125V CW Industries |
1,399 |
|
数据手册 |
GPI | Bulk | Active | DP3T | Not Specified | On-On-On | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Through Hole, Right Angle | PC Pin | - |
|
G-133-3011SWITCH SLIDE SPDT 3A 125V CW Industries |
113 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Mom | 3A (AC), 500mA (DC) | 125 V | 125 V | Standard | 5.08mm | Copper | Silver | Panel Mount | Solder Lug | - |
