滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH39S010001SWITCH SLIDE SPDT 3A 30V APEM Inc. |
1,041 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
25346NA6SWITCH SLIDE DPDT 4A 125V APEM Inc. |
4,027 |
|
数据手册 |
25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
NK236WSWITCH SLIDE SPDT 500MA 12V APEM Inc. |
3,429 |
|
数据手册 |
NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Flush | - | Nickel | Gold | Through Hole, Right Angle | PC Pin | Sealed - Flux Protection |
|

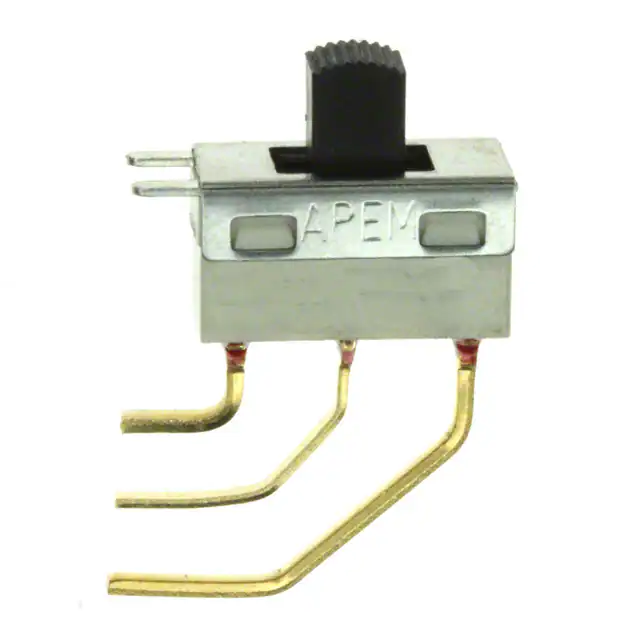

GH39WW00001SWITCH SLIDE SPDT 0.4VA 20V APEM Inc. |
3,865 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

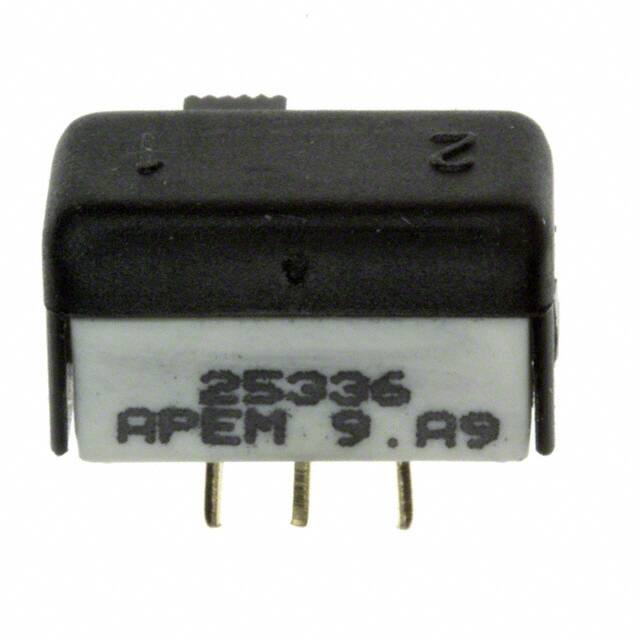

25336NLDSWITCH SLIDE SPDT 100MA 30V APEM Inc. |
4,393 |
|
数据手册 |
25000N | Bulk | Active | SPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
GH39W000001SWITCH SLIDE SPDT 0.4VA 20V APEM Inc. |
3,465 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GH46W000001SWITCH SLIDE DPDT 0.4VA 20V APEM Inc. |
1,885 |
|
数据手册 |
G | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 4.70mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GH49S010001SWITCH SLIDE DPDT 3A 30V APEM Inc. |
3,381 |
|
数据手册 |
G | Bulk | Active | DPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
MRC12RTRSWITCH SLIDE SPDT 300MA 4V APEM Inc. |
1,184 |
|
数据手册 |
MRC | Tape & Reel (TR) | Obsolete | SPDT | Not Specified | On-On | 300mA (DC) | - | 4 V | Standard | 1.50mm | Phosphor Bronze | Silver | Surface Mount, Right Angle | Gull Wing | - |
|
|
MHSS1105ASWITCH SLIDE SPDT 300MA 6V APEM Inc. |
1,204 |
|
数据手册 |
MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 4.40mm | - | Silver | Through Hole, Right Angle | PC Pin | Black Actuator |
