滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

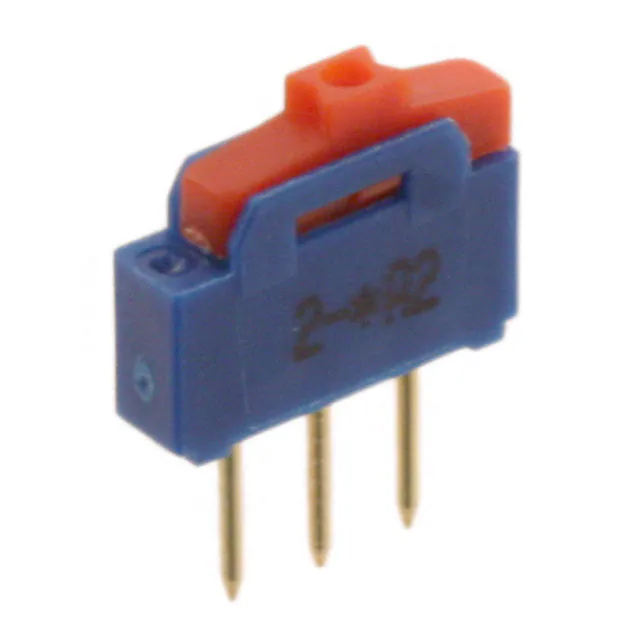

NK236HSWITCH SLIDE SPDT 500MA 12V APEM Inc. |
21,623 |
|
数据手册 |
NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Standard | 1.40mm | Nickel | Gold | Through Hole | PC Pin | Sealed - Flux Protection |
|

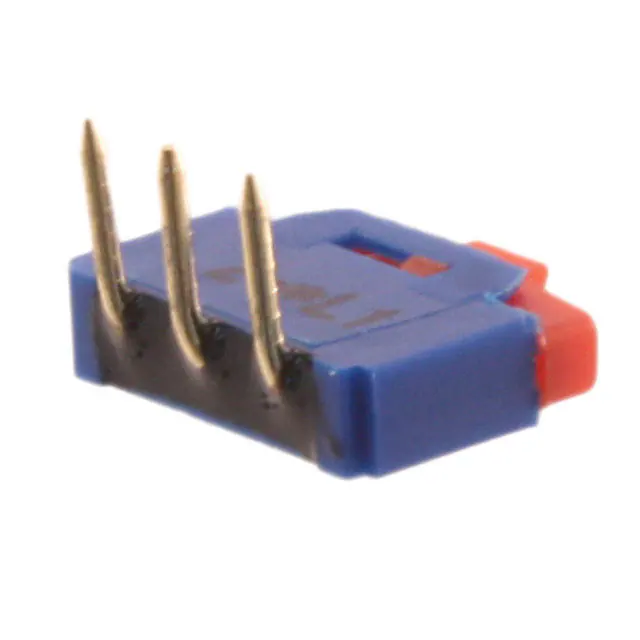

NK236WHSWITCH SLIDE SPDT 500MA 12V APEM Inc. |
9,447 |
|
数据手册 |
NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Standard | 1.40mm | Nickel | Gold | Through Hole, Right Angle | PC Pin | Sealed - Flux Protection |
|
25139NAHSWITCH SLIDE SPDT 4A 125V APEM Inc. |
4,489 |
|
数据手册 |
25000N | Bulk | Active | SPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
25136NAHSWITCH SLIDE SPDT 4A 125V APEM Inc. |
223 |
|
数据手册 |
25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MHSS1104SWITCH SLIDE SPDT 300MA 6V APEM Inc. |
6,530 |
|
数据手册 |
MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | Black Actuator |
|
MHSS1105SWITCH SLIDE SPDT 300MA 6V APEM Inc. |
5,778 |
|
数据手册 |
MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Black Actuator |
|
MS22SWITCH SLIDE DPDT 300MA 6V APEM Inc. |
6,548 |
|
数据手册 |
MS | Bulk | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | - |
|
PM13B012SWITCH SLIDE SPDT 6A 125V APEM Inc. |
3,227 |
|
数据手册 |
PM | Tube | Active | SPDT | Not Specified | On-On | 6A (AC) | 125 V | - | Standard | 9.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
ASLB12814SLIDE SWITCH APEM Inc. |
1,600 |
|
数据手册 |
ASLB | Bag | Active | SPDT | Not Specified | On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 4.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
|
|
ASLB1470SLIDE SWITCH APEM Inc. |
380 |
|
数据手册 |
ASLB | Bag | Active | SP4T | Not Specified | On-On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 5.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
