滑动开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 触点时间 | 开关功能 | 电流额定值（安培） | 电压额定值 - 直流 | 执行器类型 | 执行器长度 | 触点材料 | 触点表面处理 | 安装类型 | 端接样式 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASLB1570SLIDE SWITCH APEM Inc. |
1,909 |
|
数据手册 |
ASLB | Bag | Active | SP5T | Not Specified | On-On-On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 5.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
|

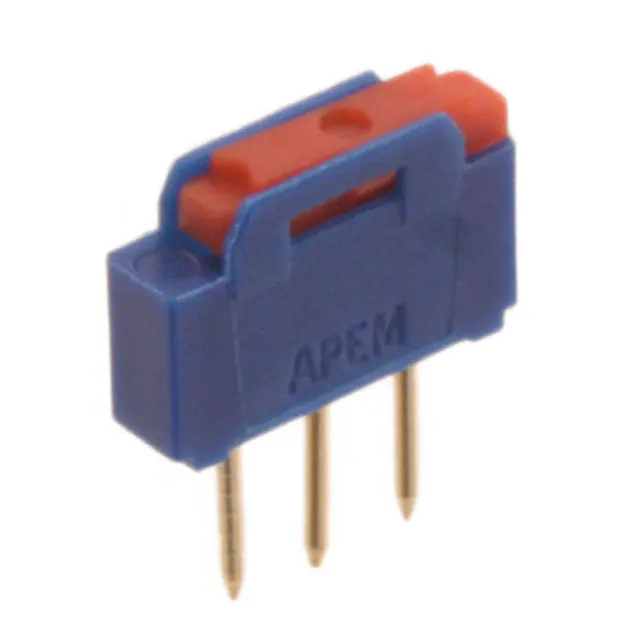

NK236SWITCH SLIDE SPDT 500MA 12V APEM Inc. |
5,004 |
|
数据手册 |
NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Flush | - | Nickel | Gold | Through Hole | PC Pin | Sealed - Flux Protection |
|

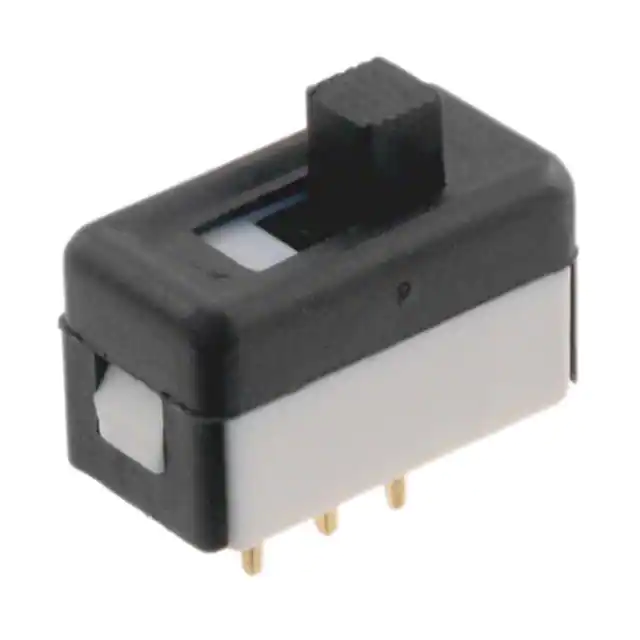

25139NLDHSWITCH SLIDE SPDT 100MA 30V APEM Inc. |
435 |
|
数据手册 |
25000N | Bulk | Active | SPDT | Not Specified | On-Off-On | 100mA (DC) | - | 30 V | Standard | 2.80mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

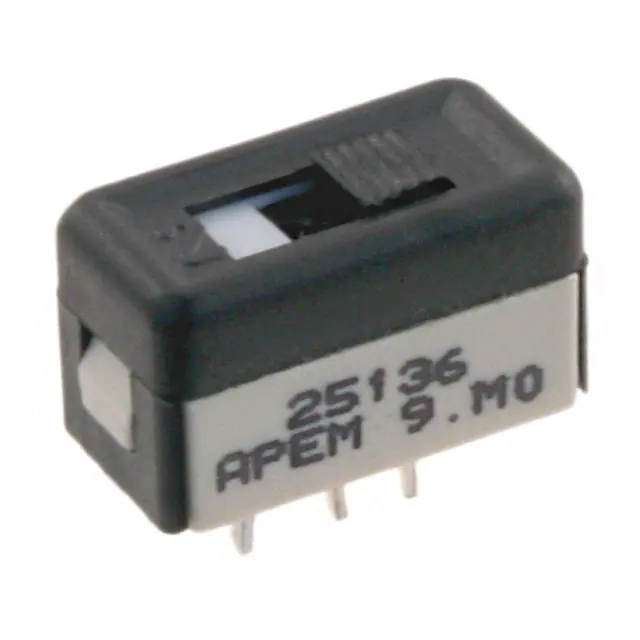

25136NABSWITCH SLIDE SPDT 4A 125V APEM Inc. |
1,112 |
|
数据手册 |
25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
GH36P010001SWITCH SLIDE SPDT 3A 30V APEM Inc. |
712 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

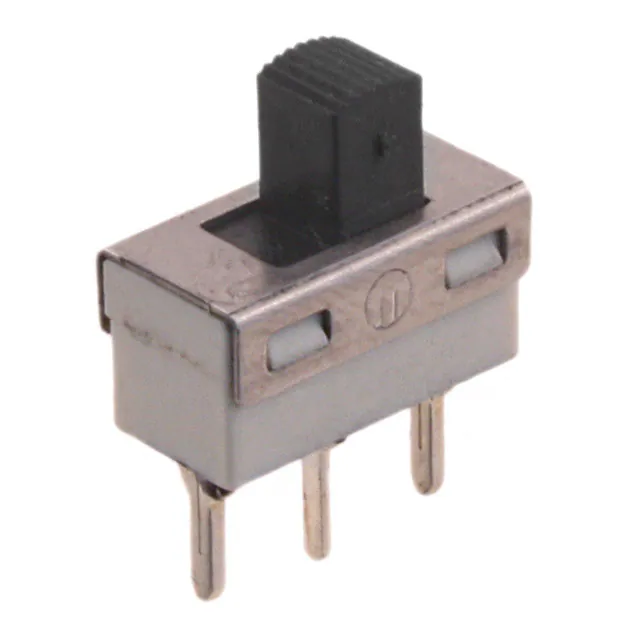

GH39P010001SWITCH SLIDE SPDT 3A 30V APEM Inc. |
319 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

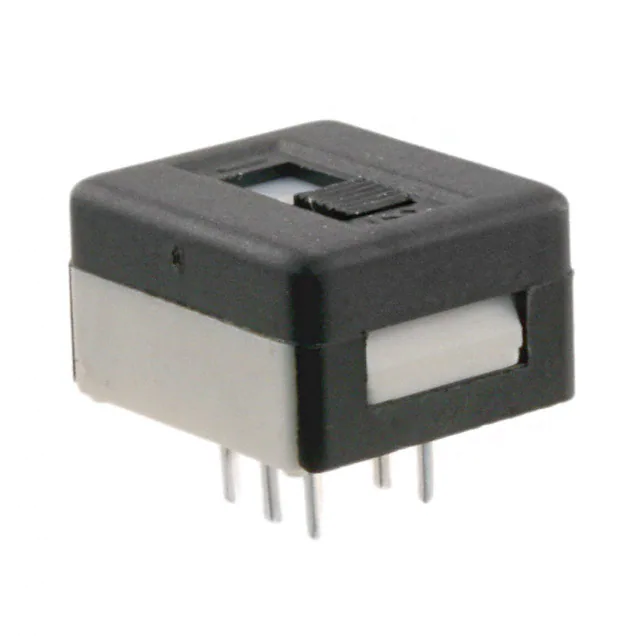

25146NABSWITCH SLIDE DPDT 4A 125V APEM Inc. |
1,279 |
|
数据手册 |
25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

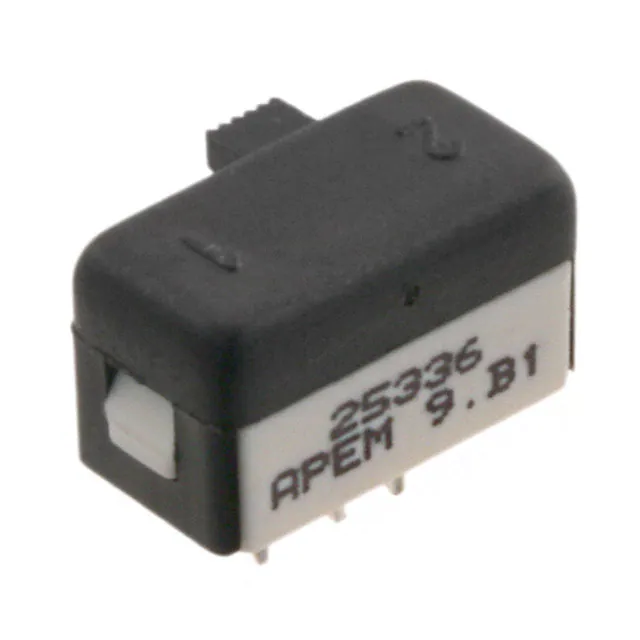

25336NASWITCH SLIDE SPDT 4A 125V APEM Inc. |
1,196 |
|
数据手册 |
25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
GH36S010001SWITCH SLIDE SPDT 3A 30V APEM Inc. |
161 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|

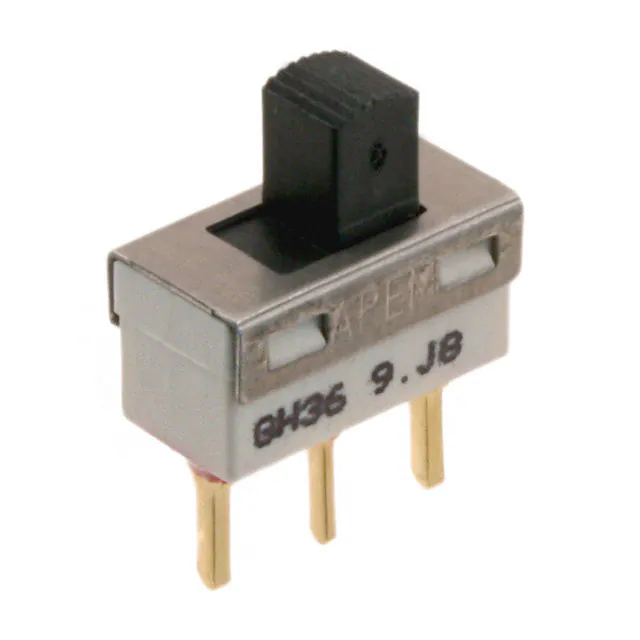

GH36P000001SWITCH SLIDE SPDT 0.4VA 20V APEM Inc. |
353 |
|
数据手册 |
G | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
