旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6657S-1-102POT 1K OHM 1.5W PLASTIC LINEAR |
1,456 |
|
数据手册 |
6657 | Bulk | Active | 1k | ±10% | 1.5W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3549S-2AA-104/104APOT 100K OHM 2W WIREWOUND LINEAR |
4,313 |
|
数据手册 |
3549 | Tray | Active | 100k | ±3% | 2W | None | 10.0 | - | Linear | 2 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

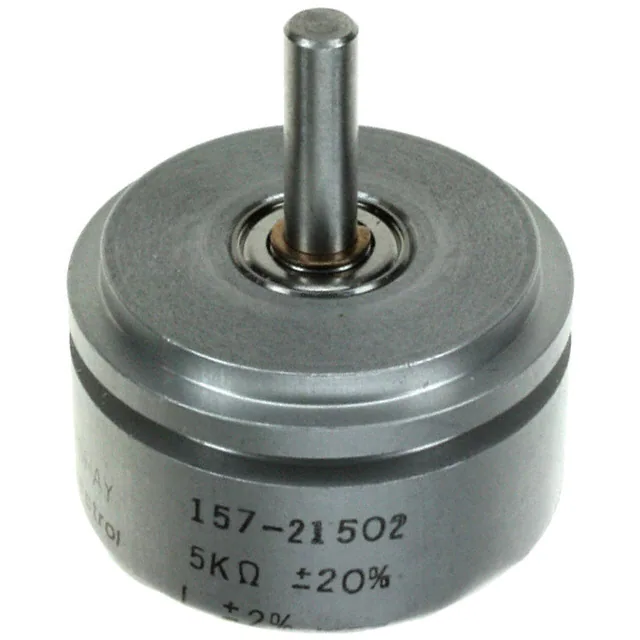

157S502MXPOT 5K OHM 1W PLASTIC LINEAR |
4,180 |
|
数据手册 |
157 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|

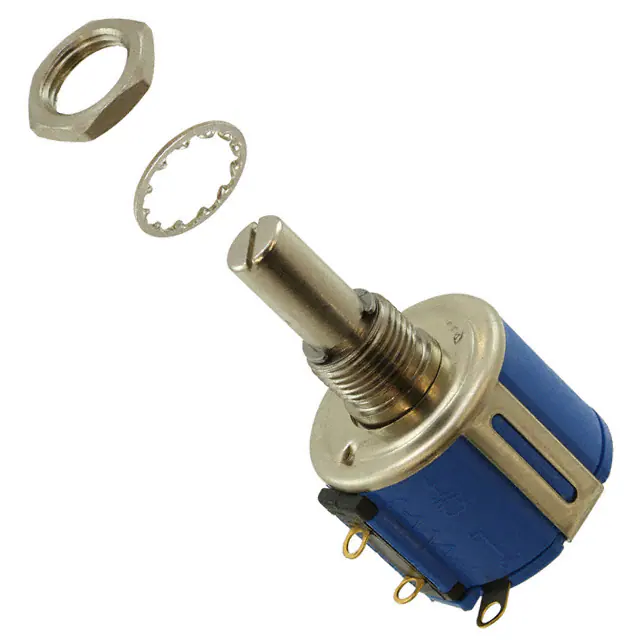

3543S-1-502LPOT 5K OHM 1W WIREWOUND LINEAR |
1,200 |
|
数据手册 |
3543 | Bulk | Active | 5k | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
357B0202MAB251S22POT 2K OHM 1W PLASTIC LINEAR |
2,864 |
|
数据手册 |
357 | Bulk | Active | 2k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3862C-282-102ALPOT 1K OHM 1W CERMET LINEAR |
138 |
|
数据手册 |
3862 | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
536B101POT 100 OHM 2W WIREWOUND LINEAR |
2,298 |
|
数据手册 |
536 | Bulk | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3548H-1AA-102BPOT 1K OHM 1.5W HYBRITRON LINEAR |
1,165 |
|
数据手册 |
Hybritron® 3548 | Tray | Active | 1k | ±10% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 1800° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3545S-1-102LPOT 1K OHM 1.5W WIREWOUND LINEAR |
1,589 |
|
数据手册 |
3545 | Bulk | Active | 1k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
83A1A-B28-J15LPOT 10K OHM 1W WIREWOUND LINEAR |
2,409 |
|
数据手册 |
83 | Tray | Active | 10k | ±5% | 1W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

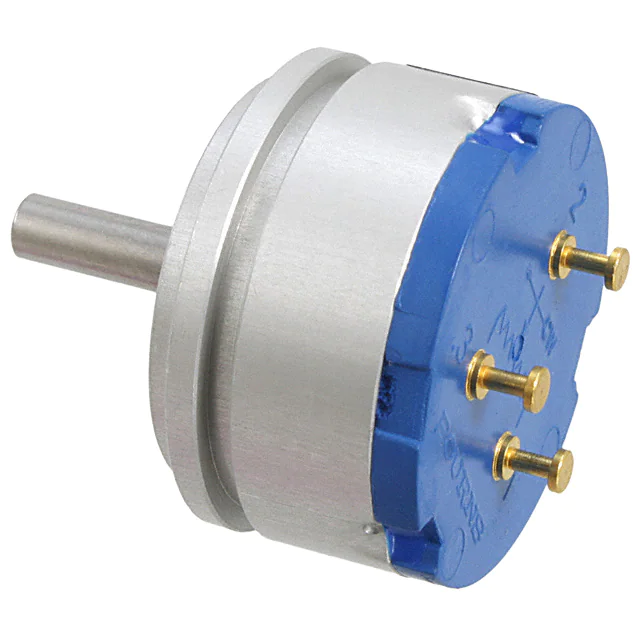

6538S-1-202POT 2K OHM 1W PLASTIC LINEAR |
1,880 |
|
数据手册 |
6538 | Bulk | Active | 2k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|

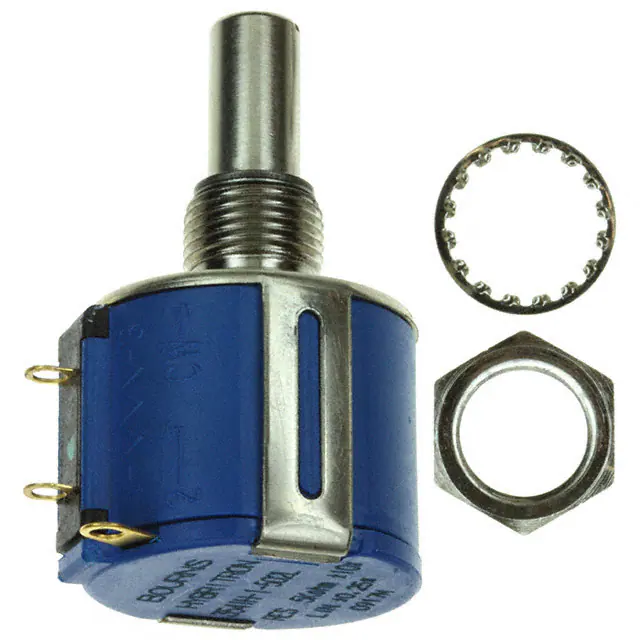

3541H-1-502LPOT 5K OHM 2W HYBRITRON LINEAR |
1,343 |
|
数据手册 |
Hybritron® 3541 | Tray | Active | 5k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

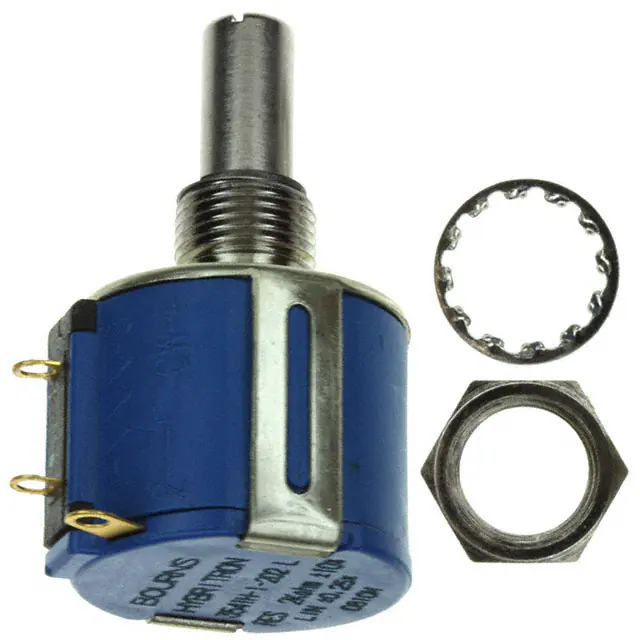

3541H-1-202LPOT 2K OHM 2W HYBRITRON LINEAR |
2,113 |
|
数据手册 |
Hybritron® 3541 | Tray | Active | 2k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
249FGJS0XB25104KAPOT 100K OHM 0.9W CERMET LINEAR |
4,939 |
|
数据手册 |
249 | Box | Active | 100k | ±10% | 0.9W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

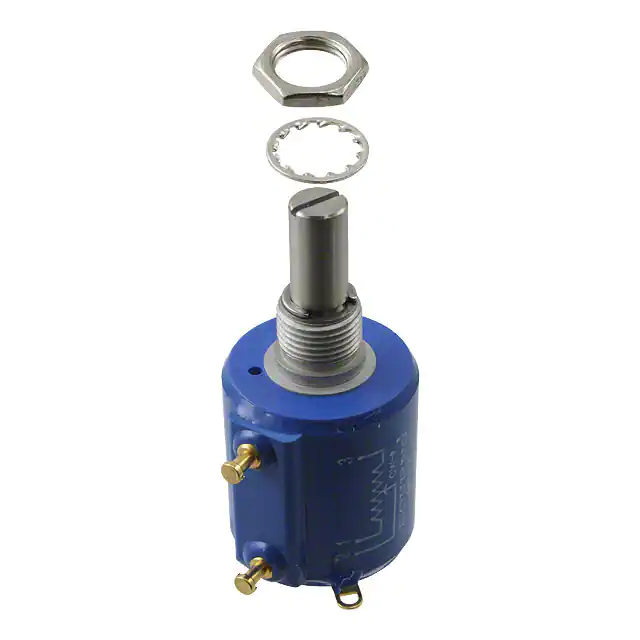

3501H-1-502LPOT 5K OHM 2W HYBRITRON LINEAR |
4,492 |
|
数据手册 |
Hybritron® 3501 | Bulk | Active | 5k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Turret | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
6537S-1-102POT 1K OHM 1W PLASTIC LINEAR |
100 |
|
数据手册 |
6537 | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|
|
3501H-1-102LPOT 1K OHM 2W HYBRITRON LINEAR |
3,018 |
|
数据手册 |
Hybritron® 3501 | Bulk | Active | 1k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Turret | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
536B104POT 100K OHM 2W WIREWOUND LINEAR |
3,623 |
|
数据手册 |
536 | Bulk | Active | 100k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3501H-1-103LPOT 10K OHM 2W HYBRITRON LINEAR |
4,308 |
|
数据手册 |
Hybritron® 3501 | Bulk | Active | 10k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Turret | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

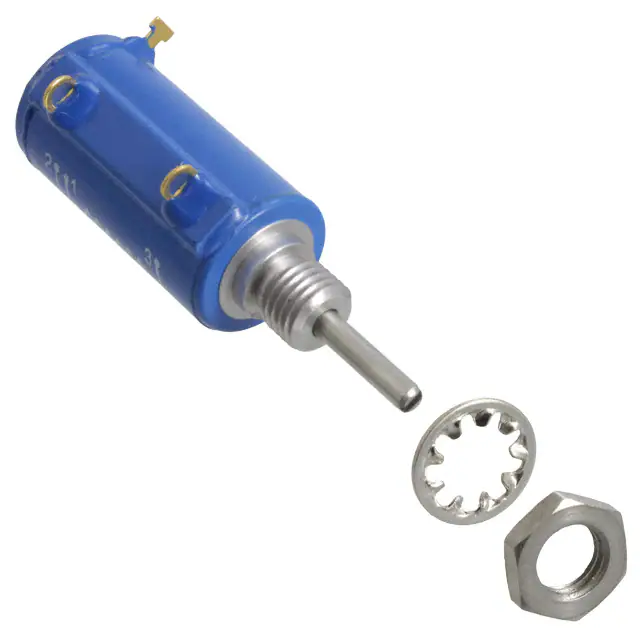

3700S-1-103LPOT 10K OHM 1W WIREWOUND LINEAR |
2,719 |
|
数据手册 |
3700 | Bulk | Active | 10k | ±5% | 1W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.687" (17.46mm) | 0.093" (2.36mm) | 1/4-32 | Panel Mount |
