旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
96A1A-B28-A15LPOT 10K OHM 2W CERMET LINEAR |
245 |
|
数据手册 |
96 | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P260T-S1BS3CB100KPOT 100K OHM 1/2W PLASTIC LINEAR |
1,400 |
|
数据手册 |
P260 | Tray | Active | 100k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Top Adjustment | - | 295° | Conductive Plastic | PC Pins | Slotted | 0.787" (20.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3852C-162-103ALPOT 10K OHM 2W CERMET LINEAR |
266 |
|
数据手册 |
3852 | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 280° | Cermet | Solder Lug | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
91A2A-B28-B13/B13LPOT 5K OHM 1/2W PLASTIC LINEAR |
156 |
|
数据手册 |
91 | Tray | Active | 5k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
92R1A-J22-L15LPOT 10K OHM 1W PLASTIC LINEAR |
226 |
|
数据手册 |
92 | Tray | Active | 10k | ±10% | 1W | None | 1.0 | Long Life | Linear | 1 | User Defined | ±1000ppm/°C | 300° | Conductive Plastic | Solder Hook | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 | Panel Mount |
|

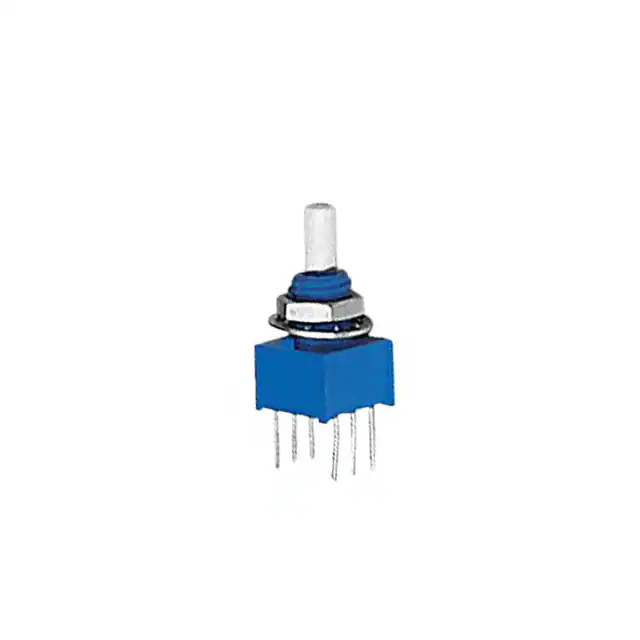

3310H-013-103LPOT 10K OHM 1/4W PLASTIC LINEAR |
145 |
|
数据手册 |
Pro Audio 3310 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | Sealed | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3862C-202-103ALPOT 10K OHM 1W CERMET LINEAR |
324 |
|
数据手册 |
3862 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

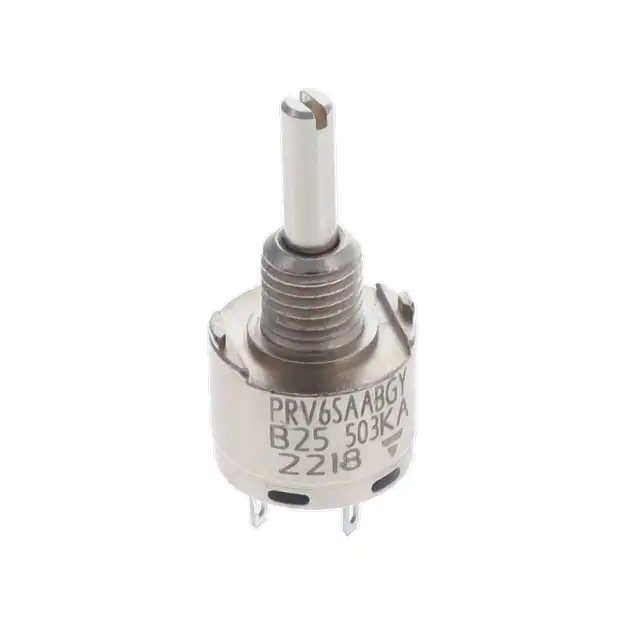

PRV6SAABGYB25503KAPOT 50K OHM 1.5W CERMET LINEAR |
115 |
|
数据手册 |
PRV6 | Box | Active | 50k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.630" (16.00mm) | 0.125" (3.18mm) | - | Panel Mount |
|

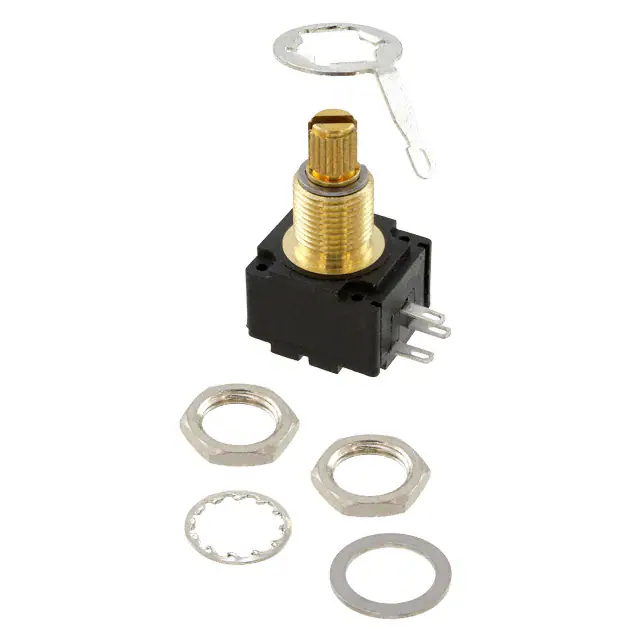

95A1D-Z28-EA0/300LPOT 250K OHM 1/4W PLASTIC LOG |
118 |
|
数据手册 |
Pro Audio 95 Premium | Bulk | Active | 250k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Logarithmic | 1 | User Defined | ±1000ppm/°C | 300° | Conductive Plastic | Solder Lug | Knurled and Slotted | 0.685" (17.40mm) | 0.235" (5.97mm) | 3/8-32 | Panel Mount |
|
287T328S102A11POT 1K OHM 2W CERMET LINEAR |
1,170 |
|
数据手册 |
287 | Tray | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
287T328S501A11POT 500 OHM 2W CERMET LINEAR |
1,188 |
|
数据手册 |
287 | Tray | Active | 500 | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
81A1A-B28-A10LPOT 1K OHM 2W CERMET LINEAR |
203 |
|
数据手册 |
81 | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

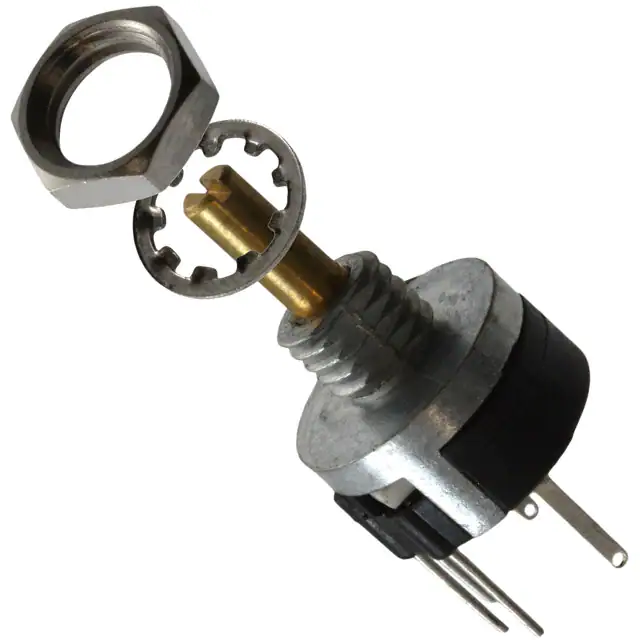

39SA-1RB-103POT 10K OHM 1/4W PLASTIC LINEAR |
361 |
|
数据手册 |
39 | Tray | Active | 10k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 270° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-28 | Panel Mount |
|
82A1A-B28-A13LPOT 5K OHM 2W CERMET LINEAR |
3,140 |
|
数据手册 |
82 | Tray | Active | 5k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Hook | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
81A1A-B24-A18LPOT 50K OHM 2W CERMET LINEAR |
230 |
|
数据手册 |
81 | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
249BBHS0XB25503KAPOT 50K OHM 1W CERMET LINEAR |
162 |
|
数据手册 |
249 | Box | Active | 50k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
95A2A-B28-A10/A10LPOT 1K OHM 1W CERMET LINEAR |
241 |
|
数据手册 |
95 | Bulk | Active | 1k | ±10% | 1W | None | 1.0 | - | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NP105MAB15POT 1M OHM 1W CERMET LINEAR |
103 |
|
数据手册 |
P16 | Bulk | Active | 1M | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
3-1625931-3POT 47K OHM 2W CERMET LINEAR |
320 |
|
数据手册 |
M, Citec | Bulk | Active | 47k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
P16NP101MAB15POT 100 OHM 1W CERMET LINEAR |
564 |
|
数据手册 |
P16 | Bulk | Active | 100 | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
