旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

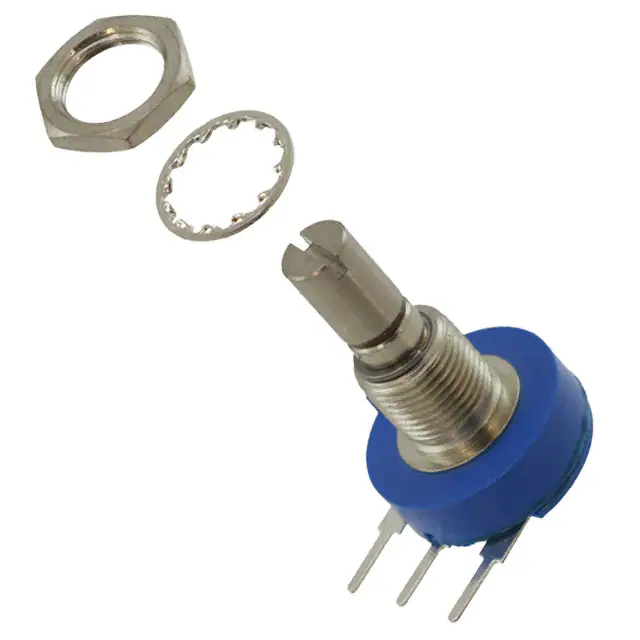

3856A-286-103ALPOT 10K OHM 2W CERMET LINEAR |
213 |
|
数据手册 |
3856 | Bulk | Active | 10k | ±10% | 2W | None | 3.75 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 1350° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
SPRU5011S28POT 500 OHM 1/2W CARBON LINEAR |
203 |
|
数据手册 |
SPR | Bulk | Active | 500 | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

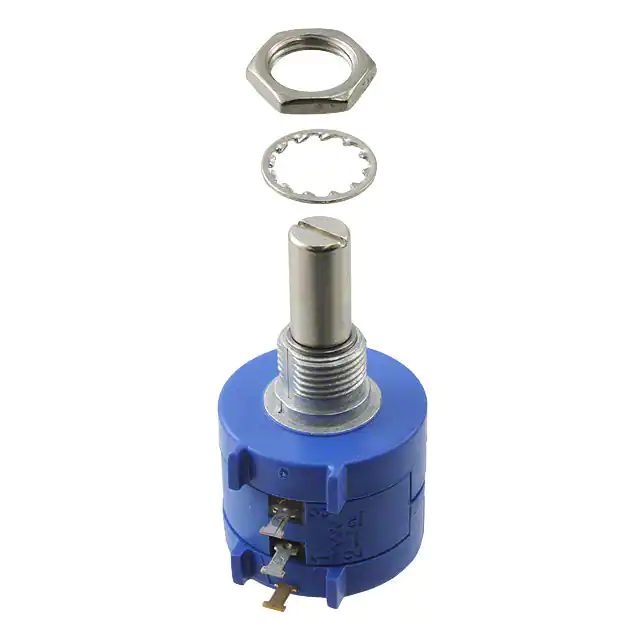

3590S-4-202LPOT 2K OHM 2W WIREWOUND LINEAR |
155 |
|
数据手册 |
3590 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | Sealed | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3862C-282-103ALPOT 10K OHM 1W CERMET LINEAR |
324 |
|
数据手册 |
3862 | Bulk | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3862C-202-502ALPOT 5K OHM 1W CERMET LINEAR |
112 |
|
数据手册 |
3862 | Bulk | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 295° | Cermet | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|

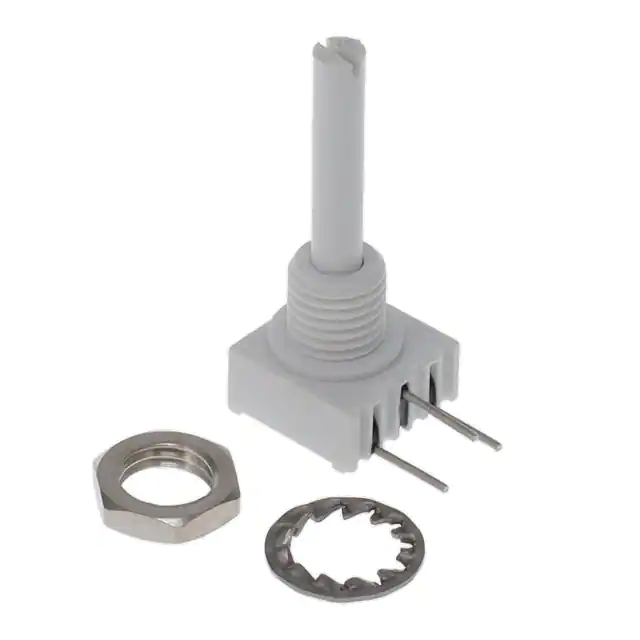

P10XXAI105KB30POT 1M OHM 0.06W CERMET LINEAR |
499 |
|
数据手册 |
P10 | Box | Active | 1M | ±10% | 0.06W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
357B0102MXB251P22POT 1K OHM 1W PLASTIC LINEAR |
145 |
|
数据手册 |
Model 357 | Box | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 360° | Conductive Plastic | Solder Turret | Round | 0.866" (22.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
RV4LAYSA504APOT 500K OHM 2W CARBON LINEAR |
189 |
|
数据手册 |
RV4 | Bulk | Active | 500k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
2-1625931-8POT 1K OHM 2W CERMET LINEAR |
112 |
|
数据手册 |
M, Citec | Bulk | Active | 1k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
RV6NAYSD104APOT 100K OHM 1/2W CARBON LINEAR |
101 |
|
数据手册 |
RV6 | Bulk | Active | 100k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
RV6NAYSD254APOT 250K OHM 1/2W CARBON LINEAR |
247 |
|
数据手册 |
RV6 | Bulk | Active | 250k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
SPRU2511S28POT 250 OHM 1/2W CARBON LINEAR |
338 |
|
数据手册 |
SPR | Bulk | Active | 250 | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3549S-1AB-502BPOT 5K OHM 2W WIREWOUND LINEAR |
134 |
|
数据手册 |
3549 | Tray | Active | 5k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
249BBHS0XB25253KAPOT 25K OHM 1W CERMET LINEAR |
205 |
|
数据手册 |
249 | Box | Active | 25k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 1/4-32 | Panel Mount |
|

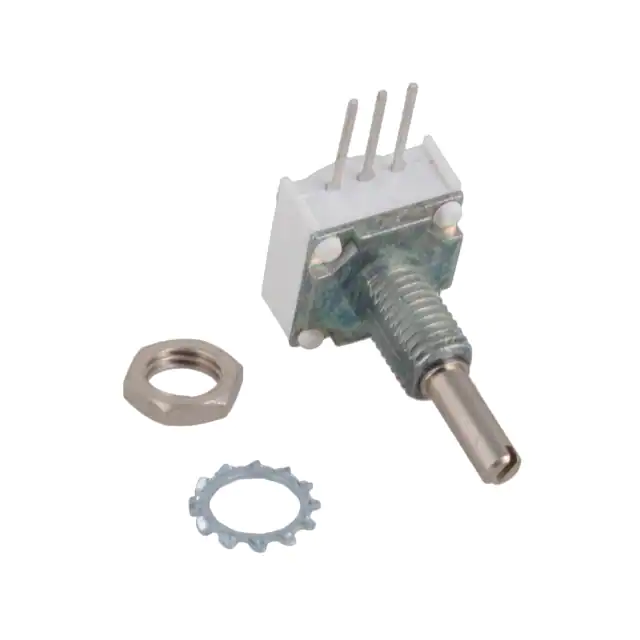

249BBHS0XB25103KAPOT 10K OHM 1W CERMET LINEAR |
102 |
|
数据手册 |
249 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 295° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
84A1A-B28-J13LPOT 5K OHM 1W WIREWOUND LINEAR |
209 |
|
数据手册 |
84 | Tray | Active | 5k | ±5% | 1W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
83A1D-B24-J13LPOT 5K OHM 1W WIREWOUND LINEAR |
144 |
|
数据手册 |
83 | Tray | Active | 5k | ±5% | 1W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
3549H-1BH-502BPOT 5K OHM 2W HYBRITRON LINEAR |
4,158 |
|
数据手册 |
Hybritron® 3549 | Tray | Active | 5k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|

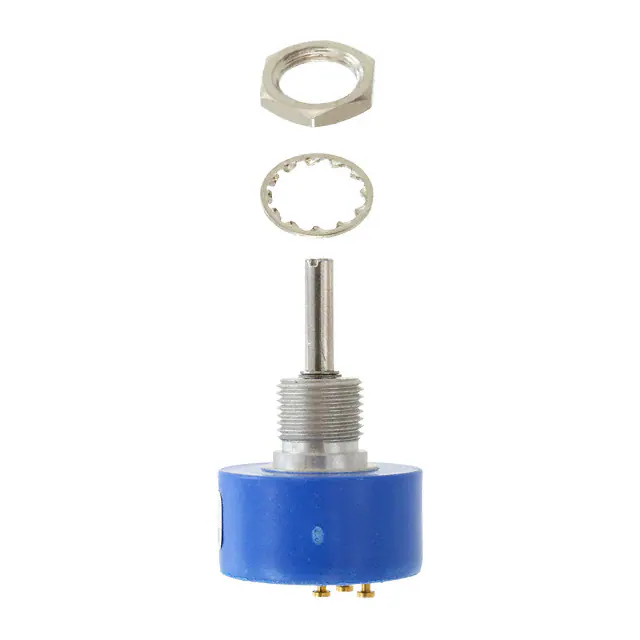

6637S-1-502POT 5K OHM 1W PLASTIC LINEAR |
3,605 |
|
数据手册 |
6637 | Tray | Active | 5k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.1248" (3.17mm) | 3/8-32 | Panel Mount |
|
3549S-2AA-502/502APOT 5K OHM 2W WIREWOUND LINEAR |
4,431 |
|
数据手册 |
3549 | Tray | Active | 5k | ±3% | 2W | None | 10.0 | - | Linear | 2 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
