旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
533B1501JCPOT 500 OHM 1W WIREWOUND LINEAR |
2,890 |
|
数据手册 |
533 | Bulk | Active | 500 | ±5% | 1W | None | 3.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
535B1202JCPOT 2K OHM 1.5W WIREWOUND LINEAR |
1,046 |
|
数据手册 |
535 | Bulk | Active | 2k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
535B1501JCPOT 500 OHM 1.5W WIREWOUND LIN |
1,918 |
|
数据手册 |
535 | Bulk | Active | 500 | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
535B1102JCPOT 1K OHM 1.5W WIREWOUND LINEAR |
1,100 |
|
数据手册 |
535 | Bulk | Active | 1k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | 20ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3548S-1BA-103BPOT 10K OHM 1.5W WIREWOUND LIN |
2,785 |
|
数据手册 |
3548 | Tray | Active | 10k | ±3% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
5322R5KL2.0POT 5K OHM 1/4W PLASTIC LINEAR |
4,973 |
|
数据手册 |
5320 | Bulk | Active | 5k | ±20% | 0.25W, 1/4W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 250° | Conductive Plastic | - | Round | 0.625" (15.88mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3548S-1AB-502BPOT 5K OHM 1.5W WIREWOUND LINEAR |
3,003 |
|
数据手册 |
3548 | Bulk | Active | 5k | ±3% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|

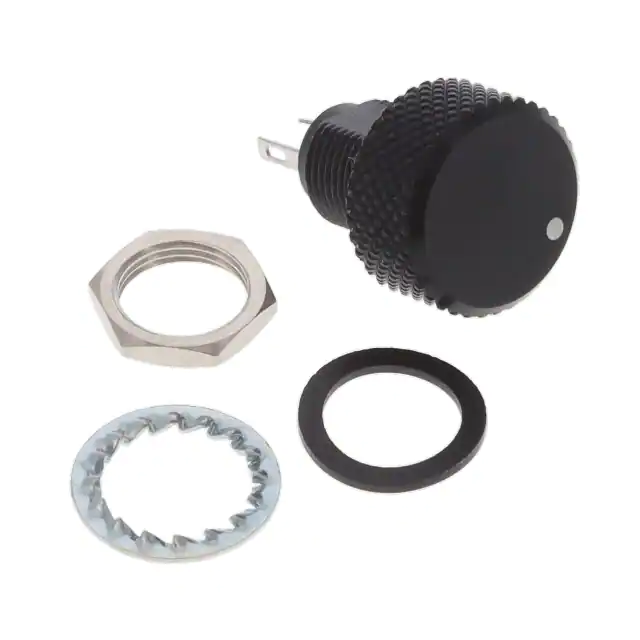

P16NM103KAB15POT 10K OHM 1W CERMET LINEAR |
2,724 |
|
数据手册 |
P16 | Box | Active | 10k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P11S1V0FLSY00101KAPOT 100 OHM 1W CERMET LINEAR |
3,315 |
|
数据手册 |
P11S | Box | Active | 100 | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

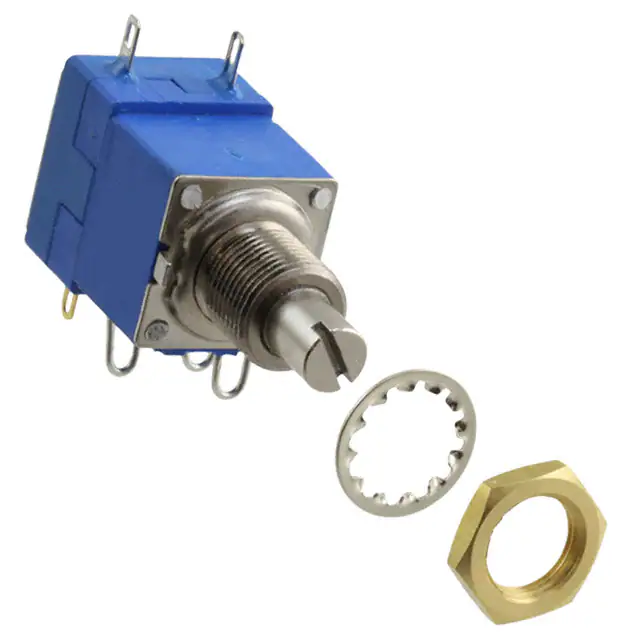

86R2A-R16-A13/R51LPOT 5K OHM 2W CERMET LINEAR |
2,076 |
|
数据手册 |
86 | Bulk | Active | 5k | ±10% | 2W | Rotary, DPDT | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Hook | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
534B1501JLPOT 500 OHM 2W WIREWOUND LINEAR |
3,085 |
|
数据手册 |
534 | Box | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | 20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NM472KAB15POT 4.7K OHM 1W CERMET LINEAR |
4,883 |
|
数据手册 |
P16 | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
3540S-1-501LPOT 500 OHM 2W WIREWOUND LINEAR |
4,078 |
|
数据手册 |
3540 | Tray | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3540S-1-202LPOT 2K OHM 2W WIREWOUND LINEAR |
3,815 |
|
数据手册 |
3540 | Tray | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

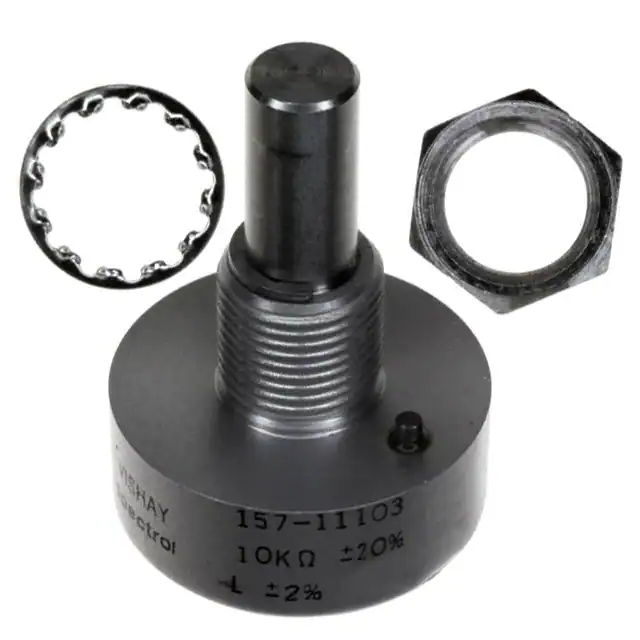

157B103MXPOT 10K OHM 1W PLASTIC LINEAR |
3,807 |
|
数据手册 |
157 | Bulk | Active | 10k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
CMU1031EPOT 10K OHM 2W CARBON LINEAR |
1,976 |
|
数据手册 |
CMU | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
7286R500L.25POT 500 OHM 2W WIREWOUND LINEAR |
3,916 |
|
数据手册 |
7280 | Bulk | Active | 500 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
SPRU5041S28POT 500K OHM 1/2W CARBON LINEAR |
3,405 |
|
数据手册 |
SPR | Bulk | Active | 500k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 295° | Carbon | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
|
7286R2KL.25POT 2K OHM 2W WIREWOUND LINEAR |
4,029 |
|
数据手册 |
7280 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
7286R100L.25POT 100 OHM 2W WIREWOUND LINEAR |
1,043 |
|
数据手册 |
7280 | Bulk | Active | 100 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Turret | Slotted | 0.812" (20.63mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
