旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
M-22E10-050 2KPOT 2K OHM 2W WIREWOUND LINEAR |
1,499 |
|
数据手册 |
M-22 | Bulk | Active | 2k | ±0.2% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.906" (23.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
3590P-2-203LPOT 20K OHM 2W WIREWOUND LINEAR |
2,412 |
|
数据手册 |
3590 | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
3590P-2-502LPOT 5K OHM 2W WIREWOUND LINEAR |
1,963 |
|
数据手册 |
3590 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

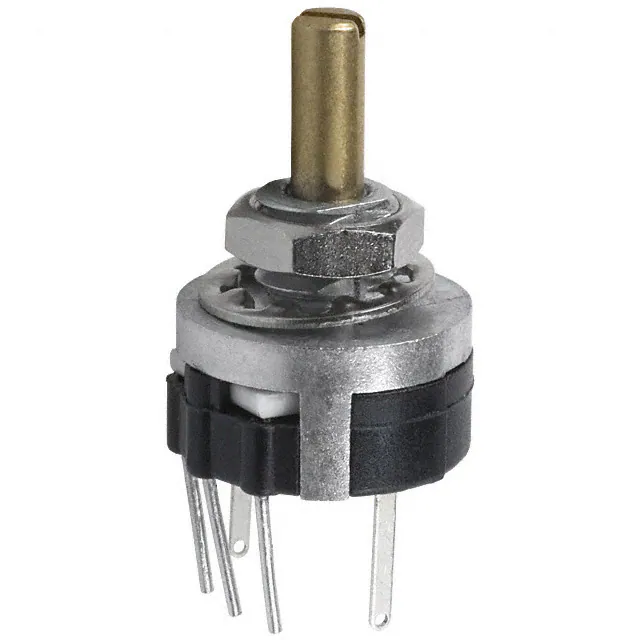

39LA-1PB-103POT 10K OHM 1/4W PLASTIC LINEAR |
3,312 |
|
数据手册 |
39 | Tray | Active | 10k | ±20% | 0.25W, 1/4W | Momentary Push, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 230° | Conductive Plastic | PC Pins | Slotted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-28 | Panel Mount |
|

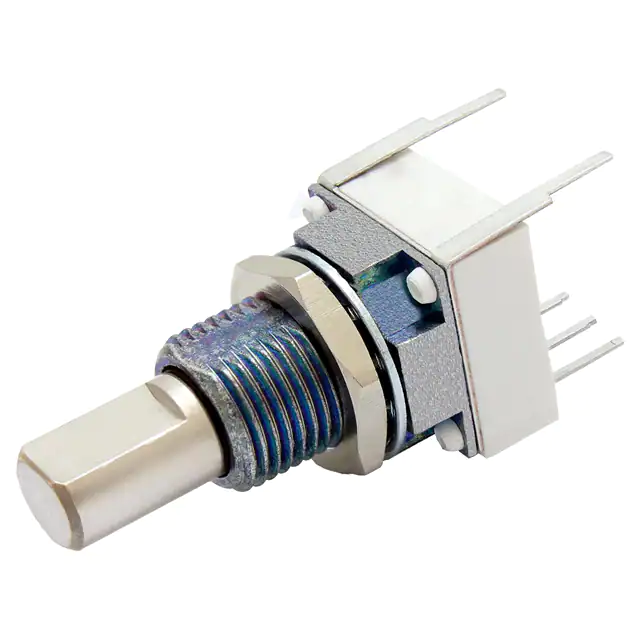

P11H1F0GHFY00502KAPOT 5K OHM 1W CERMET LINEAR |
1,492 |
|
数据手册 |
P11H | Box | Active | 5k | ±10% | 1W | None | 1.0 | High Torque | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
6639S-1-104POT 100K OHM 1W PLASTIC LINEAR |
3,179 |
|
数据手册 |
6639 | Bulk | Active | 100k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
RV4LAYSA254APOT 250K OHM 2W CARBON LINEAR |
3,022 |
|
数据手册 |
RV4 | Bulk | Active | 250k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
P16NP471MAB15POT 470 OHM 1W CERMET LINEAR |
1,800 |
|
数据手册 |
P16 | Bulk | Active | 470 | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

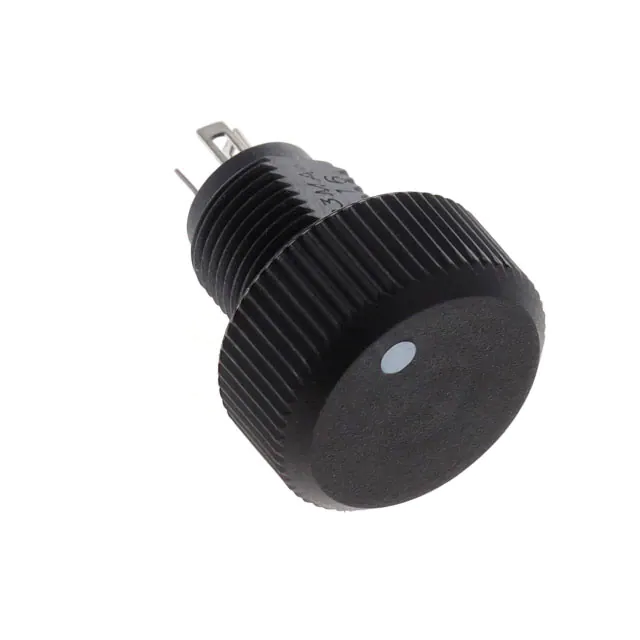

PA16NP103MAB15POT 10K OHM 1/2W PLASTIC LINEAR |
4,969 |
|
数据手册 |
PA16 | Box | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|

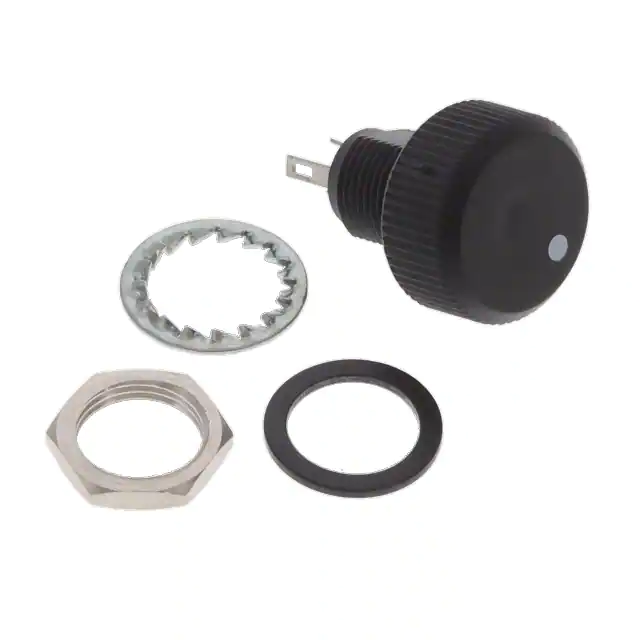

P16NP221MAB15POT 220 OHM 1W CERMET LINEAR |
2,538 |
|
数据手册 |
P16 | Box | Active | 220 | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
39SB-1RB-104POT 100K OHM 1/4W PLASTIC LINEAR |
3,775 |
|
数据手册 |
39 | Tray | Active | 100k | ±20% | 0.25W, 1/4W | Rotary, SPST | 1.0 | - | Linear | 1 | Top Adjustment | - | 270° | Conductive Plastic | PC Pins | Flatted | 0.500" (12.70mm) | 0.125" (3.18mm) | 1/4-28 | Panel Mount |
|
3590S-6-102LPOT 1K OHM 2W WIREWOUND LINEAR |
4,079 |
|
数据手册 |
3590 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | M9 x 0.375 | Panel Mount |
|
|
3590S-6-202LPOT 2K OHM 2W WIREWOUND LINEAR |
3,043 |
|
数据手册 |
3590 | Bulk | Active | 2k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | M9 x 0.375 | Panel Mount |
|
|
3590S-6-203LPOT 20K OHM 2W WIREWOUND LINEAR |
1,112 |
|
数据手册 |
3590 | Bulk | Active | 20k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.236" (6.00mm) | M9 x 0.375 | Panel Mount |
|
|
P16NP224MAB15POT 220K OHM 1W CERMET LINEAR |
1,269 |
|
数据手册 |
P16 | Bulk | Active | 220k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
P16NP474MAB15POT 470K OHM 1W CERMET LINEAR |
4,875 |
|
数据手册 |
P16 | Bulk | Active | 470k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

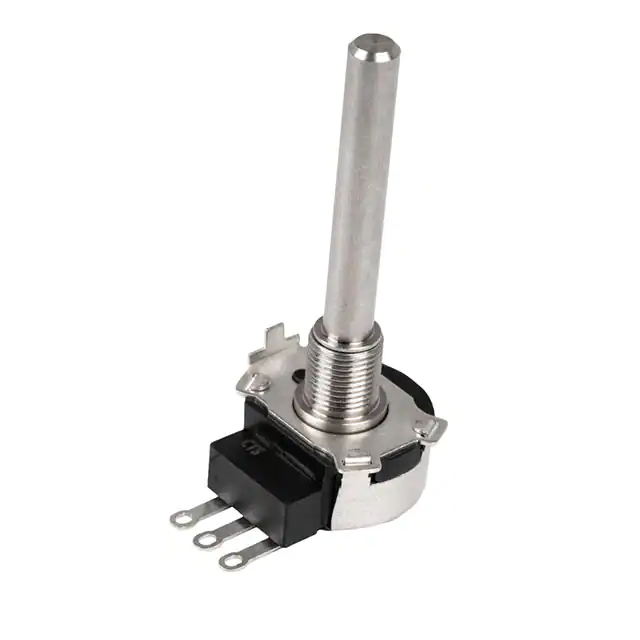

287T364R202A11POT 2K OHM 2W CERMET LINEAR |
2,716 |
|
数据手册 |
287 | Tray | Active | 2k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Cermet | Solder Lug | Round | 2.000" (50.80mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
PA16NP103MLB15POT 10K OHM 1/4W PLASTIC LOG |
3,460 |
|
数据手册 |
PA16 | Box | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|
|
RV4LAYSA153APOT 15K OHM 2W CARBON LINEAR |
1,399 |
|
数据手册 |
RV4 | Bulk | Active | 15k | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 314° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|

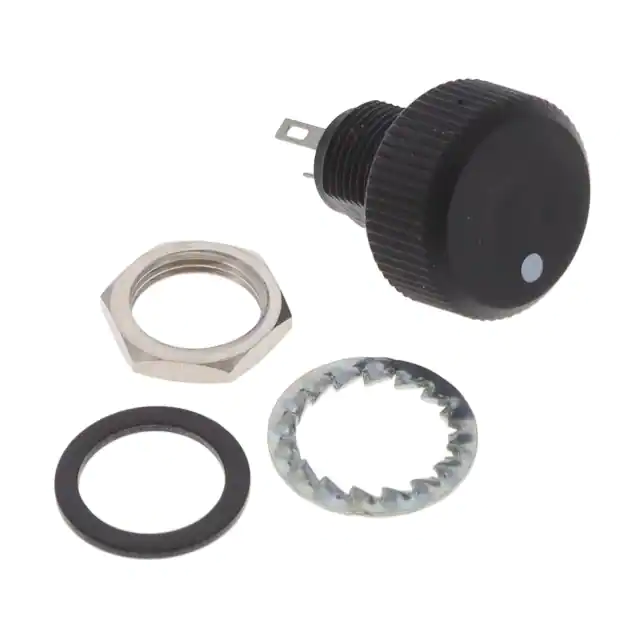

P16NP502KAB15POT 5K OHM 1W CERMET LINEAR |
1,951 |
|
数据手册 |
P16 | Box | Active | 5k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
