旋转电位器、变阻器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电阻（欧姆） | 容差 | 功率（瓦特） | 内置开关 | 转数 | 特性 | 电位器类型 | 帮派数量 | 调整类型 | 温度系数 | 旋转 | 电阻材料 | 端接样式 | 执行器类型 | 执行器长度 | 执行器直径 | 衬套螺纹 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16NP222KAB15POT 2.2K OHM 1W CERMET LINEAR |
2,589 |
|
数据手册 |
P16 | Box | Active | 2.2k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
P11H1F0GHFW10502KAPOT 5K OHM 1W CERMET LINEAR |
3,594 |
|
数据手册 |
P11H | Box | Active | 5k | ±10% | 1W | None | 1.0 | High Torque | Linear | 1 | Top Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
6639S-1-503POT 50K OHM 1W PLASTIC LINEAR |
4,690 |
|
数据手册 |
6639 | Bulk | Active | 50k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

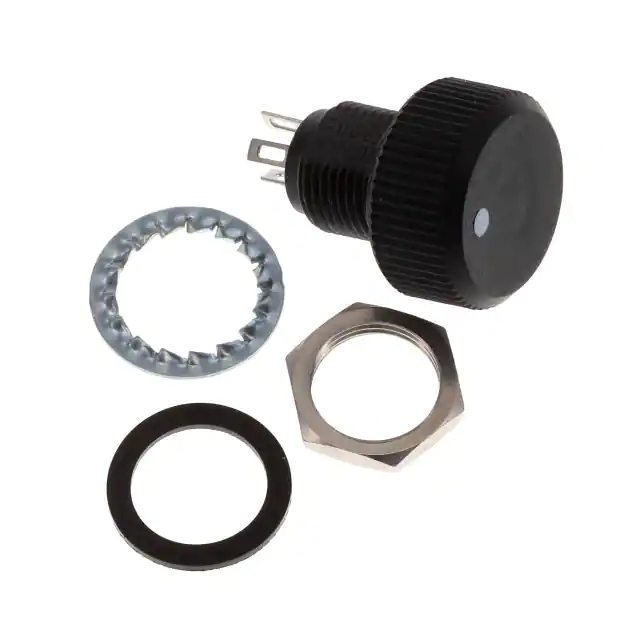

P16NP202KAB15POT 2K OHM 1W CERMET LINEAR |
2,205 |
|
数据手册 |
P16 | Box | Active | 2k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

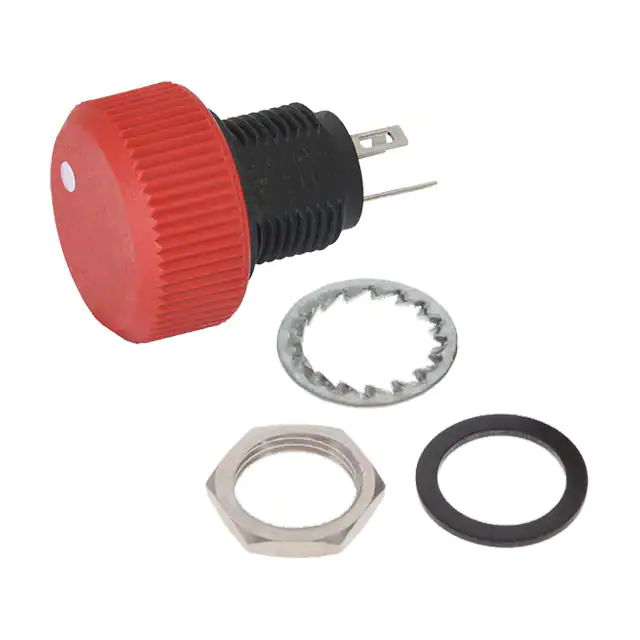

P16RP101MAB15POT 100 OHM 1W CERMET LINEAR |
3,451 |
|
数据手册 |
P16 | Box | Active | 100 | ±20% | 1W | - | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
RV6LAYSA251APOT 250 OHM 1/2W CARBON LINEAR |
4,454 |
|
数据手册 |
RV6 | Bulk | Active | 250 | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.625" (15.88mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
PA16NP103KAB15POT 10K OHM 1/2W PLASTIC LINEAR |
2,621 |
|
数据手册 |
PA16 | Box | Active | 10k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|
P11L2V0FLSY00503KAPOT 50K OHM 1/10W CERMET LINEAR |
3,060 |
|
数据手册 |
P11L | Box | Active | 50k | ±10% | 0.1W, 1/10W | None | 1.0 | Long Life | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PA16NP503KAB15POT 50K OHM 1/2W PLASTIC LINEAR |
3,834 |
|
数据手册 |
PA16 | Box | Active | 50k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±500ppm/°C | 300° | Conductive Plastic | Solder Lug | Knob | 0.610" (15.50mm) | 0.315" (8.00mm) | M10 x 0.75 | Panel Mount |
|
P11L2V0FLSY00103KAPOT 10K OHM 1/10W CERMET LINEAR |
1,830 |
|
数据手册 |
P11L | Box | Active | 10k | ±10% | 0.1W, 1/10W | None | 1.0 | Long Life | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
357B2102MAB251S22POT 1K OHM 1W PLASTIC LINEAR |
2,830 |
|
数据手册 |
357 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
P16NP104KAB15POT 100K OHM 1W CERMET LINEAR |
1,112 |
|
数据手册 |
P16 | Bulk | Active | 100k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|

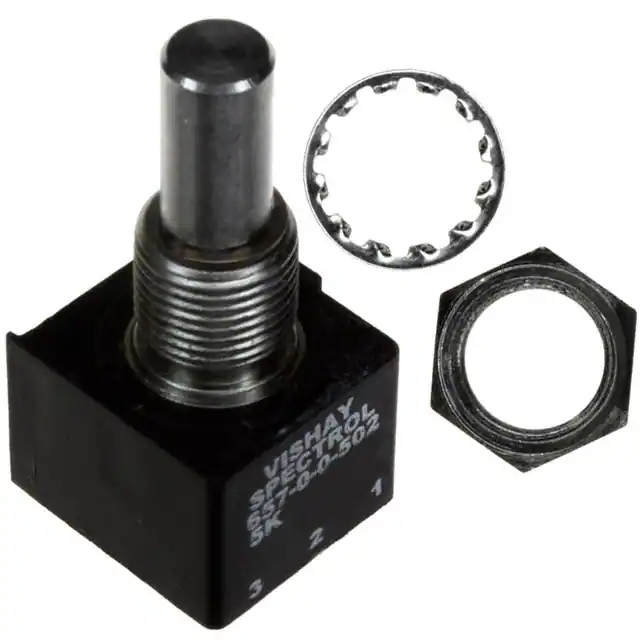

657BR0502POT 5K OHM 1W PLASTIC LINEAR |
4,086 |
|
数据手册 |
657 | Bulk | Active | 5k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 250° | Conductive Plastic | Solder Lug | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

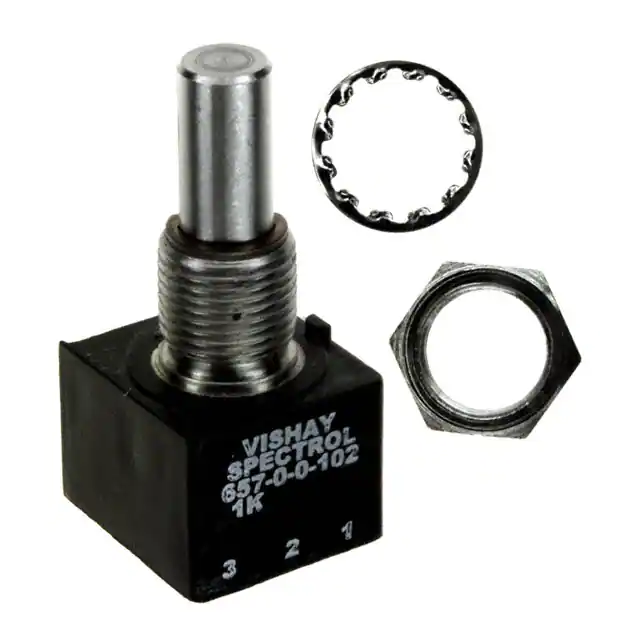

657BR0102POT 1K OHM 1W PLASTIC LINEAR |
1,934 |
|
数据手册 |
657 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 250° | Conductive Plastic | Solder Lug | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3540S-1-201LPOT 200 OHM 2W WIREWOUND LINEAR |
4,920 |
|
数据手册 |
3540 | Tray | Active | 200 | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3590S-4-102LPOT 1K OHM 2W WIREWOUND LINEAR |
2,851 |
|
数据手册 |
3590 | Bulk | Active | 1k | ±5% | 2W | None | 10.0 | Sealed | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|

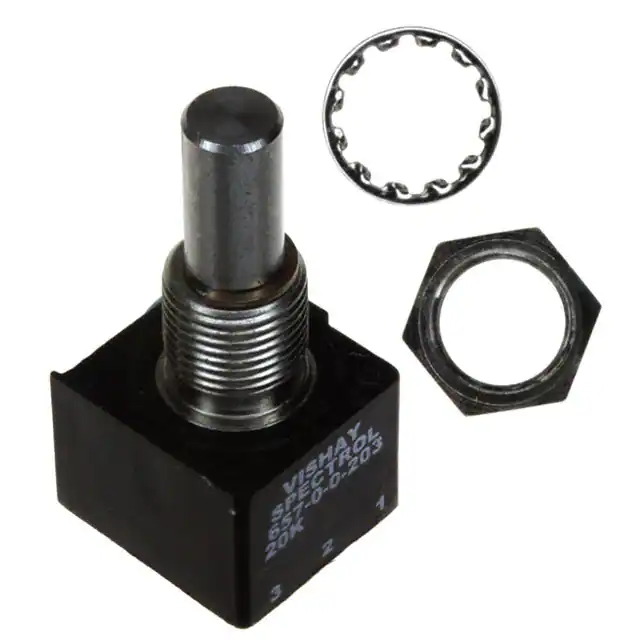

657BR0203POT 20K OHM 1W PLASTIC LINEAR |
2,432 |
|
数据手册 |
657 | Bulk | Active | 20k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | 250° | Conductive Plastic | Solder Lug | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
P16NP103MLB15POT 10K OHM 1/2W CERMET LOG |
4,542 |
|
数据手册 |
P16 | Box | Active | 10k | ±20% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
|
6639S-1-202POT 2K OHM 1W PLASTIC LINEAR |
2,600 |
|
数据手册 |
6639 | Bulk | Active | 2k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
|
357B0202MXB251P22POT 2K OHM 1W PLASTIC LINEAR |
4,207 |
|
数据手册 |
357 | Box | Active | 2k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.866" (22.00mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
