干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S2-12PURELAY REED SPST 700MA 12V UL Sensata Technologies, Inc. |
4,378 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 12 mA | Non Latching | - | Axial | - | 9 VDC | 2 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S2-24PURELAY REED SPST 700MA 24V UL Sensata Technologies, Inc. |
2,519 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|

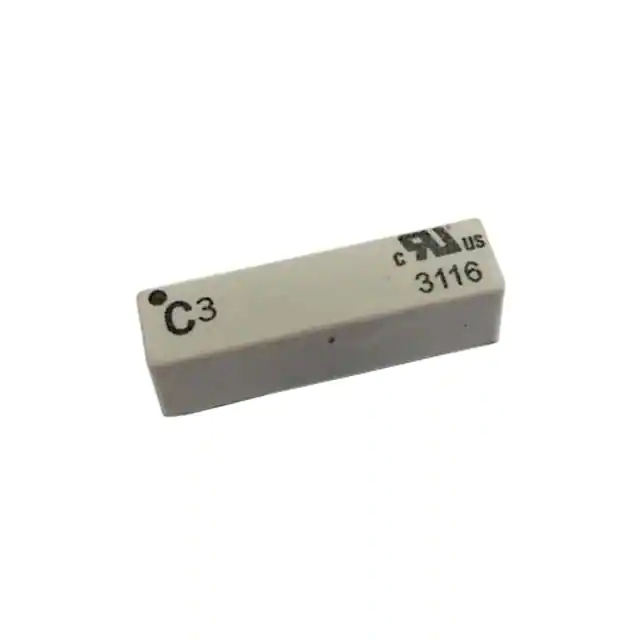

S1-0504RELAY REED 4KV SPST 5V SIP Sensata Technologies, Inc. |
2,868 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | - | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-12-2ARELAY REED TWIN N/O 1.5KV 12V Sensata Technologies, Inc. |
3,735 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 15.4 mA | Non Latching | - | PC Pin | - | 9 VDC | 1.2 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-0504MRELAY REED 4KV SPST 5V SIP SCREE Sensata Technologies, Inc. |
3,283 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-0504DRELAY REED 4KV SPST 5V SIP W/DIO Sensata Technologies, Inc. |
3,559 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-1204DRELAY REED 4KV SPST 12V SIP W/DI Sensata Technologies, Inc. |
3,189 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-0504DMRELAY REED 4KV SPST 5V SIP W/DIO Sensata Technologies, Inc. |
3,415 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 27.8 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 4 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-1204DMRELAY REED 4KV SPST 12V SIP W/DI Sensata Technologies, Inc. |
1,871 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 24 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 10.8 VDC | 1.25 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-05-2ADMRELAY REED TWIN N/O 1.5KV 5V Sensata Technologies, Inc. |
2,211 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) x 2 | 500 mA | 1000VDC - Max | 20 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 0.75 ms | 0.3 ms | -40°C ~ 85°C | Rhodium (Rh) |
