干簧继电器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 安装类型 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 线圈电流 | 线圈类型 | 特性 | 端接样式 | 密封等级 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 工作温度 | 触点材料 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

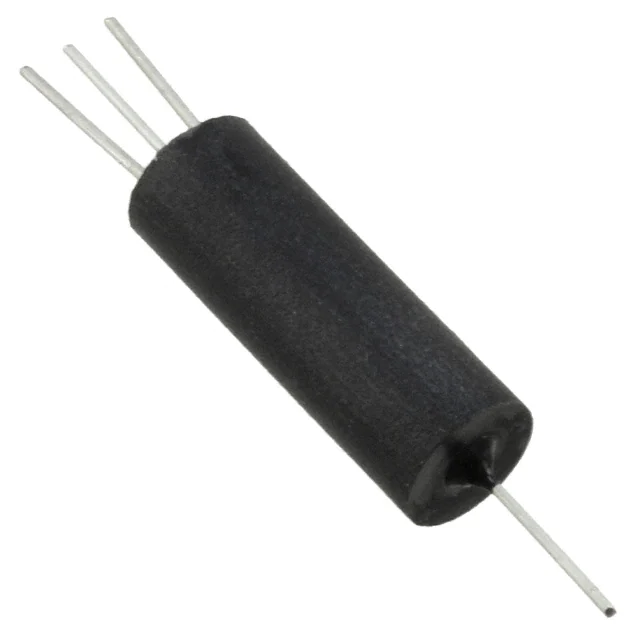

S2-24PRELAY REED SPST 700MA 24V Sensata Technologies, Inc. |
2,130 |
|
数据手册 |
S2 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 700 mA | 300VAC, 350VDC - Max | 24 mA | Non Latching | - | Axial | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S8-2405URELAY REED SPST 1A 24V UL Sensata Technologies, Inc. |
3,149 |
|
数据手册 |
S8 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 15.5 mA | Non Latching | - | PC Pin | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S8-0504RELAY REED SPST 1A 5V Sensata Technologies, Inc. |
3,479 |
|
数据手册 |
S8 | Bulk | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 300VAC, 350VDC - Max | 41.7 mA | Non Latching | - | PC Pin | - | 4 VDC | 1 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S8-2405VRELAY REED SPST 1A 24V Sensata Technologies, Inc. |
4,617 |
|
数据手册 |
S8 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 15.5 mA | Non Latching | - | PC Pin | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S8-2405VURELAY REED SPST 1A 24V UL Sensata Technologies, Inc. |
4,972 |
|
数据手册 |
S8 | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 15.5 mA | Non Latching | - | PC Pin | - | 19 VDC | 4 VDC | 1 ms | 0.5 ms | -40°C ~ 85°C | Rhodium (Rh) |
|
S1-05-BDMRELAY REED 1 N/C 1.5KV 5V Sensata Technologies, Inc. |
1,744 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 6.4 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
|
S1-24-BDMRELAY REED 1 N/C 1.5KV 24V Sensata Technologies, Inc. |
3,838 |
|
数据手册 |
S1 | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 500 mA | 1000VDC - Max | 12 mA | Non Latching | Diode, EMI Shielded | PC Pin | - | 18 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Rhodium (Rh) |
|
DAT72405-HRRELAY REED 5KV 24V SPST-NO Sensata Technologies, Inc. |
4,902 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 2 A | 3500VAC, 3500VDC - Max | 30.8 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Tungsten (W) |
|
DBT72405-HRRELAY REED 5KV 24V SPST-NC Sensata Technologies, Inc. |
3,942 |
|
数据手册 |
D-HR | Bulk | Active | Through Hole | 24VDC | SPST-NC (1 Form B) | 2 A | 3500VAC, 3500VDC - Max | 25.9 mA | Non Latching | - | PC Pin | - | 20 VDC | 4 VDC | 2 ms | 3 ms | -20°C ~ 70°C | Tungsten (W) |
|
DAR72410PRELAY REED SPST-NO 3A 24V Sensata Technologies, Inc. |
4,472 |
|
数据手册 |
DA | Tray | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.7 mA | Non Latching | - | Solder Turret | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | Rhodium (Rh) |
