直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JCA0248S03DC DC CONVERTER 3.3V 2W XP Power |
111 |
|
数据手册 |
JCA (2W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 36V | 75V | 3.3V | - | - | - | 600mA | 2 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 71% | - | - | Through Hole | - | - | - | 62368-1 |
|
JCA0305S05DC DC CONVERTER 5V 3W XP Power |
196 |
|
数据手册 |
JCA (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 4.5V | 9V | 5V | - | - | - | 600mA | 3 W | 1.5 kV | ITE (Commercial) | OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 74% | - | - | Through Hole | - | - | - | 62368-1 |
|
ITQ4815SDC DC CONVERTER +/-15V 6W XP Power |
588 |
|
数据手册 |
ITQ (6W) | 8-SIP Module, 7 Leads | Tube | Active | Isolated Module | 2 | 18V | 75V | 15V | -15V | - | - | 200mA, 200mA | 6 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 100°C | 86% | - | - | Through Hole | - | Enable, Active Low | - | 62368-1 |
|

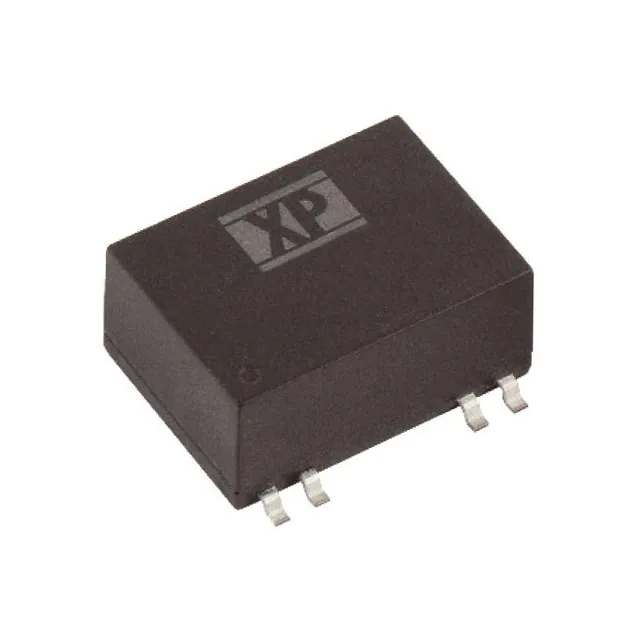

ISU0248S05-TRDC DC CONVERTER 5V 2W XP Power |
312 |
|
数据手册 |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 18V | 75V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 78% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|
|
ISU0224S05-TRDC DC CONVERTER 5V 2W XP Power |
202 |
|
数据手册 |
ISU02 (2W) | 14-SMD Module, 7 Leads | Tape & Reel (TR) | Active | Isolated Module | 1 | 9V | 36V | 5V | - | - | - | 400mA | 2 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 95°C (With Derating) | 79% | - | - | Surface Mount | - | - | CE, UKCA, UL | 62368-1 |
|

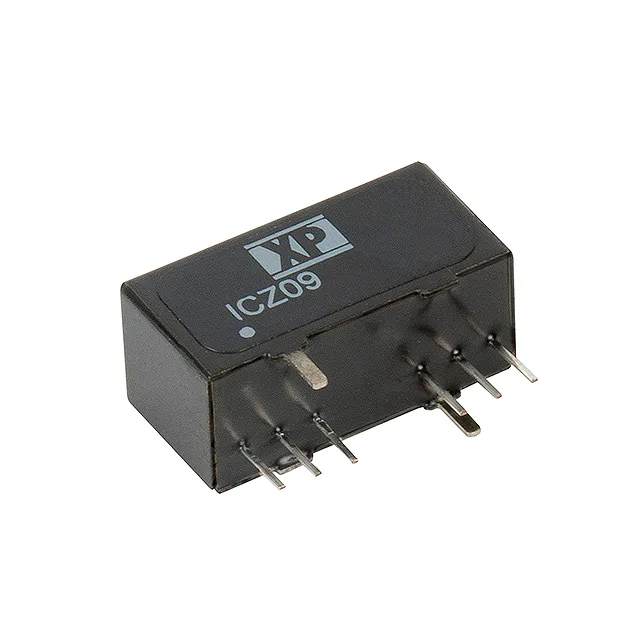

ICZ0924D05DC DC CONVERTER +/-5V 8W XP Power |
190 |
|
数据手册 |
ICZ (9W) | 12-SIP Module, 6 Leads | Tube | Active | Isolated Module | 2 | 18V | 36V | 5V | -5V | - | - | 800mA, 800mA | 8 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP, UVLO | -40°C ~ 85°C (With Derating) | 86% | - | - | Through Hole | 12-SIP | - | - | 62368-1 |
|

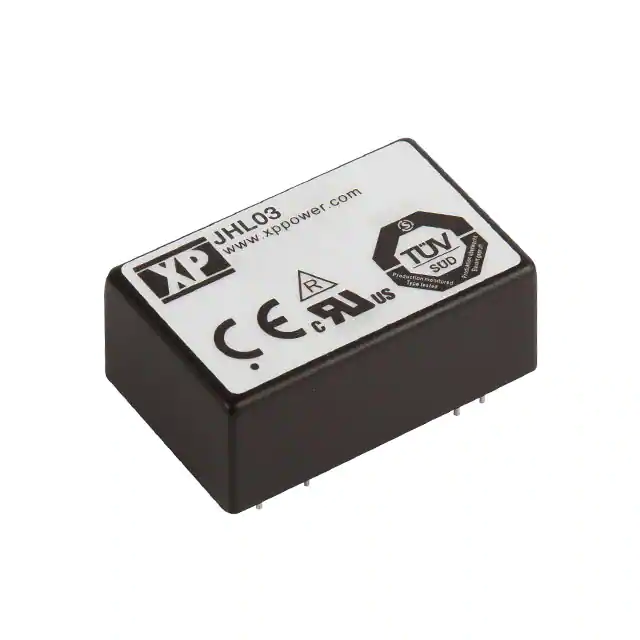

JHL0312S05DC DC CONVERTER 5V 3W XP Power |
154 |
|
数据手册 |
JHL (3W) | 24-DIP Module, 7 Leads | Tube | Active | Isolated Module | 1 | 10V | 17V | 5V | - | - | - | 600mA | 3 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -20°C ~ 80°C | 77% | - | - | Through Hole | - | - | - | - |
|

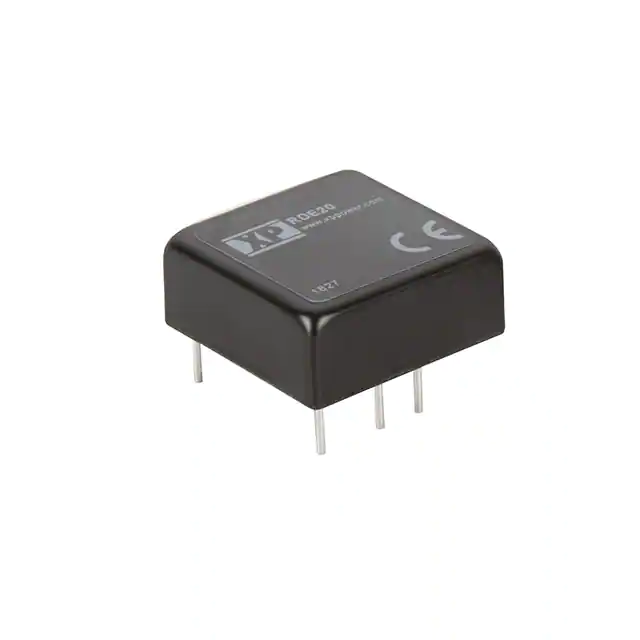

RDE20110S05DC DC CONVERTER 5V 20W XP Power |
160 |
|
数据手册 |
RDE20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 42V | 176V | 5V | - | - | - | 4A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 88% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
|
RDE20110S15DC DC CONVERTER 15V 20W XP Power |
4,955 |
|
数据手册 |
RDE20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 42V | 176V | 15V | - | - | - | 1.33A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 86% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
|
RDE2024S15DC DC CONVERTER 15V 20W XP Power |
2,663 |
|
数据手册 |
RDE20 (20W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 13V | 70V | 15V | - | - | - | 1.33A | 20 W | 3 kV | ITE (Commercial), Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C (With Derating) | 90% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
