直流直流转换器（DC DC Converters）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入（最小） | 电压 - 输入（最大） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 特性 | 工作温度 | 效率 | 等级 | 认证 | 安装类型 | 供应商设备封装 | 控制特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JHM1005D12DC DC CONVERTER +/-12V 10W XP Power |
302 |
|
数据手册 |
JHM (10W) | 24-DIP Module, 9 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 9V | 12V | -12V | - | - | 420mA, 420mA | 10 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 84% | - | - | Through Hole | - | - | - | - |
|
JHM1512S15DC DC CONVERTER 15V 15W XP Power |
3,855 |
|
数据手册 |
JHM (15W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 15V | - | - | - | 1A | 15 W | 4 kV | Medical | OCP, OVP, SCP, UVLO | -40°C ~ 80°C | 86% | - | - | Through Hole | - | - | - | - |
|
JHM2024D12DC DC CONVERTER +/-12V 20W XP Power |
3,210 |
|
数据手册 |
JHM20 (20W) | 6-DIP Module, 5 Leads | Box | Active | Isolated Module | 2 | 18V | 36V | 12V | -12V | - | - | 835mA, 835mA | 20 W | 4 kV | Medical | OCP, OTP, OVP, SCP, UVLO | -40°C ~ 80°C (With Derating) | 88% | - | - | Through Hole | - | - | - | - |
|

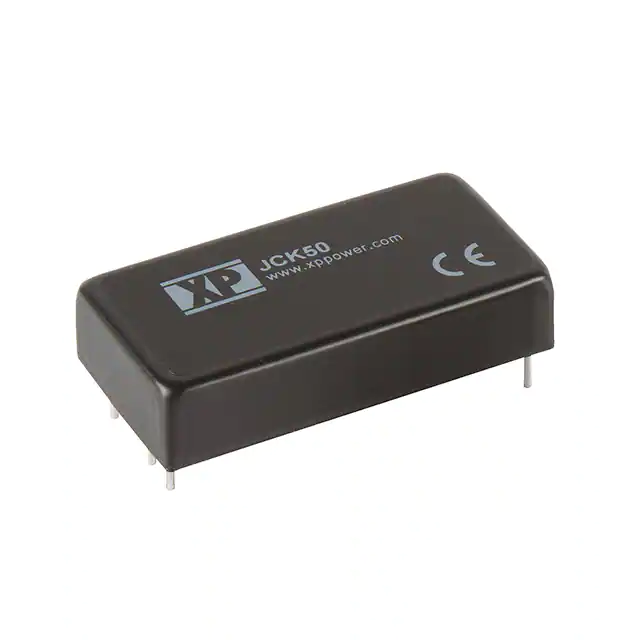

JCK5012S12DC DC CONVERTER 12V 50W XP Power |
3,955 |
|
数据手册 |
JCK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 9V | 18V | 12V | - | - | - | 4.17A | 50 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 95°C (With Derating) | 89% | - | - | Through Hole | 6-DIP | - | - | 62368-1 |
|
|
JCK5048S15DC DC CONVERTER 15V 50W XP Power |
3,903 |
|
数据手册 |
JCK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 15V | - | - | - | 3.33A | 50 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, SCP | -40°C ~ 95°C (With Derating) | 92% | - | - | Through Hole | 6-DIP | - | - | 62368-1 |
|
JSK5048S24DC DC CONVERTER 24V 50W XP Power |
3,917 |
|
数据手册 |
JSK50 (50W) | 6-DIP Module | Tube | Active | Isolated Module | 1 | 36V | 75V | 24V | - | - | - | 2.08A | 50 W | 1.5 kV | ITE (Commercial) | Remote On/Off, SCP | -40°C ~ 105°C | 91% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|

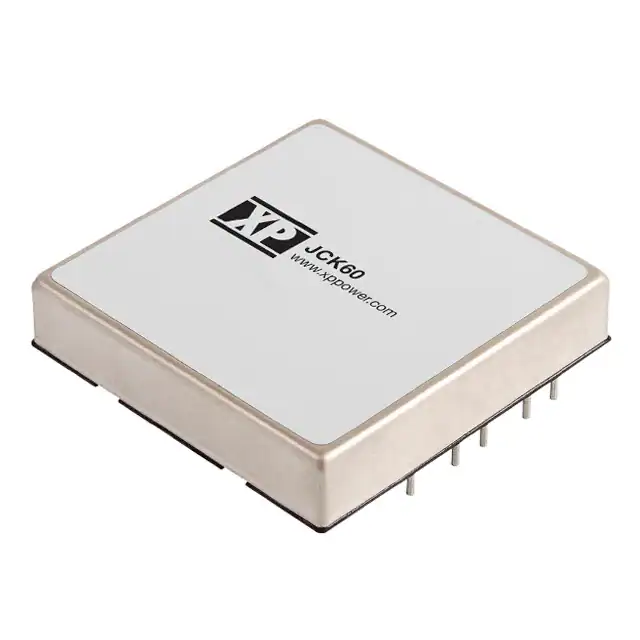

JCK6024S12DC DC CONVERTER 12V 60W XP Power |
3,308 |
|
数据手册 |
JCK (60W) | 8-DIP Module | Tube | Active | Isolated Module | 1 | 18V | 36V | 12V | - | - | - | 5A | 60 W | 1.6 kV | ITE (Commercial) | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 100°C | 91% | - | - | Through Hole | - | Enable, Active High | - | - |
|
RDC3072S12DC DC CONVERTER 12V 30W XP Power |
316 |
|
数据手册 |
RDC (30W) | 7-DIP Module, 6 Leads | Tube | Active | Isolated Module | 1 | 36V | 140V | 12V | - | - | - | 2.5A | 30 W | 1.5 kV | Railway | Remote On/Off, OCP, OVP, SCP, UVLO | -40°C ~ 75°C | 88% | - | - | Through Hole | - | Enable, Active High | - | 62368-1 |
|
SRH05S12DC DC CONVERTER 12V XP Power |
2,694 |
|
数据手册 |
SRH05 | 3-SIP Module | Tube | Active | Linear Regulator Replacement | 1 | 17V | 72V | 12V | - | - | - | 500mA | - | - | ITE (Commercial) | SCP | -40°C ~ 85°C (With Derating) | 94% | - | - | Through Hole | 3-SIP Module | - | - | - |
|
IR0515SDC DC CONVERTER +/-15V 3W XP Power |
3,326 |
|
数据手册 |
IR (3W) | 7-SIP Module, 5 Leads | Tube | Active | Isolated Module | 2 | 4.5V | 5.5V | 15V | -15V | - | - | 100mA | 3 W | 1 kV | ITE (Commercial) | - | -40°C ~ 85°C | 86% | - | - | Through Hole | - | - | - | - |
