阀门与控制装置
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 功能 | 执行器类型 | 工作压力 | 孔径直径 | 流体类型 | 连接方式 | 适用范围/相关产品 | 安装类型 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

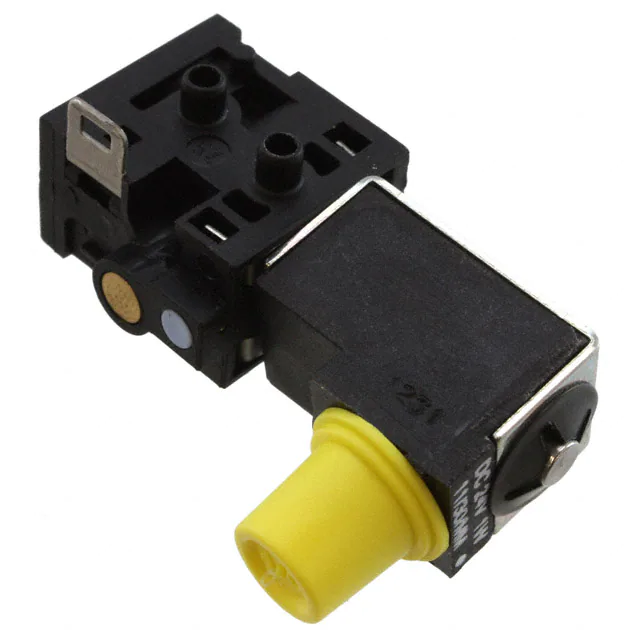

81549510SOLENOID VALVE 3/2 NC CHASSIS MT Crouzet |
2,215 |
|
数据手册 |
- | Bulk | Active | Solenoid Valve | 3/2 Normally Closed | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.032" (0.80mm) | Air, Inert Gas, Liquid | Threaded M5 | - | Chassis Mount | Manual Override, Supply Voltage 24VDC |
|
81548010SOLENOID VALVE 3/2 NC CHASSIS MT Crouzet |
4,853 |
|
数据手册 |
- | Bulk | Obsolete | Solenoid Valve | 3/2 Normally Closed | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.032" (0.80mm) | Air, Inert Gas, Liquid | Threaded M5 | - | Chassis Mount | Manual Override, Supply Voltage 24VDC |
|
81281509POSITION DETECTOR 3/2 NC ROD MNT Crouzet |
4,493 |
|
数据手册 |
Microvalve | Bulk | Active | Position Detector | 3/2 Normally Closed | Lever, Roller | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Rod Mount | Operating Force 15N |
|
81519732SOLENOID VALVE 3/2 NC SUBBASE MT Crouzet |
2,820 |
|
数据手册 |
- | Bulk | Active | Solenoid Valve | 3/2 Normally Closed | - | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | - | - | Sub-Base Mount | Manual Override, Rotatable Connector, Supply Voltage 24VAC |
|
81513076SUB-BASE END DIN RAIL Crouzet |
3,622 |
|
数据手册 |
- | Bulk | Active | Sub-Base, End | - | - | 30 ~ 116 PSI (2 ~ 8 bar) | - | - | Push-In Connection for Tubing 6.00mm Dia | Control Valve | DIN Rail | - |
|
81549010SOLENOID VALVE 3/2 NC CHASSIS MT Crouzet |
4,656 |
|
数据手册 |
- | Bulk | Active | Solenoid Valve | 3/2 Normally Closed | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.032" (0.80mm) | Air, Inert Gas, Liquid | Threaded M5 | - | Chassis Mount | Manual Override, Supply Voltage 24VDC |
|
81506720TIMER OFF-DELAY SUB-BASE MOUNT Crouzet |
4,651 |
|
数据手册 |
- | Box | Active | Timer, Adjustable | Off-Delay | - | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | - | - | Sub-Base Mount | Delay Time 0.1 ~ 30sec |
|
81716512CONTROL VALVE 3/2 NC PANEL MOUNT Crouzet |
3,390 |
|
数据手册 |
- | Bulk | Active | Control Valve, Maintained | 3/2 Normally Closed | Paddle | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Panel Mount | Operating Force 8 ~ 18N |
|
81921701POSITION DETECT 3/2 NC CHAS MNT Crouzet |
2,813 |
|
数据手册 |
Miniature | Box | Active | Position Detector | 3/2 Normally Closed | Lever, Roller | 1 ~ 116PSI (0.1 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Chassis Mount | Operating Force 18N |
|
81521501LOGIC OR ELEMENT SUB-BASE MOUNT Crouzet |
3,076 |
|
数据手册 |
- | Box | Active | Logic Element | LOGIC OR | - | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | - | - | Sub-Base Mount | Pressure Indicator |
