阀门与控制装置
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 功能 | 执行器类型 | 工作压力 | 孔径直径 | 流体类型 | 连接方式 | 适用范围/相关产品 | 安装类型 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
81503025LOGIC YES ELEMENT SUB-BASE MOUNT Crouzet |
2,976 |
|
数据手册 |
- | Box | Active | Logic Element | LOGIC YES | - | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | - | - | Sub-Base Mount | Pressure Indicator |
|
81290001POSITION DETECT 3/2 NC CHAS MNT Crouzet |
1,627 |
|
数据手册 |
- | Box | Active | Position Detector | 3/2 Normally Closed | Round (Pin Plunger) | 44 ~ 116 PSI (3 ~ 8 bar) | 0.079" (2.00mm) | Air, Inert Gas | Barbed Connection for Tubing 5/32" (4.00mm) Dia | - | Chassis Mount | Operating Force 0.5N |
|
81290501POSITION DETECT 3/2 NO CHAS MNT Crouzet |
4,267 |
|
数据手册 |
- | Box | Active | Position Detector | 3/2 Normally Open | Round (Pin Plunger) | 44 ~ 116 PSI (3 ~ 8 bar) | 0.079" (2.00mm) | Air, Inert Gas | Barbed Connection for Tubing 5/32" (4.00mm) Dia | - | Chassis Mount | Operating Force 0.5N |
|
81923001POS DETECT 3/2 NC FREE HANGING Crouzet |
1,119 |
|
数据手册 |
Adjustable Stop | Box | Active | Position Detector | 3/2 Normally Closed | Round (Pin Plunger) | 1 ~ 116PSI (0.1 ~ 8 bar) | 0.079" (2.00mm) | Air, Inert Gas | Barbed Connection for Tubing 5/32" (4.00mm) Dia | - | Free Hanging (In-Line) | Operating Force 16N |
|
81735011CONTROL VALVE 3/2 NO ROD MOUNT Crouzet |
1,173 |
|
数据手册 |
- | Box | Active | Control Valve, Momentary | 3/2 Normally Open | Pushbutton | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Rod Mount | Operating Force 8 ~ 18N |
|
81519335SOLENOID VALVE 3/2 NC SUBBASE MT Crouzet |
3,023 |
|
数据手册 |
- | Box | Active | Solenoid Valve | 3/2 Normally Closed | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.020" (0.50mm) | Air, Inert Gas | - | - | Sub-Base Mount | Manual Override, Supply Voltage 24VDC |
|
81921505POSITION DETECT 3/2 NC CHAS MNT Crouzet |
1,363 |
|
数据手册 |
Adjustable Stop | Bulk | Active | Position Detector | 3/2 Normally Closed | Round (Pin Plunger) | 1 ~ 116PSI (0.1 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Chassis Mount | Operating Force 16N |
|
81733511CONTROL VALVE 3/2 NC PANEL MOUNT Crouzet |
2,357 |
|
数据手册 |
- | Box | Active | Control Valve, Momentary | 3/2 Normally Closed | Pushbutton, Dual | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Panel Mount | Operating Force 8 ~ 18N |
|

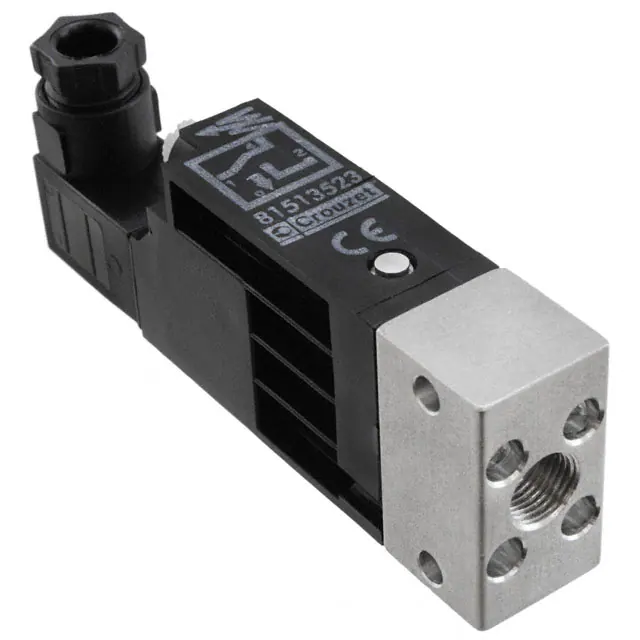

81513523SWITCH VACUUM OPERATED CHAS MNT Crouzet |
2,643 |
|
数据手册 |
- | Bulk | Active | Vacuum Switch | Vacuum Operated | - | -4 ~ -12PSI (-0.3 ~ -0.8 bar) | - | Air, Inert Gas, Liquid | Threaded 1/8" BSP | - | Chassis Mount | - |
|

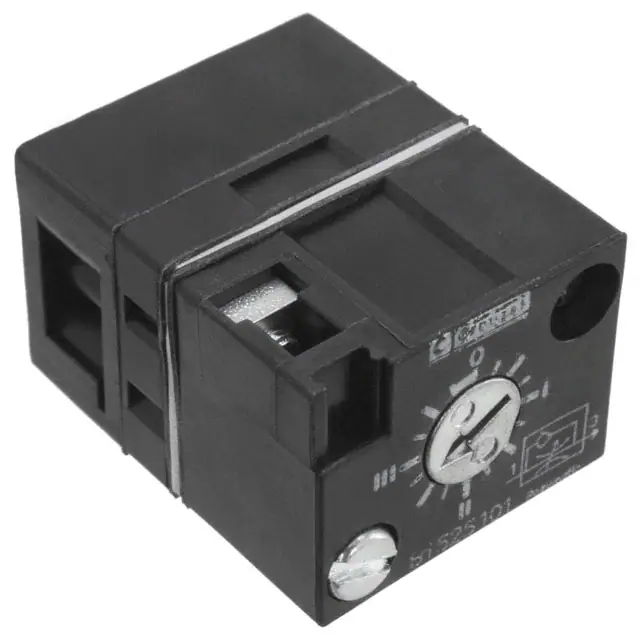

81525101FLOW RESTRICT ONEWAY SUB-BASE MT Crouzet |
4,745 |
|
数据手册 |
- | Bulk | Active | Flow Restrictor, Adjustable | One-Way | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.020" (0.50mm) | Air, Inert Gas | - | - | Sub-Base Mount | - |
