阀门与控制装置
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 功能 | 执行器类型 | 工作压力 | 孔径直径 | 流体类型 | 连接方式 | 适用范围/相关产品 | 安装类型 | 特性 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

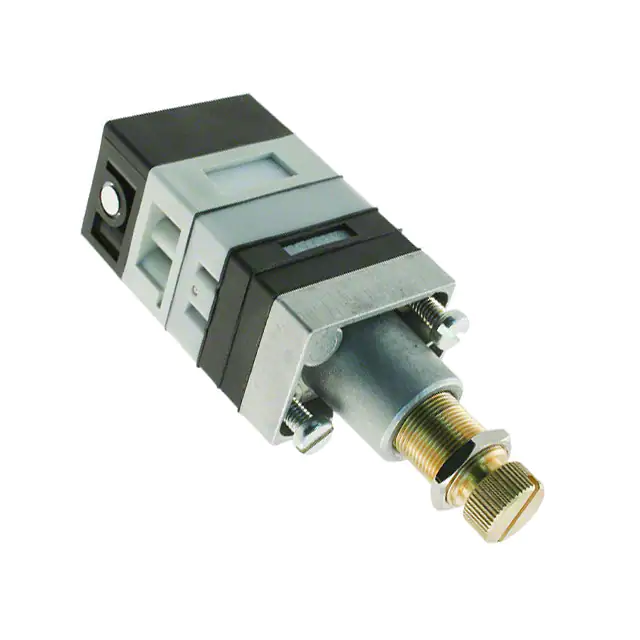

81505110VACUUM SWITCH POS OUT SUBBASE MT Crouzet |
2,145 |
|
数据手册 |
- | Box | Active | Vacuum Switch | Positive Output | - | -1 ~ -13PSI (-0.1 ~ -0.9 bar) | - | Air, Inert Gas | - | - | Sub-Base Mount | - |
|

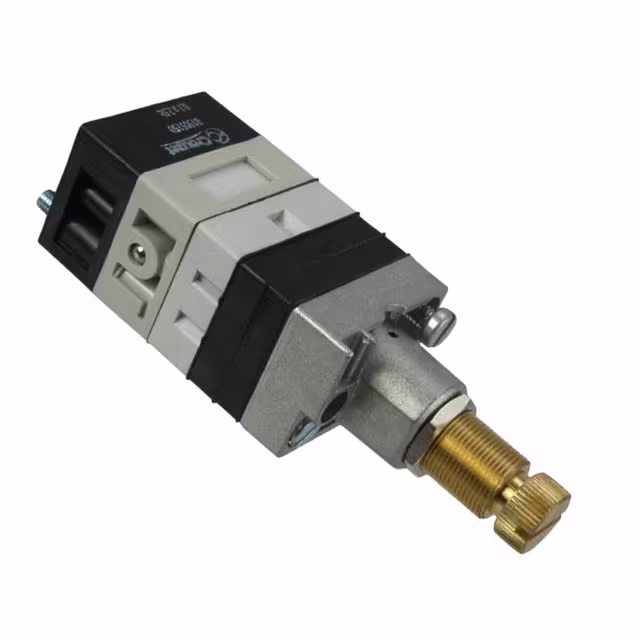

81505150SWITCH POSITIVE OUT SUB-BASE MNT Crouzet |
1,811 |
|
数据手册 |
- | Bulk | Active | Pressure Switch | Positive Output | - | 1 ~ 36PSI (0.1 ~ 2.5 bar) | 0.098" (2.50mm) | Air, Inert Gas | - | - | Sub-Base Mount | - |
|
81580504CONTROL RELAY 2-HAND START CHAS Crouzet |
3,430 |
|
数据手册 |
- | Bulk | Active | Control Relay | 2-Hand Start | Pushbutton, Dual | 30 ~ 116 PSI (2 ~ 8 bar) | 0.098" (2.50mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Chassis Mount | - |
|

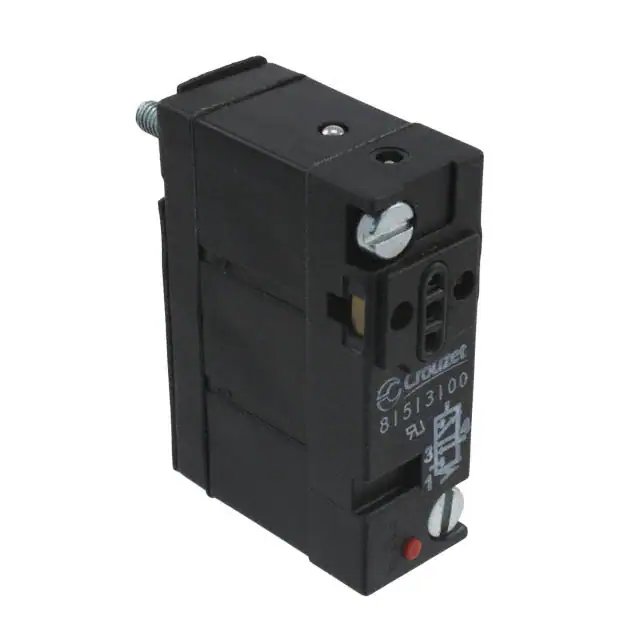

81513100CONTROL VALVE 3/2 NC SUB-BASE MT Crouzet |
4,617 |
|
数据手册 |
- | Tray | Active | Control Valve, Momentary | 3/2 Normally Closed | - | 44 ~ 116 PSI (3 ~ 8 bar) | 0.118" (3.00mm) | Air, Inert Gas | - | - | Sub-Base Mount | - |
|

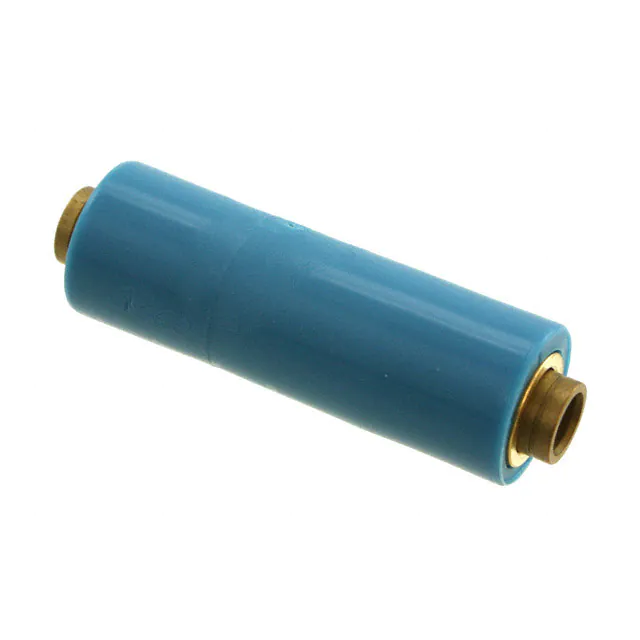

81529007FLOW RESTRICT ONE-WAY FREE HANG Crouzet |
1,315 |
|
数据手册 |
- | Bulk | Active | Flow Restrictor, Fixed | One-Way | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.028" (0.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Free Hanging (In-Line) | - |
|

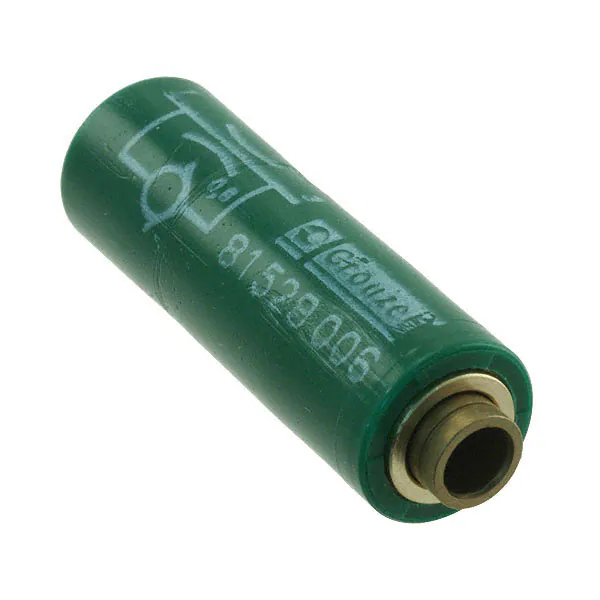

81529006FLOW RESTRICT ONE-WAY FREE HANG Crouzet |
2,839 |
|
数据手册 |
- | Box | Active | Flow Restrictor, Fixed | One-Way | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.024" (0.60mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Free Hanging (In-Line) | - |
|
81540005LOGIC OR ELEMENT SUB-BASE MOUNT Crouzet |
3,739 |
|
数据手册 |
- | Bulk | Active | Logic Element | LOGIC OR | - | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | - | - | Sub-Base Mount | Pressure Indicator |
|
81280010POSITION DETECTOR 3/2 NO ROD MNT Crouzet |
4,593 |
|
数据手册 |
Microvalve | Box | Active | Position Detector | 3/2 Normally Open | Round (Pin Plunger) | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Rod Mount | Operating Force 15N |
|
81280510POSITION DETECTOR 3/2 NC ROD MNT Crouzet |
2,642 |
|
数据手册 |
Microvalve | Bulk | Active | Position Detector | 3/2 Normally Closed | Round (Pin Plunger) | 30 ~ 116 PSI (2 ~ 8 bar) | 0.106" (2.70mm) | Air, Inert Gas | Push-In Connection for Tubing 5/32" (4.00mm) Dia | - | Rod Mount | Operating Force 15N |
|

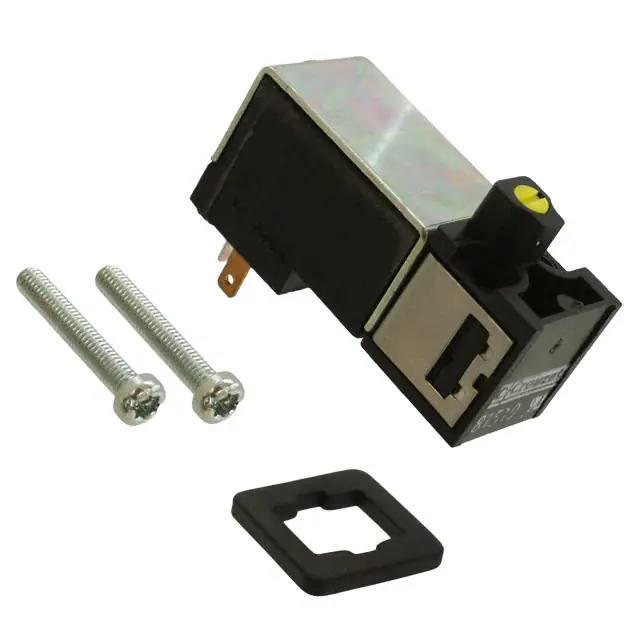

81519632SOLENOID VALVE 3/2 NC SUBBASE MT Crouzet |
2,751 |
|
数据手册 |
- | Box | Active | Solenoid Valve | 3/2 Normally Closed | - | 15 ~ 116 PSI (1 ~ 8 bar) | 0.032" (0.80mm) | Air, Inert Gas | - | - | Sub-Base Mount | Manual Override, Rotatable Connector, Supply Voltage 24VDC |
