多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

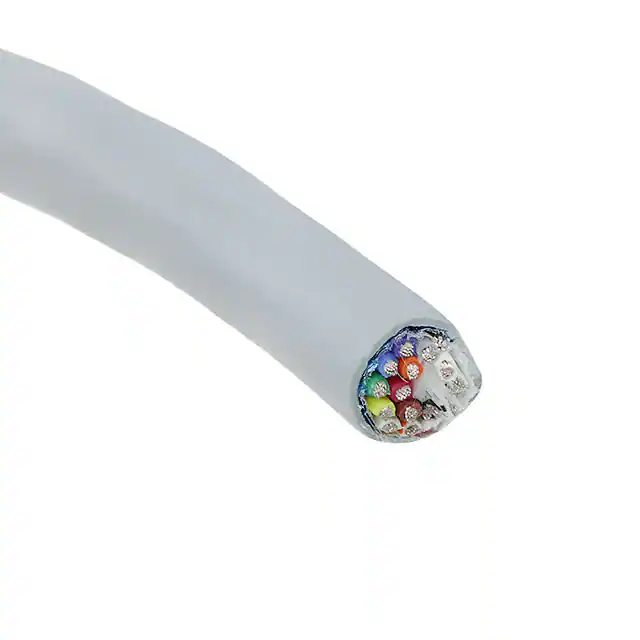

78141 SL005CABLE 15COND 22AWG SHLD |
200 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Conductor | 15 | 22 AWG | 19/34 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.249" (6.32mm) | Foil | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
CF240-03-24PVC300V 24C/22AWG DATA CBL FEET |
655 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 24 | 22 AWG | - | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.433" (11.00mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Gray | UL Style 2464 | Flame Retardant, Oil Resistant | 300 V | - | Industrial | - | Thermoplastic Elastomer (TPE) | - | |
|
CFBUS-LB-022TPE2PR/20 AWG CAN-BUS 600V FEET |
2,429 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 20 AWG | - | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.315" (8.00mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Violet | - | Abrasion Resistant, Oil Resistant | 50 V | - | Industrial, Network | - | Thermoplastic Elastomer (TPE) | - | |
|

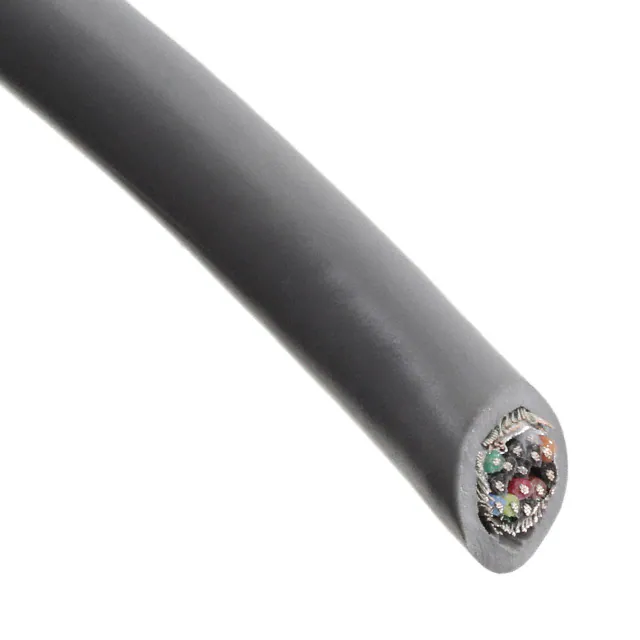

9808 060100MULTI-PAIR 14COND 28AWG |
13,700 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 14 (7 Pair) | 28 AWG | 7/36 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.256" (6.50mm) | Foil, Braid | 100.0' (30.5m) | Chrome | UL Style 2960 | Drain Wire | - | -30°C ~ 60°C | Computer | 0.0350" (0.889mm) | Polypropylene (PP) | - | |
|
|
5022C BK199MULTI-PR 4COND 22AWG BLK FEET |
1,934 |
|
数据手册 |
Xtra-Guard® 1 | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.232" (5.89mm) | - | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 2464 | Biological Compatibility, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
0036916MULTI-PAIR 14COND 20/24AWG FEET |
1,327 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 14 (6 Twisted Pairs + 2) | 20 AWG, 24 AWG | - | Copper, Tinned | Polyurethane (PU) | 0.406" (10.31mm) | Braid | Enter Number of Feet in Order Quantity | Green | - | - | 30 V | - | - | - | Polypropylene (PP) | - | |
|
83317E 009100CABLE 2CON 26AWG WHT SHLD |
4,200 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 26 AWG | 7/34 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.121" (3.07mm) | Braid | 100.0' (30.5m) | White | - | - | - | -65°C ~ 200°C | - | 0.0110" (0.279mm) | Fluorinated Ethylene-Propylene (FEP) | - | |
(69,70).jpg)
|
0027950CABLE 4COND 16AWG ORG SHLD FEET |
1,349 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 16 AWG | 84/0.0059" | Copper, Bare | Polyurethane (PU) | 0.362" (9.20mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Orange | UL Style 20234 | Abrasion Resistant, Flame Retardant, Oil Resistant | 1000 V | - | Industrial | - | Polypropylene (PP) | - | |
|
601812CYCABLE 12CON 18AWG GRAY SHLD FEET |
4,729 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 12 | 18 AWG | 32/0.0083" | Copper, Bare | Thermoplastic Polymer | 0.586" (14.88mm) | Braid | Enter Number of Feet in Order Quantity | Gray | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC) | - | |
|

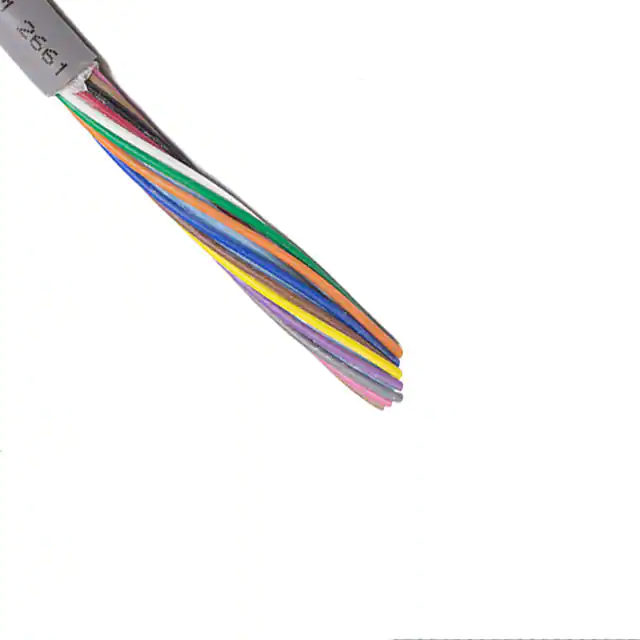

862012 SL005CABLE 12COND 20AWG SLATE |
1,400 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Conductor | 12 | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.340" (8.64mm) | - | 100.0' (30.5m) | Slate | UL Style 2661 | Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - | |
|
9936 060100CABLE 15COND 24AWG CHROME SHD |
1,200 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 15 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.345" (8.76mm) | Foil, Braid | 100.0' (30.5m) | Chrome | UL Style 2919 | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Foam Polyethylene (FPE) | - | |
|
|
9947 060100CABLE 15COND 22AWG CHROME SHD |
500 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 15 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.340" (8.64mm) | Foil, Braid | 100.0' (30.5m) | Chrome | - | - | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|

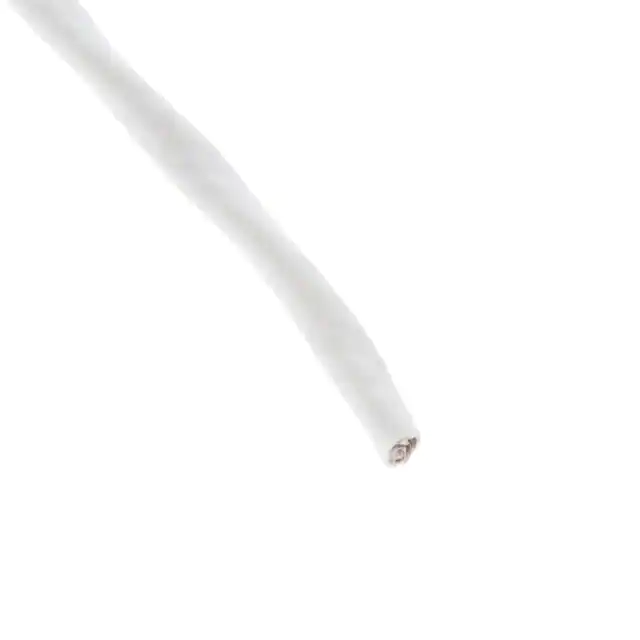

55A1121-26-0/9-9CABLE 2CON 26AWG WHT SHLD FEET |
13,298 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 26 AWG | 19/38 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.097" (2.46mm) | Braid | Enter Number of Feet in Order Quantity | White | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - | |
|
|
9542 060100CABLE 20COND 24AWG CHROME SHD |
1,900 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 20 | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.314" (7.98mm) | Foil | 100.0' (30.5m) | Chrome | UL Style 2464 | Drain Wire | - | -30°C ~ 80°C | Computer | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

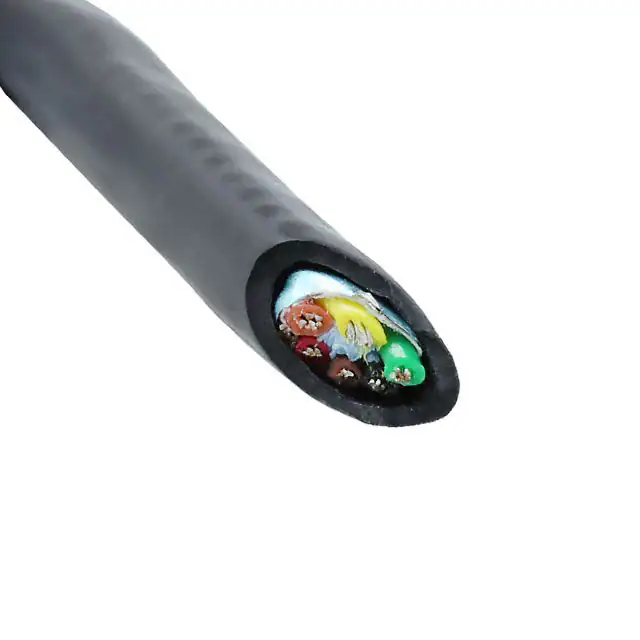

45096 BK199CABLE 6COND 24AWG BLK SHLD FEET |
275 |
|
数据手册 |
Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 24 AWG | 7/32 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.261" (6.63mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0420" (1.067mm) | Thermoplastic Elastomer (TPE) | - | |
|
9431 060100CABLE 20COND 22AWG CHROME |
1,700 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 20 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.345" (8.76mm) | - | 100.0' (30.5m) | Chrome | UL Style 2576 | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
30-02664CBL 6CON 22AWG BLK BIO METER |
458 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 22 AWG | 65/0.0031" | Copper, Tinned | Thermoplastic Polyurethane (TPU) | 0.201" (5.11mm) | - | Enter Number of Meters in Order Quantity | Black | ISO 10993 | Biological Compatibility | 150 V | -40°C ~ 70°C | - | 0.0236" (0.600mm) | High Density Polyethylene (HDPE) | - | |
|
7416048CABLE 6COND 16AWG/18AWG BLK FEET |
2,952 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 (1 Pair + 4) | 16 AWG, 18 AWG | 30/0.0102"; 32/0.0083" | Copper, Tinned | Thermoplastic Polymer | 0.519" (13.18mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | - | Oil Resistant, UV Resistant | - | - | Industrial | - | - | - | |
|
8340 060100MULTI-PAIR 20COND 24AWG |
4,900 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 20 (10 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.385" (9.78mm) | Foil, Braid | 100.0' (30.5m) | Chrome | UL Style 2464 | - | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|

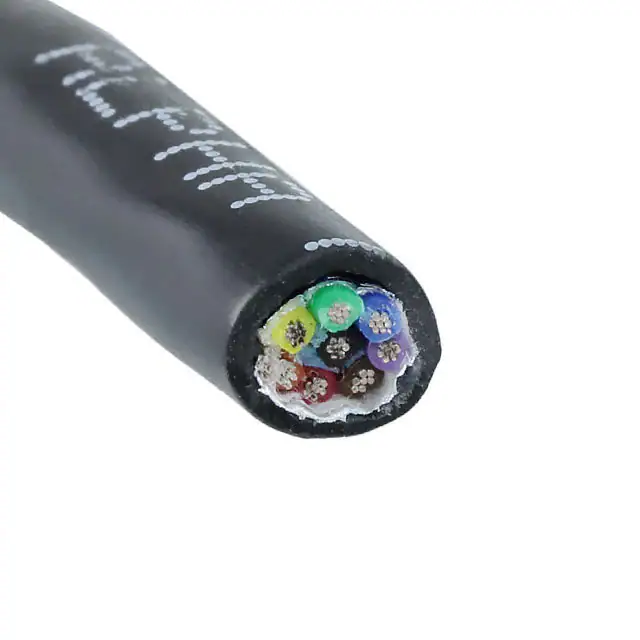

45008 BK199CABLE 8COND 22AWG BLACK FEET |
1,169 |
|
数据手册 |
Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 8 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.301" (7.65mm) | - | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - |
