多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8672005CY SL005MULTI-PAIR 10COND 20AWG |
500 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 20 AWG | 19/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.412" (10.46mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 20234 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - | |
|
25072 BK199CABLE 2COND 16AWG BLACK FEET |
1,893 |
|
数据手册 |
Xtra-Guard® 2 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 16 AWG | 19/0.0117" | Copper, Tinned | Polyurethane (PU) | 0.250" (6.35mm) | - | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
221004CABLE 4COND 10AWG BLACK FEET |
6,749 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 10 AWG | 84/0.0122" | Copper, Bare | Thermoplastic Polymer | 0.578" (14.68mm) | - | Enter Number of Feet in Order Quantity | Black | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|
9728 060100MULTI-PAIR 8COND 24AWG CHROME |
600 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 24 AWG | 7/32 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.363" (9.22mm) | Foil | 100.0' (30.5m) | Chrome | UL Style 2919 | Drain Wire | - | -20°C ~ 80°C | - | 0.0480" (1.219mm) | Foam Polyethylene (FPE) | - | |
|

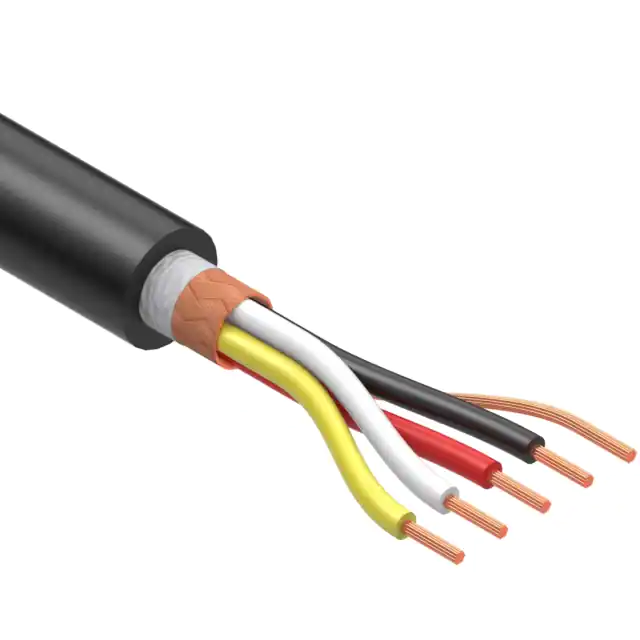

30-00915CABLE 4COND 18AWG BLACK SHLD |
459 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 4 | 18 AWG | 65/0.0051" | Copper, Bare | Thermoplastic Polyurethane (TPU) | 0.256" (6.50mm) | Braid | 502.0' (153.0m) | Black | UL Style 20280 | Drain Wire | 300 V | -40°C ~ 80°C | - | 0.0323" (0.820mm) | Thermoplastic Elastomer (TPE) | - | |
|

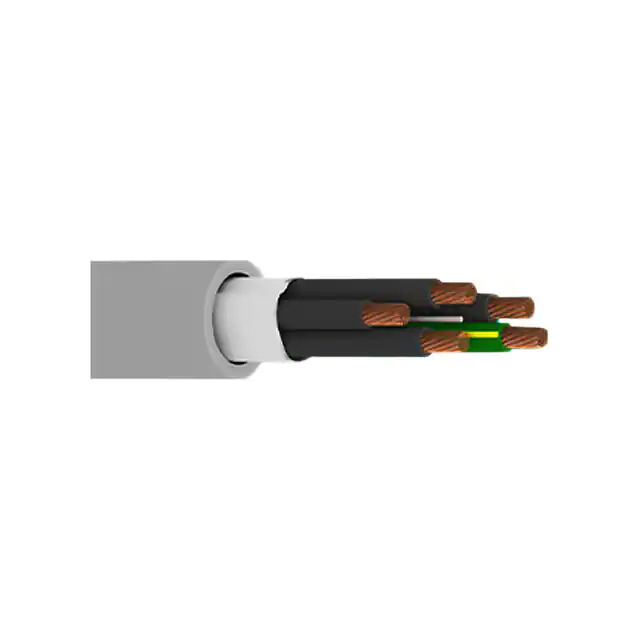

901205 SL001CABLE 5COND 12AWG SLATE FEET |
914 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 5 | 12 AWG | 65/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.481" (12.22mm) | - | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|
25464 BK199CABLE 4COND 20AWG BLK SHLD FEET |
452 |
|
数据手册 |
Xtra-Guard® 2 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 20 AWG | 7/28 | Copper, Tinned | Polyurethane (PU) | 0.242" (6.15mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
601404CYCABLE 4COND 14AWG GRAY SHLD FEET |
5,975 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 14 AWG | 50/0.0102" | Copper, Bare | Thermoplastic Polymer | 0.462" (11.73mm) | Braid | Enter Number of Feet in Order Quantity | Gray | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC) | - | |
|
700701CABLE 4COND 14AWG BLK SHLD FEET |
1,520 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 14 AWG | 50/0.0102" | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.582" (14.78mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | UL Style 1277 | Drain Wire, Oil Resistant, UV Resistant | - | - | Industrial, Servo Motor | - | Polyethylene (XLPE), Irradiated | - | |
|
|
CFBUS-LB-021TPE1PR/20 AWG CAN-BUS 600V FEET |
1,434 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 20 AWG | - | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.315" (8.00mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Violet | - | Abrasion Resistant, Oil Resistant | 50 V | - | Industrial, Network | - | Thermoplastic Elastomer (TPE) | - | |
|
M5350 SL005CABLE 40COND 22AWG SHLD |
200 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 40 | 22 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.458" (11.63mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 2464 | Drain Wire | 300 V | -20°C ~ 80°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|
9457 060100CABLE 12COND 20AWG CHROME |
601 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 12 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.338" (8.59mm) | - | 100.0' (30.5m) | Chrome | UL Style 2464 | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
8466 060100CABLE 12COND 18AWG CHROME |
6,200 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 12 | 18 AWG | 19/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.412" (10.46mm) | - | 100.0' (30.5m) | Chrome | - | - | - | -20°C ~ 60°C | Audio, Control, Instrumentation | 0.0400" (1.016mm) | Poly-Vinyl Chloride (PVC) | - | |
|
901003CY SL001CABLE 3CON 10AWG SLATE SHLD FEET |
337 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 10 AWG | 105/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.544" (13.82mm) | Braid | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0650" (1.651mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|
|
CFBUS-LB-001TPE1PR/24AWG PROFIBUS 600V FEET |
280 |
|
数据手册 |
chainflex® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 24 AWG | - | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.354" (8.99mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Violet | - | Abrasion Resistant, Oil Resistant | 50 V | - | Industrial, Network | - | Thermoplastic Elastomer (TPE) | - | |
|

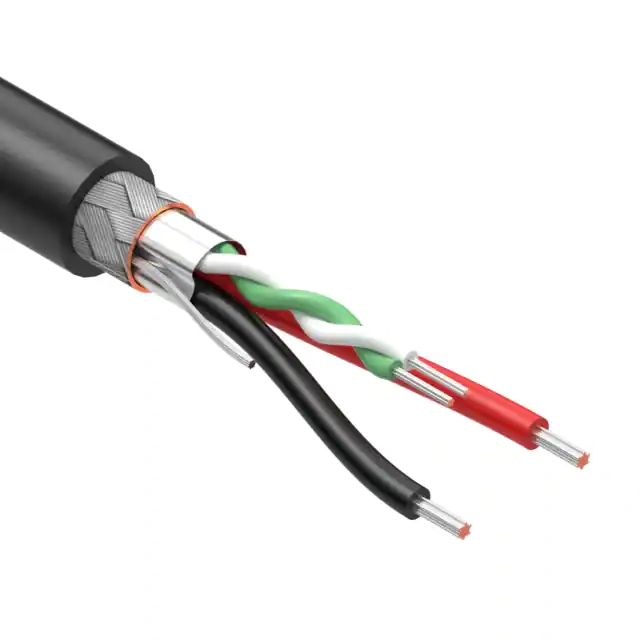

30-02483CABLE 4COND 20AWG/24AWG METER |
1,422 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 (1 Twisted Pair + 2) | 20 AWG, 24 AWG | 26/0.0039", 41/0.0050" | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.228" (5.79mm) | Foil, Braid | Enter Number of Meters in Order Quantity | Black | UL Style 2725 | Drain Wire | - | -25°C ~ 80°C | - | 0.0315" (0.800mm) | Poly-Vinyl Chloride (PVC), Polyethylene (PE), Semi-Rigid | - | |
|
|
8671604CY SL005MULTI-PAIR 8COND 16AWG SLATE |
1,200 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.445" (11.30mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 20234 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - | |
|
0036915MULTI-PAIR 10COND 18/24AWG FEET |
2,336 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 10 (4 Twisted Pairs + 2) | 18 AWG, 24 AWG | - | Copper, Tinned | Polyurethane (PU) | 0.346" (8.79mm) | Braid | Enter Number of Feet in Order Quantity | Green | - | - | 30 V | - | - | - | Polypropylene (PP) | - | |
|

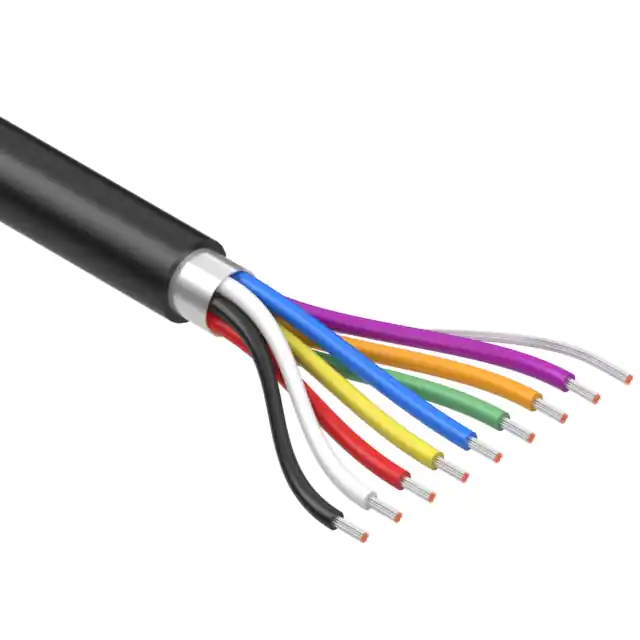

30-01502CABLE 8COND 22AWG SHLD MPPE |
1,224 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 8 | 22 AWG | 17/0.0063" | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.236" (5.99mm) | Foil | 502.0' (153.0m) | Black | UL Style 21509 | Drain Wire | 600 V | -40°C ~ 105°C | - | 0.0315" (0.800mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
83318E 009100CABLE 2CON 24AWG WHITE SHLD |
700 |
|
数据手册 |
- | Spool | Active | Multi-Conductor | 2 | 24 AWG | 19/36 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.131" (3.33mm) | Braid | 100.0' (30.5m) | White | - | - | - | -65°C ~ 200°C | - | 0.0110" (0.279mm) | Fluorinated Ethylene-Propylene (FEP) | - |
