多导体电缆
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 线规 | 导体股数 | 导体材料 | 护套（绝缘）材料 | 护套（绝缘）直径 | 屏蔽类型 | 长度 | 护套颜色 | 额定值 | 特性 | 电压 | 工作温度 | 用途 | 护套（绝缘）厚度 | 导体绝缘 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45192 BK199CABLE 2COND 22AWG BLK SHLD FEET |
2,331 |
|
数据手册 |
Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.222" (5.64mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - | |
|
2248C SL001MULTI-PAIR 16COND 18AWG |
2,000 |
|
数据手册 |
- | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.535" (13.59mm) | Foil | 1000.0' (304.8m) | Slate | - | Drain Wire | 300 V | -20°C ~ 80°C | Communication, Control | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC) | - | |
|
55A6160-20-2/6-9-9CABLE 2CON 20AWG WHT SHLD FEET |
203 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 20 AWG | 19/32 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.172" (4.37mm) | Double Braid | Enter Number of Feet in Order Quantity | White | - | - | 600 V | 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - | |
|
761404CABLE 4COND 14AWG BLK SHLD FEET |
6,699 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 14 AWG | 46/30 | Copper, Tinned | Thermoplastic Polymer | 0.514" (13.06mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | - | - | - | - | Industrial, Servo Motor | - | - | - | |
|
301606SCABLE 6COND 16AWG GRAY SHLD FEET |
4,888 |
|
数据手册 |
Unitronic® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 6 | 16 AWG | - | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.413" (10.49mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Gray | - | Drain Wire, Oil Resistant, UV Resistant | 300 V | - | Industrial, Signal, Control | - | Poly-Vinyl Chloride (PVC) | - | |
|
55A1841-24-0/2/5/9-3CABLE 4COND 24AWG ORG SHLD FEET |
14,144 |
|
数据手册 |
- | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 24 AWG | 19/36 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.142" (3.61mm) | Braid | Enter Number of Feet in Order Quantity | Orange | - | - | 600 V | -65°C ~ 150°C | - | 0.0080" (0.203mm) | Ethylene Tetrafluoroethylene (ETFE) | - | |
|
|
9946 060100CABLE 10COND 22AWG CHROME SHD |
1,501 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 10 | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.300" (7.62mm) | Foil, Braid | 100.0' (30.5m) | Chrome | - | - | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|

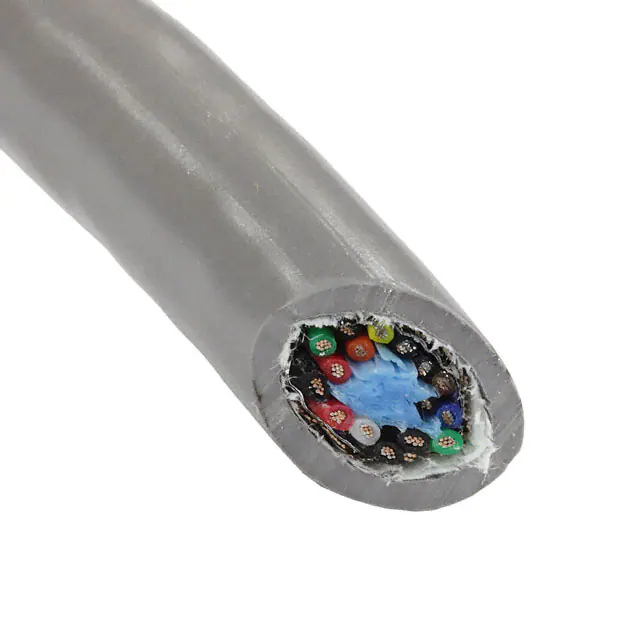

78078 SL005MULTI-PAIR 16COND 24AWG |
1,100 |
|
数据手册 |
EcoCable® Mini | Spool | Active | Multi-Pair | 16 (8 Pair Twisted) | 24 AWG | 19/36 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.247" (6.27mm) | - | 100.0' (30.5m) | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|

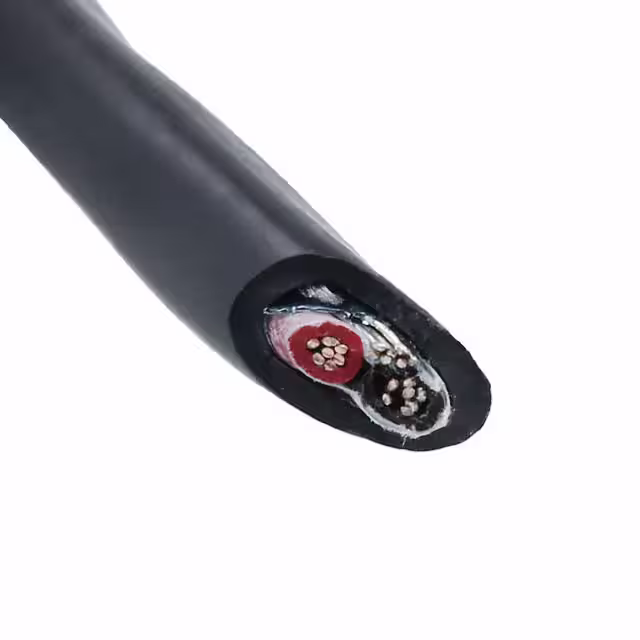

25382 BK199CABLE 2COND 18AWG BLK SHLD FEET |
1,077 |
|
数据手册 |
Xtra-Guard® 2 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 2 | 18 AWG | 16/30 | Copper, Tinned | Polyurethane (PU) | 0.230" (5.84mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993, UL Style 20668 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -30°C ~ 90°C | - | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - | |
|

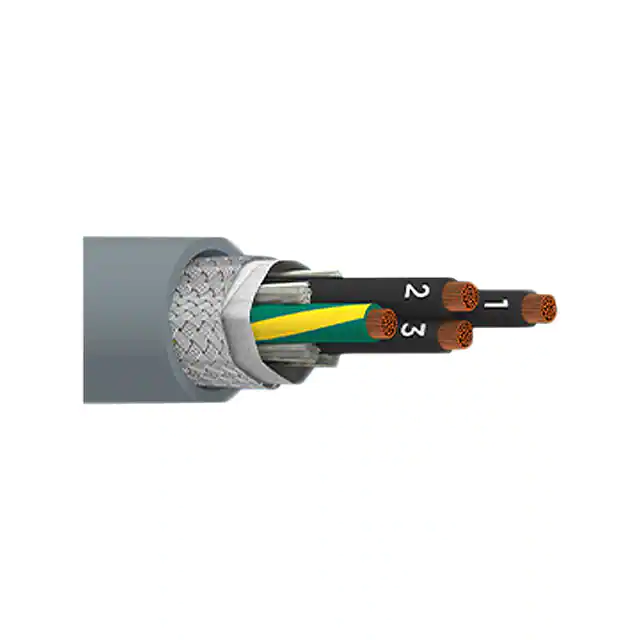

901204CY SL001CABLE 4CON 12AWG SLATE SHLD FEET |
516 |
|
数据手册 |
Xtra-Guard® Flex | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 12 AWG | 65/30 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.464" (11.79mm) | Braid | Enter Number of Feet in Order Quantity | Slate | - | - | 600 V | -30°C ~ 90°C | Industrial | 0.0500" (1.270mm) | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|

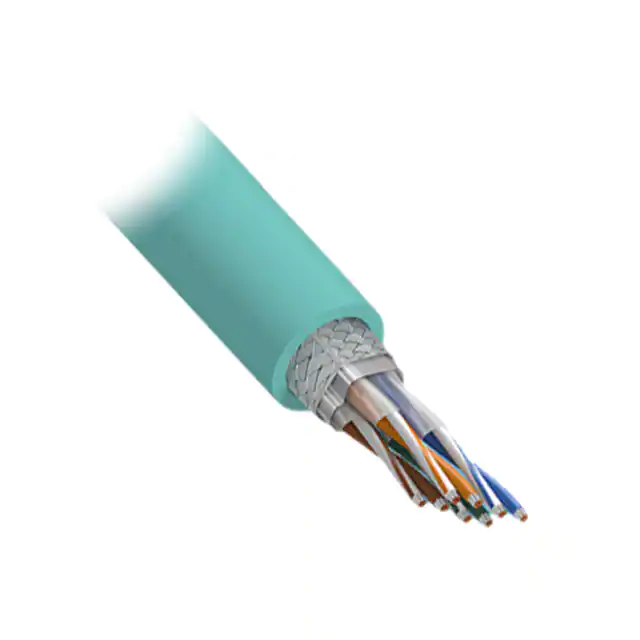

76033 TL001CABLE CAT6A 8CON 26AWG TEAL FEET |
1,185 |
|
数据手册 |
Xtra-Guard® Industrial Ethernet Flex | Digi-Spool®, Continuous Spool | Active | Multi-Pair, Cat6a | 8 (4 Pair Twisted) | 26 AWG | 7/34 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.290" (7.37mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Teal | UL Style 2463 | Oil Resistant, UV Resistant | 600 V | -40°C ~ 80°C | Industrial, Network | 0.0350" (0.889mm) | Polyethylene (PE) | - | |
|
8671603CY SL005MULTI-PAIR 6COND 16AWG SLATE |
200 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 16 AWG | 65/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.411" (10.44mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 20234 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0530" (1.346mm) | Poly-Vinyl Chloride (PVC) | - | |
|
|
19364 010250CABLE 3COND 14AWG BLACK SHLD |
4,250 |
|
数据手册 |
Classics | Spool | Active | Multi-Conductor | 3 | 14 AWG | 41/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.402" (10.21mm) | Foil | 250.0' (76.2m) | Black | UL Style SJT | Drain Wire | 300 V | - | Cord and Cordset | 0.0420" (1.067mm) | Poly-Vinyl Chloride (PVC) | - | |
|
78153 SL199MULTI-PAIR 6CON 28AWG SLATE FEET |
803 |
|
数据手册 |
EcoCable® Mini | Digi-Spool®, Continuous Spool | Active | Multi-Pair | 6 (3 Pair Twisted) | 28 AWG | 19/40 | Copper, Tinned | Polyphenylene Ether, Modified (mPPE) | 0.144" (3.66mm) | Foil | Enter Number of Feet in Order Quantity | Slate | ISO 10993, UL Style 21460 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -40°C ~ 80°C | - | 0.0150" (0.381mm) | Polyphenylene Ether, Modified (mPPE) | - | |
|
2212040CABLE 4COND 12AWG BLK SHLD FEET |
5,144 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 12 AWG | 56/0.0122" | Copper, Bare | Thermoplastic Polymer | 0.491" (12.47mm) | Foil, Braid | Enter Number of Feet in Order Quantity | Black | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC), Polyamide (PA), Nylon | - | |
|
|
8671804CY SL005MULTI-PAIR 8COND 18AWG SLATE |
2,200 |
|
数据手册 |
Xtra-Guard® Flex | Spool | Active | Multi-Pair | 8 (4 Pair Twisted) | 18 AWG | 41/34 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.374" (9.50mm) | Foil, Braid | 100.0' (30.5m) | Slate | UL Style 20234 | Drain Wire, Oil Resistant | 300 V | - | - | 0.0430" (1.092mm) | Poly-Vinyl Chloride (PVC) | - | |
|
45193 BK199CABLE 3COND 22AWG BLK SHLD FEET |
580 |
|
数据手册 |
Xtra-Guard® 4 | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 3 | 22 AWG | 7/30 | Copper, Tinned | Thermoplastic Elastomer (TPE) | 0.232" (5.89mm) | Foil | Enter Number of Feet in Order Quantity | Black | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -50°C ~ 125°C | - | 0.0450" (1.143mm) | Thermoplastic Elastomer (TPE) | - | |
|
601004CABLE 4COND 10AWG GRAY FEET |
4,756 |
|
数据手册 |
ÖLFLEX® | Digi-Spool®, Continuous Spool | Active | Multi-Conductor | 4 | 10 AWG | 84/0.0122" | Copper, Bare | Thermoplastic Polymer | 0.509" (12.93mm) | - | Enter Number of Feet in Order Quantity | Gray | - | Oil Resistant | - | - | Industrial | - | Poly-Vinyl Chloride (PVC) | - | |
|
8305 060100MULTI-PAIR 10COND 22AWG |
9,200 |
|
数据手册 |
Classics | Spool | Active | Multi-Pair | 10 (5 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.322" (8.18mm) | Foil, Braid | 100.0' (30.5m) | Chrome | UL Style 2464 | - | - | -30°C ~ 80°C | Computer | 0.0350" (0.889mm) | Poly-Vinyl Chloride (PVC) | - | |
|
5292C SL005MULTI-PAIR 4CON 20AWG SLATE |
300 |
|
数据手册 |
Xtra-Guard® 1 | Spool | Active | Multi-Pair | 4 (2 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.326" (8.28mm) | Foil, Braid | 100.0' (30.5m) | Slate | ISO 10993 | Biological Compatibility, Drain Wire, Rip Cord | 300 V | -35°C ~ 105°C | Communication, Control | 0.0320" (0.813mm) | Poly-Vinyl Chloride (PVC) | - |
