上传BOM单
机器视觉 - 镜头
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SV-1214VLENS WIDE ANGLE C-MOUNT |
3,505 |
|
数据手册 |
SV-V | Bulk | Active | Wide Angle | 12.0mm | - | - | 1/3" | 21.9° x 38.9° | 300mm (Min) | - | - | - | M27 x P0.5 | 29.0mm Dia | 29.5mm | C-Mount | 0°C ~ 50°C |
|
|
SV-1.5X1.5X EXTENDER TUBE |
4,608 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SV-2.0X2X REAR CONVERTER LENS |
3,524 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
VFA4-111-20M50LENS 1.1 20MP 50 MM C-MOUNT |
3,562 |
|
数据手册 |
- | Case | Active | - | 50.0mm | - | - | 1.1" | - | - | - | - | - | - | - | - | C-Mount | - |
|
|
3Z4S-LE SV-7527VLENS STANDARD C-MOUNT |
2,796 |
|
数据手册 |
SV-V | Bulk | Obsolete | Standard | 75.0mm | - | - | 1/3" | 3.6° x 4.8° | 1000mm (Min) | - | - | - | M30.5 x P0.5 | 32.0mm Dia | 42.0 ~ 44.4mm | C-Mount | 0°C ~ 50°C |
|

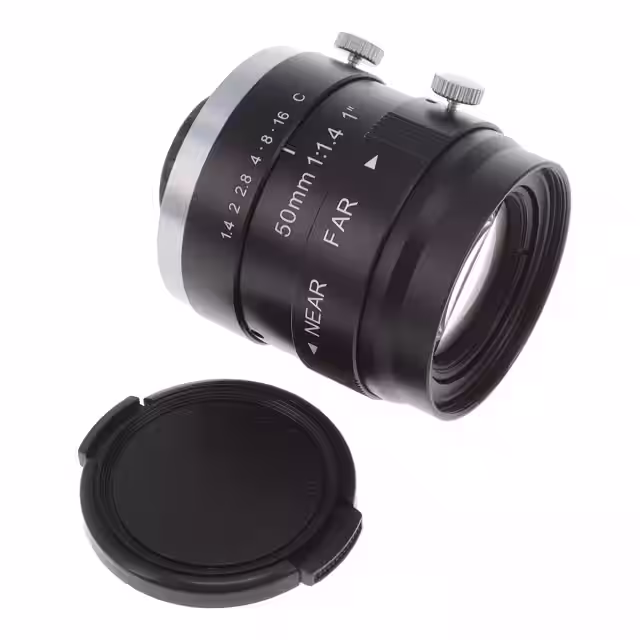

VFA1-110-5M50LENS STANDARD F1.4-F16 C-MOUNT |
2,411 |
|
数据手册 |
- | Active | Standard | 50.0mm | - | F1.4 ~ F16 | 1" | 192.3 x 256.6mm ~ 59.2 x 79.3mm | 1000mm ~ 300mm | 10.6mm | - | 0.1% | M46 x 0.75 | 52.0mm Dia | 55.3mm | C-Mount | -10°C ~ 50°C | |
|
|
3Z4S-LE ML-1214LENS WIDE ANGLE F1.4 C-MOUNT |
2,665 |
|
数据手册 |
3Z4S-LE ML | Bulk | Obsolete | Wide Angle | 12.0mm | - | F1.4 | 1/2" | 21.9° x 29° | 300mm (Min) | - | - | - | M27 x P0.5 | 30.0mm Dia | 34.5mm | C-Mount | - |
|
|
SV-04514VLENS CCTV 4.5MM |
1,092 |
|
数据手册 |
SV | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3Z4S-LE ML-0813LENS WIDE ANGLE F1.3 C-MOUNT |
4,465 |
|
数据手册 |
3Z4S-LE ML | Bulk | Obsolete | Wide Angle | 8.0mm | - | F1.3 | 2/3" | 45° x 57.8° | 200mm (Min) | - | - | - | M25.5 x P0.5 | 30.0mm Dia | 34.5mm | C-Mount | - |
|
|
3Z4S-LE SV-1214HLENS WIDE ANGLE C-MOUNT |
2,050 |
|
数据手册 |
SV-H | Bulk | Obsolete | Wide Angle | 12.0mm | - | - | 2/3" | 30.2° x 39.6° | 100mm (Min) | - | - | - | M27 x P0.5 | 30.0mm Dia | 51.0mm | C-Mount | 0°C ~ 50°C |
|
|
3Z4S-LE SV-1614HLENS WIDE ANGLE C-MOUNT |
3,856 |
|
数据手册 |
SV-H | Bulk | Obsolete | Wide Angle | 16.0mm | - | - | 2/3" | 23.1° x 30.6° | 100mm (Min) | - | - | - | M27 x P0.5 | 30.0mm Dia | 47.5mm | C-Mount | 0°C ~ 50°C |
|
|
3Z4S-LE SV-2514HLENS WIDE ANGLE C-MOUNT |
4,131 |
|
数据手册 |
SV-H | Bulk | Obsolete | Wide Angle | 25.0mm | - | - | 2/3" | 15.0° x 20.0° | 150mm (Min) | - | - | - | M27 x P0.5 | 30.0mm Dia | 36.0mm | C-Mount | 0°C ~ 50°C |
|
|
SV-2.5X2.5X REAR CONVERTER LENS |
4,088 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SV-2514V1 25MM CCTV LENS |
3,048 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SV-3518VUSB 3.0 LENS |
1,975 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3Z4S-LE VS-5026VM50MM HI-RES LEN 5MP ROLLSHTTER |
3,733 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3Z4S-LE SV-0814HLENS WIDE ANGLE C-MOUNT |
3,738 |
|
数据手册 |
SV-H | Bulk | Obsolete | Wide Angle | 8.0mm | - | - | 2/3" | 44.9° x 57.6° | 100mm (Min) | - | - | - | M35.5 x P0.5 | 39.0mm Dia | 52.5mm | C-Mount | 0°C ~ 50°C |
|
|
VOS-LE-C-8MM-JCVISION SENSORS |
2,492 |
|
数据手册 |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VFA4-111-20M12LENS W ANG F2.2-F16 0.003-0.087X |
4,621 |
|
数据手册 |
- | Case | Active | Wide Angle | 12.0mm | 0.003x ~ 0.087x | F2.2 ~ F16 | 1.1" | 4065.3 x 5420.4mm ~ 121.0 x 161.3mm | 5000mm ~ 100mm | 12.9mm | - | 0.3% ~ 0.5% | M49 x P0.75 | 44.0mm Dia | 79.6mm | C-Mount | -40°C ~ 80°C |
|
|
3Z4S-LE VS-1218VM12MM HI-RES LEN 5MP ROLLSHTTER |
4,249 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
