机器视觉 - 镜头
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

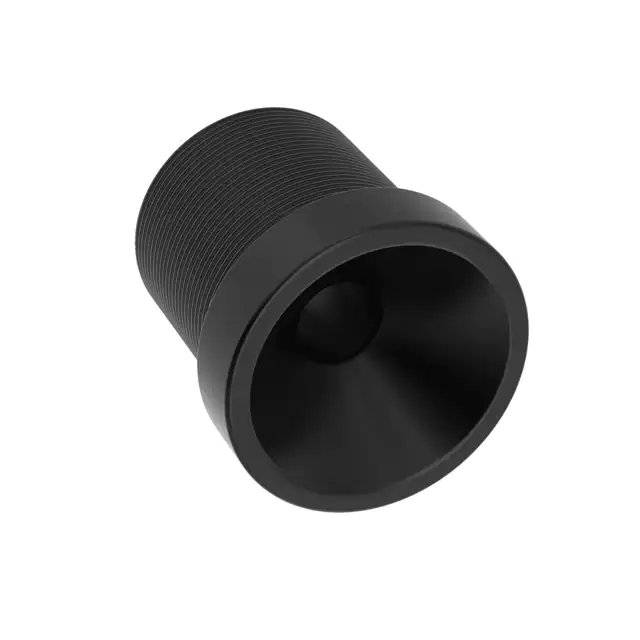

LMF12LENS WIDE ANGLE C-MOUNT |
4,337 |
|
数据手册 |
LM | Bulk | Active | Wide Angle | 12.0mm | - | - | 1/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|

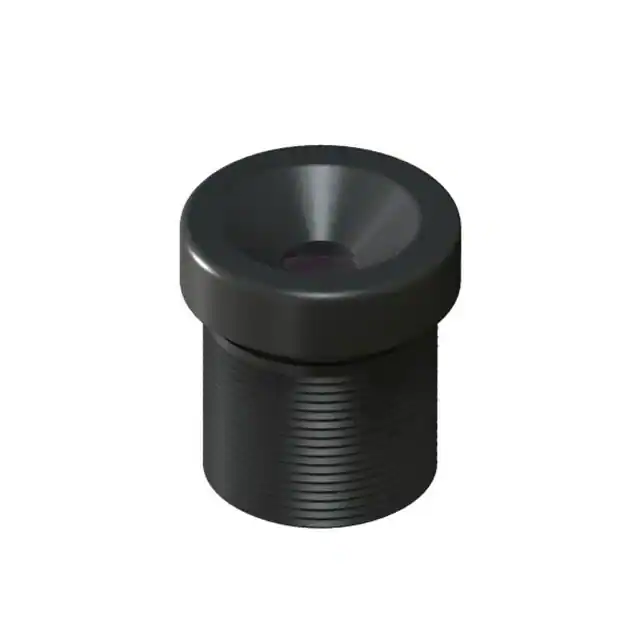

LMF08LENS WIDE ANGLE C-MOUNT |
3,040 |
|
数据手册 |
LM | Bulk | Active | Wide Angle | 8.0mm | - | - | 1/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|

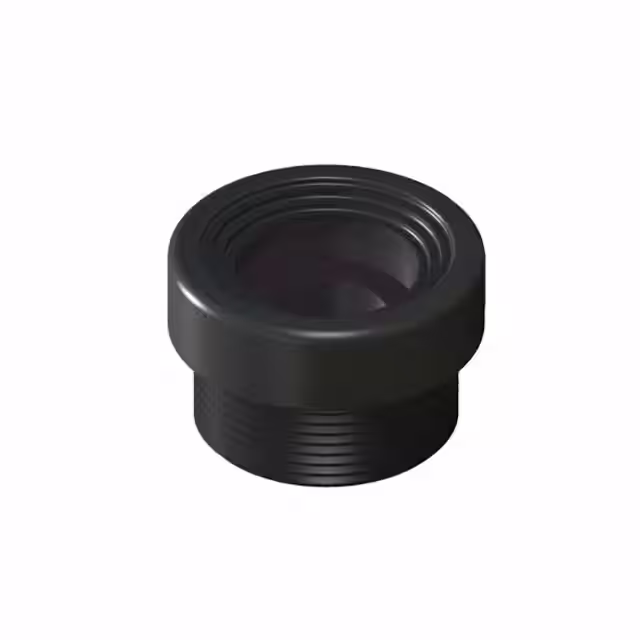

LMF16LENS WIDE ANGLE C-MOUNT |
4,734 |
|
数据手册 |
LM | Box | Active | Wide Angle | 16.0mm | - | - | 1/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|

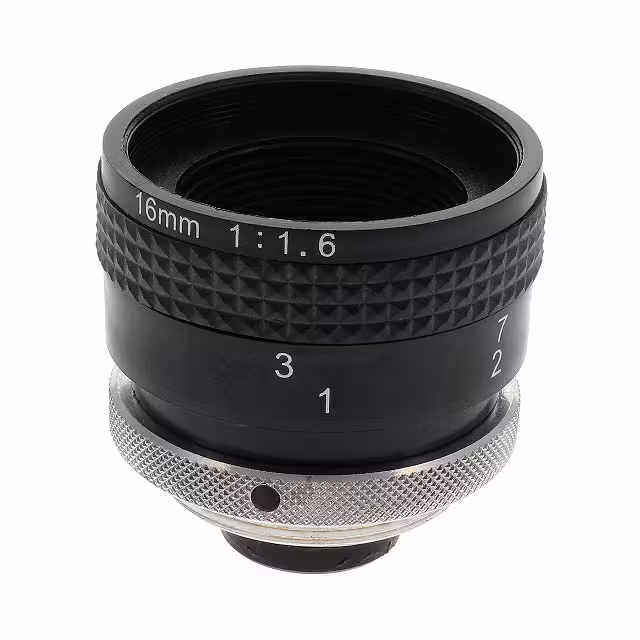

LCF16LENS WIDE ANGLE F1.6 C-MOUNT |
4,914 |
|
数据手册 |
LC | Box | Active | Wide Angle | 16.0mm | - | F1.6 | 1/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|

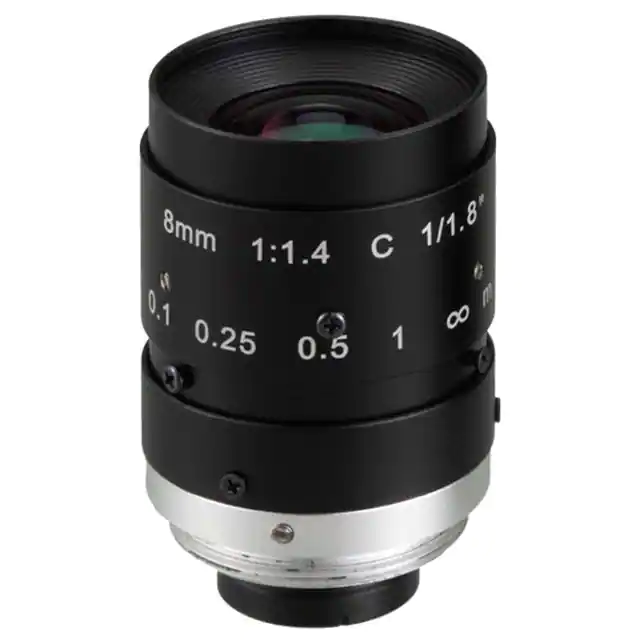

LCF08LEVMPLENS WIDE ANGLE F1.4 C-MOUNT |
1,370 |
|
数据手册 |
VE | Bulk | Active | Wide Angle | 8.0mm | - | F1.4 | 1" | - | - | - | - | - | - | - | - | C-Mount | - |
|

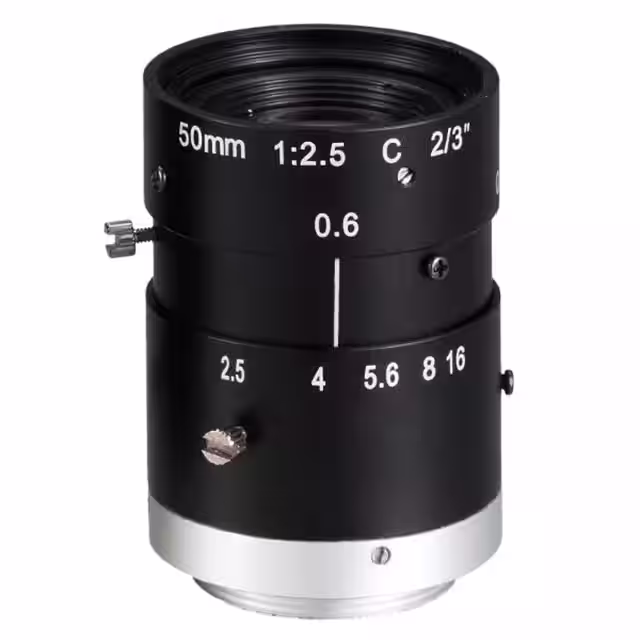

LCF50LEVMPLENS STANDARD F2.6 C-MOUNT |
3,107 |
|
数据手册 |
VE | Bulk | Active | Standard | 50.0mm | - | F2.6 | 2/3" | - | - | - | - | - | - | - | - | C-Mount | - |
|
0703-005-000-40LENS STD F4 0.8X-1.2X FLEXIBLE |
2,425 |
|
数据手册 |
Apo-Rodagon-D | Box | Active | Standard | 75.0mm | 0.8x ~ 1.2x | F4 | - | 82.0mm | 100mm ~ 130mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 52.9mm | Flexible | - |
|
0701-349-000-40LENS STD F2.8 0.05X-0.5X FLEX |
1,803 |
|
数据手册 |
Apo-Rodagon-N | Box | Active | Standard | 50.0mm | 0.05x ~ 0.5x | F2.8 | - | 43.3mm | 122mm ~ 1025mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 45.6mm | Flexible | - |
|
0703-090-000-25LENS STD F4 0X-0.5X F-MOUNT |
4,744 |
|
数据手册 |
Rodagon-F | Box | Active | Standard | 40.0mm | 0x ~ 0.5x | F4 | - | 44.0mm | 94mm (Min) | - | 7µm | - | M40.5 x P0.5 | 59.0mm Dia | 45.9mm | F-Mount | - |
|
LCF25LK1FLENS WIDE ANGLE F1.4 C-MOUNT |
1,311 |
|
数据手册 |
LC | Box | Active | Wide Angle | 25.0mm | - | F1.4 | 1" | - | - | - | - | - | - | - | - | C-Mount | - |
|
0009-243-000-40LENS STD F1.4 0X-0.15X F-MOUNT |
1,660 |
|
数据手册 |
Inspec.x M | Box | Active | Standard | 50.0mm | 0x ~ 0.15x | F1.4 | 1.4" | 43.3mm | 355mm (Min) | - | 5µm | - | M58 x P0.75 | 70.0mm Dia | 50.4mm | F-Mount | - |
|
|
0703-092-000-40LENS STD F4 0.067X-0.5X FLEXIBLE |
3,323 |
|
数据手册 |
Apo-Rodagon-N | Box | Active | Standard | 80.0mm | 0.067x ~ 0.5x | F4 | - | 43.3mm | 218mm ~ 1298mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 47.0mm | Flexible | - |
|
0009-190-000-41LENS MACRO F5.6 0.3X C-MOUNT |
3,681 |
|
数据手册 |
Macro CCD | Box | Active | Macro | 24.0mm | 0.3x | F5.6 | 1" | 11.0mm | 90mm | - | 5µm | - | - | 32.0mm Dia | 33.8mm | C-Mount | - |
|
0009-191-000-41LENS MACRO F8 0.5X C-MOUNT |
3,436 |
|
数据手册 |
Macro CCD | Box | Active | Macro | 35.0mm | 0.5x | F8 | 1" | 11.0mm | 90mm | - | 5µm | - | M22.5 x P0.5 | 32.0mm Dia | 54.5mm | C-Mount | - |
|
0009-192-000-42LENS MACRO F5.6 1.0X C-MOUNT |
1,139 |
|
数据手册 |
Macro CCD | Box | Active | Macro | 50.0mm | 1.0x | F5.6 | 1" | 11.0mm | 90mm | - | 5µm | - | M22.5 x P0.5 | 32.0mm Dia | 96.6mm | C-Mount | - |
|
|
0009-192-000-41LENS MACRO F4 1.0X C-MOUNT |
3,045 |
|
数据手册 |
Macro CCD | Box | Active | Macro | 50.0mm | 1.0x | F4 | 1" | 11.0mm | 90mm | - | 5µm | - | M22.5 x P0.5 | 32.0mm Dia | 96.6mm | C-Mount | - |
|
0020-003-000-40LENS STD F1.8 0X-0.075X C-MOUNT |
2,389 |
|
数据手册 |
MeVis-C | Box | Active | Standard | 50.0mm | 0x ~ 0.075x | F1.8 | 1" | 16.0mm | 670mm (Min) | - | 2µm | - | M35.5 x P0.5 | 42.0mm Dia | 71.2mm | C-Mount | - |
|
|
0009-194-000-40LENS MACRO F5.2 4.0X C-MOUNT |
3,525 |
|
数据手册 |
Macro CCD | Box | Active | Macro | 20.0mm | 4.0x | F5.2 | 1" | 11.0mm | 75mm | - | 5µm | - | - | 29.0mm Dia | 107.6mm | C-Mount | - |
|
0019-002-000-50LENS STD F4 0X-0.2X FLEXIBLE |
1,462 |
|
数据手册 |
inspec.x L | Box | Active | Standard | 60.0mm | 0x ~ 0.2x | F4 | 2.8" | 70.8mm | 334mm (Min) | - | 5µm | - | M49 x P0.75/M40.5 x P0.5 | 62.0mm Dia | 57.6mm | Flexible | - |
|
0703-134-000-20LENS 3.2X-3.5X V-GROOVE |
3,734 |
|
数据手册 |
Linos® d.fine HR | Box | Active | - | 128.0mm | 3.2x ~ 3.5x | - | - | - | - | - | 5µm | 0.1% | - | - | - | V-Groove | - |
