机器视觉 - 镜头
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 焦距 | 放大倍率 | 焦比 | 兼容的最大传感器尺寸 | 视场 | 工作距离 | 景深 | 分辨率 | 电视失真 | 滤镜尺寸 | 直径 | 长度 | 安装类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CIL533-F2.0-CMANIR16mm 12MP C Mount Lens |
2,486 |
|
数据手册 |
2/3" 8-12MP | Bag | Active | Wide Angle | 16.0mm | - | F2 | 2/3" | 37° @ 11mm | - | - | 12MP (2.74µm) | -0.10% | M27 x P0.5 | 29.0mm Dia | 39.5mm | C-Mount | - |
|
|
CIL532-F2.0-CMANIR12mm 12MP C Mount Lens |
3,050 |
|
数据手册 |
2/3" 8-12MP | Bag | Active | Wide Angle | 12.0mm | - | F2 | 2/3" | 49° @ 11mm | - | - | 12MP (2.74µm) | 0% | M27 x P0.5 | 29.0mm Dia | 37.7mm | C-Mount | - |
|
|
CIL534-F2.0-CMANIR25mm 12MP C Mount Lens |
2,794 |
|
数据手册 |
2/3" 8-12MP | Bag | Active | Wide Angle | 25.0mm | - | F2 | 2/3" | 26° @ 11mm | - | - | 12MP (2.74µm) | 0% | M25.5 x P0.5 | 29.0mm Dia | 30.9mm | C-Mount | - |
|
|
CIL535-F2.0-CMANIR35mm 2/3" 12MP C Mount Lens |
3,821 |
|
数据手册 |
2/3" 8-12MP | Bag | Active | Standard | 35.0mm | - | F2 | 2/3" | 16° @ 11mm | - | - | 12MP (2.74µm) | -0.10% | M25.5 x P0.5 | 29.0mm Dia | 43.2mm | C-Mount | - |
|
|
CIL531-F2.8-CMANIR8mm 2/3" 12MP C Mount Lens |
1,721 |
|
数据手册 |
2/3" 8-12MP | Bag | Active | Wide Angle | 8.0mm | - | F2.8 | 2/3" | 67° @ 11mm | - | - | 12MP (2.74µm) | -0.09% | - | 29.0mm Dia | 39.9mm | C-Mount | - |
|
|
CIL521-F1.5-CMANIR8mm 2/3" 5MP C Mount Lens |
1,217 |
|
数据手册 |
2/3" Up to 5MP | Bag | Active | Wide Angle | 8.0mm | - | F1.5 | 2/3" | 67° @ 11mm | - | - | 5MP (3.45µm) | - | M37 x 0.5 | 39.0mm Dia | 40.0mm | C-Mount | - |
|
|
CIL525-F1.4-CMANIR25mm up to 2/3" C-Mount Lens |
2,085 |
|
数据手册 |
2/3" Up to 5MP | Bag | Active | Wide Angle | 25.0mm | - | F1.4 | 2/3" | 25° @ 11mm | - | - | 5MP (3.45µm) | <0.2% | M30.5 x P0.5 | 33.5mm Dia | 30.3mm | C-Mount | - |
|
|
CIL526-F1.5-CMANIR35mm C Mount 2/3" 5MP Lens |
3,903 |
|
数据手册 |
2/3" Up to 5MP | Bag | Active | Standard | 35.0mm | - | F1.5 | 2/3" | 17° @ 11mm | - | - | 5MP (3.45µm) | -0.8% | M37 x 0.5 | 40.0mm Dia | 43.7mm | C-Mount | - |
|
|
CIL553-F2.8-CMANIR16mm 1.2" 25MP C Mount Lens |
4,143 |
|
数据手册 |
1.2" Up to 25MP | Bag | Active | Wide Angle | 16.0mm | - | F2.8 | 1.2" | 63° @ 19.4mm | - | - | 25MP | -0.09% | - | 35.0mm Dia | 53.5mm | C-Mount | - |
|
|
CIL555-F2.6-CMANIR25mm up to 1/2" C-Mount Lens |
2,374 |
|
数据手册 |
1.2" Up to 25MP | Bag | Active | Standard | 35.0mm | - | F2.6 | 1.2" | 31° @ 19.4mm | - | - | 25MP | 0.08% | M30.5 x P0.5 | 35.0mm Dia | 46.0mm | C-Mount | - |
|
|
CIL552-F2.8-CMANIR12mm 25MP C Mount Lens |
4,176 |
|
数据手册 |
1.2" Up to 25MP | Bag | Active | Wide Angle | 12.0mm | - | F2.8 | 1.2" | 84° @ 19.4mm | - | - | 25MP | -0.22% | - | 47.0mm Dia | 74.7mm | C-Mount | - |
|
|
CIL554-F2.6-CMANIR25mm 25MP C Mount Lens |
4,092 |
|
数据手册 |
1.2" Up to 25MP | Bag | Active | Wide Angle | 25.0mm | - | F2.6 | 1.2" | 42° @ 19.4mm | - | - | 25MP | -0.07% | M30.5 x P0.5 | 35.0mm Dia | 44.9mm | C-Mount | - |
|
|
CIL556-F2.8-CMANIR50mm up to 1.2" C Mount Lens |
2,931 |
|
数据手册 |
1.2" Up to 25MP | Bag | Active | Standard | 50.0mm | - | F2.8 | 1.2" | 17° @ 19.4mm | - | - | 25MP | -0.02% | M30.5 x P0.5 | 35.0mm Dia | - | C-Mount | - |
|
|
CIL544-F1.8-CMANIR25mm 1.1" 25MP C Mount Lens |
4,303 |
|
数据手册 |
1.1" 20-25MP | Bag | Active | Wide Angle | 25.0mm | - | F1.8 | 1.1" | 39° @ 17.6mm | - | - | 20MP | -0.10% | M30.5 x P0.5 | 33.5mm Dia | 44.5mm | C-Mount | - |
|
|
0703-101-000-40LENS STD F4.5 0.4X-0.8X FLEXIBLE |
4,590 |
|
数据手册 |
Apo-Rodagon-D | Box | Active | Standard | 75.0mm | 0.4x ~ 0.8x | F4.5 | - | - | 138mm ~ 232mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 42.9mm | Flexible | - |
|
|
0020-002-000-40LENS W ANG F1.6 0X-0.1X C-MT |
3,461 |
|
数据手册 |
MeVis-C | Box | Active | Wide Angle | 25.0mm | 0x ~ 0.1x | F1.6 | 1" | 16.0mm | 260mm (Min) | - | 2µm | - | M35.5 x P0.5 | 42.0mm Dia | 47.8mm | C-Mount | - |
|
|
M127B0618WR2M12XP0.5, 6.0 MM FOCAL LENGTH, F |
4,086 |
|
数据手册 |
- | Bulk | Active | Wide Angle | 6.0mm | - | F1.8 | - | 36° x 61° | 300mm (Min) | - | - | - | M12 x P0.5 | 17.5mm Dia | 18.6mm | CS-Mount | - |
|

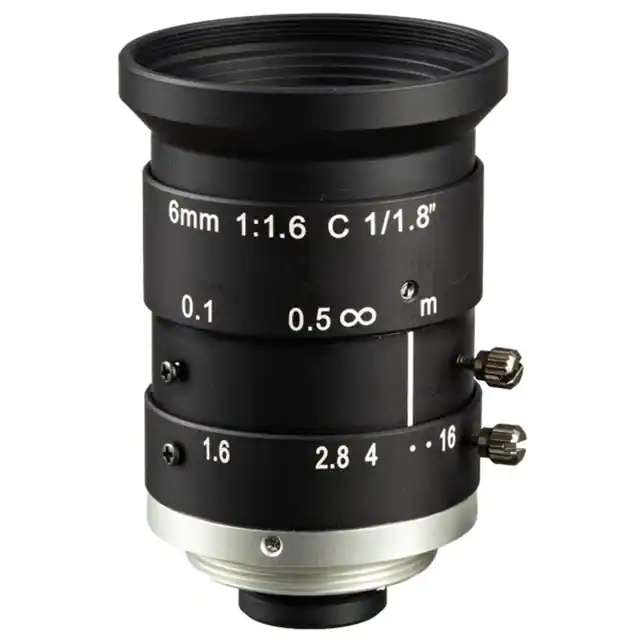

LCF06LEVMPLENS WIDE ANGLE F1.6 C-MOUNT |
1,023 |
|
数据手册 |
VE | Bulk | Active | Wide Angle | 6.0mm | - | F1.6 | 1" | - | - | - | - | - | - | - | - | C-Mount | - |
|
0703-096-000-40LENS TELPHOT F4 0.06X-0.5X FLEX |
1,730 |
|
数据手册 |
Apo-Rodagon-N | Box | Active | Telephoto | 105.0mm | 0.06x ~ 0.5x | F4 | - | 100.0mm | 282mm ~ 1825mm | - | 7µm | - | M40.5 x P0.5 | 50.0mm Dia | 54.3mm | Flexible | - |
|

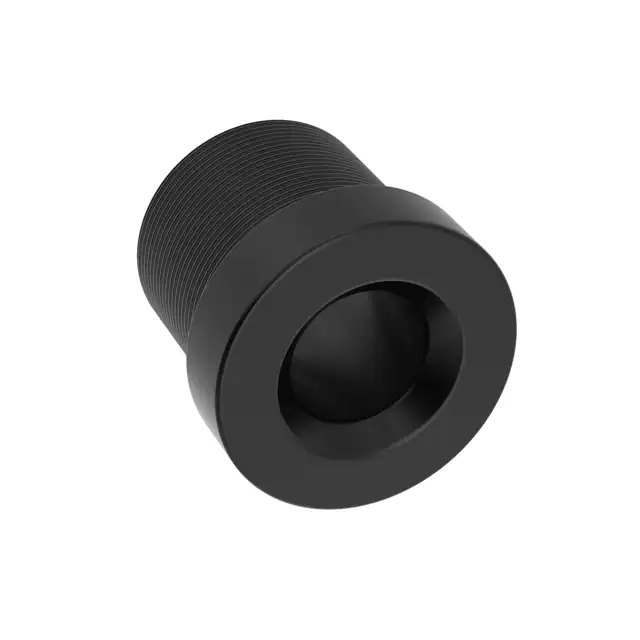

LMF04LENS WIDE ANGLE C-MOUNT |
4,585 |
|
数据手册 |
LM | Bulk | Active | Wide Angle | 4.0mm | - | - | 1/3" | - | - | - | - | - | - | - | - | C-Mount | - |
