扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HF759/30SFCBL RIBN 30COND 0.05 GRAY 275' |
3,427 |
|
数据手册 |
HF759 | Spool | Obsolete | Flat Cable, Round Jacket | 30 | 0.050" (1.27mm) | 275.0' (83.82m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 1.450" (36.83mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
09180377007CBL RIBN 37COND 0.05 GRAY 100' |
3,781 |
|
数据手册 |
- | Bulk | Active | Flat Cable, Round Jacket | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Shielded | Gray | 0.037" (0.93mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 75°C | - | - |
|
|
9L28310 010100CBL RIBN 10COND 0.05 BLACK 100' |
3,621 |
|
数据手册 |
9L283XX | Spool | Obsolete | Flat Cable | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.115" (2.92mm) | 0.570" (14.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
|
0082186009CBL RIBN 9COND 0.156 GRAY 100' |
1,766 |
|
数据手册 |
40174 | Bulk | Obsolete | Flat Cable | 9 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 7 Strands / 26 AWG | Unshielded | Gray | 0.071" (1.80mm) | 1.404" (35.66mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
09180347008CBL RIBN 34COND 0.05 BLACK 100' |
4,965 |
|
数据手册 |
- | Bulk | Active | Flat Cable, Round Jacket | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
3601/40 100CBL RIBN 40COND 0.05 BLUE 25' |
2,530 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
DC-500CBL RIBN 8COND CLEAR 25' |
4,753 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Twin Axial | 8 (4 Pair Twisted) | - | 25.0' (7.62m) | 30 AWG | - | Shielded | Clear | 0.130" (3.30mm) | 0.450" (11.43mm) | Flexx-Sil™ | 30 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|

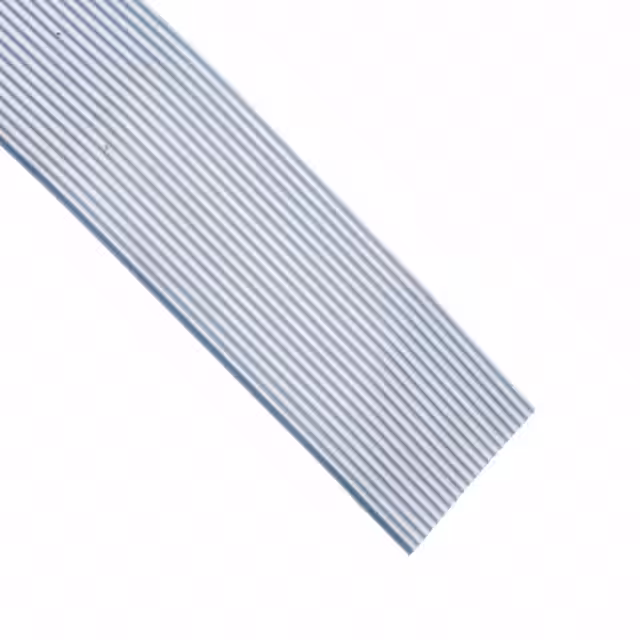

3601/20 100CBL RIBN 20COND 0.05 BLUE 50' |
3,175 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
SL-RCM200CBL RIBN 4COND MULTIPLE 656.2' |
4,615 |
|
数据手册 |
S-Link | Box | Active | Flat Cable | 4 | - | 656.2' (200.00m) | - | - | - | Multiple | - | - | - | - | - | - | - | - | - |
|
HF100/50TPSFCBL RIBN 50COND TWIST PAIR |
4,554 |
|
数据手册 |
HF100 | Spool | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | - | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.500" (63.50mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | - | Splice Free |
|
09180347005CBL RIBN 34COND 0.05 MULTI 100' |
3,925 |
|
数据手册 |
- | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 1.689" (42.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
|
1000570186CBL RIBN 34COND 0.05 RED 500' |
4,961 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 34 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Red | 0.029" (0.74mm) | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
|
DCA4-4F10CBL RIBN 4COND MULTIPLE 328.1' |
4,031 |
|
数据手册 |
- | Bulk | Active | Flat Cable | 4 | - | 328.1' (100.00m) | - | - | - | Multiple | - | - | - | - | - | - | - | - | - |
|
HF319/40 (100')CBL RIBN 40COND 0.05 GRAY 50' |
4,274 |
|
数据手册 |
HF319 | Bulk | Active | Flat Cable | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
1000570270CBL RIBN 80COND 0.025 NATU 500' |
4,277 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 80 | 0.025" (0.64mm) | 500.0' (152.40m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
|
2100/20TP 100MSFCBL RIB 20COND TWIST PAIR 328.1' |
3,562 |
|
数据手册 |
2100 | Bulk | Obsolete | Flat Twisted Pair | 20 (10 Pair Twisted) | 0.050" (1.27mm) | 328.1' (100.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.000" (25.40mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL Style 21008 | Splice Free |
|
|
09180247005CBL RIBN 24COND 0.05 MULTI 100' |
3,979 |
|
数据手册 |
- | Bulk | Active | Flat Cable | 24 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 1.189" (30.21mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
3517/60 100SFCBL RIBN 60COND 0.05 GRAY 50' |
4,209 |
|
数据手册 |
3517 | Bulk | Discontinued at Digi-Key | Flat Cable, Flat Jacket | 60 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 3.130" (79.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
C3319/34 100CBL RIBN 34COND 0.05 BLACK 100' |
4,111 |
|
数据手册 |
3319 | Bulk | Obsolete | Flat Cable | 34 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
1000570114CBL RIBN 4COND 0.05 MULTI 2000' |
2,928 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 4 | 0.050" (1.27mm) | 2000' (609.60m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.032" (0.81mm) | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
