扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

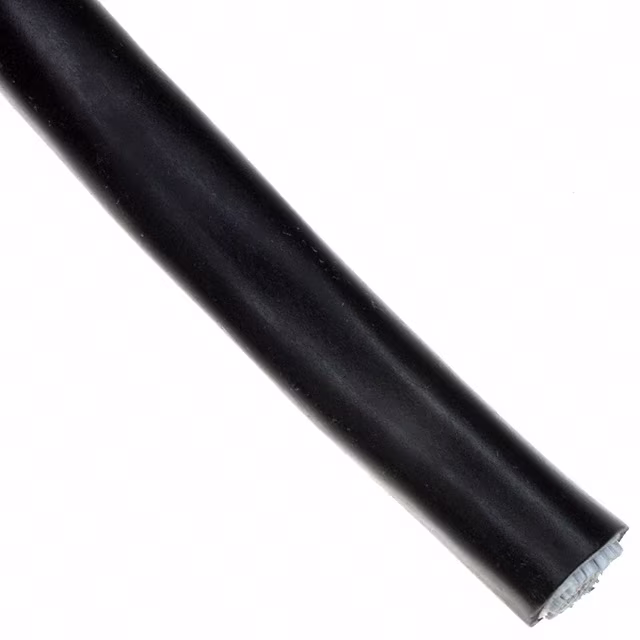

3759/60 300SFCBL RIBN 60COND 0.05 BLACK 300' |
4,780 |
|
数据手册 |
3759 | Bulk | Obsolete | Flat Cable, Round Jacket | 60 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 2.950" (74.93mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Splice Free, Zippable |
|
09180157007CBL RIBN 15COND 0.05 GRAY 100' |
1,728 |
|
数据手册 |
- | Bulk | Active | Flat Cable, Round Jacket | 15 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Shielded | Gray | 0.037" (0.93mm) | 0.750" (19.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 75°C | - | - |
|
3758/25SOSFCBL RIBN |
1,303 |
|
数据手册 |
- | Spool | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Splice Free |
|
3517/64 100SFCBL RIBN 64COND 0.05 GRAY 50' |
4,330 |
|
数据手册 |
3517 | Bulk | Discontinued at Digi-Key | Flat Cable, Flat Jacket | 64 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 3.380" (85.85mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3319/60 100CBL RIBN 60COND 0.05 BLACK 50' |
4,743 |
|
数据手册 |
3319 | Bulk | Active | Flat Cable | 60 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
0082186013CBL RIBN 13COND 0.156 GRAY 100' |
1,726 |
|
数据手册 |
40174 | Bulk | Obsolete | Flat Cable | 13 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 7 Strands / 26 AWG | Unshielded | Gray | 0.071" (1.80mm) | 2.028" (51.51mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
.jpg)
|
3583/37 MC005CBL RIBN 37COND 0.05 MULTI 100' |
1,823 |
|
数据手册 |
- | Spool | Obsolete | Flat Cable | 37 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
.jpg)
|

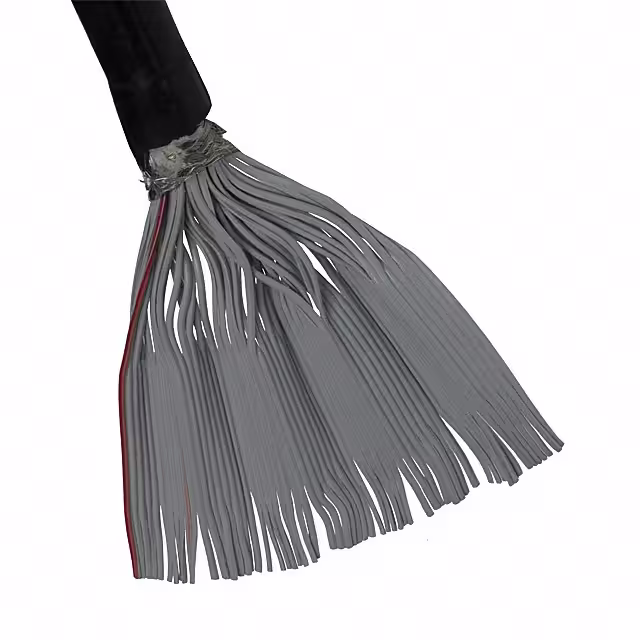

3659/64 300CBL RIBN 64COND 0.05 BLACK 300' |
1,402 |
|
数据手册 |
3659 | Spool | Obsolete | Flat Cable, Round Jacket | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 3.150" (80.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|

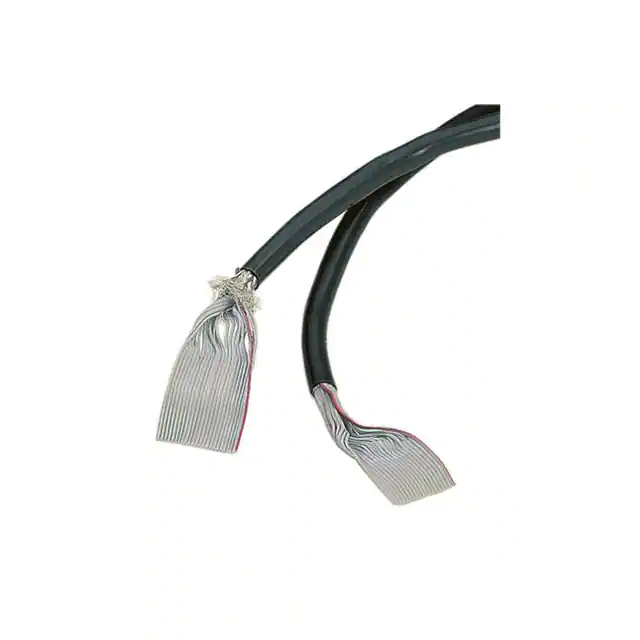

09180097007CBL RIBN 9COND 0.05 GRAY 100' |
4,832 |
|
数据手册 |
- | Bulk | Active | Flat Cable, Round Jacket | 9 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Shielded | Gray | 0.037" (0.93mm) | 0.450" (11.43mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 75°C | - | - |
|
|
1000570112CBL RIBN 40COND 0.05 GREEN 500' |
2,955 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 40 | 0.050" (1.27mm) | 500.0' (152.40m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Green | 0.032" (0.81mm) | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
666K101-10CBL RIBN 10COND 0.039 CLEAR 500' |
3,280 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 10 | 0.039" (1.00mm) | 500.0' (152.40m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 0.394" (10.00mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|

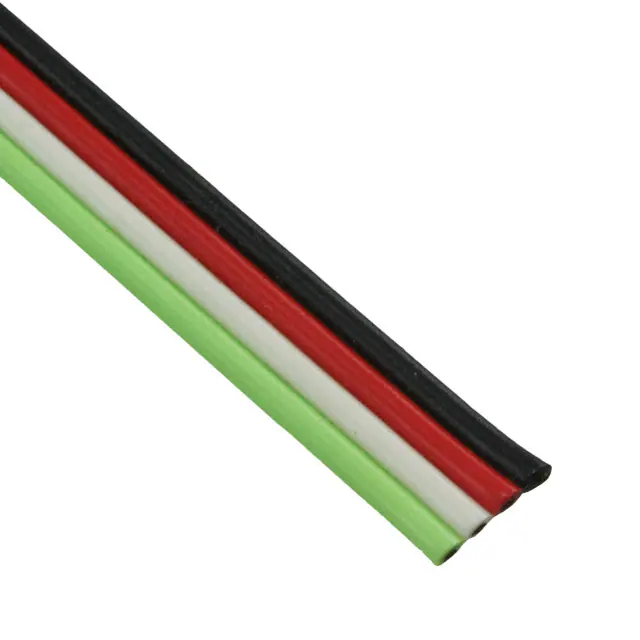

79100-075-4F1CBL RIBN 4COND 0.1 MULTI 656.2' |
2,534 |
|
数据手册 |
79100 | Spool | Obsolete | Flat Cable | 4 | 0.100" (2.54mm) | 656.2' (200.00m) | 19 AWG | 30 Strands / 33 AWG | Unshielded | Multiple | 0.100" (2.54mm) | 0.394" (10.00mm) | Poly-Vinyl Chloride (PVC) | - | - | - | - | UL E118773-K | - |
|
|
1000570201CBL RIBN 44COND 0.039 BLUE 500' |
1,831 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 44 | 0.039" (1.00mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | - | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
|
SL8802/24-4RLN5-00CBL RIBN 12PAIR 30AWG |
4,554 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1000570028CBL RIBN 80COND 0.025 NATU 50' |
4,278 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 80 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
|
09180167007CBL RIBN 16COND 0.05 GRAY 100' |
2,730 |
|
数据手册 |
- | Bulk | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Shielded | Gray | 0.037" (0.93mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 75°C | - | - |
|
|
2049/68 300CBL RIBN 68COND 0.025 WHITE 300' |
3,815 |
|
数据手册 |
2049 | Bulk | Obsolete | Flat Cable | 68 | 0.025" (0.64mm) | 300.0' (91.44m) | 30 AWG | Solid | Unshielded | White | 0.025" (0.64mm) | 1.700" (43.18mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | - |
|

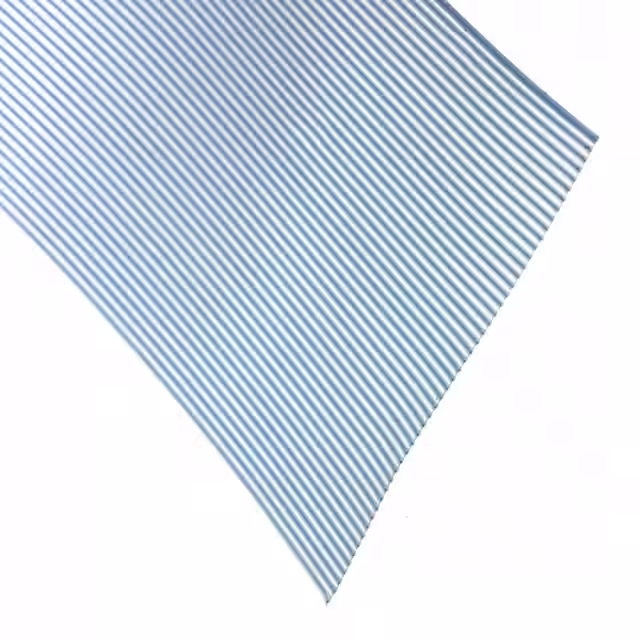

3601/50 100CBL RIBN 50COND 0.05 BLUE 25' |
1,887 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570027CBL RIBN 68COND 0.025 NATU 50' |
4,988 |
|
数据手册 |
Temp-Flex 100057 | Bulk | Discontinued at Digi-Key | Flat Cable | 68 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
|
SL8801/13-3SBM5-00CBL RIBN |
2,283 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
