扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
09180167008CBL RIBN 16COND 0.05 BLACK 100' |
4,828 |
|
数据手册 |
- | Bulk | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.800" (20.32mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
3355/60 100SFCBL RIBN 60COND 0.05 GRAY 100' |
1,281 |
|
数据手册 |
3355 | Bulk | Active | Flat Cable | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 3.000" (76.20mm) | Thermoplastic Elastomer (TPE) | 300 V | - | - | -40°C ~ 105°C | UL Style 20297 | Splice Free, Zippable |
|

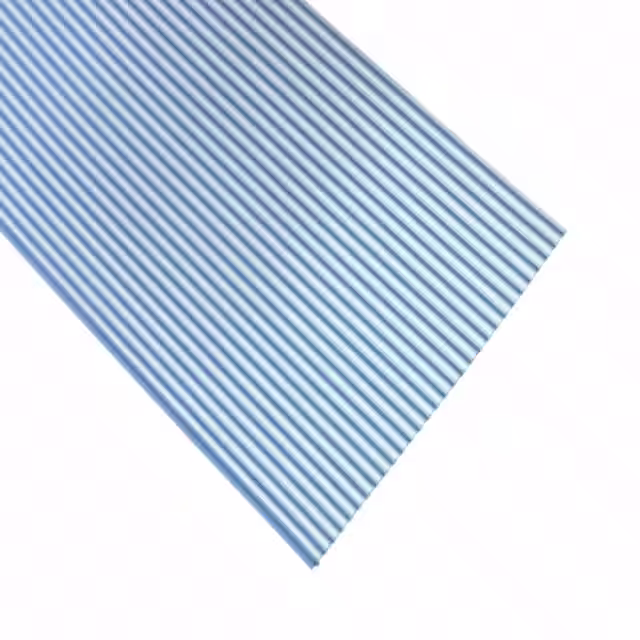

3601/30 100CBL RIBN 30COND 0.05 BLUE 50' |
2,919 |
|
数据手册 |
3601 | Bulk | Discontinued at Digi-Key | Flat Cable | 30 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.500" (38.10mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
90101/30CBL RIBN |
1,756 |
|
数据手册 |
- | Spool | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
1785/50 100SFCBL RIBN 50COND TWIST PAIR 50' |
3,024 |
|
数据手册 |
1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
666K101-10CBL RIBN 10COND 0.039 CLEAR 250' |
4,850 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 10 | 0.039" (1.00mm) | 250.0' (76.20m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 0.394" (10.00mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
|
304-28-60-MC-0300FCBL RIBN 60COND 0.05 MULTI 300' |
2,177 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 60 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
3709/60 300CBL RIBN 60COND 0.05 GRAY 300' |
3,338 |
|
数据手册 |
3709 | Bulk | Obsolete | Flat Cable | 60 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/40 100CBL RIBN 40COND 0.05 GRAY 50' |
1,161 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.130" (54.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
3517/50 100SFCBL RIBN 50COND 0.05 GRAY 50' |
2,789 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
2100/60TP 30MCBL RIBN 60COND TWIST PAIR 98.4' |
1,464 |
|
数据手册 |
2100 | Bulk | Obsolete | Flat Twisted Pair | 60 (30 Pair Twisted) | 0.050" (1.27mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 3.000" (76.20mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL Style 21008 | - |
|
|
3447/60-300CBL RIBN |
1,953 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3601/34 100CBL RIBN 34COND 0.05 BLUE 25' |
4,374 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 34 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.700" (43.18mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
1000570284CBL RIBN 36COND 0.025 NATU 500' |
3,012 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 36 | 0.025" (0.64mm) | 500.0' (152.40m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 0.900" (22.86mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
|
0082186008CBL RIBN 8COND 0.156 GRAY 100' |
4,939 |
|
数据手册 |
40174 | Bulk | Obsolete | Flat Cable | 8 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 7 Strands / 26 AWG | Unshielded | Gray | 0.071" (1.80mm) | 1.248" (31.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
|
7100309105HIGH FLEX LIFE CABLE 3250 SERIES |
2,658 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
303-28-60-MC-0300FCBL RIBN 60COND 0.039 MULTI 300' |
1,474 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 60 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
HF319/20 (300')CBL RIBN 20COND 0.05 GRAY 100' |
2,396 |
|
数据手册 |
HF319 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.000" (25.40mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|

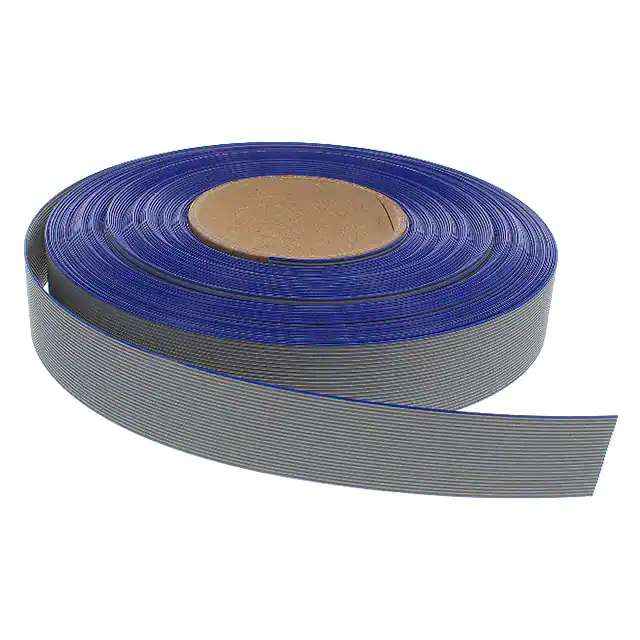

HF319/25 100CBL RIBN 25COND 0.05 GRAY 50' |
2,558 |
|
数据手册 |
HF319 | Bulk | Active | Flat Cable | 25 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.250" (31.75mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
0082245916CBL RIBN 16COND 0.1 GRAY 100' |
4,603 |
|
数据手册 |
8997 | Bulk | Obsolete | Flat Cable | 16 | 0.100" (2.54mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.044" (1.12mm) | 1.600" (40.64mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
