扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0082243427CBL RIBN 27COND 0.079 GRAY 100' |
1,880 |
|
数据手册 |
24473 | Bulk | Obsolete | Flat Cable | 27 | 0.079" (2.00mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 2.126" (54.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
310J101-50CBL RIBN 50COND 0.05 CLEAR 100' |
3,999 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 2.500" (63.50mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
1000570040CBL RIBN 60COND 0.05 BLUE 25' |
1,356 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 60 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 3.000" (76.20mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
1000570266CBL RIBN 50COND 0.025 NATU 500' |
1,782 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 50 | 0.025" (0.64mm) | 500.0' (152.40m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.250" (31.75mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
|
|
HF319/10SFCBL RIBN 10COND FLAT 0.05 GRAY |
3,846 |
|
数据手册 |
HF319 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | - | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | - | Splice Free |
|
|
303-28-47-MC-0300FCBL RIBN 47COND 0.039 MULTI 300' |
4,881 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 47 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
HF319/50 (100')CBL RIBN 50COND 0.05 GRAY 25' |
3,870 |
|
数据手册 |
HF319 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
3601/26 100CBL RIBN 26COND 0.05 BLUE 25' |
3,708 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 26 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3601/60 100CBL RIBN 60COND 0.05 BLUE 10' |
1,930 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 60 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 3.000" (76.20mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
3867/50 100CBL RIBN 100FT |
1,528 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

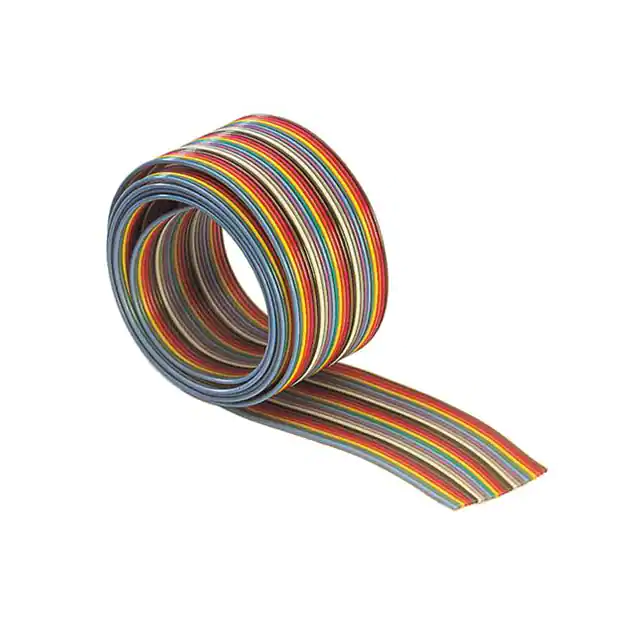

09180067005CBL RIBN 6COND 0.05 MULTI 100' |
4,849 |
|
数据手册 |
- | Bulk | Active | Flat Cable | 6 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Multiple | 0.037" (0.93mm) | 0.287" (7.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | - |
|
3625/50SF 100MCBL RIBN 50COND 0.039 GRAY 164' |
2,661 |
|
数据手册 |
3625 | Bulk | Active | Flat Cable | 50 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.969" (50.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/34 100SFCBL RIBN 34COND 0.05 GRAY 50' |
1,759 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.830" (46.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
9R28020 000100CBL RIBN 20COND 0.05 MULTI 100' |
3,810 |
|
数据手册 |
9R280XX | Box | Obsolete | Flat Cable | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.036" (0.91mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2884 | - |
|
1785/40 100SFCBL RIBN 40COND TWIST PAIR 50' |
4,777 |
|
数据手册 |
1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 2.130" (54.10mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
0082243428CBL RIBN 28COND 0.079 GRAY 100' |
3,455 |
|
数据手册 |
24473 | Bulk | Obsolete | Flat Cable | 28 | 0.079" (2.00mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 2.205" (56.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
|
304-28-47-MC-0300FCBL RIBN 47COND 0.05 MULTI 300' |
1,944 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 47 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
3609/16CBL RIBN |
2,356 |
|
数据手册 |
3609 | Spool | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SL8801/12-10DA5-00CBL RIBN 8COND 0.093 SILVER 250' |
4,946 |
|
数据手册 |
SL8800 | Bulk | Active | Flat Twin Axial | 8 (4 Pair) | 0.093" (2.37mm) Between Pairs | 250.0' (76.20m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.614" (15.60mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
8132/22 100CBL RIBN 22COND 0.156 GRAY 100' |
4,665 |
|
数据手册 |
8132 | Bulk | Obsolete | Flat Cable | 22 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 19 Strands / 30 AWG | Unshielded | Gray | 0.077" (1.96mm) | 3.372" (85.65mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL E42769 | Zippable |
