扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0082243421CBL RIBN 21COND 0.079 GRAY 100' |
2,132 |
|
数据手册 |
24473 | Bulk | Obsolete | Flat Cable | 21 | 0.079" (2.00mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.654" (42.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
304-28-37-MC-0250FCBL RIBN 37COND 0.05 MULTI 250' |
1,222 |
|
数据手册 |
- | Bulk | Obsolete | Flat Cable | 37 | 0.050" (1.27mm) | 250.0' (76.20m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
0082263022CBL RIBN 22COND 0.079 GRAY 100' |
2,715 |
|
数据手册 |
24463 | Bulk | Obsolete | Flat Cable | 22 | 0.079" (2.00mm) | 100.0' (30.48m) | 26 AWG | 19 Strands / 38 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.732" (43.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
HF625/26-100MCBL RIBN 26COND 0.039 GRY 229.7' |
4,908 |
|
数据手册 |
HF625 | Bulk | Active | Flat Cable | 26 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.024" (26.01mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
1000570036CBL RIBN 26COND 0.05 BLUE 50' |
3,395 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 26 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|

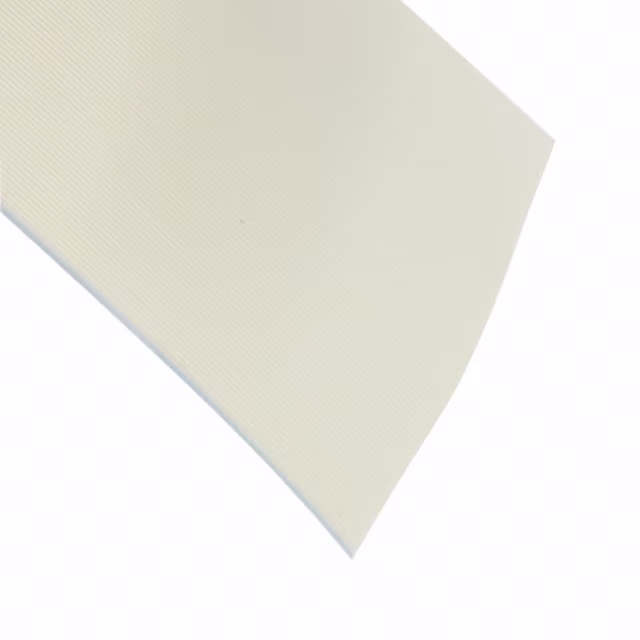

2049/100 100SFCBL RIBN 100COND 0.025 WHT 100' |
1,251 |
|
数据手册 |
2049 | Spool | Obsolete | Flat Cable | 100 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | White | 0.025" (0.64mm) | 2.500" (63.50mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free |
|
SL8803/04-10DN5-00CBL RIBN 4COND SILVER 500' |
3,072 |
|
数据手册 |
SL8800 | Bulk | Active | Flat Twin Axial | 4 (2 Pair) | - | 500.0' (152.40m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.307" (7.80mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL E42769 | - |
|
|
303-28-40-MC-0300FCBL RIBN 40COND 0.039 MULTI 300' |
2,605 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 40 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
3319/24 100CBL RIBN 24COND 0.05 BLACK 50' |
2,813 |
|
数据手册 |
3319 | Bulk | Active | Flat Cable | 24 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.200" (30.48mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
HF100/50TPCBL RIBN 50COND TWIST PAIR 50' |
1,248 |
|
数据手册 |
HF100 | Box | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.500" (63.50mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
|
3709/37 300CBL RIBN 37COND 0.05 GRAY 300' |
4,803 |
|
数据手册 |
3709 | Bulk | Obsolete | Flat Cable | 37 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | Solid | Unshielded | Gray | 0.033" (0.84mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
1000570039CBL RIBN 50COND 0.05 BLUE 25' |
3,270 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
1000570026CBL RIBN 60COND 0.025 NATU 25' |
4,941 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 60 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.500" (38.10mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
|
3603/20 150CBL RIBN |
1,898 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
304-28-40-MC-0300FCBL RIBN 40COND 0.05 MULTI 300' |
1,666 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
1700/34EP 299'CBL RIBN 34COND TWIST PAIR 299' |
1,637 |
|
数据手册 |
1700 | Bulk | Active | Flat Twisted Pair | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 299.0' (91.14m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 1.700" (43.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
|
3601/50 100CBL RIBN 50COND 0.05 BLUE 10' |
2,187 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3601/20 100CBL RIBN 20COND 0.05 BLUE 25' |
1,023 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 20 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
HF759/40SFCBL RIBN 40COND 0.05 GRAY 100' |
1,558 |
|
数据手册 |
HF759 | Box | Discontinued at Digi-Key | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 1.950" (49.53mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
3601/10 100CBL RIBN 10COND 0.05 BLUE 50' |
3,718 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
