扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
302-28-64-GR-0300FCBL RIBN 64COND 0.05 GRAY 300' |
2,089 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 64 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
2154027-1CBL RIBN 4COND 0.098 ORG 1000' |
4,216 |
|
数据手册 |
Nevalo | Bulk | Obsolete | Flat Cable | 4 | 0.098" (2.50mm) | 1000' (304.80m) | 24 AWG | - | Unshielded | Orange | - | - | Poly-Vinyl Chloride (PVC) | - | - | - | - | UL Style 2651 | - |
|
HF100/40TPCBL RIBN 40COND TWIST PAIR 50' |
1,813 |
|
数据手册 |
HF100 | Box | Active | Flat Twisted Pair | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.000" (50.80mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
1785/26 100SFCBL RIBN 26COND TWIST PAIR 50' |
3,418 |
|
数据手册 |
1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 26 (13 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 1.430" (36.32mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
0082245910CBL RIBN 10COND 0.1 GRAY 100' |
2,652 |
|
数据手册 |
8997 | Bulk | Obsolete | Flat Cable | 10 | 0.100" (2.54mm) | 100.0' (30.48m) | 24 AWG | 7 Strands / 32 AWG | Unshielded | Gray | 0.044" (1.12mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
|
HF759/30SFCBL RIBN 30COND 0.05 GRAY 100' |
2,005 |
|
数据手册 |
HF759 | Box | Obsolete | Flat Cable, Round Jacket | 30 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 1.450" (36.83mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
3517/20 100CBL RIBN 20COND 0.05 GRAY 50' |
1,072 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 20 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.130" (28.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
|
3319/30 100CBL RIBN 30COND 0.05 BLACK 25' |
2,342 |
|
数据手册 |
3319 | Bulk | Active | Flat Cable | 30 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Black | 0.035" (0.89mm) | 1.500" (38.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
0082226036CBL RIBN 36COND 0.1 GRAY 100' |
3,497 |
|
数据手册 |
8867 | Bulk | Obsolete | Flat Cable | 36 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Gray | 0.054" (1.37mm) | 3.600" (91.44mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
310J101-26CBL RIBN 26COND 0.05 CLEAR 100' |
1,458 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 26 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 1.300" (33.02mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
.jpg)
|
3302/50 300SFCBL RIBN 50COND 0.05 MULTI 100' |
3,801 |
|
数据手册 |
3302 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|

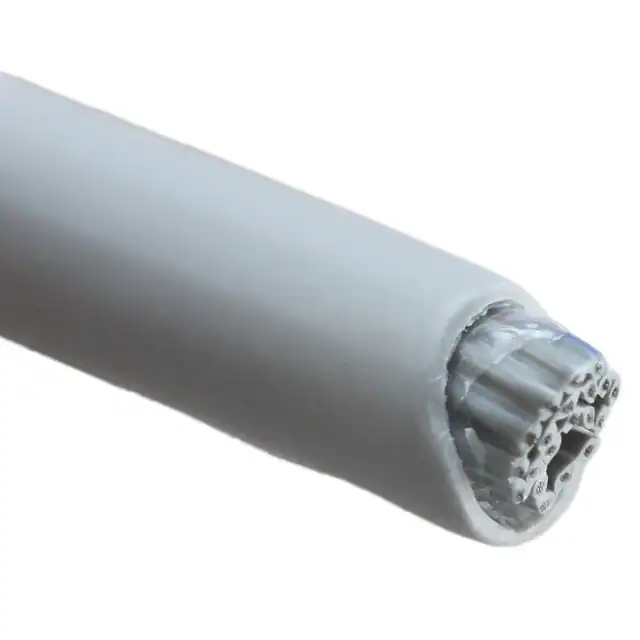

HF759/20SFCBL RIBN 20COND 0.05 GRAY 100' |
1,631 |
|
数据手册 |
HF759 | Box | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.950" (24.13mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
3365/37 300CBL RIBN 37COND 0.05 GRAY 300' |
3,754 |
|
数据手册 |
3365 | Spool | Active | Flat Cable | 37 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.850" (46.99mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
|
3758/24 275SFCBL RIBN 24COND 0.05 GRAY 275' |
4,877 |
|
数据手册 |
3758 | Spool | Obsolete | Flat Cable, Round Jacket | 24 | 0.050" (1.27mm) | 275.0' (83.82m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | - | 1.150" (29.21mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free, Zippable |
|
3849/96 100CBL RIBN 96COND 0.033 GRAY 50' |
4,122 |
|
数据手册 |
3849 | Bulk | Active | Flat Cable | 96 | 0.033" (0.85mm) | 50.0' (15.24m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Gray | 0.033" (0.84mm) | 3.197" (81.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Zippable |
|
3517/50 100SFCBL RIBN 50COND 0.05 GRAY 25' |
4,982 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 2.630" (66.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
HF625/24-100MCBL RIBN 24COND 0.039 GRY 229.7' |
3,543 |
|
数据手册 |
HF625 | Bulk | Active | Flat Cable | 24 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.945" (24.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
7700/50 100'SFCBL RIBN 50COND 0.025 SILVER 50' |
1,770 |
|
数据手册 |
7700 | Box | Discontinued at Digi-Key | Flat Cable | 50 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 1.300" (33.02mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
|
0082263020CBL RIBN 20COND 0.079 GRAY 100' |
1,222 |
|
数据手册 |
24463 | Bulk | Obsolete | Flat Cable | 20 | 0.079" (2.00mm) | 100.0' (30.48m) | 26 AWG | 19 Strands / 38 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
0082283044CBL RIBN 44COND 0.039 GRAY 100' |
3,799 |
|
数据手册 |
24500 | Bulk | Obsolete | Flat Cable | 44 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.031" (0.79mm) | 1.732" (43.99mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
