扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C1700/20TBCBL RIBN 20COND TWIST-PAIR .05 |
2,521 |
|
数据手册 |
- | Spool | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
HF319/14 100CBL RIBN 14COND 0.05 GRAY 50' |
2,138 |
|
数据手册 |
HF319 | Bulk | Active | Flat Cable | 14 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.700" (17.78mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
1780/20AFCBL RIBN CUSTOM CABLE |
2,126 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
666K101-26CBL RIBN 26COND 0.039 CLEAR 100' |
3,216 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 26 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | - | Unshielded | Clear | 0.035" (0.89mm) | 1.024" (26.01mm) | Flexx-Sil™ | 450 V | - | - | -65°C ~ 260°C | UL E324413, CE | - |
|
3365/25SFCBL RIBN 25COND 0.05 GRAY 500' |
4,702 |
|
数据手册 |
3365 | Spool | Obsolete | Flat Cable | 25 | 0.050" (1.27mm) | 500.0' (152.40m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
|
09180107008CBL RIBN 10COND 0.05 BLACK 100' |
4,862 |
|
数据手册 |
- | Bulk | Active | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 28 AWG | Unshielded | Black | 0.035" (0.89mm) | 0.500" (12.70mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | - | - |
|
3517/25 100SFCBL RIBN 25COND 0.05 GRAY 50' |
1,206 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 25 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.380" (35.05mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
3759/26 200SFCBL RIBN 26COND 0.05 BLACK 200' |
2,444 |
|
数据手册 |
3759 | Bulk | Obsolete | Flat Cable, Round Jacket | 26 | 0.050" (1.27mm) | 200.0' (60.96m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Splice Free, Zippable |
|
|
7700/26SFCBL RIBN |
3,603 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Splice Free |
.jpg)
|
1700/40 200CBL RIBN 40COND TWIST PAIR 200' |
1,684 |
|
数据手册 |
1700 | Bulk | Obsolete | Flat Twisted Pair | 40 (20 Pair Twisted) | 0.050" (1.27mm) | 200.0' (60.96m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | - |
|

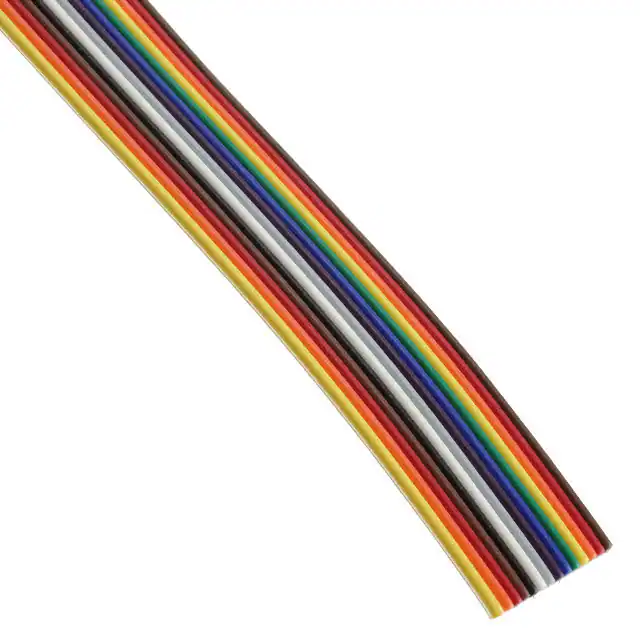

3583/14 MC005CBL RIBN 14COND 0.05 MULTI 100' |
4,613 |
|
数据手册 |
- | Spool | Obsolete | Flat Cable | 14 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.033" (0.84mm) | 0.700" (17.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20932 | - |
|
|
0082286181CBL RIBN 18COND 0.1 GRAY 100' |
1,011 |
|
数据手册 |
7767 | Bulk | Obsolete | Flat Cable | 18 | 0.100" (2.54mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.800" (45.72mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|
|
3365/30 300SFCBL RIBN |
2,219 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Splice Free |
|
|
3811/20 300'SFCBL RIBN 20COND 0.05 MULTI 300' |
3,061 |
|
数据手册 |
3811 | Spool | Obsolete | Flat Cable | 20 | 0.050" (1.27mm) | 300.0' (91.44m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 1.000" (25.40mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|

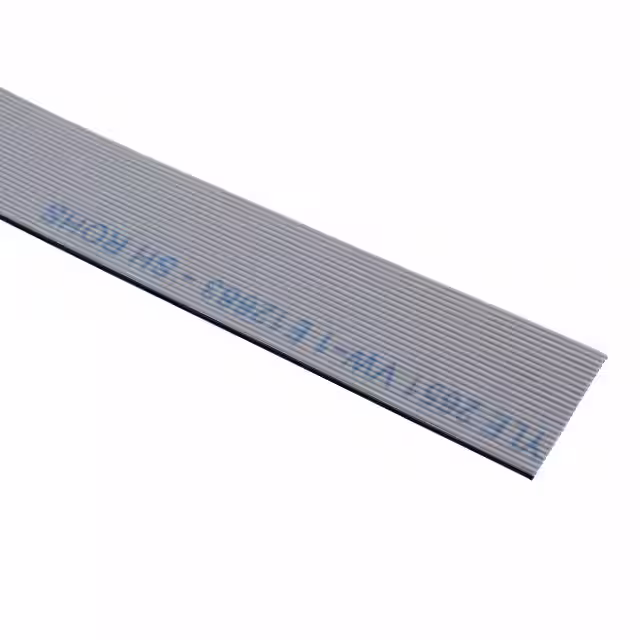

2L28026 008H100CBL RIBN 26COND 0.039 GRAY 100' |
3,647 |
|
数据手册 |
2L280XX | Box | Obsolete | Flat Cable | 26 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.020" (25.91mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -40°C ~ 105°C | UL Style 2651 | - |
|
|
0082286201CBL RIBN 20COND 0.1 GRAY 100' |
4,055 |
|
数据手册 |
7767 | Bulk | Obsolete | Flat Cable | 20 | 0.100" (2.54mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|
|
1000570265CBL RIBN 40COND 0.025 NATU 500' |
4,334 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 40 | 0.025" (0.64mm) | 500.0' (152.40m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 1.000" (25.40mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -65°C ~ 200°C | - | - |
.jpg)
|
3302/60 300SFCBL RIBN 60COND 0.05 MULTI 100' |
4,507 |
|
数据手册 |
3302 | Bulk | Active | Flat Cable | 60 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free, Zippable |
|
|
301-28-60-GR-0300FCBL RIBN 60COND 0.039 GRAY 300' |
4,534 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 60 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.039" (0.99mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
|
0082265815CBL RIBN 15COND 0.1 GRAY 100' |
4,146 |
|
数据手册 |
8996 | Bulk | Obsolete | Flat Cable | 15 | 0.100" (2.54mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Gray | 0.041" (1.04mm) | 1.500" (38.10mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
