扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AWG28-26/F-1/300CBL RIBN 26COND 0.039 MULTI 100' |
3,994 |
|
数据手册 |
AWG | Box | Discontinued at Digi-Key | Flat Cable | 26 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.024" (26.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
HF625/14-100MCBL RIBN 14COND 0.039 GRY 229.7' |
4,523 |
|
数据手册 |
HF625 | Bulk | Active | Flat Cable | 14 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.551" (14.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
1785/34 100SFCBL RIBN 34COND TWIST PAIR 25' |
1,637 |
|
数据手册 |
1785 | Bulk | Active | Flat Twisted Pair, Flat Jacket | 34 (17 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | 0.120" (3.05mm) | 1.830" (46.48mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
969M101-26-4CBL RIBN 4COND FLAT CLEAR 100' |
1,829 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 4 | - | 100.0' (30.48m) | 26 AWG | - | Unshielded | Clear | 0.090" (2.28mm) | 0.250" (6.35mm) | Flexx-Sil™ | 12 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
.jpg)
|
1700/60 100SFCBL RIBN 60COND TWIST PAIR 50' |
1,613 |
|
数据手册 |
1700 | Bulk | Active | Flat Twisted Pair | 60 (30 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 3.000" (76.20mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
|
2100/20TP 30MCBL RIBN 20COND TWIST PAIR 98.4' |
2,157 |
|
数据手册 |
2100 | Bulk | Obsolete | Flat Twisted Pair | 20 (10 Pair Twisted) | 0.050" (1.27mm) | 98.4' (30.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 1.000" (25.40mm) | Polyolefin (PO) | 150 V | - | - | -20°C ~ 80°C | UL Style 21008 | - |
|

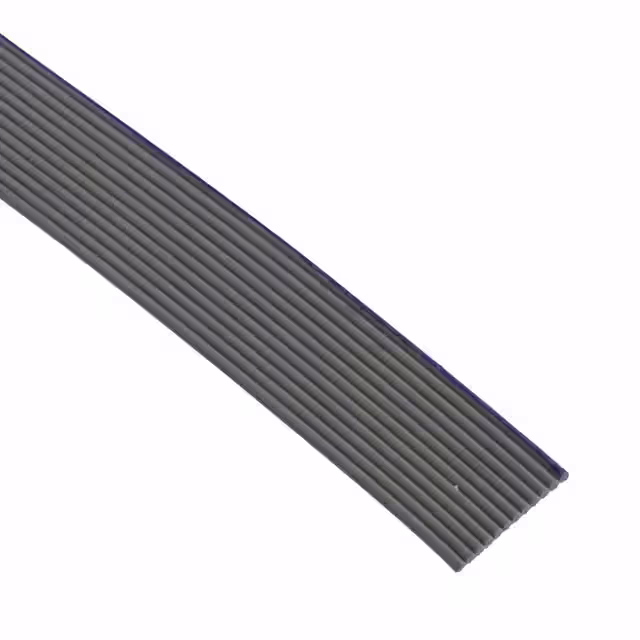

HF625/12-100MCBL RIBN 12COND 0.039 GRY 229.7' |
4,947 |
|
数据手册 |
HF625 | Bulk | Active | Flat Cable | 12 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.472" (11.99mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
|
C3811/40 100CBL RIBN 40COND 0.05 MULTI 100' |
1,264 |
|
数据手册 |
3811 | Spool | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 100.0' (30.48m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Multiple | 0.042" (1.07mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Zippable |
|
|
3896/80SF 275CBL RIBN 80COND 0.025 BLACK 25' |
2,478 |
|
数据手册 |
3896 | Bulk | Active | Flat Cable, Round Jacket | 80 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Black | - | 1.975" (50.17mm) | Poly-Vinyl Chloride (PVC) | 30 V | - | - | -20°C ~ 105°C | UL Style 20596 | Zippable |
|
3601/50 100CBL RIBN 50COND 0.05 BLUE 5' |
3,598 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 50 | 0.050" (1.27mm) | 5.0' (1.52m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 2.500" (63.50mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
3601/25 100CBL RIBN 25COND 0.05 BLUE 10' |
1,557 |
|
数据手册 |
3601 | Bulk | Discontinued at Digi-Key | Flat Cable | 25 | 0.050" (1.27mm) | 10.0' (3.05m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 1.250" (31.75mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
HF625/20-100MCBL RIBN 20COND 0.039 GRAY 164' |
3,992 |
|
数据手册 |
HF625 | Bulk | Active | Flat Cable | 20 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.787" (20.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
AWG28-50/F-1/300CBL RIBN 50COND 0.039 MULTI 50' |
2,291 |
|
数据手册 |
AWG | Box | Discontinued at Digi-Key | Flat Cable | 50 | 0.039" (1.00mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.969" (50.01mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
HF759/10SFCBL RIBN 10COND 0.05 GRAY 100' |
2,480 |
|
数据手册 |
HF759 | Box | Discontinued at Digi-Key | Flat Cable, Round Jacket | 10 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 0.450" (11.43mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
3601/10 100CBL RIBN 10COND 0.05 BLUE 25' |
4,528 |
|
数据手册 |
3601 | Bulk | Active | Flat Cable | 10 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | 0.029" (0.74mm) | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
SL8802/04-50DN5-00CBL RIBN 4COND 0.093 SILVER 50' |
2,199 |
|
数据手册 |
SL8800 | Bulk | Active | Flat Twin Axial | 4 (2 Pair) | 0.093" (2.37mm) Between Pairs | 50.0' (15.24m) | 30 AWG | Solid | Shielded | Silver | 0.035" (0.89mm) | 0.266" (6.75mm) | Polyolefin (PO) | 150 V | - | - | - | UL E42769 | - |
|
|
1000610130CBL RIBN 2COND FLAT BLUE 100' |
4,413 |
|
数据手册 |
Temp-Flex 100061 | Spool | Obsolete | Flat Cable | 2 | - | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Blue | 0.044" (1.12mm) | 0.084" (2.13mm) | Fluorinated Ethylene-Propylene (FEP) | - | - | - | - | UL Style 21065 | - |
|
HF100/50TPCBL RIBN 50COND TWIST PAIR 25' |
2,469 |
|
数据手册 |
HF100 | Box | Active | Flat Twisted Pair | 50 (25 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 2.500" (63.50mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
1000570028CBL RIBN 80COND 0.025 NATU 10' |
2,105 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 80 | 0.025" (0.64mm) | 10.0' (3.05m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | Natural | - | 2.000" (50.80mm) | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 200°C | UL Style 20726 | - |
|
HF759/34SFCBL RIBN 34COND 0.05 GRAY 50' |
2,119 |
|
数据手册 |
HF759 | Box | Discontinued at Digi-Key | Flat Cable, Round Jacket | 34 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | - | 1.650" (41.91mm) | Polyolefin (PO) | 150 V | - | - | -10°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
