扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
3659/37 100CBL RIBN 37COND 0.05 BLACK 50' |
3,155 |
|
数据手册 |
3659 | Bulk | Active | Flat Cable, Round Jacket | 37 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.800" (45.72mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
304-28-25-MC-0300FCBL RIBN 25COND 0.05 MULTI 300' |
1,153 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 25 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 1.250" (31.75mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
1000570094CBL RIBN 10COND 0.05 GREEN 500' |
3,302 |
|
数据手册 |
Temp-Flex 100057 | Spool | Active | Flat Cable | 10 | 0.050" (1.27mm) | 500.0' (152.40m) | 26 AWG | 7 Strands / 34 AWG | Unshielded | Green | 0.032" (0.81mm) | 0.500" (12.70mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | 200°C | - | - |
|
3625/30 100MSFCBL RIBN 30COND 0.039 GRAY 164' |
4,049 |
|
数据手册 |
3625 | Bulk | Active | Flat Cable | 30 | 0.039" (1.00mm) | 164.0' (50.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 1.181" (30.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 2651 | Splice Free, Zippable |
.jpg)
|
1700/64 100SFCBL RIBN 64COND TWIST PAIR 50' |
1,342 |
|
数据手册 |
1700 | Bulk | Active | Flat Twisted Pair | 64 (32 Pair Twisted) | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.080" (2.03mm) | 3.200" (81.28mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20462 | Splice Free |
|
|
301-28-40-GR-0300FCBL RIBN 40COND 0.039 GRAY 300' |
1,561 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 40 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.039" (0.99mm) | 1.575" (40.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
.jpg)
|
3659/40 100CBL RIBN 40COND 0.05 BLACK 50' |
2,780 |
|
数据手册 |
3659 | Bulk | Active | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.950" (49.53mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Zippable |
|
3517/15 100SFCBL RIBN 15COND 0.05 GRAY 50' |
4,217 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 15 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.880" (22.35mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
|
303-28-25-MC-0300FCBL RIBN 25COND 0.039 MULTI 300' |
3,747 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 25 | 0.039" (1.00mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.984" (25.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
79100-075-4F1CBL RIBN 4COND 0.1 MULTIPLE 164' |
1,083 |
|
数据手册 |
79100 | Box | Obsolete | Flat Cable | 4 | 0.100" (2.54mm) | 164.0' (50.00m) | 19 AWG | 30 Strands / 33 AWG | Unshielded | Multiple | 0.100" (2.54mm) | 0.394" (10.00mm) | Poly-Vinyl Chloride (PVC) | - | - | - | - | UL E118773-K | - |
|
|
302-28-44-GR-0300FCBL RIBN 44COND 0.05 GRAY 300' |
1,174 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 44 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | - | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
|
3659/40 100SFCBL RIBN 40COND 0.05 BLACK 50' |
1,622 |
|
数据手册 |
3659 | Bulk | Active | Flat Cable, Round Jacket | 40 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Black | - | 1.950" (49.53mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL Style 20267 | Splice Free, Zippable |
|
3609/12 100CBL RIBN 12COND 0.025 WHITE 25' |
3,588 |
|
数据手册 |
3609 | Bulk | Active | Flat Cable | 12 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | 7 Strands / 38 AWG | Unshielded | White | 0.024" (0.61mm) | - | Fluorinated Ethylene-Propylene (FEP) | 150 V | - | - | -55°C ~ 150°C | UL Style 20726 | - |
|

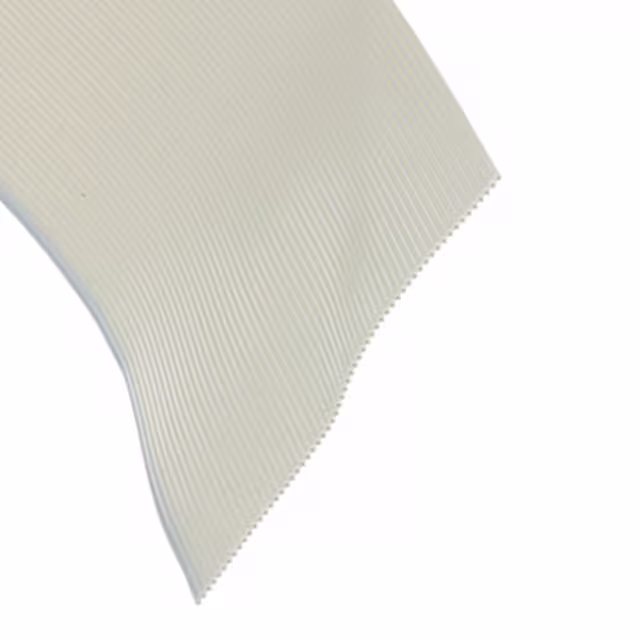

2049/60 100SFCBL RIBN 60COND 0.025 WHITE 100' |
4,074 |
|
数据手册 |
2049 | Spool | Obsolete | Flat Cable | 60 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | White | 0.025" (0.64mm) | 1.501" (38.12mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free |
|
|
2010/16 300CBL RIBN 16COND 0.05 WHITE 300' |
4,605 |
|
数据手册 |
2010 | Bulk | Obsolete | Flat Cable | 16 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | White | 0.035" (0.89mm) | 0.800" (20.32mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Zippable |
|
3759/20 300CBL RIBN 20COND 0.05 BLACK 100' |
4,985 |
|
数据手册 |
3759 | Bulk | Active | Flat Cable, Round Jacket | 20 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Black | - | 0.950" (24.13mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 20267 | Zippable |
|
3517/24 100SFCBL RIBN 24COND 0.05 GRAY 25' |
1,805 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 24 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 1.330" (33.78mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
1000570032CBL RIBN 15COND 0.05 BLUE 50' |
2,212 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 15 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 0.750" (19.05mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
0082186003CBL RIBN 3COND 0.156 GRAY 100' |
4,643 |
|
数据手册 |
40174 | Bulk | Obsolete | Flat Cable | 3 | 0.156" (3.96mm) | 100.0' (30.48m) | 18 AWG | 7 Strands / 26 AWG | Unshielded | Gray | 0.071" (1.80mm) | 0.468" (11.89mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
HF447/40 100'CBL RIBN 40COND 0.025 GRAY 50' |
3,580 |
|
数据手册 |
HF447 | Box | Active | Flat Cable | 40 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 1.000" (25.40mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
