扁平排线
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电缆类型 | 导体数量 | 间距 | 长度 | 线规 | 导体股数 | 屏蔽 | 护套颜色 | 带材厚度 | 带材宽度 | 护套（绝缘）材料 | 电压 | 工作温度 | 额定值 | 特性 | 额定值 | 端接方式 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

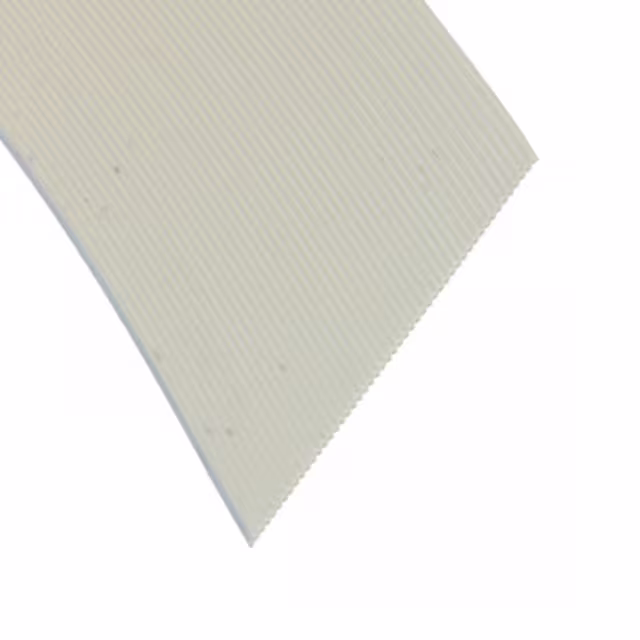

2049/50 100SFCBL RIBN 50COND 0.025 WHITE 100' |
1,870 |
|
数据手册 |
2049 | Spool | Obsolete | Flat Cable | 50 | 0.025" (0.64mm) | 100.0' (30.48m) | 30 AWG | Solid | Unshielded | White | 0.025" (0.64mm) | 1.250" (31.75mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 105°C | UL Style 20930 | Splice Free |
|
0082243412CBL RIBN 12COND 0.079 GRAY 100' |
2,885 |
|
数据手册 |
24473 | Bulk | Obsolete | Flat Cable | 12 | 0.079" (2.00mm) | 100.0' (30.48m) | 24 AWG | 19 Strands / 36 AWG | Unshielded | Gray | 0.041" (1.04mm) | 0.945" (24.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
3517/10 100SFCBL RIBN 10COND 0.05 GRAY 50' |
3,818 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 10 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.630" (16.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | Splice Free |
|
8132/08 100CBL RIBN 8COND 0.156 GRAY 50' |
1,433 |
|
数据手册 |
8132 | Bulk | Active | Flat Cable | 8 | 0.156" (3.96mm) | 50.0' (15.24m) | 18 AWG | 19 Strands / 30 AWG | Unshielded | Gray | 0.077" (1.96mm) | 1.188" (30.18mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL E42769 | Zippable |
|
|
0082226006CBL RIBN 6COND 0.1 GRAY 100' |
2,714 |
|
数据手册 |
8867 | Bulk | Obsolete | Flat Cable | 6 | 0.100" (2.54mm) | 100.0' (30.48m) | 22 AWG | 7 Strands / 30 AWG | Unshielded | Gray | 0.054" (1.37mm) | 0.600" (15.24mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 105°C | UL E61522 | - |
|
AWG28-24/F-1/300CBL RIBN 24COND 0.039 MULTI 100' |
4,270 |
|
数据手册 |
AWG | Box | Active | Flat Cable | 24 | 0.039" (1.00mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Multiple | 0.035" (0.89mm) | 0.945" (24.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
7700/50 100'SFCBL RIBN 50COND 0.025 SILVER 25' |
4,208 |
|
数据手册 |
7700 | Box | Discontinued at Digi-Key | Flat Cable | 50 | 0.025" (0.64mm) | 25.0' (7.62m) | 30 AWG | Solid | Unshielded | Silver | 0.030" (0.76mm) | 1.300" (33.02mm) | Polyolefin (PO) | 30 V | - | - | -20°C ~ 80°C | - | Splice Free |
|
302-28-40-GR-0300FCBL RIBN 40COND 0.05 GRAY 300' |
3,231 |
|
数据手册 |
- | Box | Obsolete | Flat Cable | 40 | 0.050" (1.27mm) | 300.0' (91.44m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.000" (50.80mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | 105°C | UL Style 2651 | - |
|
AWG28-50/G/300CBL RIBN 50COND 0.05 GRAY 100' |
2,531 |
|
数据手册 |
AWG | Bulk | Discontinued at Digi-Key | Flat Cable | 50 | 0.050" (1.27mm) | 100.0' (30.48m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -10°C ~ 105°C | UL Style 2651 | - |
|
HF625/22-100MCBL RIBN 22COND 0.039 GRY 229.7' |
1,964 |
|
数据手册 |
HF625 | Bulk | Obsolete | Flat Cable | 22 | 0.039" (1.00mm) | 229.7' (70.00m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.866" (22.00mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF365/50SFCBL RIBN 50COND 0.05 GRAY 50' |
1,227 |
|
数据手册 |
HF365 | Box | Active | Flat Cable | 50 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Splice Free, Zippable |
|
HF659/16SFCBL RIBN 16COND 0.05 GRAY 50' |
3,243 |
|
数据手册 |
HF659 | Box | Active | Flat Cable, Round Jacket | 16 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | - | 0.750" (19.05mm) | Polyolefin (PO) | 150 V | - | - | -15°C ~ 75°C | UL Style 22170 | Splice Free, Zippable |
|
969M101-22-2CBL RIBN 2COND FLAT CLEAR 100' |
3,535 |
|
数据手册 |
- | Bulk | Discontinued at Digi-Key | Flat Cable | 2 | - | 100.0' (30.48m) | 22 AWG | - | Unshielded | Clear | 0.110" (2.79mm) | 0.180" (4.57mm) | Flexx-Sil™ | 18 kV | - | - | -65°C ~ 165°C | UL E324413, CE | Hi-Flex |
|
HF539/50CBL RIBN 50COND 0.05 GRAY 25' |
2,945 |
|
数据手册 |
HF539 | Box | Active | Flat Cable | 50 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 2.500" (63.50mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF100/16TPCBL RIBN 16COND TWIST PAIR 25' |
3,123 |
|
数据手册 |
HF100 | Box | Active | Flat Twisted Pair | 16 (8 Pair Twisted) | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue, White | 0.070" (1.78mm) | 0.800" (20.32mm) | Polyolefin (PO) | 150 V | - | - | -40°C ~ 105°C | UL Style 21008 | - |
|
1000570036CBL RIBN 26COND 0.05 BLUE 25' |
1,780 |
|
数据手册 |
Temp-Flex 100057 | Spool | Discontinued at Digi-Key | Flat Cable | 26 | 0.050" (1.27mm) | 25.0' (7.62m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Blue | - | 1.300" (33.02mm) | Fluorinated Ethylene-Propylene (FEP) | 300 V | - | - | -55°C ~ 200°C | UL Style 20424 | - |
|
|
HF319/10 (300')CBL RIBN 10COND 0.05 GRAY 50' |
2,530 |
|
数据手册 |
HF319 | Bulk | Discontinued at Digi-Key | Flat Cable | 10 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 19 Strands / 40 AWG | Unshielded | Gray | 0.035" (0.89mm) | 0.500" (12.70mm) | Polyolefin (PO) | 300 V | - | - | -40°C ~ 105°C | UL Style 21682 | Zippable |
|
HF447/36 100'CBL RIBN 36COND 0.025 GRAY 50' |
2,309 |
|
数据手册 |
HF447 | Box | Active | Flat Cable | 36 | 0.025" (0.64mm) | 50.0' (15.24m) | 30 AWG | Solid | Unshielded | Gray | 0.025" (0.64mm) | 0.900" (22.86mm) | Ethylene Vinyl Acetate Copolymer (EVA), Polyolefin (PO) | 150 V | - | - | -40°C ~ 90°C | - | - |
|
82-28-3050CBL RIBN 50COND 0.039 GRAY 50' |
2,959 |
|
数据手册 |
24500 | Bulk | Obsolete | Flat Cable | 50 | 0.039" (1.00mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Unshielded | Gray | 0.031" (0.79mm) | 1.969" (50.01mm) | Poly-Vinyl Chloride (PVC) | 150 V | - | - | -20°C ~ 105°C | UL E61522 | Zippable |
|
|
3517/10 100CBL RIBN 10COND 0.05 GRAY 50' |
2,867 |
|
数据手册 |
3517 | Bulk | Active | Flat Cable, Flat Jacket | 10 | 0.050" (1.27mm) | 50.0' (15.24m) | 28 AWG | 7 Strands / 36 AWG | Shielded | Gray | 0.110" (2.79mm) | 0.630" (16.00mm) | Poly-Vinyl Chloride (PVC) | 300 V | - | - | -20°C ~ 80°C | UL Style 2912 | - |
