固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
B82422T1682K000FIXED IND 6.8UH 180MA 1.8OHM SMD EPCOS - TDK Electronics |
28,000 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 180 mA | - | Unshielded | 1.8Ohm Max | 27 @ 7.96MHz | 40MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
B82144F1105J000FIXED IND 1MH 280MA 4.2OHM TH EPCOS - TDK Electronics |
12,739 |
|
数据手册 |
B82144F1 | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±5% | 280 mA | - | Unshielded | 4.2Ohm Max | 60 @ 252kHz | 2.2MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82496C3470G000FIXED IND 47NH 270MA 950MOHM SMD EPCOS - TDK Electronics |
10,664 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±2% | 270 mA | - | Unshielded | 950mOhm Max | 14 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3180G000FIXED IND 18NH 400MA 450MOHM SMD EPCOS - TDK Electronics |
7,676 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±2% | 400 mA | - | Unshielded | 450mOhm Max | 14 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|

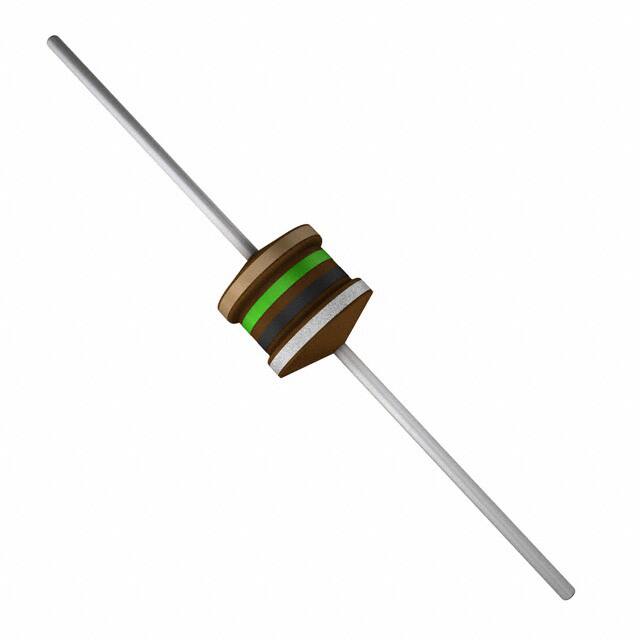

B82144F2153K000FIXED IND 15UH 2.3A 0.14OHM TH EPCOS - TDK Electronics |
2,282 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 2.3 A | 2.4A | Unshielded | 140mOhm Max | 50 @ 252kHz | 13MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
|
B82496C3220G000FIXED IND 22NH 380MA 500MOHM SMD EPCOS - TDK Electronics |
26,249 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±2% | 380 mA | - | Unshielded | 500mOhm Max | 14 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3560G000FIXED IND 56NH 250MA 1.2 OHM SMD EPCOS - TDK Electronics |
17,463 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±2% | 250 mA | - | Unshielded | 1.2Ohm Max | 35 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 150°C | 800 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82422T1103J000FIXED IND 10UH 150MA 2.1 OHM SMD EPCOS - TDK Electronics |
12,879 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 150 mA | - | Unshielded | 2.1Ohm Max | 27 @ 2.52MHz | 30MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1222K000FIXED IND 2.2UH 320MA 800MOHM SM EPCOS - TDK Electronics |
12,085 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 320 mA | - | Unshielded | 800mOhm Max | 30 @ 7.96MHz | 100MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82496C3129Z000FIXED IND 1.2NH 1.8A 25 MOHM SMD EPCOS - TDK Electronics |
10,563 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.2 nH | ±0.2nH | 1.8 A | - | Unshielded | 25mOhm Max | 8 @ 100MHz | 15GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
