固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82496C3330G000FIXED IND 33NH 350MA 600MOHM SMD EPCOS - TDK Electronics |
7,693 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 33 nH | ±2% | 350 mA | - | Unshielded | 600mOhm Max | 14 @ 100MHz | 3GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|
|
B82496C3279Z000FIXED IND 2.7NH 1.4A 40 MOHM SMD EPCOS - TDK Electronics |
2,608 |
|
数据手册 |
SIMID | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±0.2nH | 1.4 A | - | Unshielded | 40mOhm Max | 14 @ 100MHz | 10GHz | AEC-Q200 | -55°C ~ 150°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.035" (0.90mm) |
|

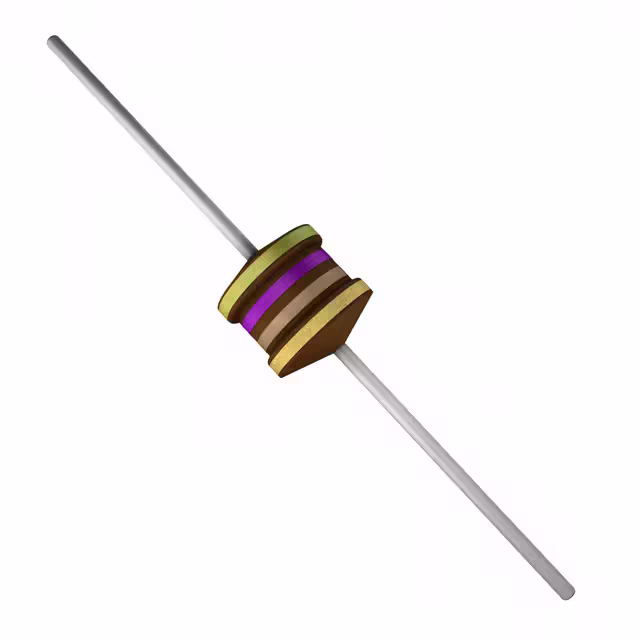

B82144F2474J000FIXED IND 470UH 600MA 2.02OHM TH EPCOS - TDK Electronics |
26,322 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±5% | 600 mA | 440mA | Unshielded | 2.02Ohm Max | 40 @ 79.6kHz | 2.3MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
.jpg)
|
B82422T1102J000FIXED IND 1UH 400MA 600 MOHM SMD EPCOS - TDK Electronics |
7,990 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 400 mA | - | Unshielded | 600mOhm Max | 30 @ 7.96MHz | 300MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1472K000FIXED IND 4.7UH 220MA 1.5OHM SMD EPCOS - TDK Electronics |
23,764 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 220 mA | - | Unshielded | 1.5Ohm Max | 30 @ 7.96MHz | 50MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1152K100FIXED IND 1.5UH 340MA 500MOHM SM EPCOS - TDK Electronics |
16,141 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 340 mA | - | Unshielded | 500mOhm Max | 20 @ 7.96MHz | 270MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1223K000FIXED IND 22UH 110MA 3.5 OHM SMD EPCOS - TDK Electronics |
12,906 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 110 mA | - | Unshielded | 3.5Ohm Max | 27 @ 2.52MHz | 20MHz | AEC-Q200 | -55°C ~ 125°C | 2.52 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1332K000FIXED IND 3.3UH 260MA 1.2OHM SMD EPCOS - TDK Electronics |
7,830 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 260 mA | - | Unshielded | 1.2Ohm Max | 30 @ 7.96MHz | 60MHz | AEC-Q200 | -55°C ~ 125°C | 7.96 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422T1471K000FIXED IND 470NH 450MA 300MOHM SM EPCOS - TDK Electronics |
6,674 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±10% | 450 mA | - | Unshielded | 300mOhm Max | 30 @ 25.2MHz | 400MHz | AEC-Q200 | -55°C ~ 125°C | 25.2 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A1153K100FIXED IND 15UH 165MA 1.85OHM SMD EPCOS - TDK Electronics |
5,000 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 165 mA | - | Unshielded | 1.85Ohm Max | 27 @ 2.52MHz | 20MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
