固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108S1183K000FIXED IND 18UH 580MA 670 MOHM TH EPCOS - TDK Electronics |
7,727 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 580 mA | - | Unshielded | 670mOhm Max | 60 @ 2.52MHz | 17MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

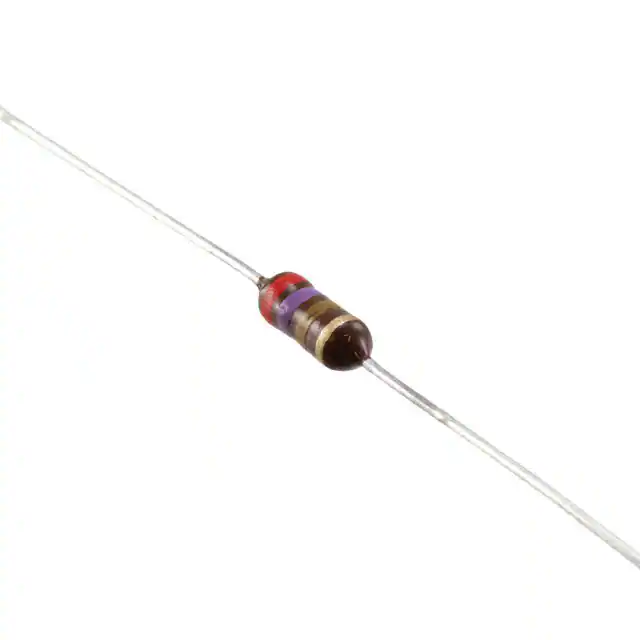

B78108S1274J000FIXED IND 270UH 200MA 5.7 OHM TH EPCOS - TDK Electronics |
3,108 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±5% | 200 mA | - | Unshielded | 5.7Ohm Max | 70 @ 796kHz | 2.8MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1152K000FIXED IND 1.5UH 1.1A 200 MOHM TH EPCOS - TDK Electronics |
2,764 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±10% | 1.1 A | - | Unshielded | 200mOhm Max | 55 @ 7.96MHz | 165MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1824J000FIXED IND 820UH 140MA 12 OHM TH EPCOS - TDK Electronics |
56,326 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 µH | ±5% | 140 mA | - | Unshielded | 12Ohm Max | 50 @ 796kHz | 1.6MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1823J000FIXED IND 82UH 390MA 1.54 OHM TH EPCOS - TDK Electronics |
33,230 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±5% | 390 mA | - | Unshielded | 1.54Ohm Max | 35 @ 2.52MHz | 6MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

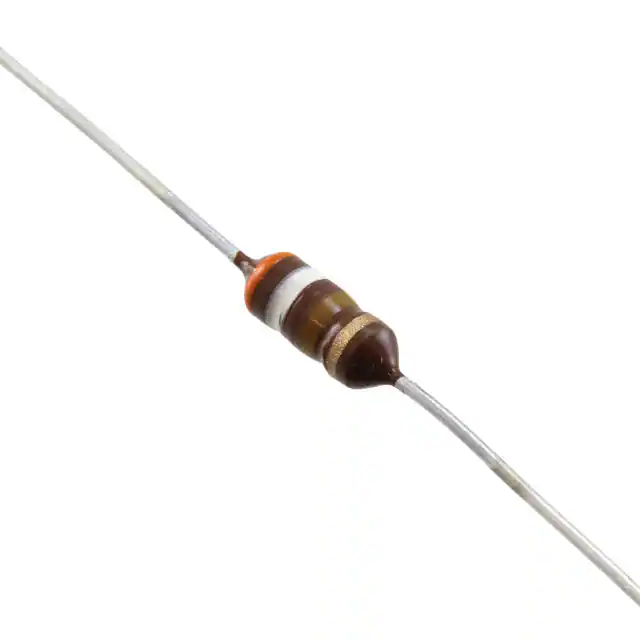

B78108S1394J000FIXED IND 390UH 180MA 7 OHM TH EPCOS - TDK Electronics |
18,470 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 180 mA | - | Unshielded | 7Ohm Max | 70 @ 796kHz | 2.4MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

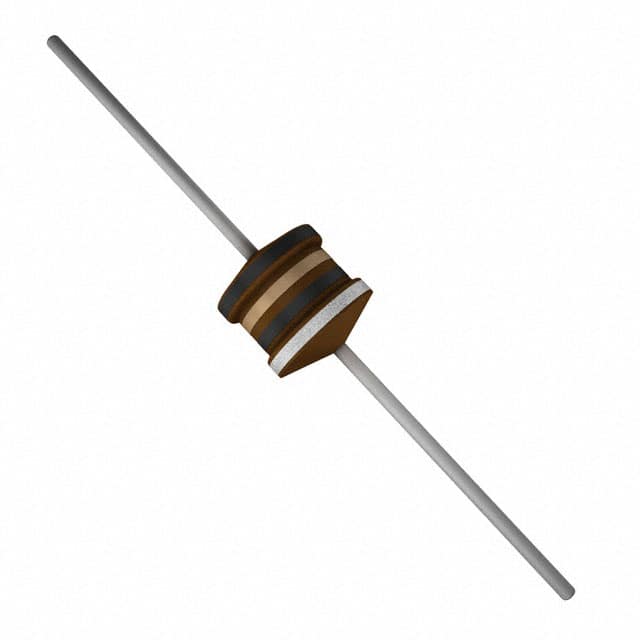

B78108E1102K000FIXED IND 1UH 4.15A 38 MOHM TH EPCOS - TDK Electronics |
10,434 |
|
数据手册 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±10% | 4.15 A | 5.8A | Unshielded | 38mOhm Max | 60 @ 7.96MHz | 260MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108S1124J000FIXED IND 120UH 300MA 2.4 OHM TH EPCOS - TDK Electronics |
5,577 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 300 mA | - | Unshielded | 2.4Ohm Max | 70 @ 796kHz | 4.5MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1102J000FIXED IND 1UH 1.2A 160 MOHM TH EPCOS - TDK Electronics |
4,747 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 1.2 A | - | Unshielded | 160mOhm Max | 55 @ 7.96MHz | 205MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108S1184J000FIXED IND 180UH 270MA 3 OHM TH EPCOS - TDK Electronics |
4,377 |
|
数据手册 |
BC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 270 mA | - | Unshielded | 3Ohm Max | 70 @ 796kHz | 3.9MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
