固定电感器
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

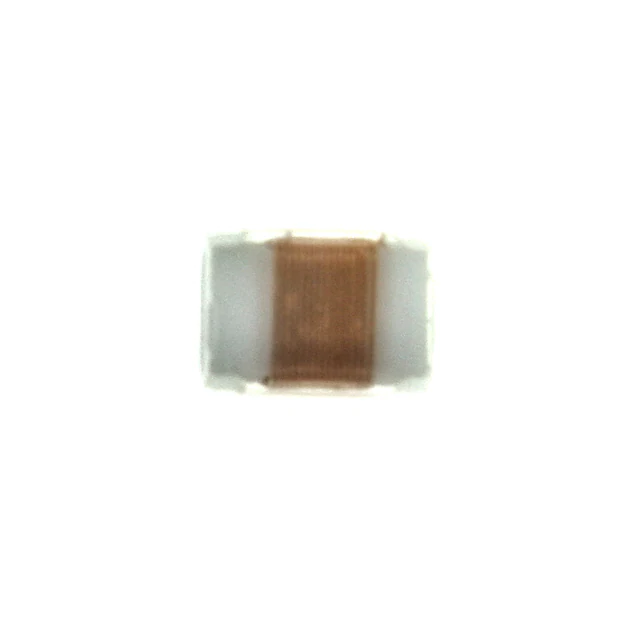

B82498F3221J000FIXED IND 220NH 320MA 700MOHM SM EPCOS - TDK Electronics |
9,459 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 220 nH | ±5% | 320 mA | - | Unshielded | 700mOhm Max | 45 @ 250MHz | 950MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|

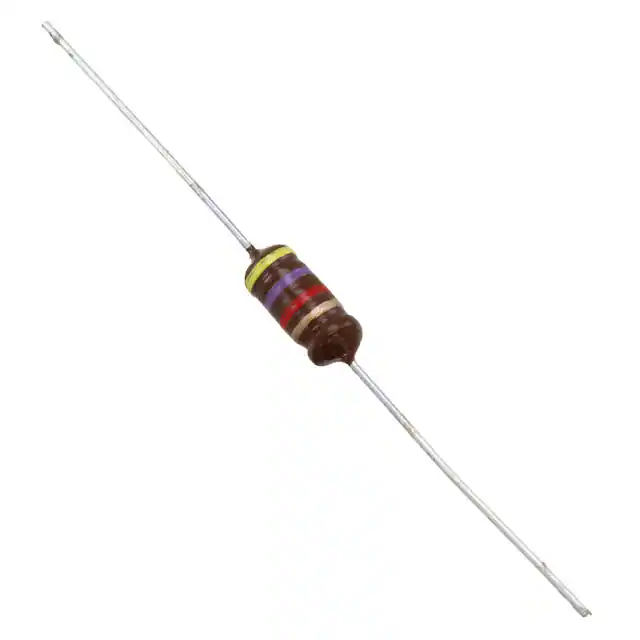

B82144A2475J000FIXED IND 4.7MH 90MA 20 OHM TH EPCOS - TDK Electronics |
6,431 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±5% | 90 mA | - | Unshielded | 20Ohm Max | 60 @ 252kHz | 500kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82498F3561J000FIXED IND 560NH 230MA 1.3OHM SMD EPCOS - TDK Electronics |
6,174 |
|
数据手册 |
SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 560 nH | ±5% | 230 mA | - | Unshielded | 1.3Ohm Max | 23 @ 50MHz | 400MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82144F2223K000FIXED IND 22UH 2.1A 0.175OHM TH EPCOS - TDK Electronics |
4,471 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.1 A | 2A | Unshielded | 175mOhm Max | 50 @ 252kHz | 10MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82144A2226J000FIXED IND 22MH 40MA 120 OHM TH EPCOS - TDK Electronics |
3,989 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 mH | ±5% | 40 mA | - | Unshielded | 120Ohm Max | 50 @ 79.6kHz | 260kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82141A1223K000FIXED IND 22UH 335MA 900 MOHM TH EPCOS - TDK Electronics |
17,164 |
|
数据手册 |
SBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 335 mA | - | Unshielded | 900mOhm Max | 55 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.118" Dia x 0.268" L (3.00mm x 6.80mm) | - |
|
B82144F2104J000FIXED IND 100UH 1.3A 0.46OHM TH EPCOS - TDK Electronics |
6,328 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 1.3 A | 950mA | Unshielded | 460mOhm Max | 40 @ 79.6kHz | 5.4MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

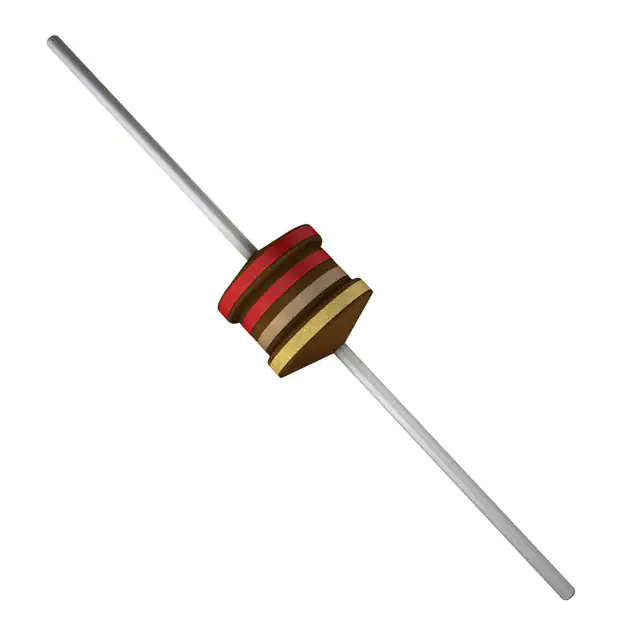

B82144F2224J000FIXED IND 220UH 900MA 1.01OHM TH EPCOS - TDK Electronics |
3,998 |
|
数据手册 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 900 mA | 650mA | Unshielded | 1.01Ohm Max | 40 @ 79.6kHz | 3.6MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82145A1104J000FIXED IND 100UH 860MA 700MOHM TH EPCOS - TDK Electronics |
3,846 |
|
数据手册 |
HLBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 860 mA | - | Unshielded | 700mOhm Max | 50 @ 796kHz | 3.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.472" L (6.50mm x 12.00mm) | - |
|
B82432T1332K000FIXED IND 3.3UH 900MA 190MOHM SM EPCOS - TDK Electronics |
19,243 |
|
数据手册 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 900 mA | - | Unshielded | 190mOhm Max | 10 @ 7.96MHz | 50MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | 1812 (4532 Metric) | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
